The Allis Chalmers HD5 crawler dozer and HD5G
crawler loaders used the same steering clutches. They originally used qty 10 each of
the fiber and qty 10 each of the steel discs. You can repair your clutches with either the
original fiber discs or upgrade your clutches with bimetallic discs, which give longer
life and are less prone to bonding to the steel discs and seizing up your clutch
pack. You certainly will not break any teeth off of the bimetallic discs! We
also can provide the new springs for your steering clutches.
To make the upgrade and conversion to the bimetallic friction discs, you need qty 12
bimetallic discs and 12 steel plates. If your steel plates are good, you only need to
purchase two steel plates to go with the 12 bimetallic discs per clutch.
Upgrading to the bimetallic disc pack does cost
more and you are the only one that can make the decision between the two different styles
of clutch packs. For some people the labor and inconvenience involved in future
steering clutch repair is not a consideration, while for others it is very important. For
less than a $250 difference in cost, you will end up with a superior clutch, much
fewer headaches, and less labor in the future if you convert to the BiMetallic discs.
ORDERING INFO:
 We can
usually ship on the same day any items we have in stock that do not have to be pulled from
a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
Al items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
CLUTCH PACK OPTIONS

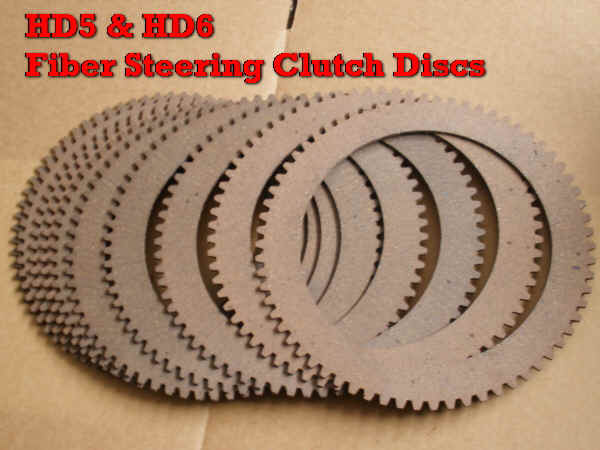

(10) FIBER FRICTION AND (10)
STEEL PLATES = $390.00
(12) BIMETALLIC FRICTIONS AND (12) STEEL PLATES = $636.00
Fiber Friction Discs ...new
after market 18.00 ea
044585--->066360
044478 (70044478)

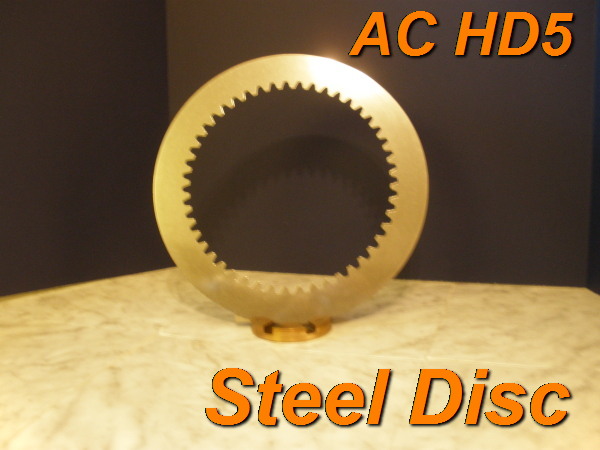

 Steel separator plates
041781 --->
70624562... 21.00
ea

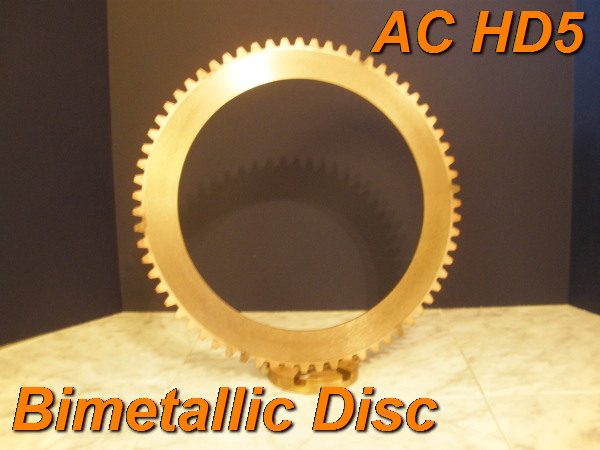

Bimetallic Friction discs 70609699--->057375 (70057375) 32.00
ea
Because the 050440 or 70050440 steering
clutch throw-out bearings were getting s-o-o-o-o expensive, and because pulling and
re-installing these steering clutches a second time is rarely a fun project, we bought a
volume of these bearings so you would not have to cut corners. Now, at $45.00 ea,
you do not have to re-use marginal bearings.
 Steering Clutch Throw-out bearing 050440
(70050440) p/n new $45.00
 Steering Clutch Throw-out Bearing Cage P/N 050249--->70050249
new $145.00

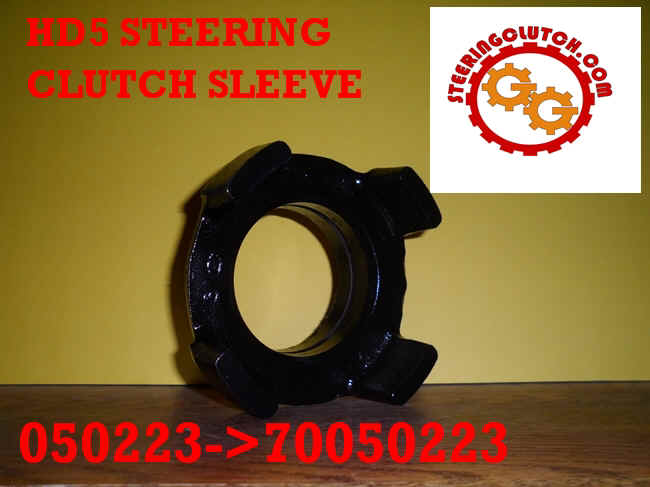

 Steering Clutch Throw-out Bearing 050223
--->70050223
SLEEVE ..NEW...$165.00 EA

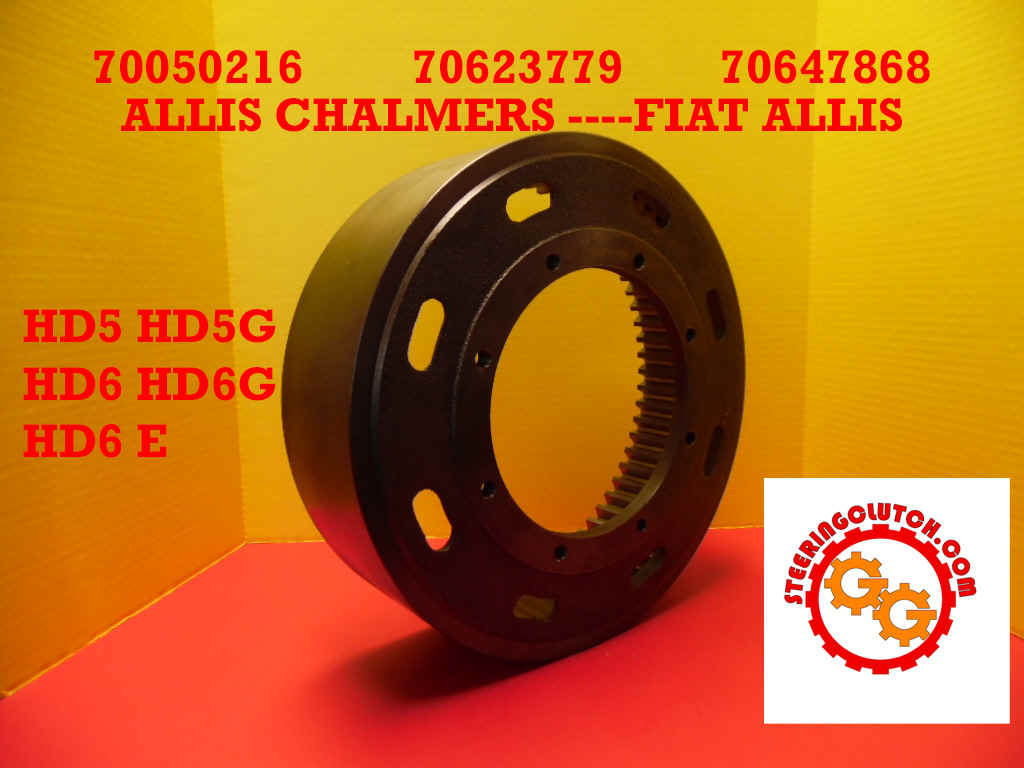

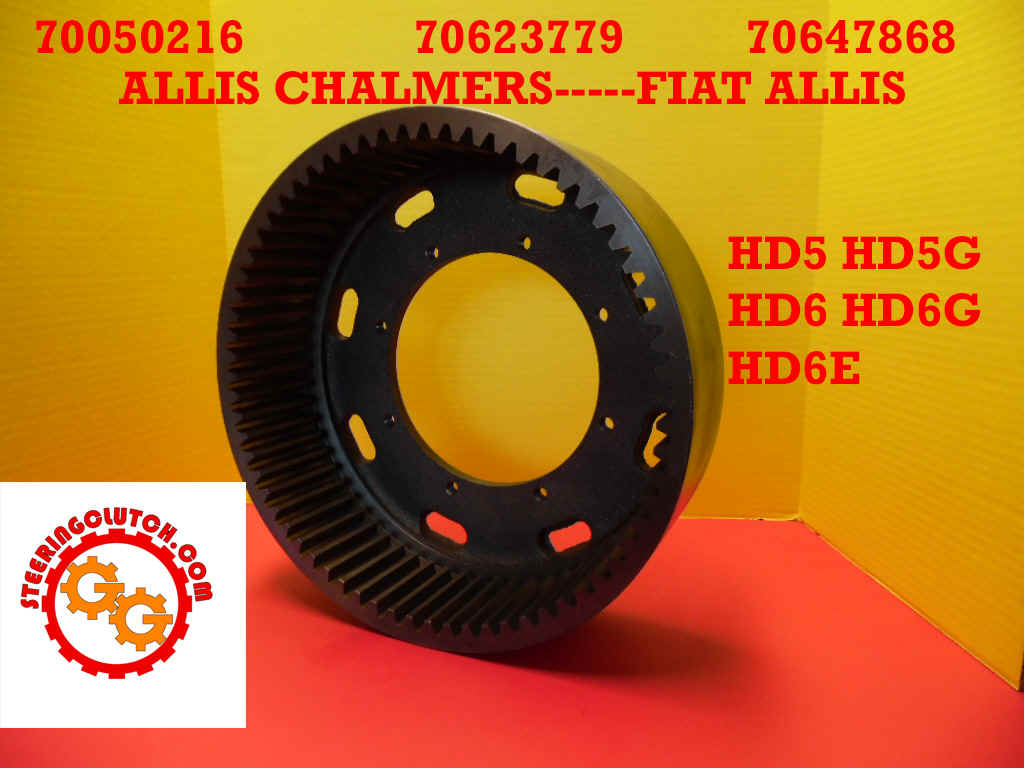

  NEW BRAKE
DRUMS!! 050216
--->623779--->647868
P/N BRAKE DRUM $286.00 41 LBS
PART NUMBERS CHANGE TO 70050216
--->70623779
--->70647868

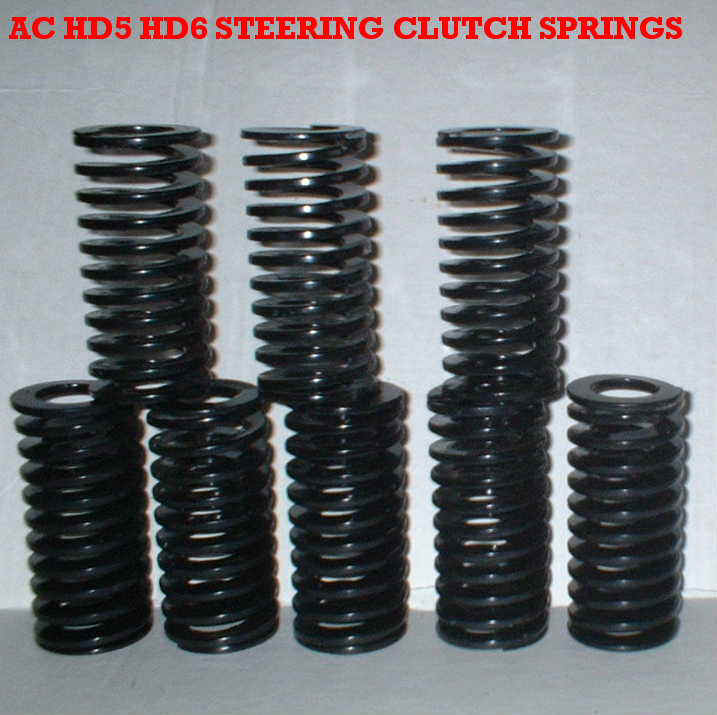

We also have NEW SPRINGS for your steering clutches.
 16.00 ea Steering Clutch Springs P/N 70050236
OR 050236

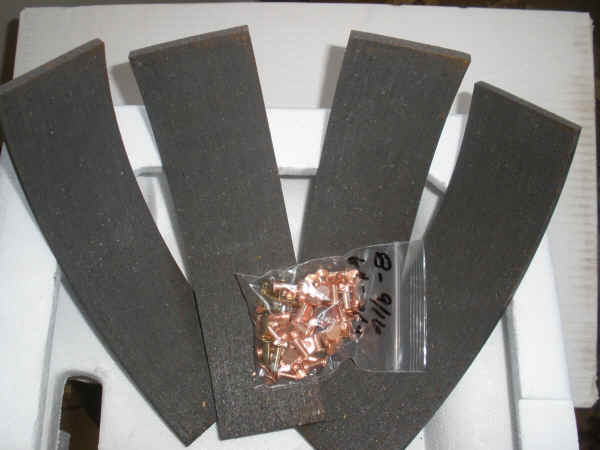

Lining kits. Set of linings with rivets, for one complete two piece
brake band P/N 076552
-->70076552 $55.00

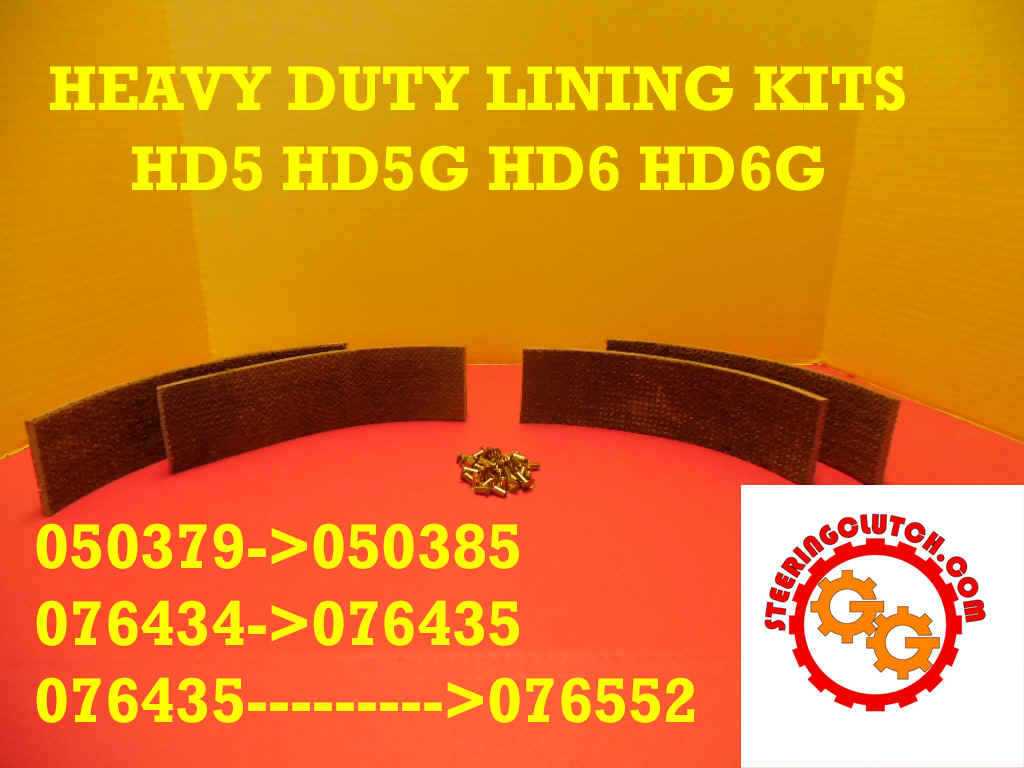

Heavy Duty lining kit option for the 2 1/2" wide
brake bands. Woven linings, interwoven brass threads, designed for severe and
extreme conditions. Will handle high heat (400 degrees) and repeated use without
fade of loss of coefficient of friction. 68.00 per set
One set includes linings for one complete 2 pc band with rivets. ORDER P/N 076552HD

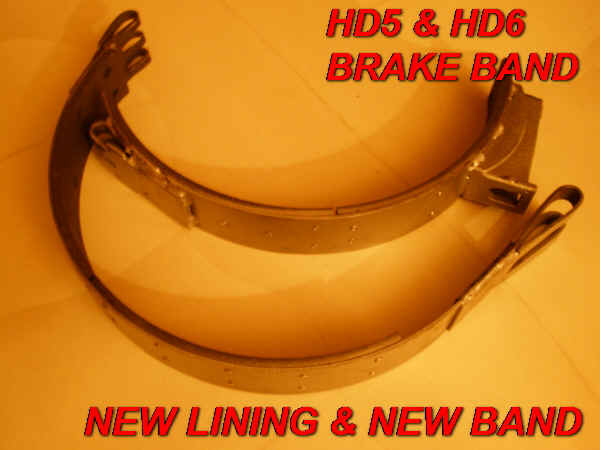

 New brake bands with New Linings
Upper Band 70076427---> 70622823
Lower Band 70076428---> 70622820
Fits all HD5 Crawler Loaders and Dozers.............$255.00 Total For Both Halves
BRAKE BAND PINS........DRILLED AND TAPPED 050326-->70050326
70092787
092787
TWO USED PER CLUTCH
$12.50 EA OR $20.00 FOR SET OF 2

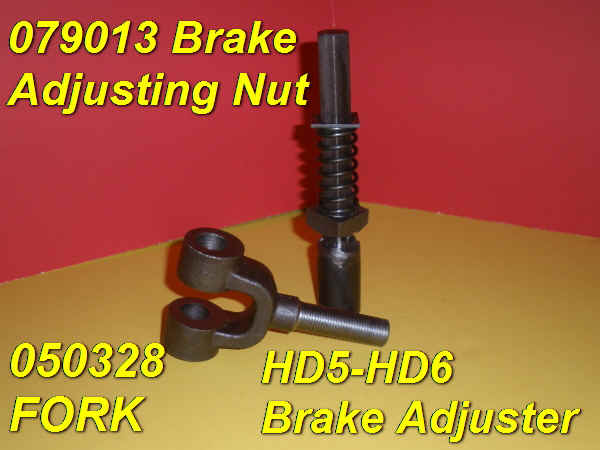

 Brake Band Adjusting nuts, with springs, retainers,
roll pin and block New 38.00
ea p/n 079013
The new 050328 Forks
$35.00 ea
NEWER REPLACEMENT ADJUSTING NUTS
NOTE: You may also order the later 090960 adjuster which has
1/2 inch longer threads and used the narrower block 090958
and upgraded spring which comes with the newer adjuster NEW 44.00 Both early and late adjusters use the
same forks.
The new 050328 Forks
$35.00 ea
 THE STANDARD 042122 IS REPLACED BY THE
HEAVY DUTY 082909 CLUTCH
DISC
DISCS NEW FLYWHEEL CLUTCH DISCS FOR AUBURN AND ROCKFORD CLUTCHES
082909>088816
70082909>70088816(FOR
BOTH AUBURN OR ROCKFORD CLUTCHES) $225.00 CURRENTLY OUT
OF STOCK

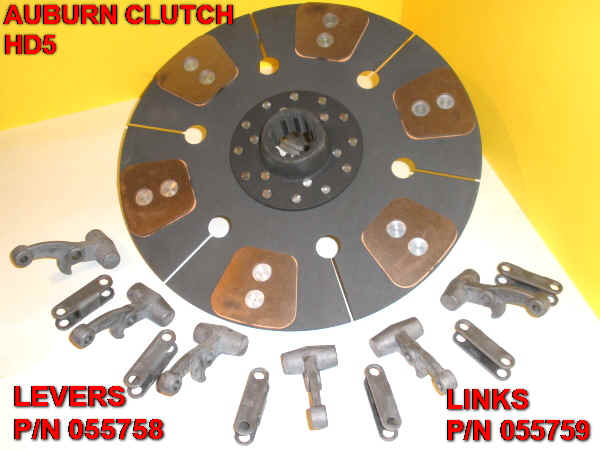

Auburn clutch levers, new aftermarket p/n 70088815 (088815) or
earlier p/n 70055758 (055758)
@ 35.00 ea
Auburn clutch links, new aftermarket p/n 70055759 (055759) @
18.00 ea

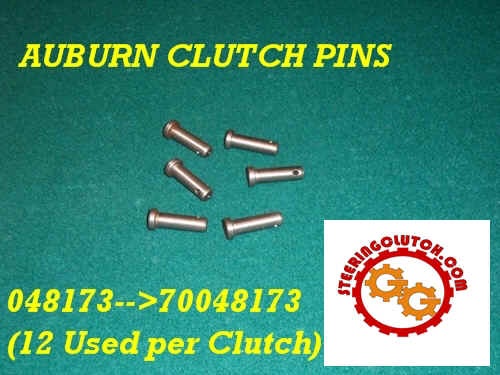

  NEW AUBURN CLUTCH PINS.
p/n's 048173-->70048173
(12 used per clutch) $3.00 ea

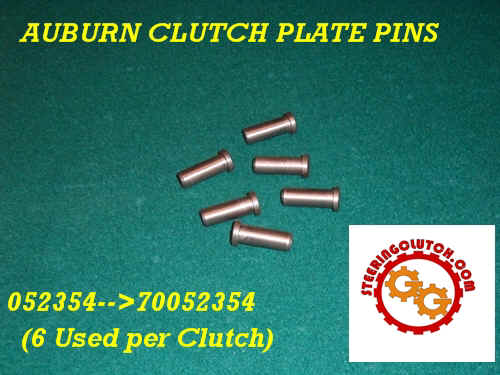

052354-->70052354
pins (6 used per clutch) $3.00 ea

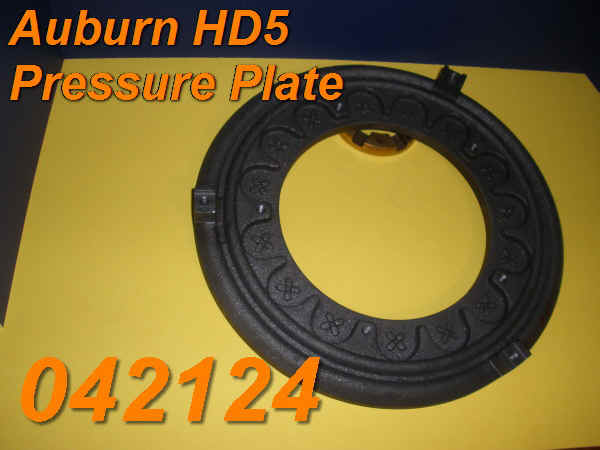

NEW HD5 AUBURN FLYWHEEL CLUTCH PRESSURE PLATE P/N 042124---> 70042124 (70088814)
$185.00

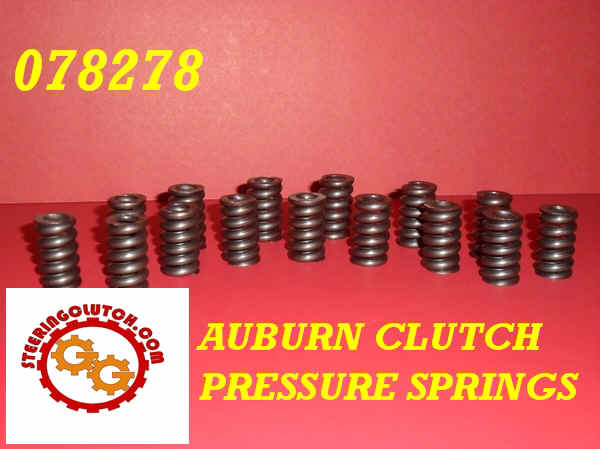

 PRESSURE PLATE COMPRESSION SPRINGS...p/n#078278
(70078278) ..Set of Qty 15 @ $24.00

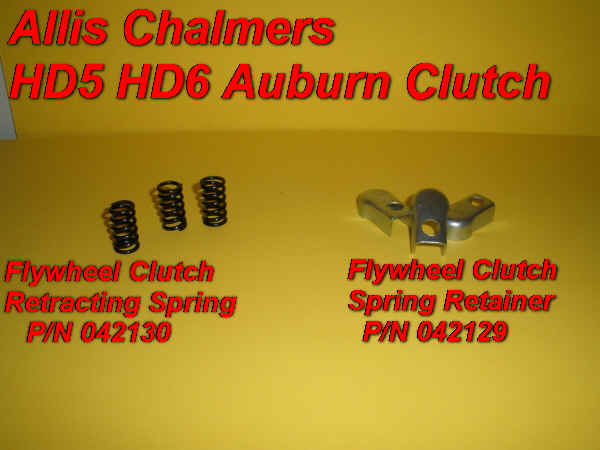

 NEW AUBURN FLYWHEEL CLUTCH RETRACTING SPRINGS
AND RETAINERS. This is another problem you may find when the Auburn clutch needs
repair. 3 of each are used per clutch. For a set of (3) p/n
042130 Springs 15.00/set or for a set of (3) retainers p/n 042129,
$15.00/set

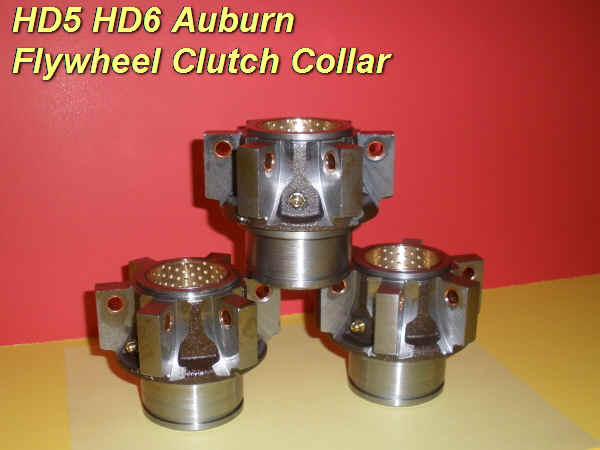

Auburn Flywheel Clutch Sleeve (throw out collar) 078116 (70078116)
For HD5/HD6 Auburn Flywheel Clutches $230.00
Earlier p/n 061137 directly replaced by the 078116 (70078116)

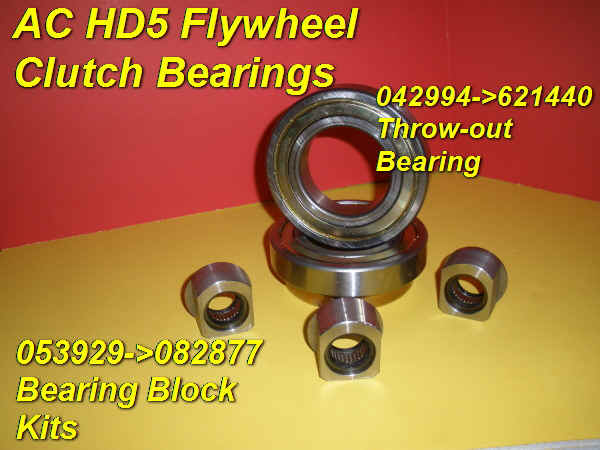

FLYWHEEL CLUTCH BEARINGS. The bearing Block Kits (complete w/ needle bearings
and seals) fit both the Auburn Clutch and the Rockford Clutch. P/n 082877 Block Brg
Kit (
early p/n 053929) $45.00 ea (New) TWO BLOCK KITS
ARE NEEDED PER CLUTCH
The Throw Out thrust bearings 042994--->621440 fit the
Auburn Clutches......48.00 ea (New)

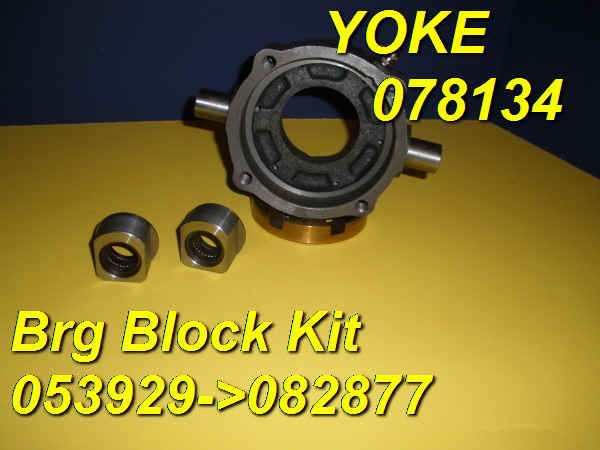

 P/N 078134 70078134 Auburn Flywheel
Clutch Throw Out Yoke..............NEW $175.00 ( For the
Bearing Block kits,complete w/ needle bearings and seals, the Throw-Out Block Brg
Kit P/n 082877 ( early p/n
053929) $45.00 ea (New)
TWO BLOCK KITS ARE NEEDED PER CLUTCH

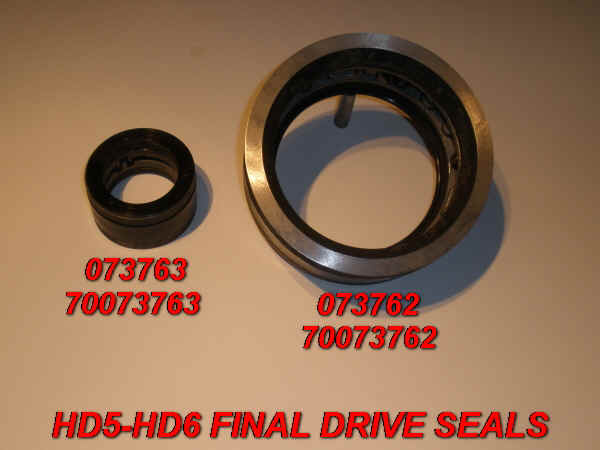

NEW FINAL DRIVE SEALS FOR 6 SPLINED AXLES
SMALL OUTER FINAL DRIVE SEAL KIT P/N 073763 (70073763)
94.00
LARGE INNER FINAL DRIVE SEAL KIT P/N 073762
(70073762) 124.00

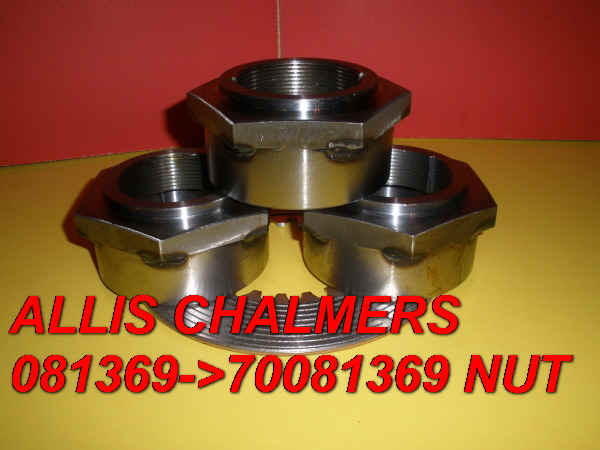

 FInal Drive Nut and seal retainer P/N 081369
-->70081369 NEW $90.00

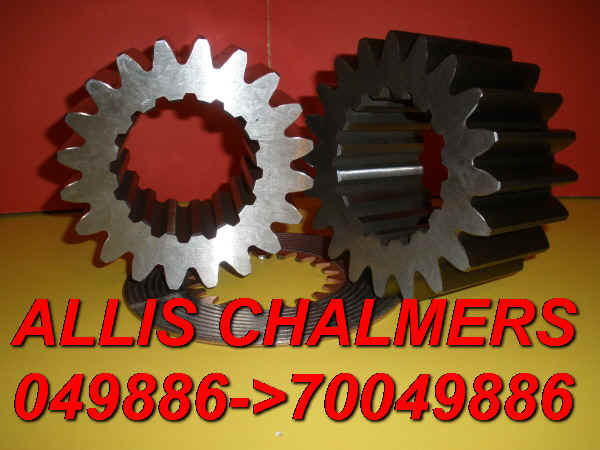

 Final Drive Gear 20 T Pinion, Intermediate shaft P/N 049886---70049886
NEW $270.00

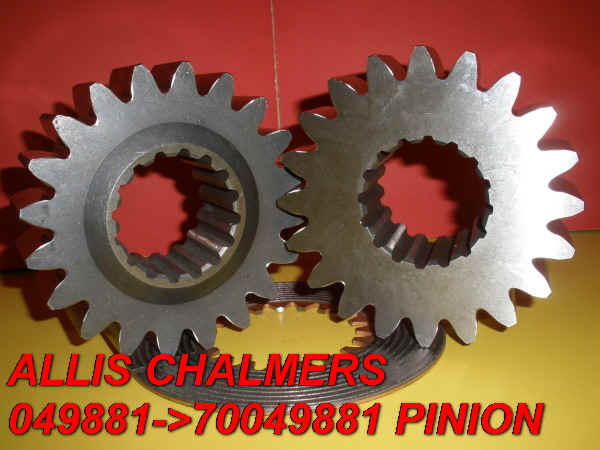

 Final Drive Gear 20 T Pinion, Upper Pinion P/N 049881--->70049881
NEW $240.00
 Transmission
Locking Plunger Boot P/N'S 076845-->080166-->049966
BOOT NEW $11.00

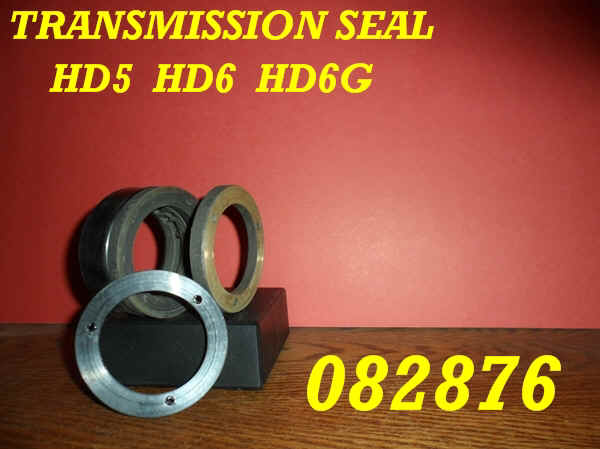

 Transmission Front Seal
Kit 082876
(70082876) NEW $91.00

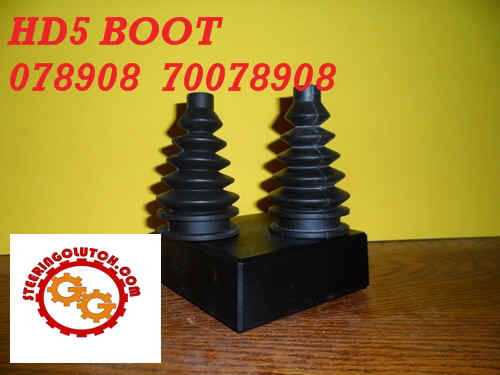

 Brake control rod BOOT 078908 --->70078908
earlier part numbers 051531 051532 051574
NEW $12.00 ea or $20.00 for Pair
 The following manuals are only
guidelines. Watch your serial numbers closely and when you think you have the
correct information, CHECK AGAIN!!! Allis Chalmers
made some confusing model designations. In the beginning AC made an HD6 and the
standard model, standard gauge, was called HD6B. Do not confuse this HD6B with the
later model HD6B! They are entirely different machines in almost all circumstances.
 SEARCHING FOR PARTS!?
When searching for parts, the part
numbers are, of course, very important. It is GOOD TO KNOW
that the part numbers in your parts manuals are probably NOT
the part numbers that you want to search for!!! If you have a manual showing 6 digit part
numbers, and the early machines and their parts manuals mostly show 6 digit numbers, and
you want to replace a bearing or seal for example, your local bearing and seal house will
not be able to help you if you give them that 6 digit number! For most of the
early construction equipment and loaders you will want to add a "70" in
front of the 6 digit number to make an 8 digit number. Depending on product line,
you may have to add a "73" in front of the 6 digit number. If you give
your local bearing and seal house the 8 digit part number they will be able to help you!
(or if you are doing a Google search) As with most rules, there are always
exceptions but your odds of finding the part that you need greatly increase if you do
follow this rule. "Use
an 8 digit part number by adding a "70" or "73" to your 6 digit
number."
 You do not know what may have been done to your
machine in previous repairs over the decades. Even the manuals are not always
accurate so verify with casting numbers and compare them to part numbers that you find.
HD5 OPERATIONS
MANUAL
(COMPLIMENTS OF "CG" who sent it in to share with anyone that needed it!)
HD5
GENERAL SPECIFICATIONS
HD5 CRAWLER COMPLETE
PARTS MANUAL
HD5 SERVICE MANUAL
COMPLETE
HD5 STEERING
CLUTCH PARTS
HD5 BRAKE PARTS
HD5 STEERING CLUTCH
SERVICE
TO
GIVE YOU AN IDEA OF HOW THE STEERING CLUTCH IS ASSEMBLED AND RE-ASSEMBLED I PUT TOGETHER
A PICTURE ALBUM AND STEP BY STEP EXPLANATION OF
THE BASICS. YOU DO NOT NEED TO HIRE IT DONE...........
IT IS REALLY A SIMPLE PROCEDURE AND YOU DO NOT
NEED TO HIRE A SHOP TO DO THE JOB FOR YOU.
JUST CLICK ON THIS PARAGRAPH AND YOU WILL BE
DIRECTED TO THE WEB PAGE WITH THE PICTURES AND EXPLANATIONS.
HD5 FINAL
DRIVE PARTS
HD5 FINAL DRIVE
SERVICE
HD5 FLYWHEEL CLUTCH
PARTS
HD5 FLYWHEEL CLUTCH
SERVICE
HD5 TRANSMISSION PARTS
HD5 TRANSMISSION SERVICE
DETROIT
DIESEL TUNE-UP TROUBLESHOOTING AND MAINTENANCE MANUAL 1963
DETROIT
DIESEL SERIES 2-71 SERVICE MANUAL FOR AC HD5
INFRAME
REPAIR FOR HD5 2-71 DIESEL ENGINE
Click HERE to view all of our new steering clutch
discs.
|
