In repairing the dry type TD9 TD91 TD92 and
early TD9B steering clutches you have a couple of options. If your clutches are totally
trashed, or completely frozen, you will probably have to resort to cutting some of the
discs out to save the inner driving drum, the brake drum and the pressure plate. That
means replacing all of the fiber discs and probably most of the steel discs. You can
do a lot to clean up the steel discs with some heavy duty cleaning, wire brushing and
sandblasting. You will want a clean smooth surface so that the steel disc surfaces will
not chew up the new fiber or bimetallic discs with their roughness.
The TD9 normally uses 11 fiber discs and 10 steel discs for each clutch. If you do not
have to change all of them, and can get by with only changing a few fiber discs, then by
all means just replace the bad fiber discs with more fiber discs. If you have to replace
all 11 discs, or at least 11 of the 22 fiber discs required for both clutches, then you
should consider upgrading and improving one or both of your clutches by using bimetallic
friction discs instead of the old style fiber discs.

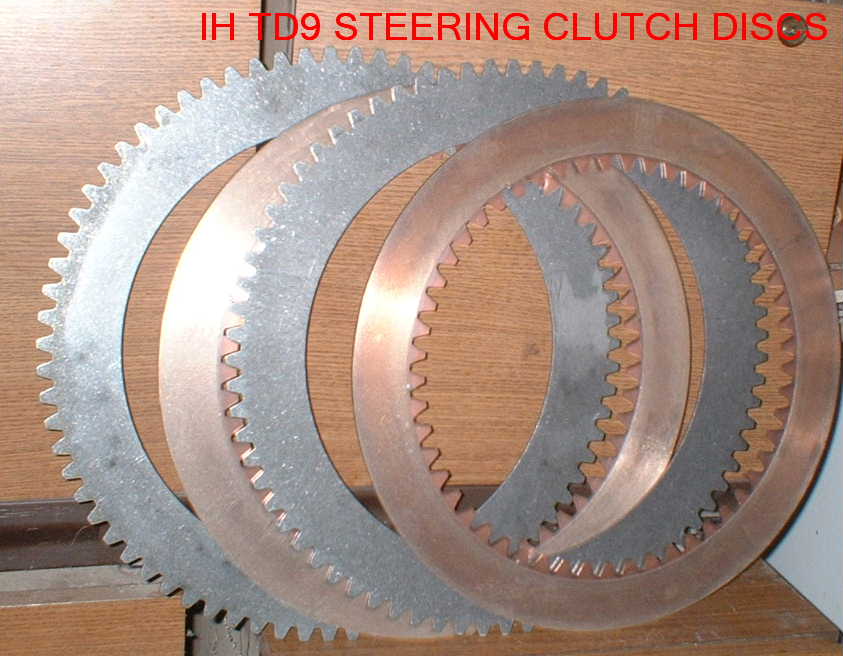

Upgrading to the bimetallic discs requires 12 bimetallic discs and 11 steel discs per
clutch. The bimetallic discs are of course a little more expensive, but you end up with a
clutch less prone to having your clutch discs sticking or bonding to each other, a longer
clutch life, and an increased friction surface area resulting in a higher coefficient of
friction. The bimetallic discs are not nearly as affected by moisture as the fiber discs.
You will eliminate the possibility of broken friction disc teeth by choosing the
bimetallic option. Upgrading to the bimetallic disc pack does cost more and you are
the only one that can make the decision between the two different styles of clutch
packs. For some people the labor and inconvenience involved in future steering
clutch repair is not a consideration, while for others it is very important.The TD9/TD91/TD92/TD9B and L150 steering clutch brake
bands we have in stock are completely new with new bands and new linings. You can
replace either the 3 piece bands or the 2 piece bands at a price ($275.00 ) competitive
with having your lining replaced and installed.
ORDERING INFO:
 We can usually ship on
the same day any items we have in stock that do not have to be pulled from a
machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.com for
orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
The TD9 fiber discs 46825D are 25.00 ea
The TD9 bimetallic discs 320395R91 are 33.00 ea
The TD9 steel discs 46826D are 29.00 ea
COSTS OF CLUTCH PACK OPTIONS
(11) FIBER FRICTION AND (10) STEELS = $565.00
(12) BIMETALLIC FRICTION AND (11) STEEL = $715.00
TD9 TD91 TD92 TD9B Bimetallic Steering Clutch Discs p/n 320395R91 @ $33.00 ea

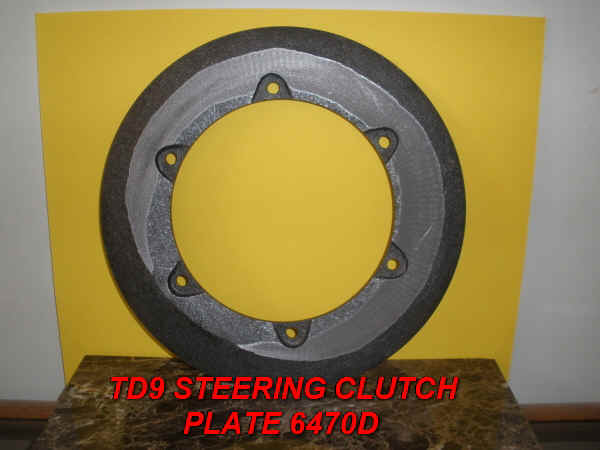

TD9 STEERING CLUTCH END PLATE P/N 6470D....NEW...$105.00

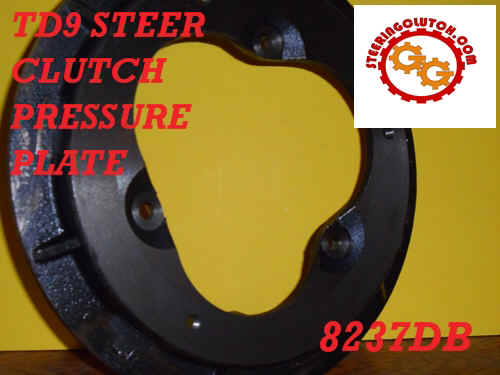

TD9 TD91 TD92 TD9B STEERING CLUTCH PRESSURE PLATE 8237DB
(8237DA) NEW $180.00

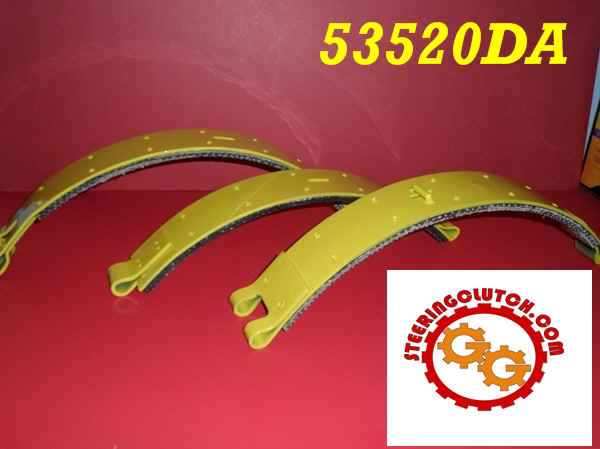

 TD9 STEERING CLUTCH BRAKE BANDS
53520DA
3 PIECE BAND $275.00
FITS TD9'S FROM THE 1940 SER#501 THRU 1956 SER#60300
REPLACES 68632D or one each of the 47958DXA 47959DXA 53489DXA

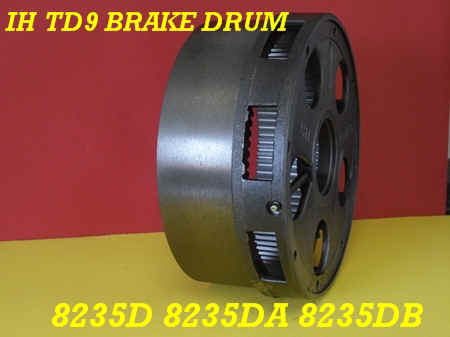

 BRAKE DRUM FITS TD9/TD91/TD92/TD9B
8235D/8235DA/8235DB NEW and in stock $318.00 ea

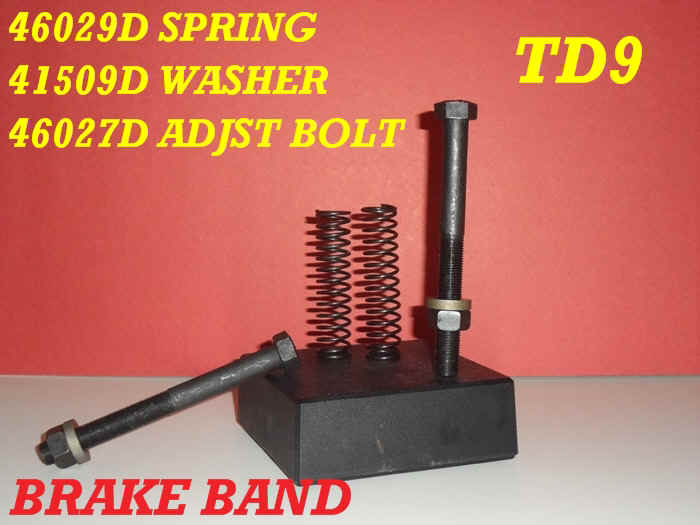

46029D BRAKE BAND RELEASE SPRING
41509D BRAKE BAND RELEASE SPRING WASHER
46027D BAKE BAND ADJUSTING BOLT.....................
SET OF SPRING, WASHER, AND ADJUSTING BOLT
NEW $15.00/SET or 2 SETS FOR $25.00

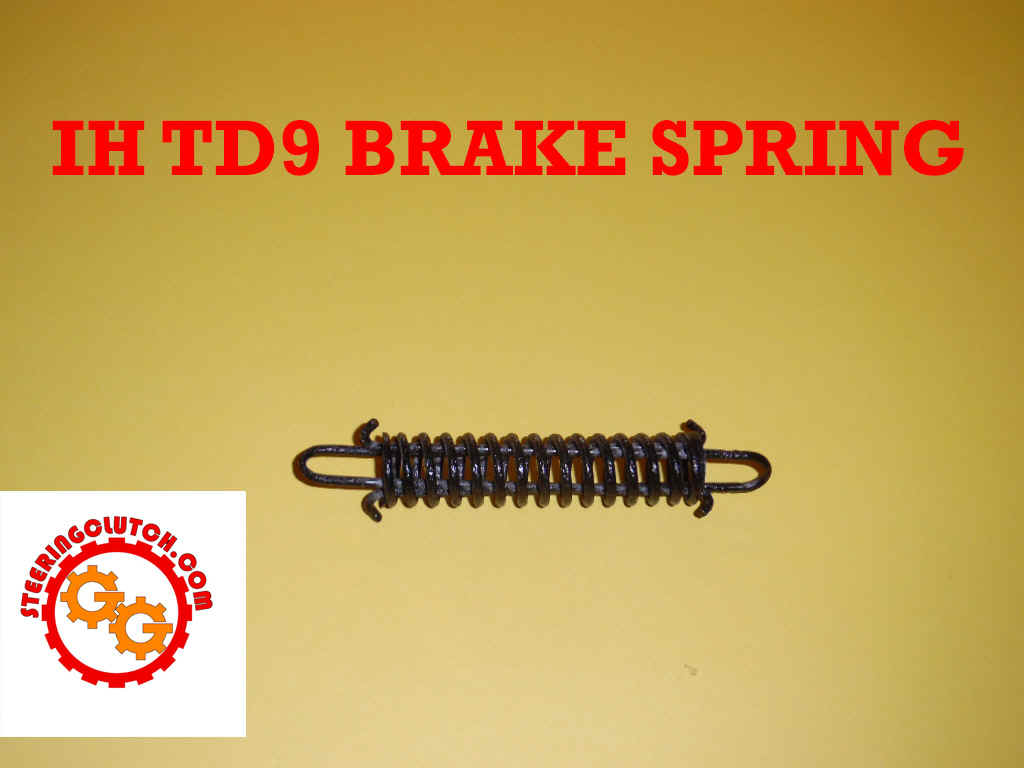

 SPRING, BRAKE BAND RETAINING SPRING
Consists of one spring (56475D--->269177R1) and two hooks
(56476DA--> 269178R1) makes one 56478D(early numbers 51399D 56479D)--->New Number
279607R91 Spring Assy
NEW $12.00/spring assy w/ hooks or 2 FOR $20.00

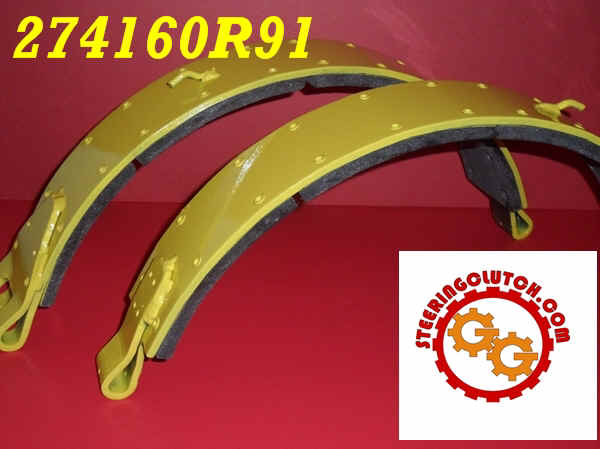

 2 PIECE STEERING CLUTCH BRAKE BANDS
274160R91 $275.00 total for both pieces to make one
brake band
For NEW brake drums, see above...........
274160R91-->603468C91 HIGH
CAPACITY THE 2 PIECE BAND FITS THE TD91, TD92, TD9B SERIES AND ALSO THE L150
LOADERS

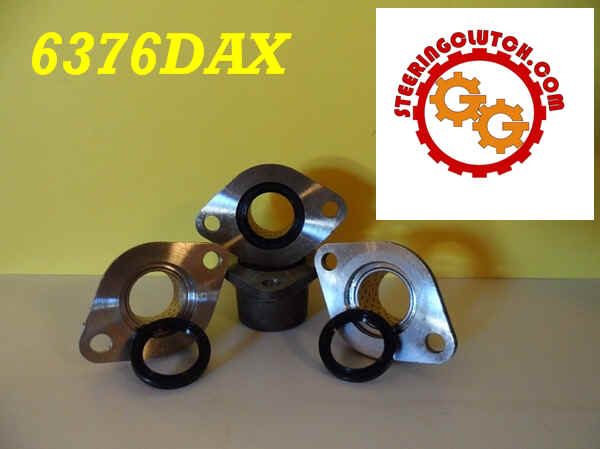

 STEERING CLUTCH RELEASE SHAFT BEARING AND BUSHING CASTING
6376DAX......$62.00 EA NEW
TD9 TD91 TD92 TD9B STEERING CLUTCH PILOT BEARING (BRAKE DRUM BEARING W/ SNAP RING)
ST333...NEW....$45.00
Alternate part numbers 701104R91 707509R91
274836R91 53389D

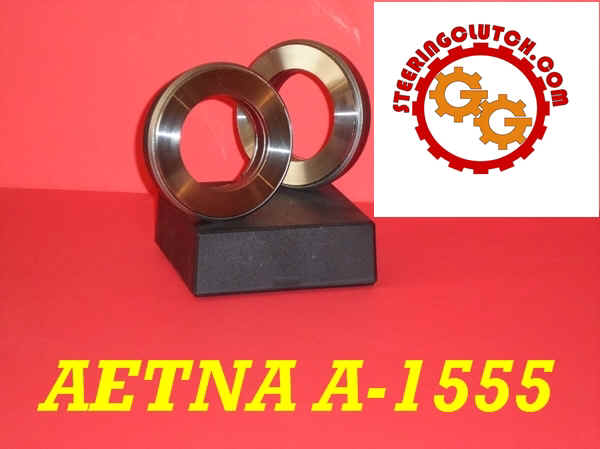

AETNA A-1555 !! STEERING CLUTCH
THROW-OUT BEARINGS FOR TD9, TD91, TD92, TD9B'S.
AETNA A-1555
BEARING IH 55745D BEARING
ABC N1162
BEARING ATB A956 BEARING
JEFFERY
120284 BEARING NICE N1162 BEARING
$110.00 ea

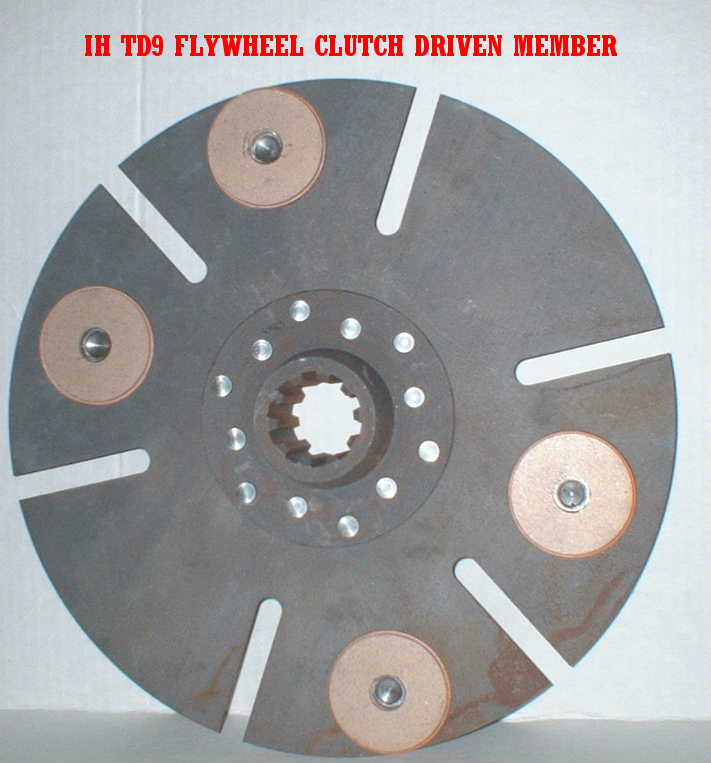

TD9 TD91 TD92 Flywheel Clutch disc $204.00
 TD9 FLYWHEEL CLUTCH RETURN SPRINGS.
INTERNATIONAL P/N 50431D ROCKFORD P/N CL-4351
FITS TD9 SER# 501 THRU 67461...........NEW SPRINGS, SET OF 3 @ $22.00/SET

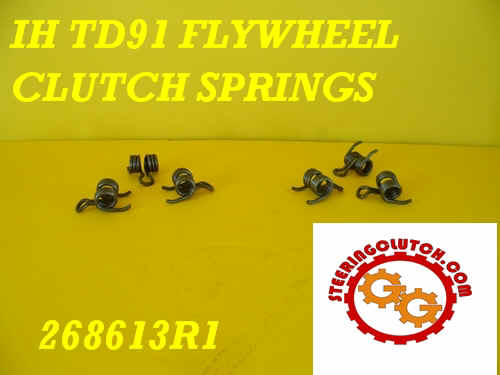

TD91 SERIES FLYWHEEL CLUTCH RETURN SPRINGS. ROCKFORD P/N of CL9552 AND
INTERNATIONAL P/N 268613R1 SET OF 3 $24.00

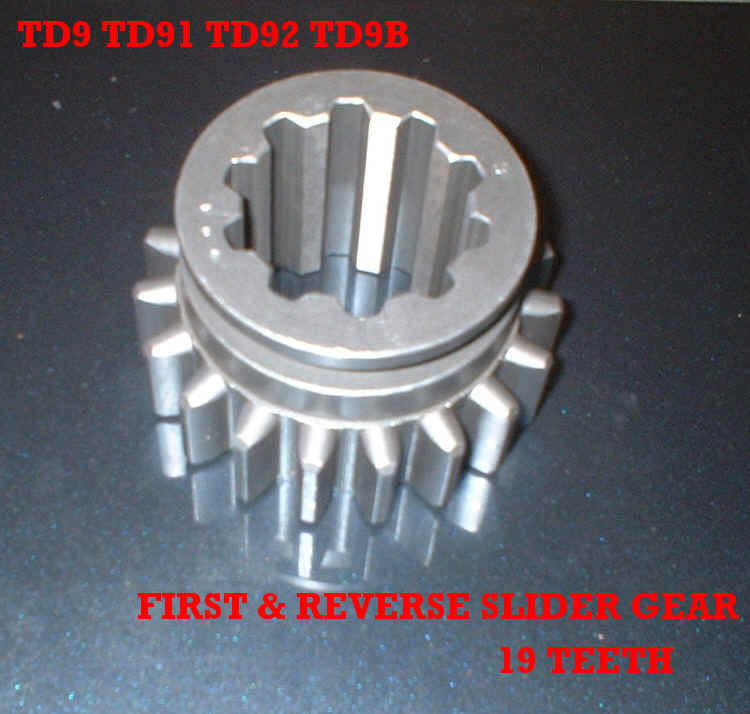

TD9 TD91 TD92 TD9B SLIDER GEAR 19 TEETH 155.00 EA
PART NUMBERS 52216D--->258626R3

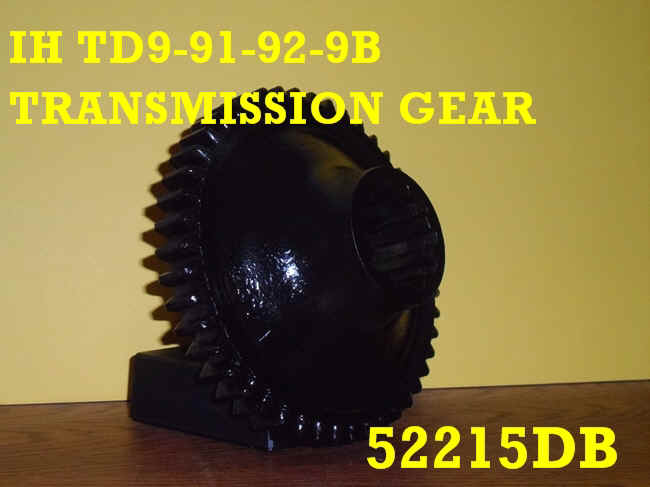

 TD9 TD91 TD92 TD9B 52215D 52215DA 52215DB TRANSMISSION GEAR 46T 1ST
GEAR ...NEW..190.00 EA

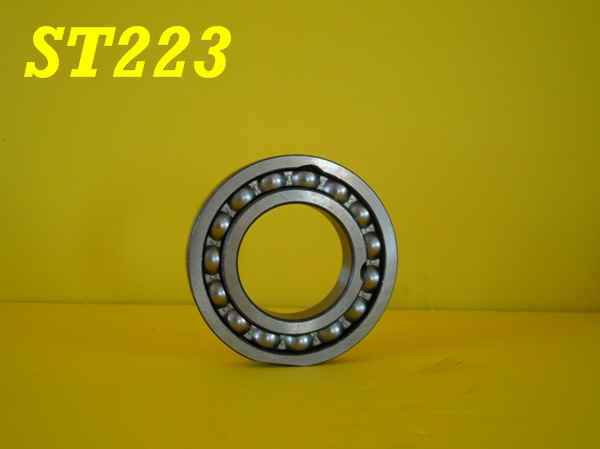

 TD9 TD91 TD92 TD9B FINAL DRIVE OUTBOARD
BEARING....ST223 NEW $33.00
 T9 TD9 SERIES

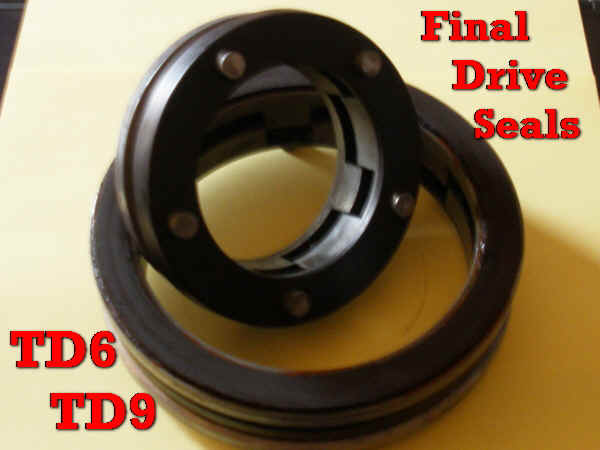

INTERNATIONAL FINAL DRIVE SEALS
TD9 (SMALLER) 53538DA ---> 313206R1 100.00
TD9 (LARGER) 53537DA ---> 313205R1
125.00

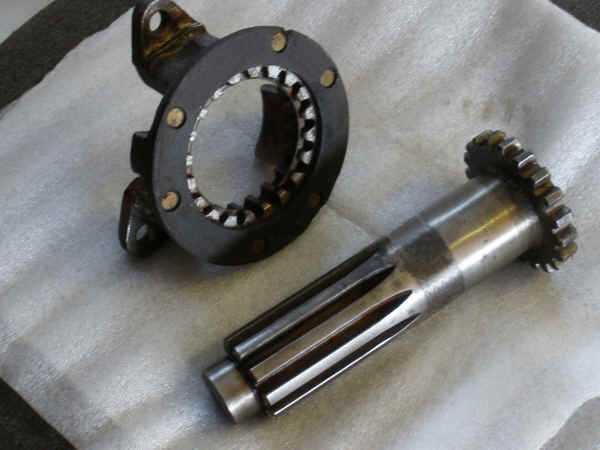

TD9/TD91/TD92/TD9B FLYWHEEL CLUTCH SHAFT AND COUPLING
266457R1 COUPLING and 266459R1 SHAFT
Set of
shaft and coupling 225.00
 NEW STEERING CLUTCH SHAFT NUTS........Your
steering clutch shaft usually has a retaining nut that has been used several times over
the decades, resulting in pulled/rolled threads and a locking ring that has been used so
many times that finding a good spot on the locking ring to bend and lock is not always
possible. You DO NOT want these nuts backing off or coming off of the threaded end
of the shaft. Coming up with good used nuts was becoming more difficult, and very
labor intensive to just get a nut, so we had these made to solve their lack of
availability. 258278R1
24.00 ea.
TD9 STEERING CLUTCH
SERVICE

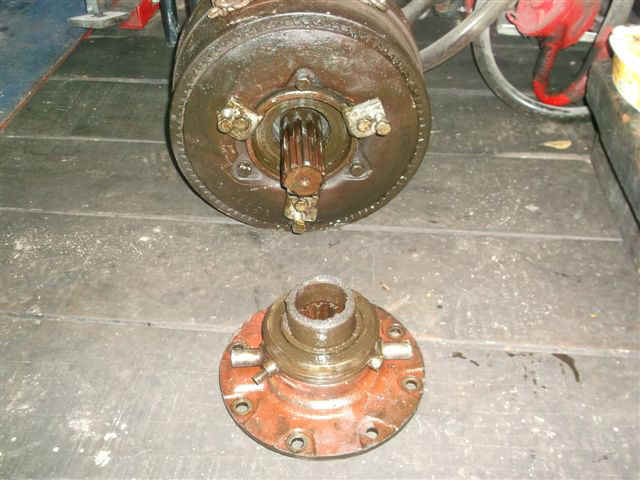

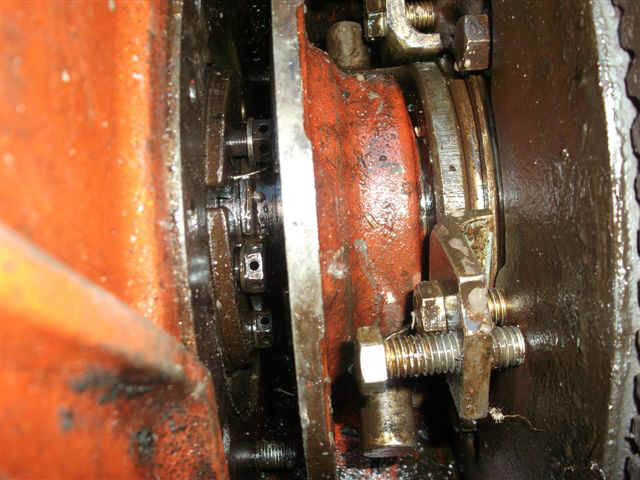

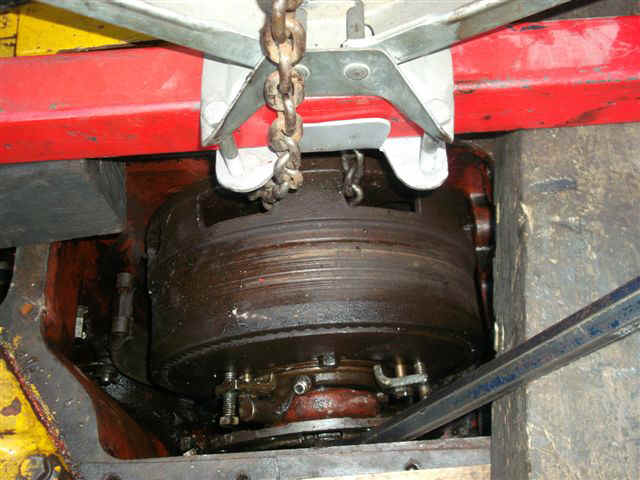

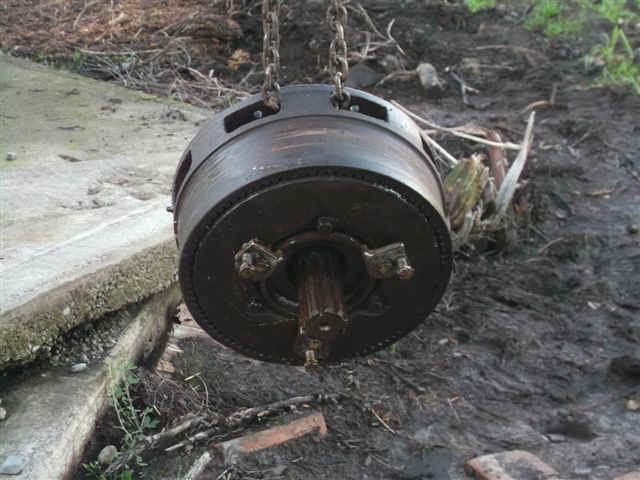

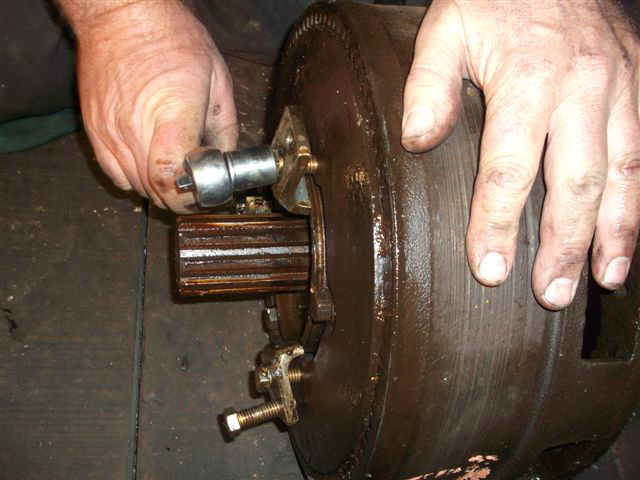

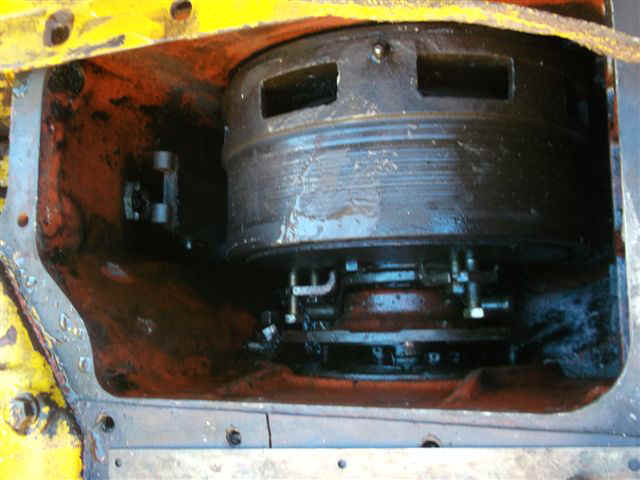

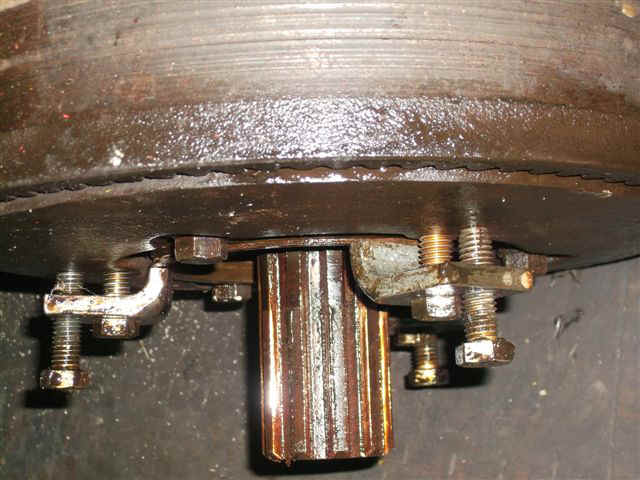

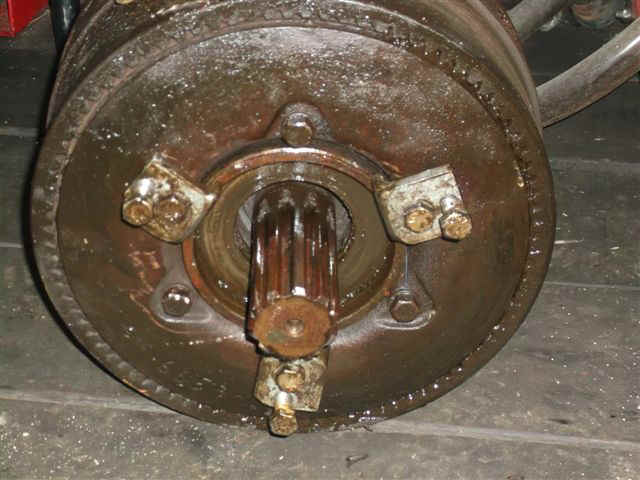

Making your steering clutch compression tools for
later TD6's and TD9's
These pictures were contributed by GraemeWalsh of Walsh Ag Ltd in New Zealand

INTERNATIONAL SERIAL NUMBERS
Includes crawlers, Ag Wheel Tractors, PayMovers, PayHaulers,
Hough PayLoaders and more
INTERNATIONAL TD9
CRAWLER OPERATIONS MANUAL
INTERNATIONAL
TD9 CRAWLER 501-UP PARTS MANUAL
INTERNATIONAL
TD91 CRAWLER PARTS MANUAL
INTERNATIONAL
TD92 CRAWLER PARTS MANUAL
INTERNATIONAL TD9B PARTS MANUAL
INTERNATIONAL TD9B SALES FLYER
INTERNATIONAL L-150
TRACK LOADER PARTS MANUAL
INTERNATIONAL
L-150 TRACK LOADER SERVICE MANUAL
INTERNATIONAL TRACK SERVICE
MANUAL
This manual will show yu how all the undercarriage works together, track terminology, and
how to measure and check wear.
INTERNATIONAL TRACK
WEAR GUIDE AND SPECIFICATIONS
After you get your measurements, this guide will give you the tables to evaluate your
track and undercarriage.
INTERNATIONAL
T9 TD9 CRAWLER SERVICE MANUAL
INTERNATIONAL
TD9B CRAWLER SERVICE MANUAL
INTERNATIONAL
4 CYL CARBURETED ENGINE SERVICE
INTERNATIONAL
DIESEL ENGINE 9 9A ENGINE SERVICE
INTERNATIONAL
SERVICEMANS FIELD REFERENCE FOR DIESEL ENGINES AND FUEL INJECTION
INTERNATIONAL
TD92 TD9B 6 CYL CARBURETED AND DIESEL ENGINE SERVICE
INTERNATIONAL
BUCYRUS ERIE TD9 BULLGRADER AND BULLDOZER PARTS (Thanks for the contribution from Ron
Dugan!)
INTERNATIONAL
HYDRAULICS SERVICE MANUAL FOR CRAWLERS
TD9 STEERING CLUTCH
PARTS PAGES
TD9 BRAKE PARTS
SER#501-UP
TD91 STEERING
CLUTCH PARTS PAGES
TD92 STEERING
CLUTCH PARTS
TD9B STEERING CLUTCH
PARTS
L150
STEERING CLUTCH PARTS
TD9 TRANSMISSION SERVICE
TD9
TRANSMISSION PARTS SER#501-UP
TD91 TRANSMISSION
PARTS
TD92 TRANSMISSION
PARTS
TD9B STD TRANSMISSION
PARTS
TD9B POWER SHIFT TRANS
PARTS
TD9
FLYWHEEL CLUTCH SERVICE
TD91
FLYWHEEL CLUTCH PARTS
TD92 FLYWHEEL CLUTCH
PARTS
TD9B FLYWHEEL CLUTCH
PARTS
TD9 FINAL DRIVE
SERVICE
TD91 FINAL DRIVE
PARTS
TD92 FINAL DRIVE
PARTS
TD9B FINAL DRIVE PARTS

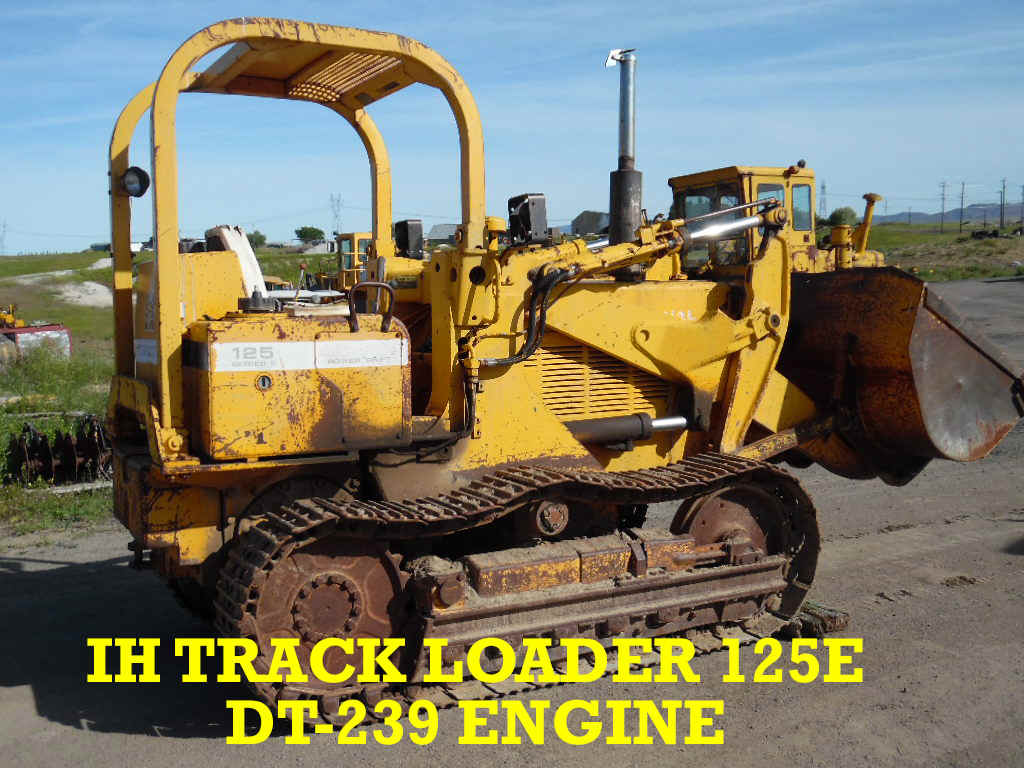

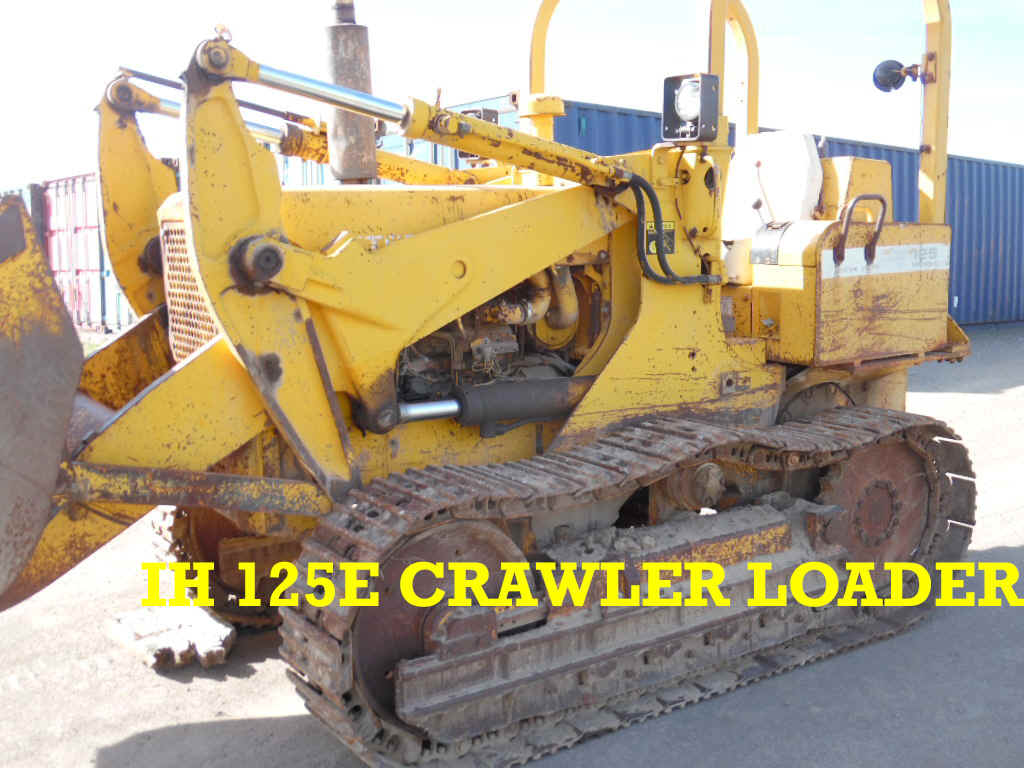

IH 125E LOADER
