|The John Deere Model 350's originally used 8
fiber discs p/n T20790 and 7 steel separator plates p/n T21315. When later models were
developed they used bimetallic discs to replace the earlier style fiber discs. The
bimetallic disc part number can be either the part number of AT117553 or T44128; they
interchange The same numbers of discs were used in all circumstances. Most of the time you
can get by with only changing the friction discs. The steel separator plates can usually
be re-used. Check them for roughness, warping, or dishing and if they are clean, smooth,
and straight, by all means re-use them!
If you want to review service information, and even see a video of
replacing your steering clutch, scroll to the bottom of this page
Free shipping in US only, Priority Mail or UPS Ground, on orders
$500 or higher.
We can usually ship on the same day any items we have in
stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of firstname.lastname@example.org)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. email email@example.com for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.

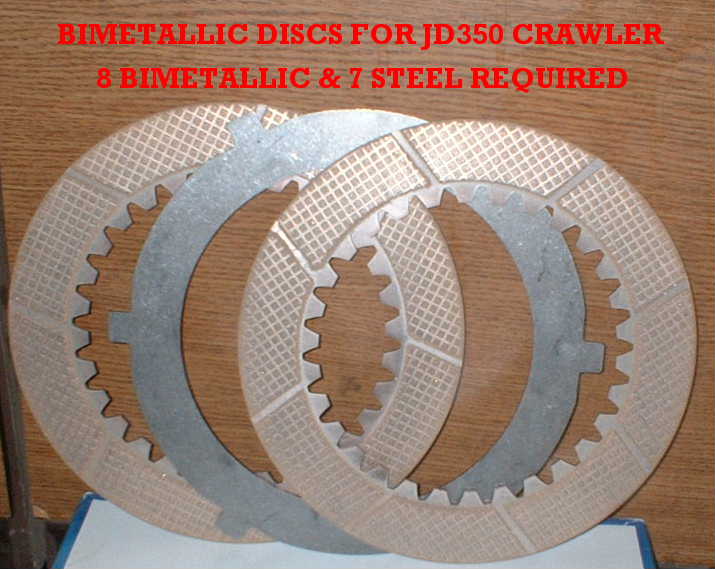

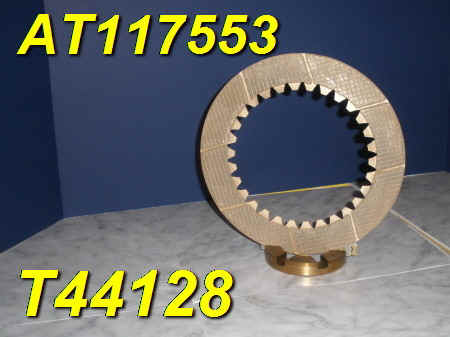

T44128 (AT117553) bimetallic disc,NEW........ $22.00 ea
separator plates, NEW.............$15.00 EA.

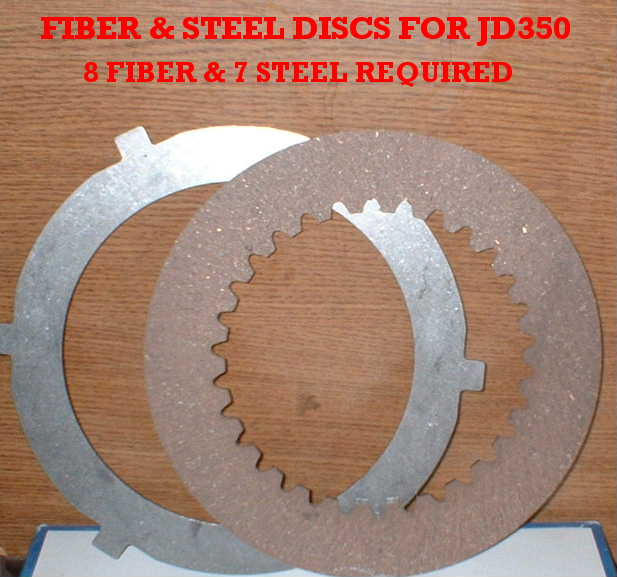

T20790 fiber friction discs,
NEW $12.00 ea
You can replace the fiber discs with the
Bi-metallic discs above, using the same quantities, and eliminate a lot of problems with
broken fiber teeth and the bonding of the fiber discs to the steel discs due to moisture
and inactivity. By going with the Bimetalic discs, the additional cost is a total of
80.00 for one steering clutch. If the $80.00 per clutch is worth it to you in
eventual saved labor (unless you R-E-A-L-L-Y like to pull wrenches!) I would recommend
going with the Bi-metallic.

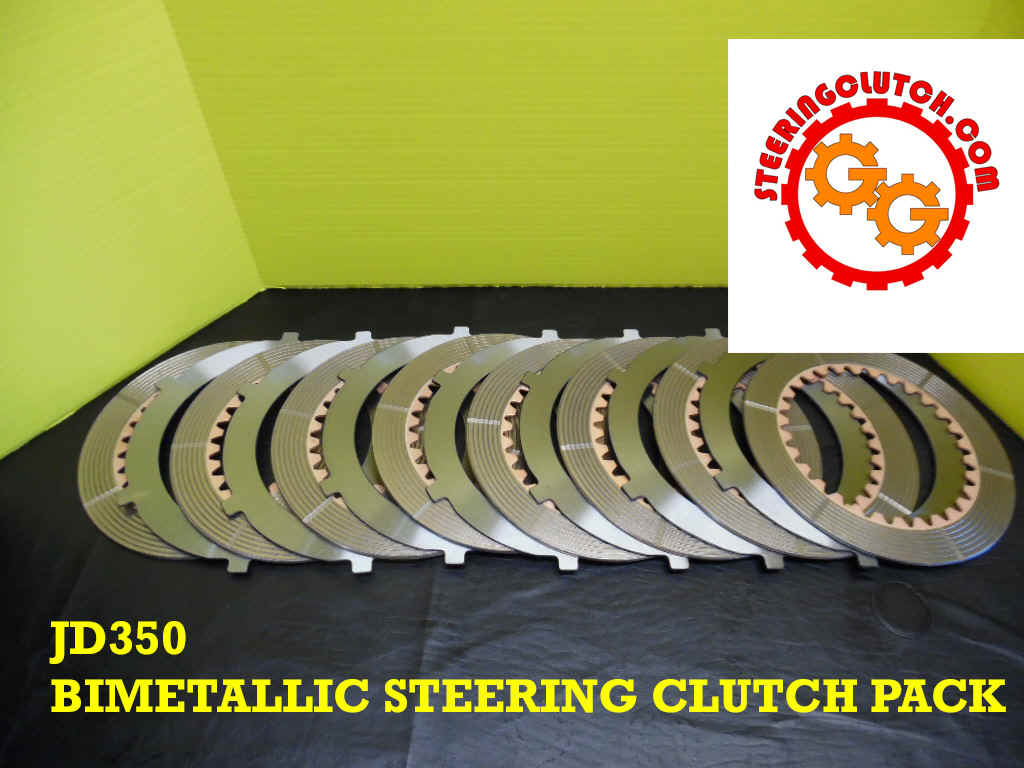

CLUTCH PACK COSTS FOR 8 FRICTIONS AND 7 STEEL
BIMETALLIC FRICTIONS AND PLATES = $281.00
FIBER FRICTIONS AND PLATES = $201.00

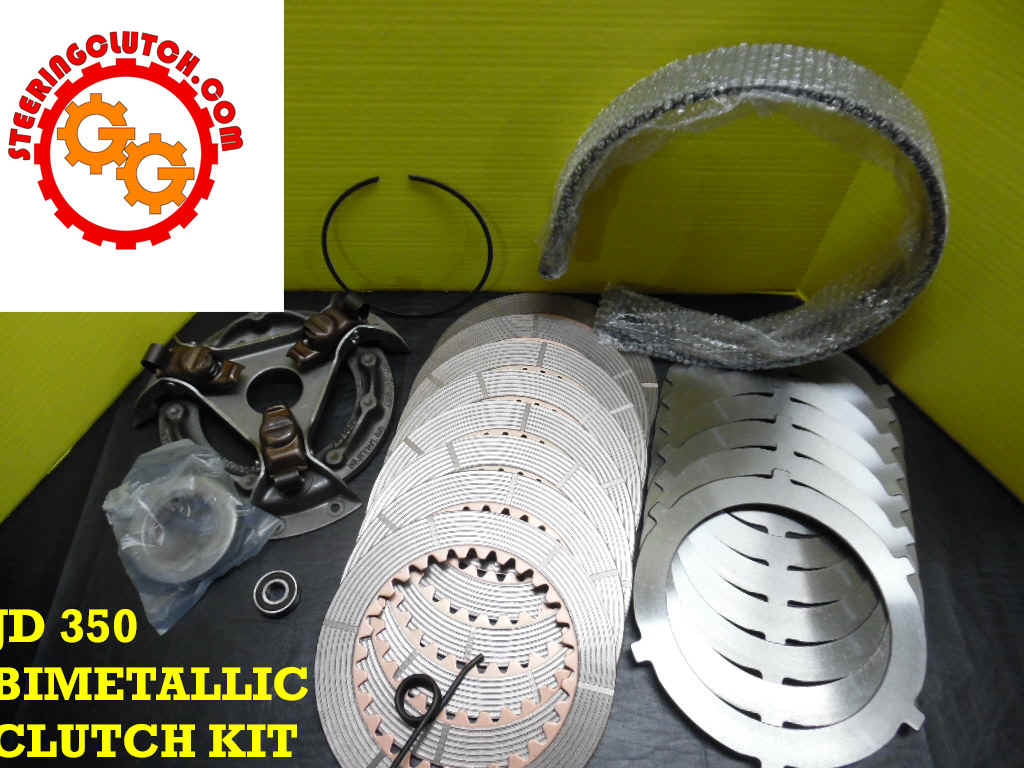

We often we get calls regarding
"complete" steering clutch kits. The term, "Complete Kit", really
isn't defined and many "kits" vary in what is included and often have the
inferior fiber friction discs rather than the bimetallic bronze faced friction discs. The
"Kit" we have put together only has the bimetallic friction discs and includes
the throwout bearing, pilot bearing,throw-out return spring for the vertical shaft, snap
ring for the inner hub, brake band, and complete pressure plate. You can click on the
picture to expand the image.
THE TOTAL COST FOR THIS KIT IS
REVERSER CLUTCH DISC, SINTERED BIMETALLIC, 76T 4.64 OD
T15801 $18.75 EA

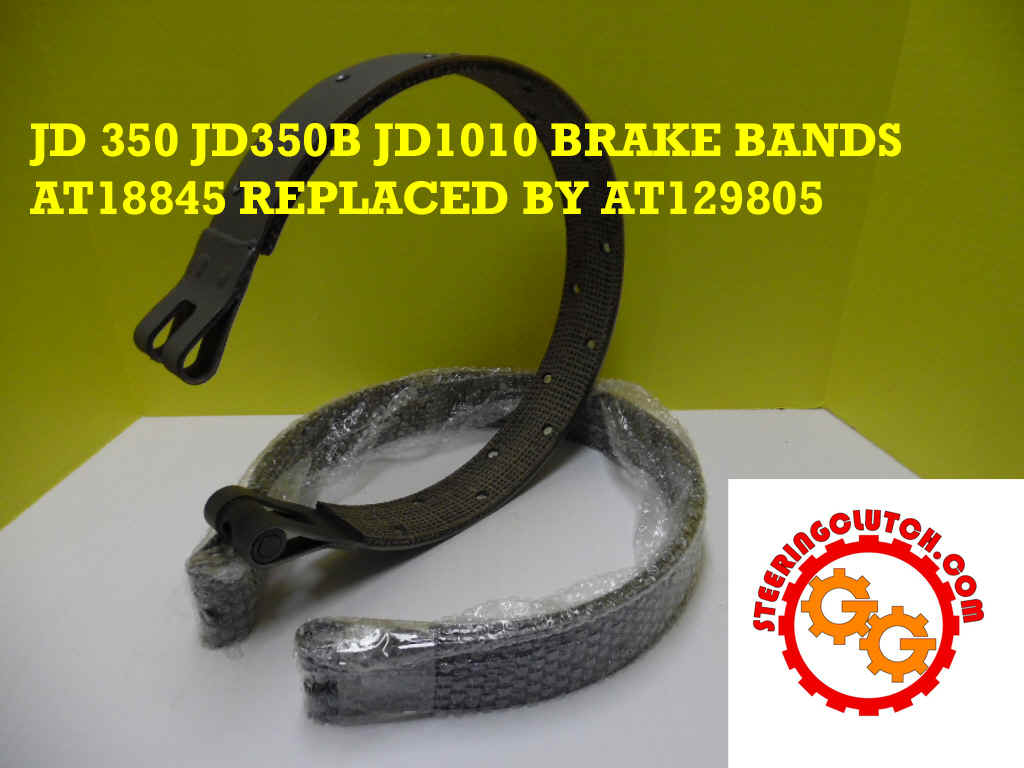

Brake Band with new Linings. 185.00
We ordered enough of these in volume to keep the cost down to make the brake band
competitive with relining your own band. This will speed up your repair by having
them ready to install.

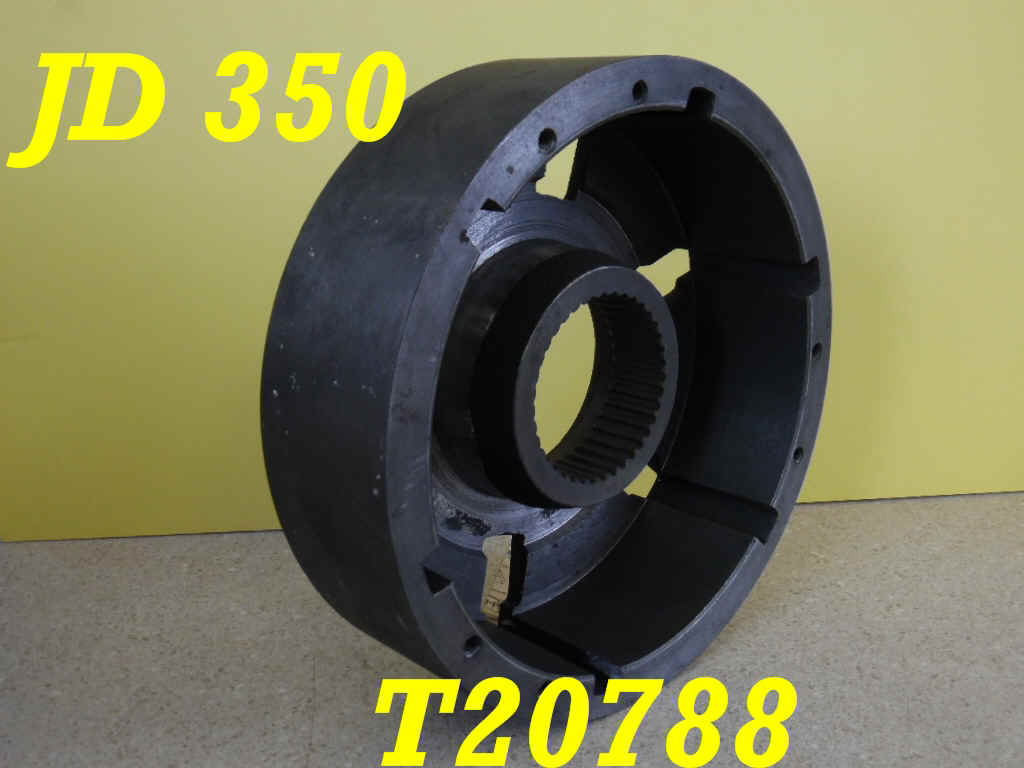

NEW........ BRAKE DRUMS .............. P/N T20788 ................ 278.00 EA
NEW........ T20789 SNAP RING .............. IN STOCK $12.50 EA OR PAIR FOR $20.00

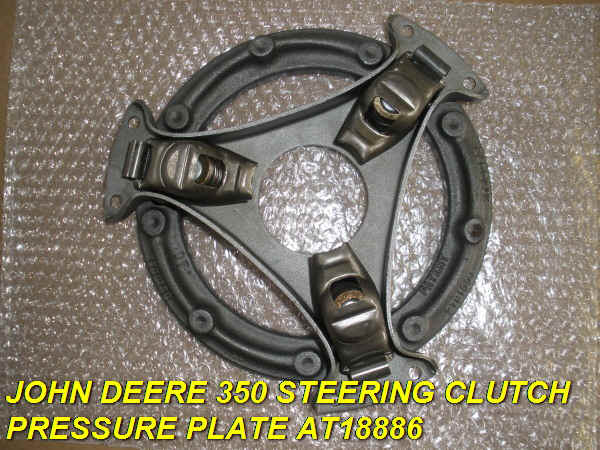

New Steering Clutch
Pressure Plate AT18886, complete 165.00
New Steering Clutch Throwout
bearings AM3983 $15.00 ea

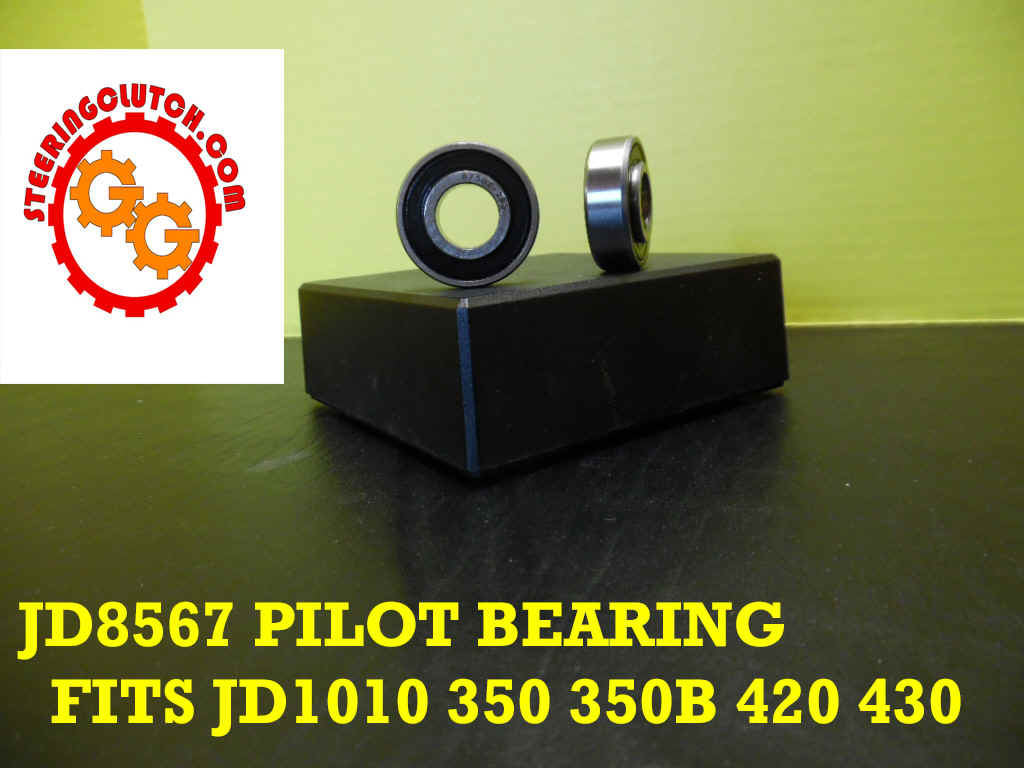

350 steering clutch Pilot Bearing JD8567 $7.85
ALTERNATE PART NUMBERS: CASEIH
755254R91 75872R91 SKBR8502 FORD
8502 11136 1200449C TIMKEN
8502 BCA 8502

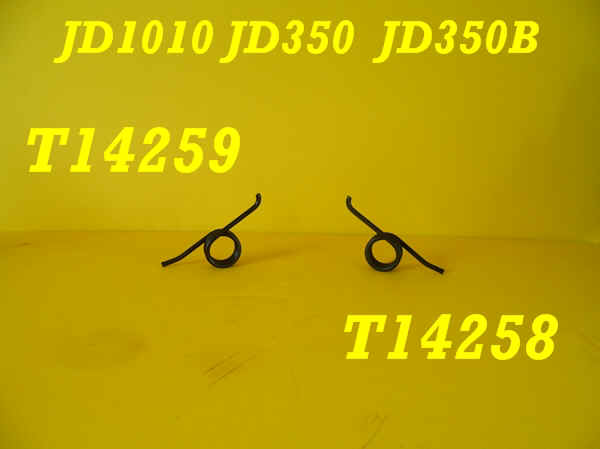

Steering Clutch control shaft return springs, RH and LH T14258 and
T14259 16.00 EA
Flywheel clutch pressure plate AT25817 or AT43120
AT104345 or AT30757 or AT35213 or AT17766 ............ NEW
IDENTIFYING YOUR JD350-350B-350C You will find different serial number locations on different
models of the JD350 series of crawlers. Below are some files showing you where to
look for your serial number and what they mean when you find them.
INFORMATION FOR JD350 STEERING CLUTCHES
Thanks to customer contribution you have the steering clutch service
He even made you a template of the tool to make for adjustment to print and fabricate your
TOOL #7 FOR REPAIR OF STEERING CLUTCH
YOU WANT TO SEE A SHORT VIDEO CREATED BY ANOTHER CUSTOMER CLICK ON THIS SENTENCE
Click HERE to view all of our new steering clutch
