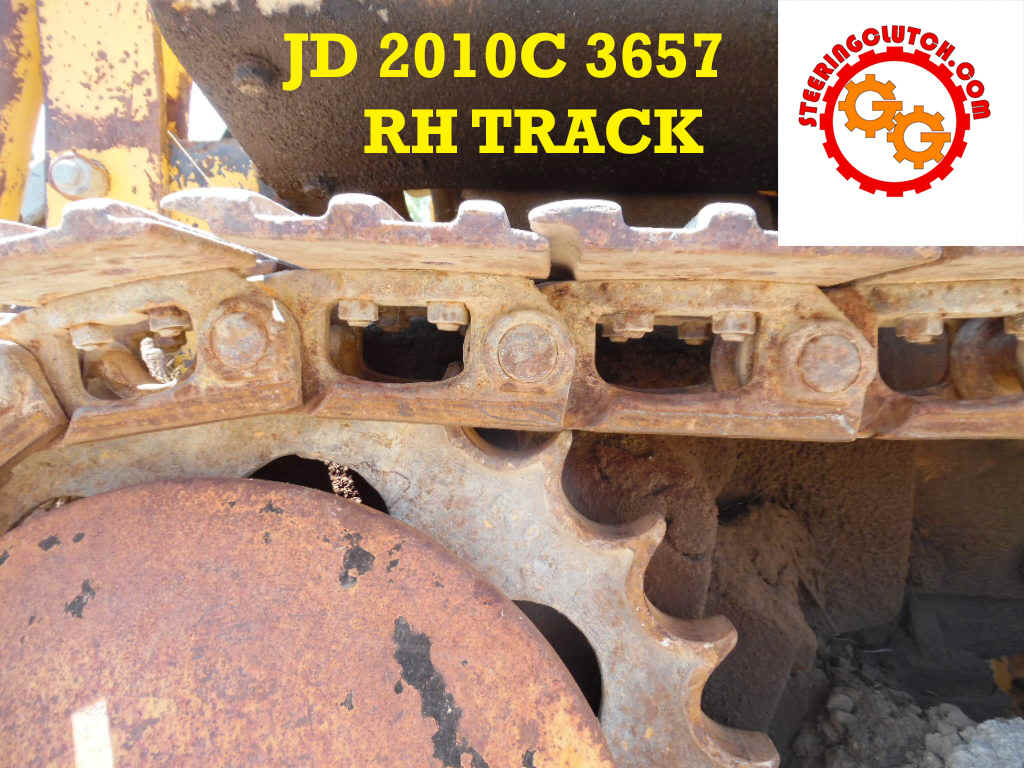

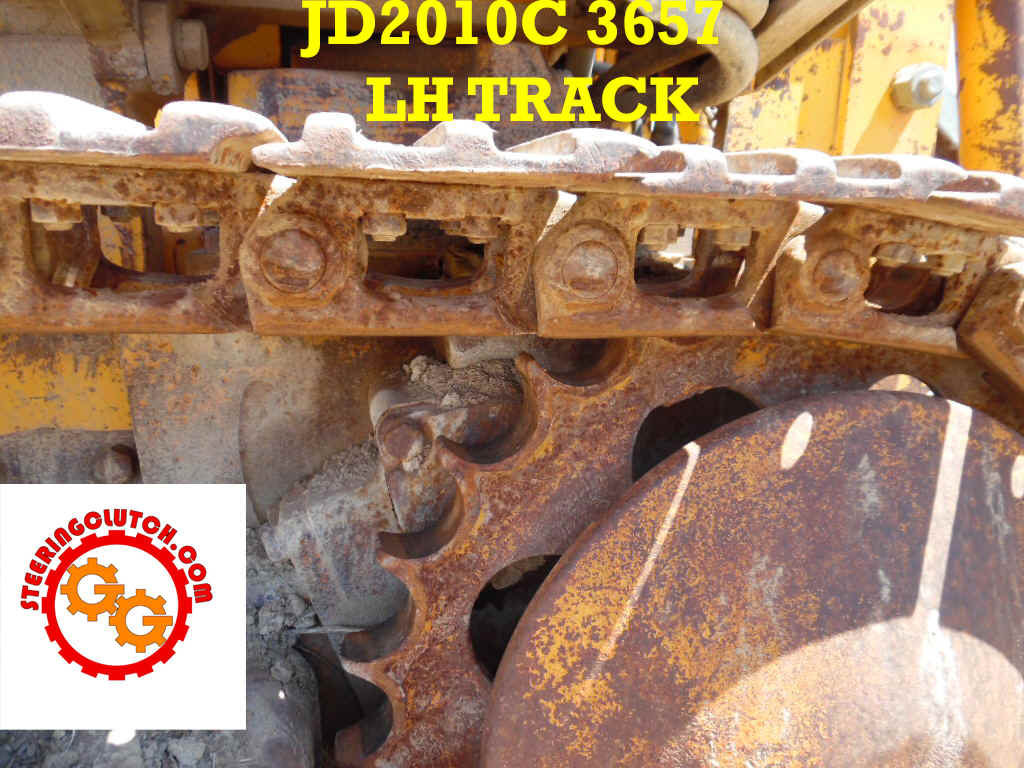

Link Height 3 inch, 11 3/4" pads, 3 grouser pads......BOTH SIDES 1800.00 TOTAL


JD2010 STEERING CLUTCHES

The John Deere model 2010 crawler used quantity 8 fiber discs, p/n T14340 in all their steering clutches. The steel separator plates varied in quantities, some using 8, and some using 7 of the T14339.

For the 2010 crawlers up thru serial number 42000, 8 steel plates were used. For machines with serial number 42001 and up, quantity 7 steel plates were used. All used the same plates p/n T14339.

uspsfreeshippingicon.jpg (27000 bytes)  Free shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



FIBER CLUTCH PACK FOR 2010 SER#42000 AND BELOW (8) FRICTION AND 8 STEEL = $304.00
FIBER CLUTCH PACK FOR 2010 SERIAL #42001 AND UP  (8) FRICTION AND 7 STEEL = $286.00

BIMETALLIC CLUTCH PACK FOR 2010 SER#42000 AND BELOW (8) FRICTION AND 8 STEEL = $376.00
BIMETALLIC CLUTCH PACK FOR 2010 SERIAL #42001 AND UP  (8) FRICTION AND 7 STEEL = $358.00

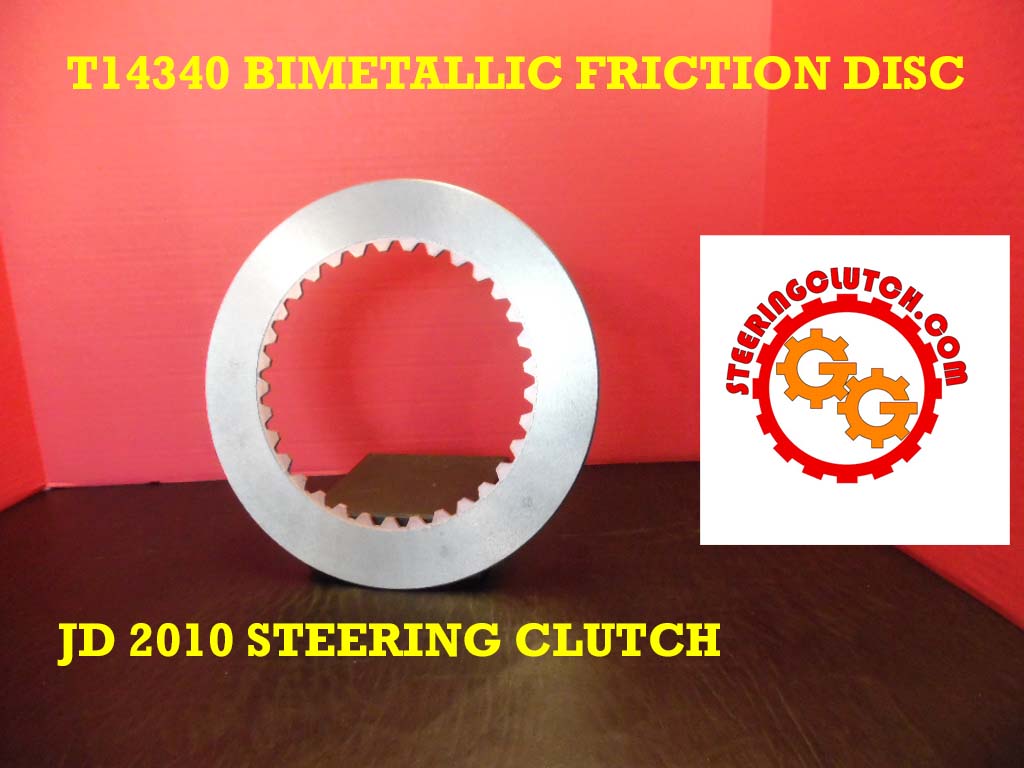

     Bimetallic friction discs for the JD2010 eliminate broken teeth and greatly reduce the chances of frozen steering clutches.  Bimetallic steering clutches can also be washed.  The coefficient of friction is increased by approximately 3%.

BIMETALLIC FRICTION DISCS @ 29.00 EA   Order p/n T14340BM

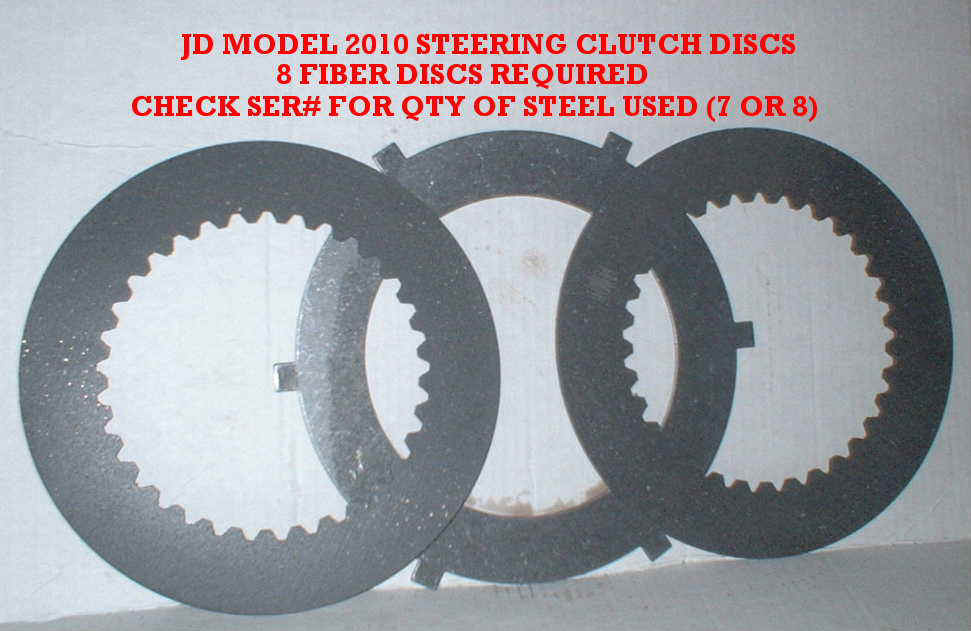

JD_2010_STEERING_CLUTCH_DISCS.JPG (58735 bytes)    Fiber Disc T14340, new after market @ $20.00 EA.
                       Steel plates T14339, new after market @ $18.00 ea

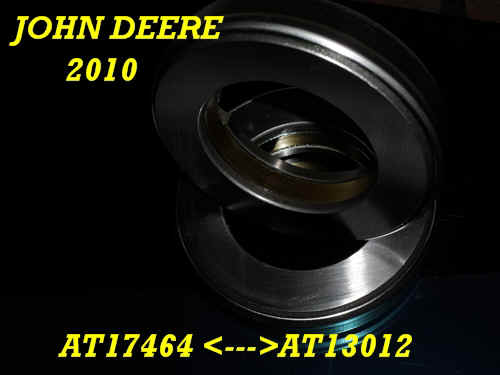

JOHN_DEERE_AT17464-AT13012_BEARING.JPG (119132 bytes)  John Deere throw out bearing AT17464  <---> AT13012                $25.00 ea
Fits flywheel clutch and also steering clutches

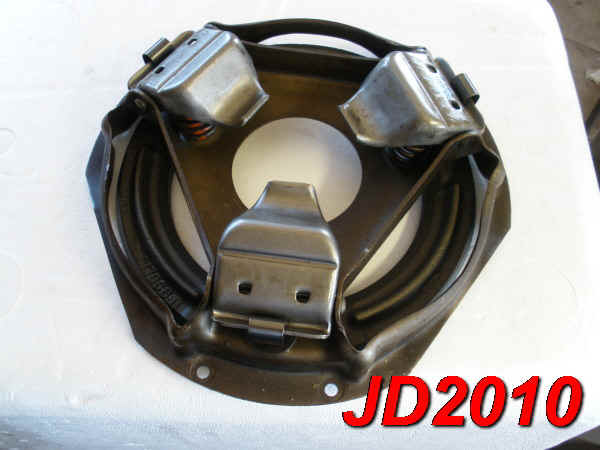

AT12989 PRESSURE PLATE.jpg (91212 bytes)    John Deere Steering Clutch Pressure Plate  AT12989   $378.00   New and in stock

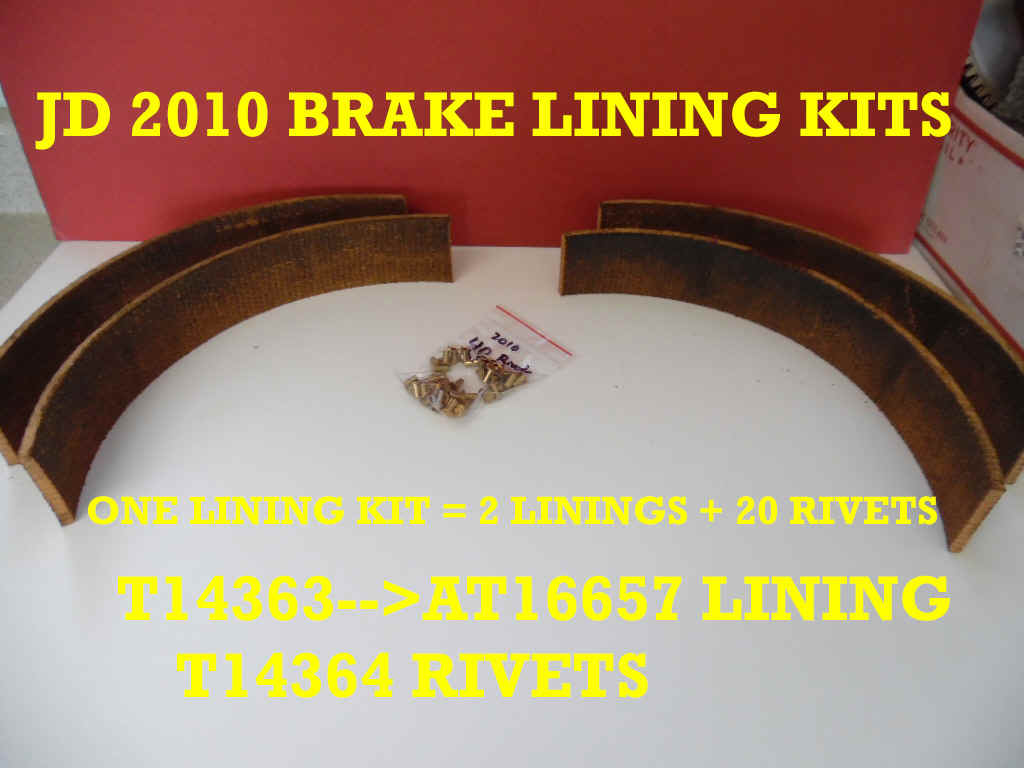

  JD_2010_BRAKE_LINING__KITS.jpg (237730 bytes)   John Deer2010 BRAKE LINING T14363--->AT6657  LINING KIT = 2 LININGS PLUS RIVETS $55.00
