D8 STEERING CLUTCHES

JUST IN FOR PARTS

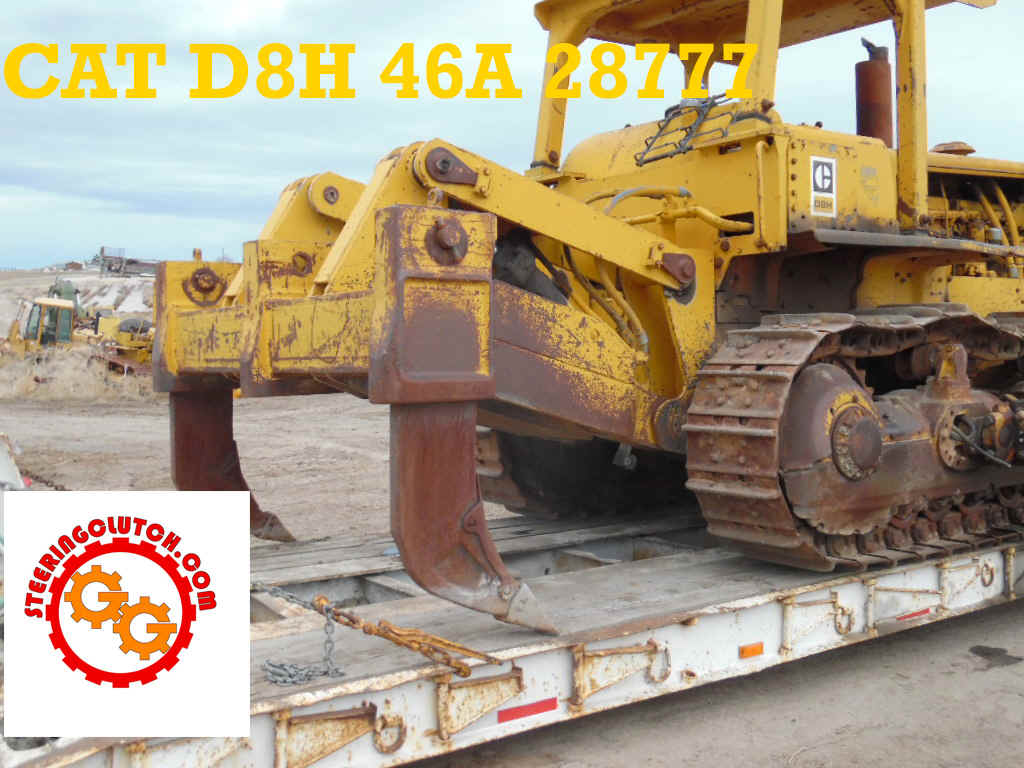

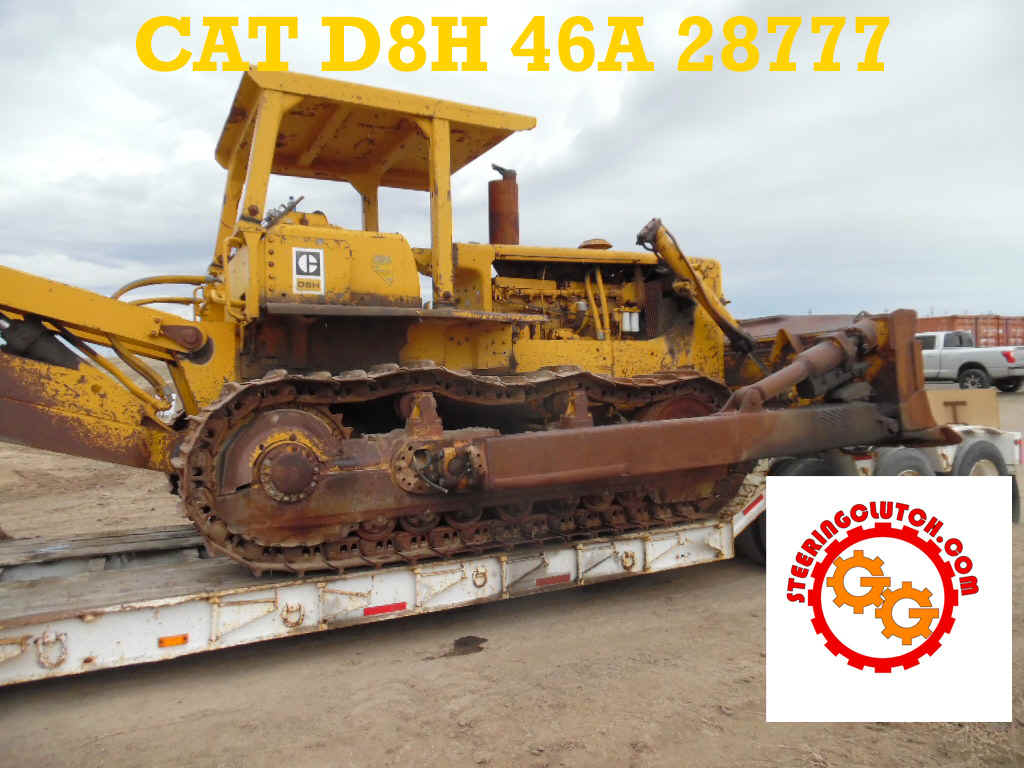

LATE D8H FOR PARTS



EXCELLENT RUNNING HIGH HP SPACER PLATE D342 ENGINE, CAT 2 BBL PARALLELOGRAM RIPPER

The steering clutches for the early D8 8R'S AND 2U's used various friction discs and plates, depending on serial numbers. See parts pages below.
2U1-21512 (18) 3B7974 Bimetallic Friction Discs and (18) 1B9746 Steel separator plates
2U21513-END (12) 3B7974 Bimetallic friction discs and (12) 8F4453 Steel Separator Plates ** See Service Bulletin Below

D8 13A (12) 3B7974 Bimetallic friction discs and (12) 8F4453 Steel Separator Plates ** See Service Bulletin Below

D8 14A-15A DRY TYPE CLUTCHES
D8 14A-15A OIL TYPE CLUTCHES

The steering clutches for the D8 36A and 46A's used the 7H2118 bimetallic friction discs (15 used per clutch) and the 8F4453 steel separator plates (14 used per clutch). The steering clutches for the early D8K (66V 76V 77V) 's used the 1P6996 bimetallic friction discs (16 used per clutch) and the 8F4453 steel separator plates (15 used per clutch). If the plates are damaged, by scoring, warping, or just plain old wear they should be replaced but you can often reuse the steel plates. Sharp teeth on the friction discs or plates will also disqualify them for re-use.

All items below are in stock and if you would like to get any of them on the way just let us know! If you are in the US you may call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located 20 miles east of Boise, Idaho.

D8 2U Discs
(18) 3B7974 Bimetallic friction discs per clutch @ $23/ea for good used
(18) 1B9746 Steel separator plates per clutch @ $15/ea for good used - $20/ea for new aftermarket

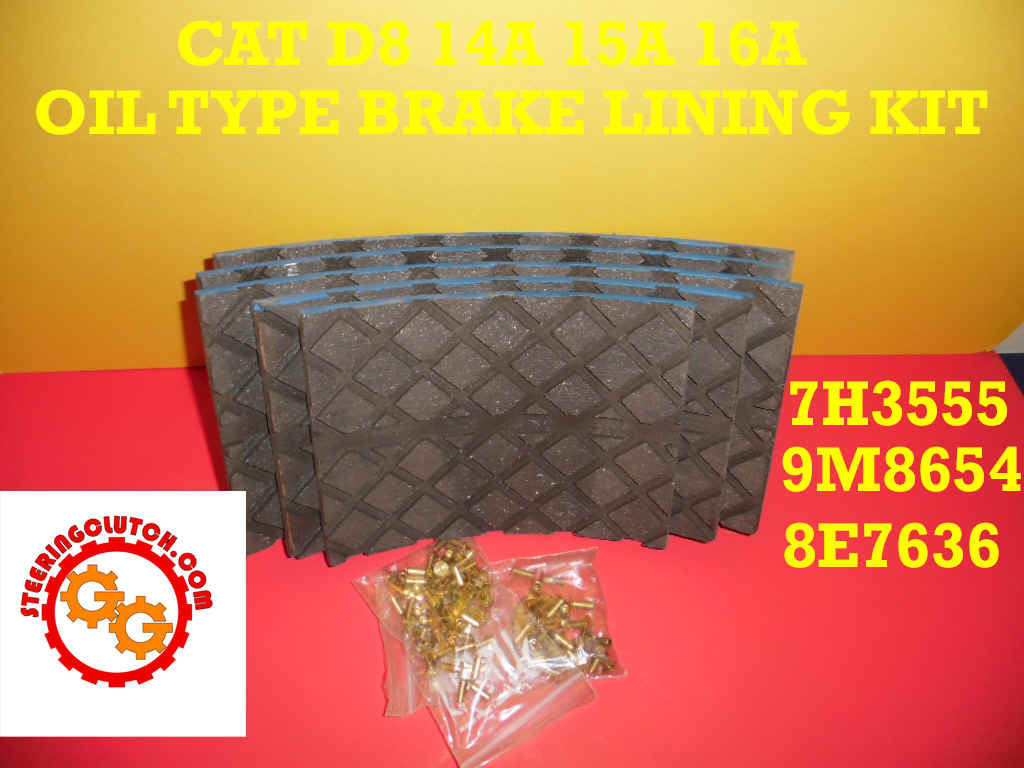

D8 14A 15A OIL TYPE LINING KITS $285.00 7H3555 9M8654 5E7636 CURRENTLY OUT OF STOCK

D8H 36A/46A

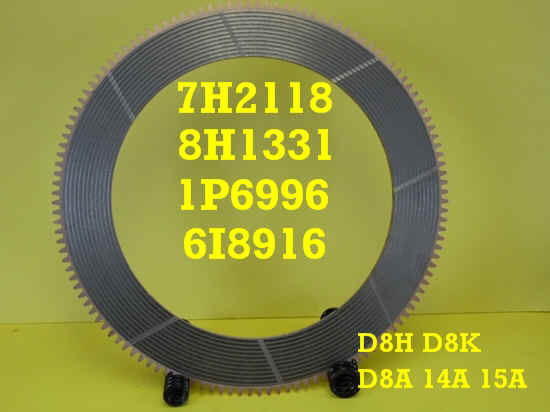

(15) 7H2118-->8H1331-->1P6996-->6I8916 Bimetallic friction discs per clutch NEW $35.00 EA (15 EA USED PER CLUTCH)
(14) 8F4453-->7H2060-->6T8886 Steel separator plates per clutch @ $17/ea for good used $20.00 EA FOR NEW
ONE COMPLETE NEW SET OF NEW DISCS, 15 FRICTION DISCS AND 14 STEELS = $805.00

D8K (66V/76V/77V)

(16) 7H2118-->8H1331-->1P6996-->6I8916 Bimetallic friction discs per clutch NEW $35.00 EA (16 EA USED PER CLUTCH)
(15) 8F4453-->7H2060-->6T8886 Steel separator plates per clutch @ $17/ea for good used $20.00 EA FOR NEW
ONE COMPLETE NEW SET OF NEW DISCS, 16 FRICTION DISCS AND 15 STEELS = $860.00

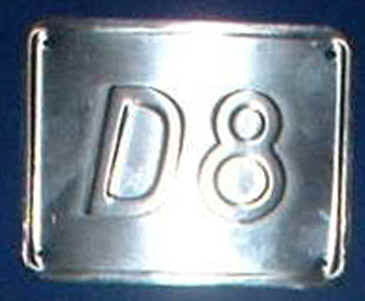

D8 STEEL ID PLATE $12.00 EA OR SET OF 2 @ $20.00

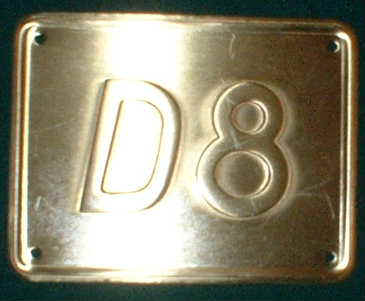

D8 BRASS ID PLATE $18.00 EA OR SET OF 2 @ $30.00

SET OF 5 STEEL EMBLEMS FOR THE EARLY CRAWLERS $50.00 PER SET

SET OF 5 BRASS EMBLEMS FOR THE EARLY CRAWLERS $75.0 PER SET

CATERPILLAR STEERING CLUTCH SPEC SHEET

IF YOU HAVE EQUIPMENT THAT IS DATED BACK THE THE EARLY 40'S AND EARLIER YOU WILL BE INTERESTED IN AN OLD, ALMOST ANCIENT, CATALOG THAT YOU CAN DOWNLOAD AND SAVE TO YOUR COMPUTER
ACCESSORY AND SUPPLY CATALOG There is some really valuable information there that I have not seen anywhere else.

Click HERE to view all of our new steering clutch discs.
