The D6 steering clutches ( D6 4R, 5R, 8U, 9U)
and D6B 37A and 44A are the same design as the later D5 model machines, using the same
inner driving drums, same bimetallic friction discs, same steel separator plates, clutch
springs, and even the same brake drum and brake linings! Twelve (12) bimetallic friction
discs and twelve (12) steel separator plates are required for each clutch pack. Unless
severe damage has occurred, you often have to replace only the bimetallic friction discs.
This keeps your costs down quite a bit. I would highly recommend that you check your brake
bands at this time, unless you just enjoy pulling wrenches. All parts listed below are new
replacement parts, non oem.
Brake Band relining kit $49.00 per clutch (a band is 3 sections, the price includes all
rivets and linings for one complete brake band)ORDERING INFO:
 We can
usually ship on the same day any items we have in stock that do not have to be pulled from
a machine. We are set up to offer the payment choices of either Visa, Master Card,
or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn
Time to 4 pm Mtn Time). We are located 20 miles east of Boise, Idaho.
(12) D6 2F8621-->6Y7160 Bimetallic friction discs per clutch @ $26.00 ea
(12) D6 1A3987 Steel separator plates per clutch@ $16.00 ea
COMPLETE CLUTCH PACK OF 12 FRICTION AND 12 STEELS =$504.00

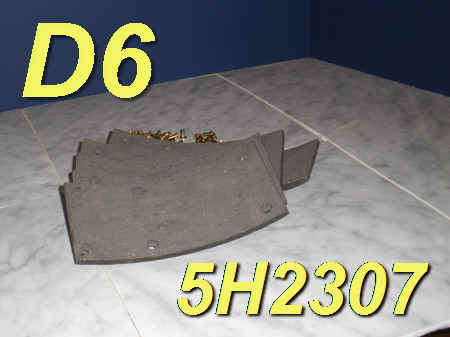

 NEW D6 BRAKE LINING KITS INCLUDING
RIVETS. FOR DRY TYPE STEERING CLUTCH
BRAKE BANDS...ONE COMPLETE KIT, W/ RIVETS FOR ONE COMPLETE 3 PC BRAKE BAND $49.00
P/N 5H2307 LINING KIT
HEAVY DUTY WOVEN LINING
57.00 ORDER P/N 5H2307HD
THIS TYPE OF LINING IS PRIMARILY FOR DRY TYPE
BRAKES. THE BRAKE LINING KIT, INCLUDES RIVETS, LINING, 57.00/SET
HEAVY DUTY WOVEN LINING WOVEN WITH BRASS STRANDS, DESIGNED FOR REPEATED USE IN SEVERE
CONDITIONS, ABLE TO WITHSTAND HIGH TEMPERATURE USE (400 DEGREE)WITH MINIMAL LOSS OF
COEFFICIENT OF FRICTION. THE MATERIAL IS ALSO GOOD IN SOME OIL TYPE APPLICATIONS.
(IT SHOULD BE GROOVED FOR BETTER PERFORMANCE IN OIL APPLICATIONS)
The lining is easier to work with and you can even change position of rivet holes if
necessary to compensate for bad rivet holes in the band. This style of lining
elminates the possibility of breaking, cracking, or chipping like the molded style linings
which are brittle and must fit the perfect curvature of the band. It is often
tough to fit the molded linings to 70-80 year old brake bands without damaging that style
of lining.

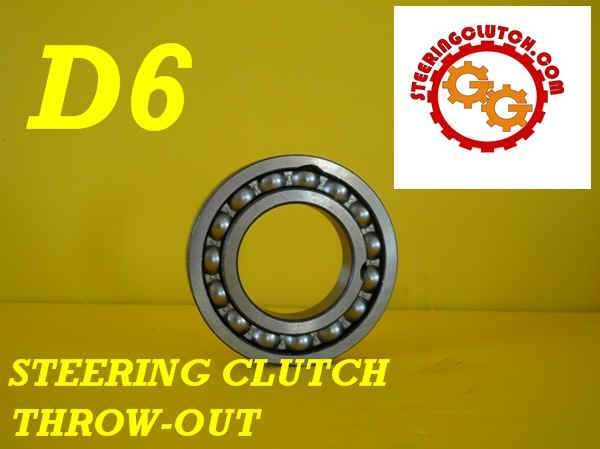

 NEW D6 DRY TYPE STEERING CLUTCH
THROW-OUT BEARINGS P/N 1B4103 8M8068 $45.00 EA
The bearings fit D6 2H, 4R 5R MODELS, AS WELL AS THE 8U, 9U, 37A, AND 44A D6B'S.
Crawler loaders 10A and 20A's and more!
 BRAKE BAND ADJUSTING FORK
AND NUT 66.00 EA or 120.00 PER SET (ONE EACH)
6B7178 FORK
Original 6B7159 adjusting nut was
replaced by the updated 8H9379 nut to make adjusting easier.

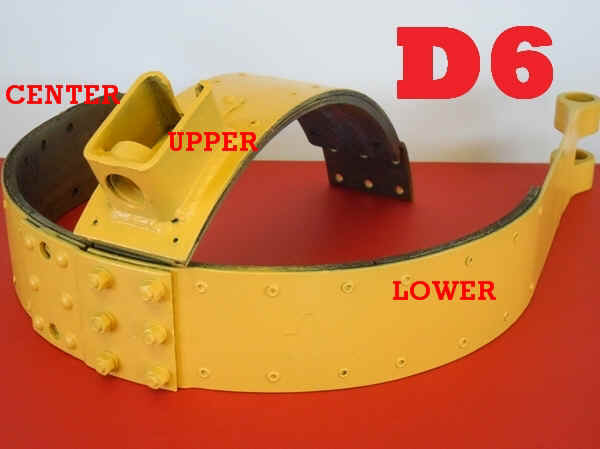

 IN STOCK!! NEW BAKE BANDS COMPLETE WITH NEW
LINING, NEW 3 PC BRAKE BAND $366.00 OUTRIGHT
AND NO CORE CHARGES!!
These bands will fit the D6 AND D6B DRY TYPE CLUTCHES FOR THE D6 MODELS 4R, 5R, 8U, 9U,
37A, 44A .
The part numbers for these bands went through quite an evolution as did the bands.
The early bands, for the model 4Rs and 5R's and 8U and 9U's did not have any reinforcing
plates at the joints. When the part numbers went from the "B" part numbers
to the "F" part numbers, reinforcing plates were added to the "6F" and
on all bands thereafter. Upper Band P/N's 6B7484->6F6285->1M0547 Center Band
P/N's 6B7352->6F2686 Lower Band P/N's 6B7241->6F2687->4M8766
WHEN REMOVING YOUR STEERING CLUTCH..........IT
IS IMPORTANT TO RIG YOUR LIFTING SLING ON THE BRAKE BAND
PROPERLY TO PREVENT DAMAGE TO YOUR BRAKE BAND (CLICK
HERE FOR INFO) This
excerpt from a 1955 Service Magazine
is a reference for the D8 steering clutch but the principle is the same. Do not
damage your brake band!
6B4189--->7B5088--->2234813 NEW Outer Brake Drum $185.00
7B5314 --> 7M5038 --> 7B5294--->7M5002--->2667992 NEW Inner Driving
Drum $190.00
(8) Steering clutch 6B9633 outer springs $4.50 ea
(8) Steering clutch 6B9632 inner springs $3.00 ea
Steering clutch Compression Tool 74.00
 IN STOCK FOR THE OIL TYPE
FLYWHEEL CLUTCHES, WE HAVE THE NEW FRICTION DISCS 64.00 EA (2 REQUIRED)
2H6121--->4H2923--->1S8183--->4S9074 CLUTCH DISC WENT THROUGH SOME PART NUMBER
CHANGES TO GET TO 4S9074
TO PROTECT YOUR FLYWHEEL RING GEAR WE
HAVE PRODUCED NEW STARTER PINION GEARS...6B1360 $154.00
Bellows type final drive seals for the early D6 are
now in stock $148.00 CLICK HERE FOR
DETAILS
D6 FINAL DRIVE SEAL 1A4127--->3B5730-->
1H8868-->5H0426 BELLOWS SEAL

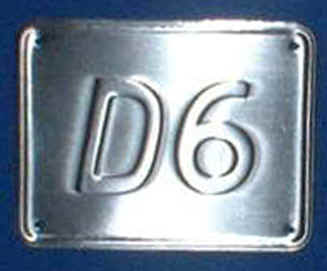

 D6 STEEL ID PLATE
$12.00 EA OR SET OF 2 @ $20.00

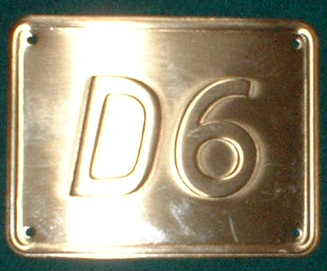

 D6 BRASS ID PLATE $18.00 EA OR SET OR 2 @ $30.00
 SET OF 5 STEEL EMBLEMS FOR THE EARLY CRAWLERS $50.00 PER SET
 SET OF 5 BRASS EMBLEMS FOR THE EARLY CRAWLERS $75.0 PER SET
Click HERE to view all of our
new steering clutch discs.
|
for orders or
questions.
CAT D6

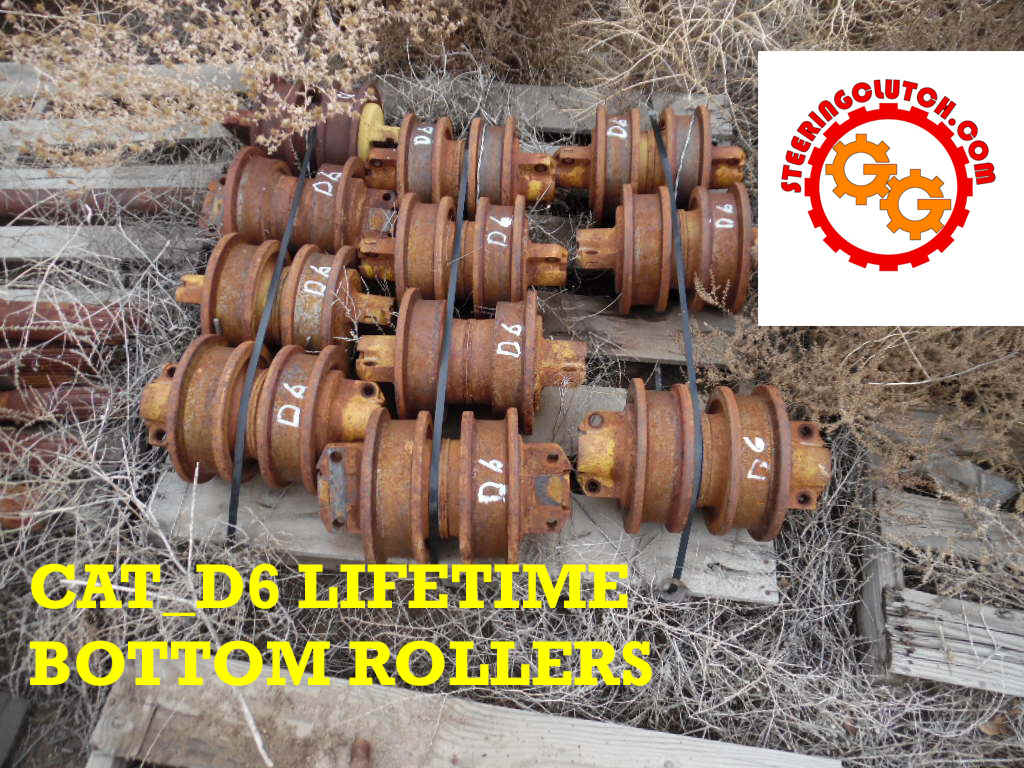

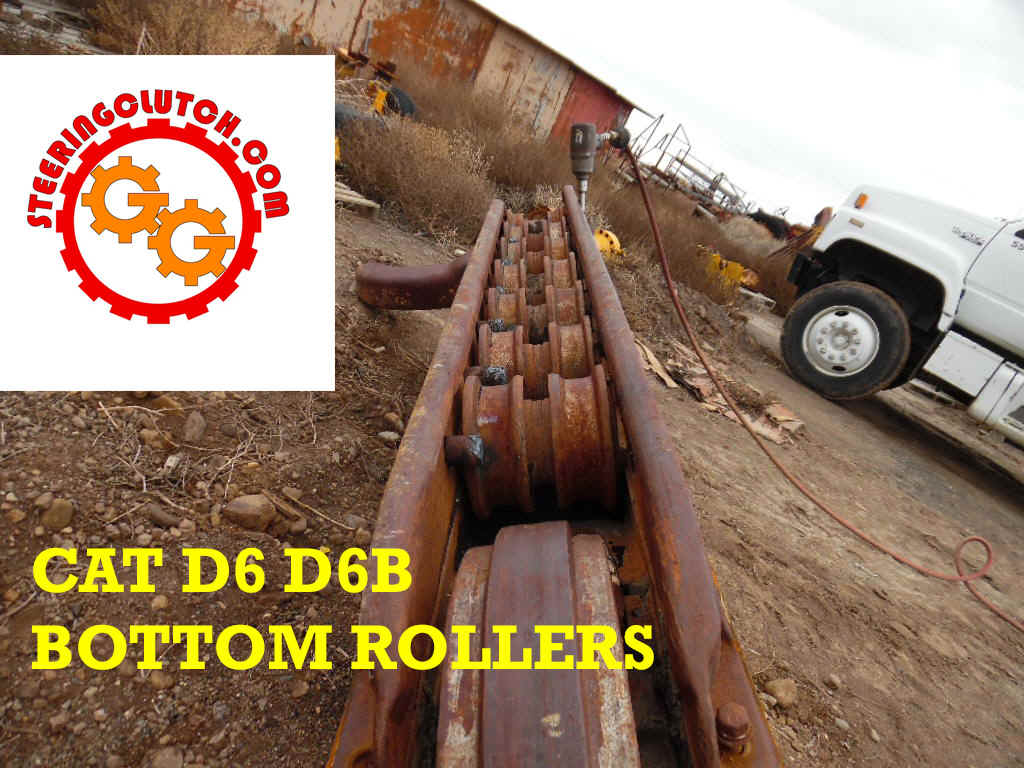

D6B BOTTOM ROLLERS, GOOD USED 150.00 EA

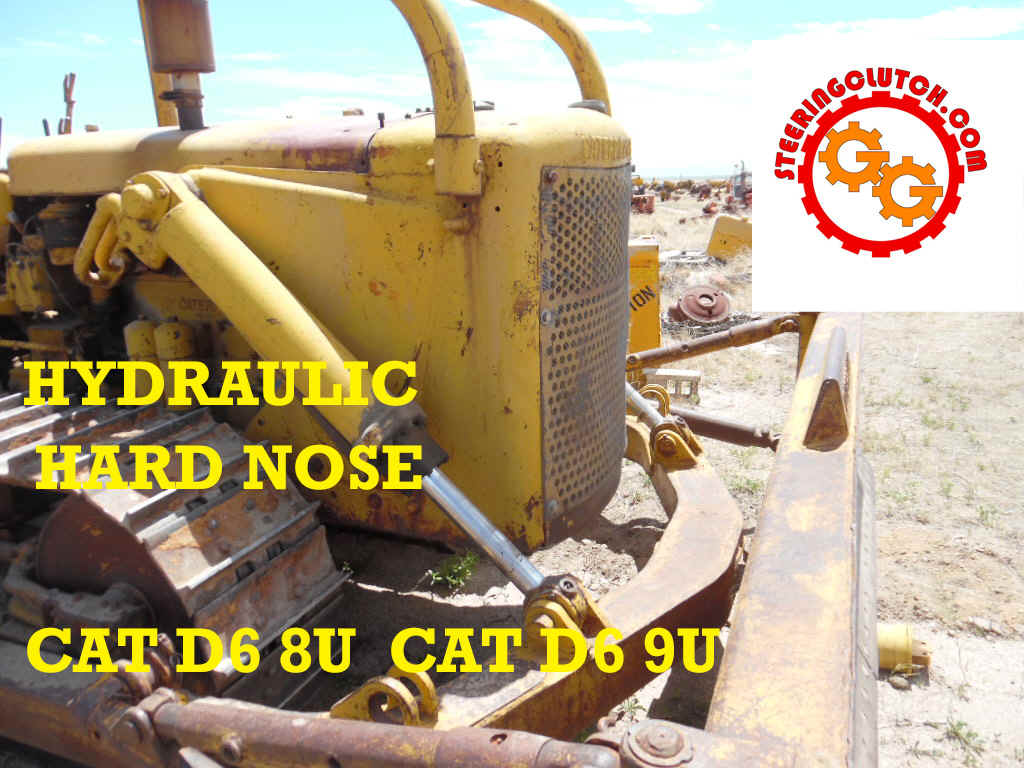

HYDRAULIC
HARDNOSE, GOOD CYLINDERS, GOOD CAT HYDR UNIT,
-
