JUST IN FOR PARTS
HD3
HD4
The Allis Chalmers crawlers, models H3, HD3, H4,
HD4, 653, AND 655's all used the same steering clutches. 4 friction discs (fiber) were
required per clutch and 3 steel separator plates. We supply new after market discs to take
care of your problems and restore your clutches.
If you want to upgrade your clutches to bimetallic style discs, instead of the fiber
discs, you will get a longer lasting steering clutch. The clutch discs are less affected
by moisture and are less prone to sticking or bonding together, seizing up your clutches.
No additional discs are required. You will have no more problems with broken teeth
when using the bimetallic discs. We now have these available at 33.00 each.
When making the choice between the less
expensive fiber discs ($25 ea) vs the Bimetallic discs ($33 ea) keep in mind that with
only 4 discs per clutch, your total cost difference is $32.00 to end up with a far
superior clutch.
 Free shipping in US only, Priority Mail or UPS Ground, on orders
$500 or higher.
ORDERING INFO:
 We can usually ship on the same day any items we have in
stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal
option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would
like to get any of them on the way just let us know! If you are in the US you may
call 1-800-531-9021 or if you are outside the US, 1 208 342 8911. You may also
email steeringclutch@gmail.com
for orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
0233887--->71003719 fiber friction Discs @ 25.00 ea (4 required per
0233887--->clutch)
70233886 (0233886) Steel Discs @ 19.00 ea (3 required per clutch)

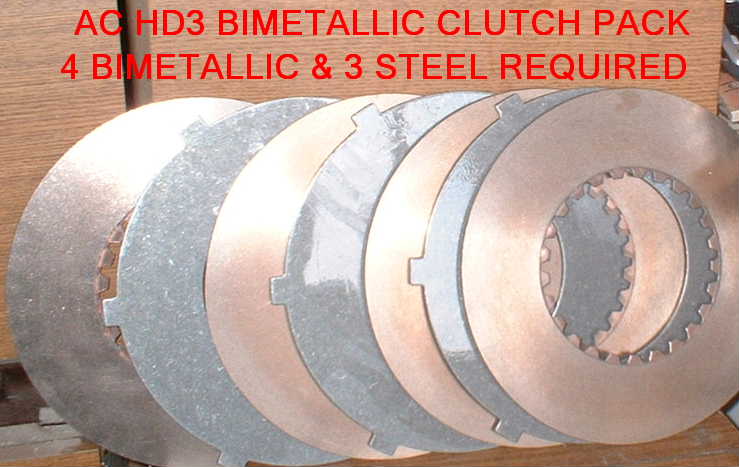

Bimetallic discs, p/n 71010964 for replacing
the fiber 0233887 (71003719) @ 33.00 ea
CLUTCH PACK OPTIONS
4 BIMETALLIC AND 3 STEEL SEPARATOR PLATES = $189.00
4 FIBER FRICTION AND 3 STEEL SEPARATOR PLATES = $157.00
HD3 HD4 653 655 Bimetallic & Steel Steering Clutch Discs

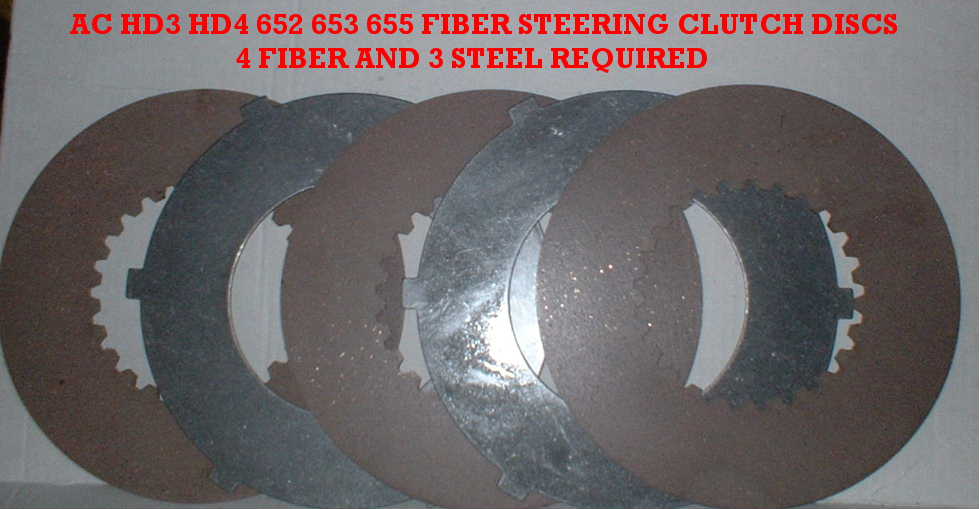

Early Style Fiber and Steel Steering Clutch Discs

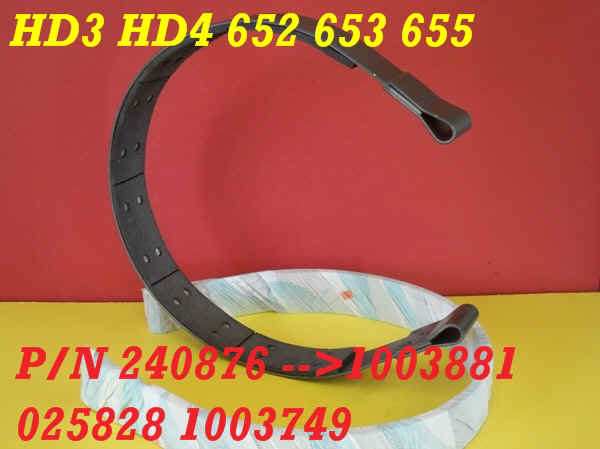

New brake bands, with new linings $220.00 ea P/N'S
240876-->1003881->1003749-->025828

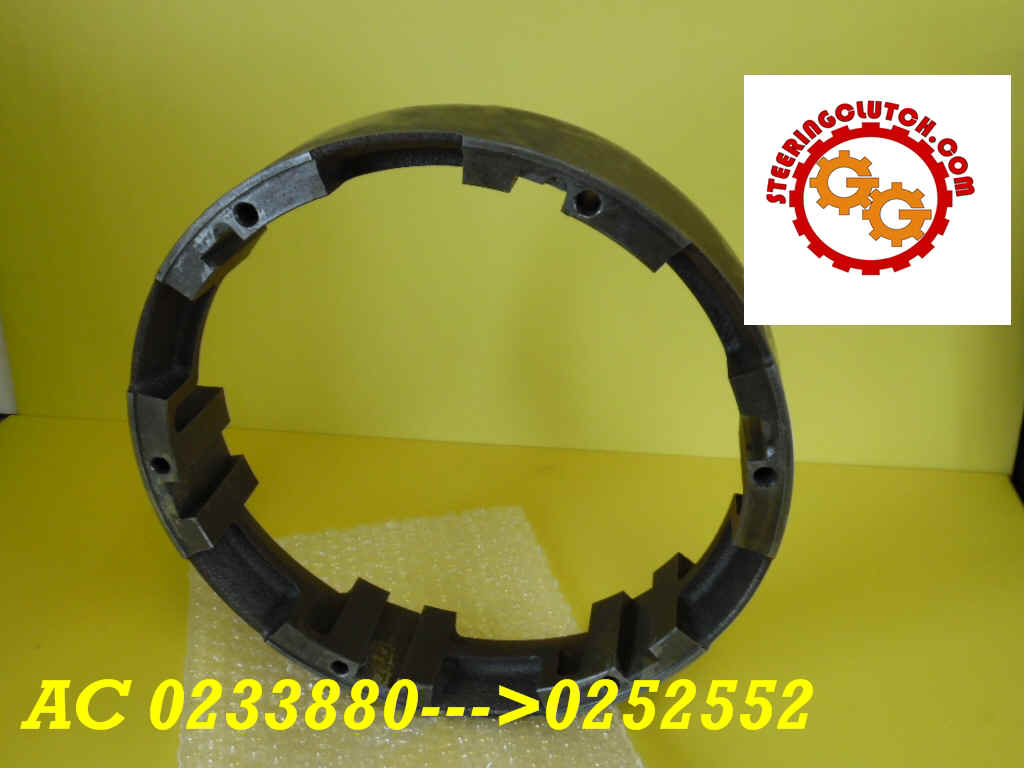

BRAKE DRUM 0233880 REPLACED BY 0252552  FITS MODELS HD3 HD4 652 653 655
$238.00 NEW

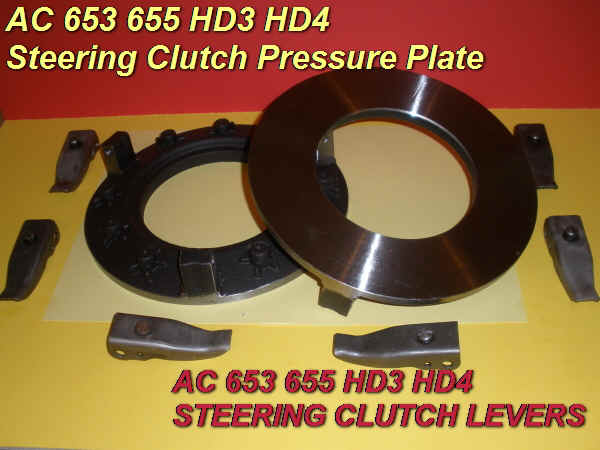

New aftermarket Steering Clutch Pressure Plate....bare...p/n# 230423 $92.00 ea

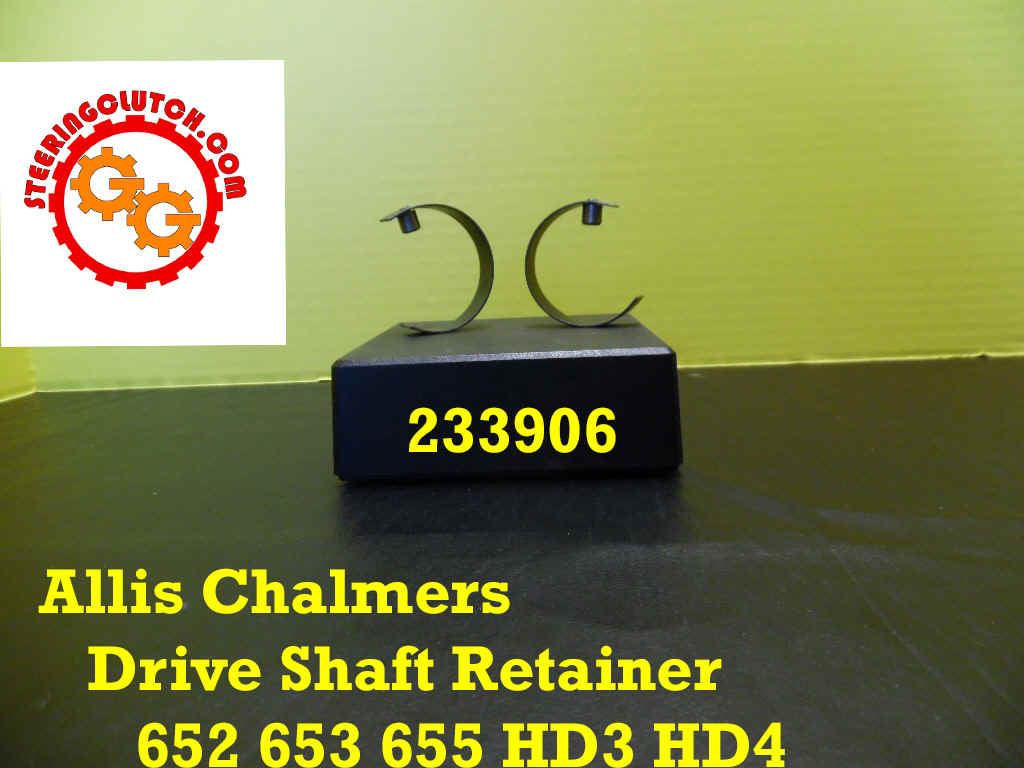

 233906 DRIVE SHAFT RETAINER (NEW) 1 USED
PER CLUTCH $24.00 ea PARTS
PAGES HERE
The retainer 233906 will replace the earlier retainer 1003348

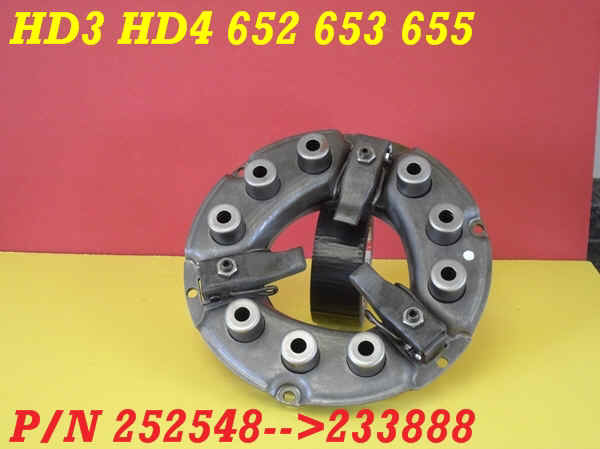

 FOR COMPLETE PRESSURE PLATE ASSEMBLY P/N 252548 OR 233888
$390.00

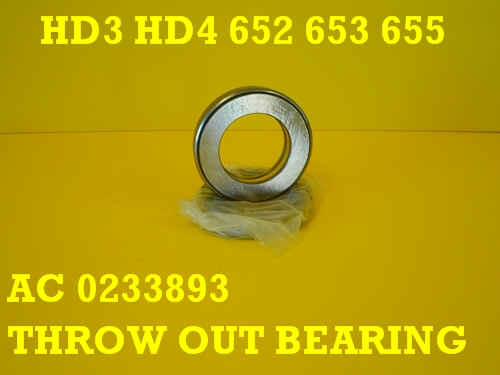

 Steering Clutch Throw-out Bearing
p/n 0233893 NEW 25.00 ea

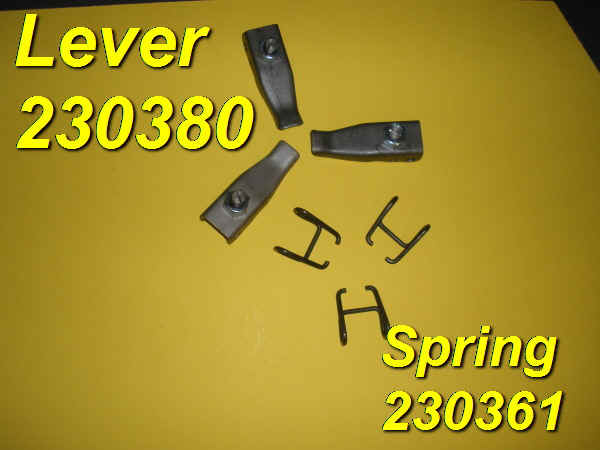

Set of 3 steering clutch Pressure Plate levers
p/n#230380 set of 3 $75.00 total (includes adjusting
screws/jam nut
Set of 3 lever springs (3) 230361 $35.00

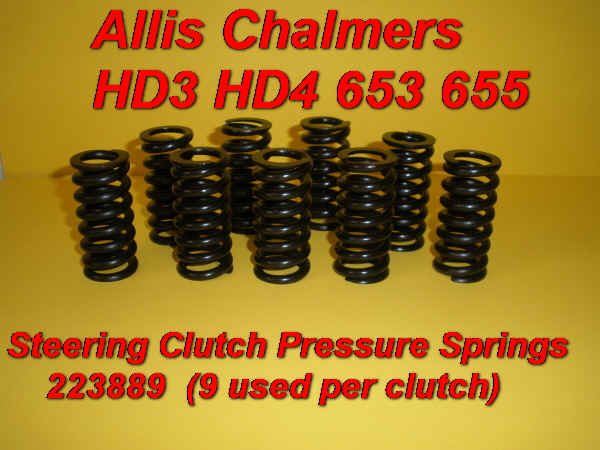

NEW STEERING CLUTCH PRESSURE SPRINGS P/N 223889 $7.00 EA OR
$54.00 FOR COMPLETE SET OF 9

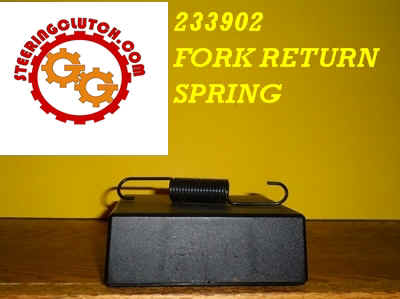

NEW STEERING CLUTCH FORK RETURN SPRINGS P/N 233902 $9.00 EA OR SET OF 2 FOR
$15.00

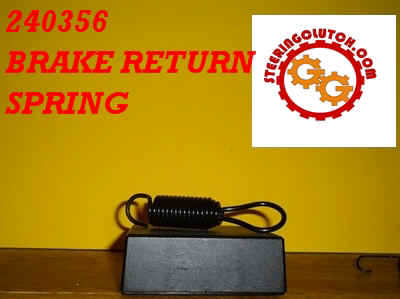

NEW STEERING CLUTCH BRAKE RETURN SPRING P/N 240356 $28.00 EA OR SET OF 2
FOR $50.00
 SEARCHING FOR PARTS!?
When searching for parts, the part
numbers are, of course, very important. It is GOOD TO KNOW
that the part numbers in your parts manuals are probably NOT
the part numbers that you want to search for!!! If you have a manual showing 6 digit part
numbers, and the early machines and their parts manuals mostly show 6 digit numbers, and
you want to replace a bearing or seal for example, your local bearing and seal house will
not be able to help you if you give them that 6 digit number! For most of the
early construction equipment and loaders you will want to add a "70" in
front of the 6 digit number to make an 8 digit number. Depending on product line,
you may have to add a "73" in front of the 6 digit number. If you give
your local bearing and seal house the 8 digit part number they will be able to help you!
(or if you are doing a Google search) As with most rules, there are always
exceptions but your odds of finding the part that you need greatly increase if you do
follow this rule. "Use
an 8 digit part number by adding a "70" or "73" to your 6 digit
number."
H3 HD3
OPERATIONS MANUAL BEFORE SER# 8694
H3 HD3
OPERATIONS MANUAL SER#8694 AND UP
H4 AND HD4 OPERATIONS MANUAL
H4 AND HD4 OPERATIONS MANUAL
SER#3001-UP
H3 HD3 CRAWLER
SERVICE MANUAL
HD3 HD4
STEERING CLUTCH PARTS PAGES
STEERING CLUTCH
SERVICE INFORMATION
AC
652 653 655 STEERING CLUTCH PARTS
HD3/4 FINAL
DRIVE PARTS
HD3/4 BEVEL GEAR
AND CROSS SHAFT PARTS
Click HERE to view all of our new steering clutch
discs.
|
