CATERPILLAR D7E CAT D7F CAT D7G STEERING CLUTCHES, BRAKE BANDS, LINING KITS


D7E D7F D7G STEERING CLUTCHES

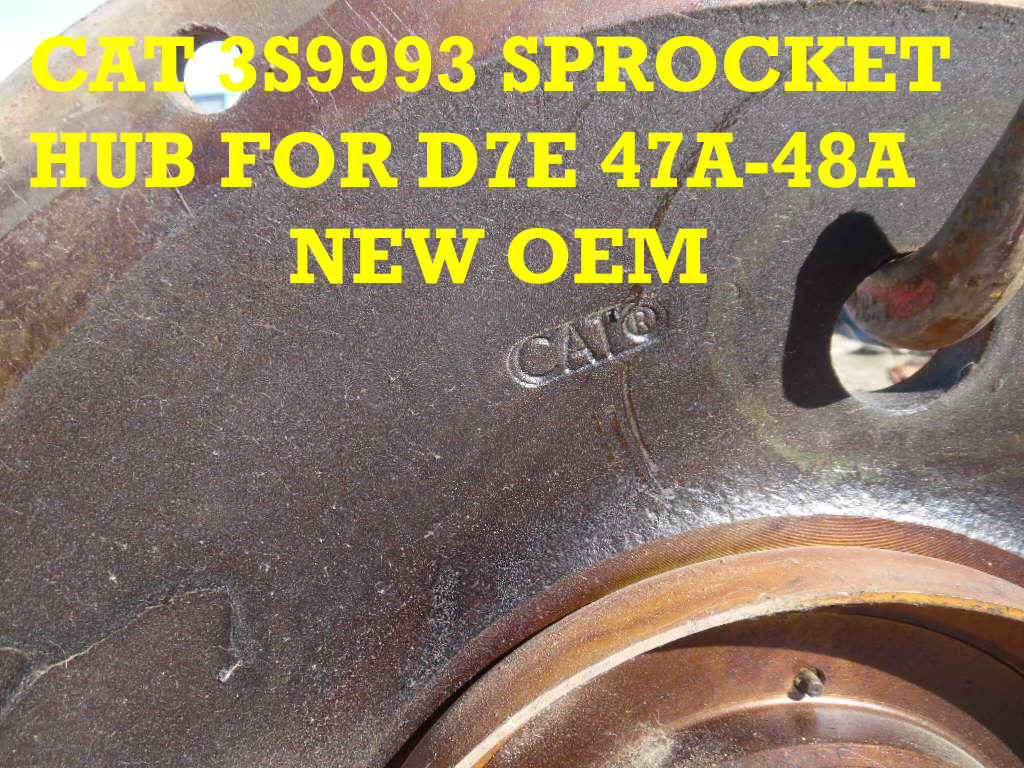

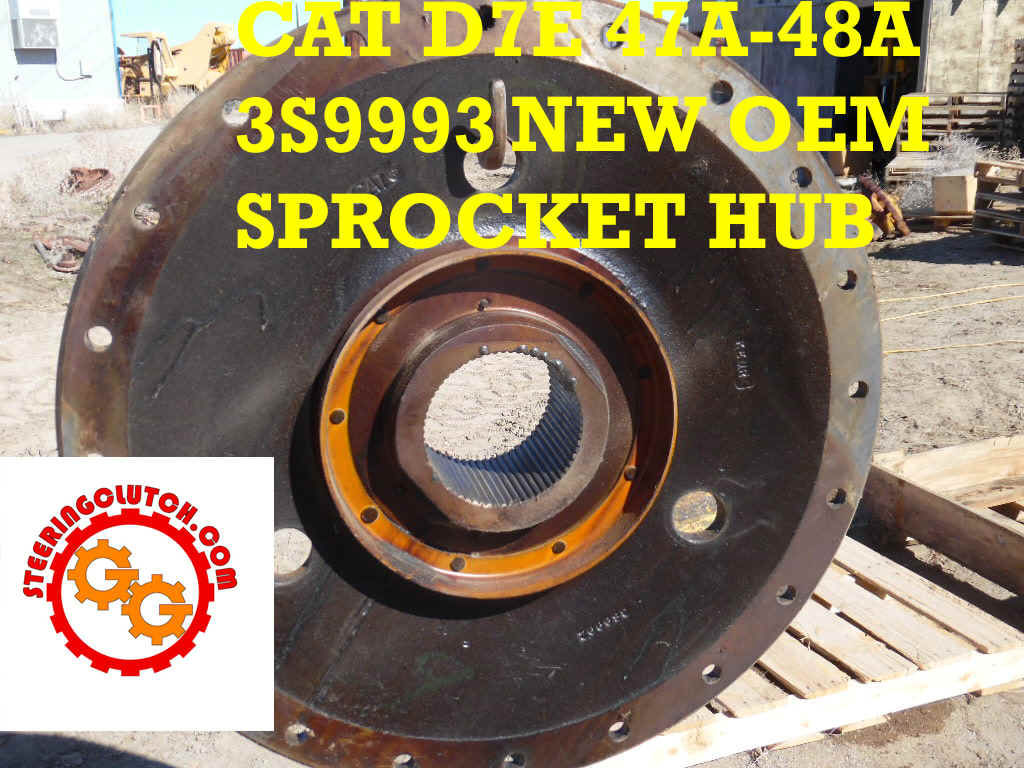

CAT_D7E_SPROCKET_HUB_3S9993___NEW__CAT.jpg (368971 bytes)  CAT_D7E_SPROCKET_HUB_3S9993__NEW__CAT.jpg (312769 bytes)  CAT_D7E_SPROCKET_HUB_3S9993_NEW__CAT.jpg (353952 bytes)   NEW CAT OEM SPROCKET HUB 3S9992 (3S9993 P/N)
ONE AVAILABLE   1500.00  (CLICK ON PIX FOR LARGER VIEW)

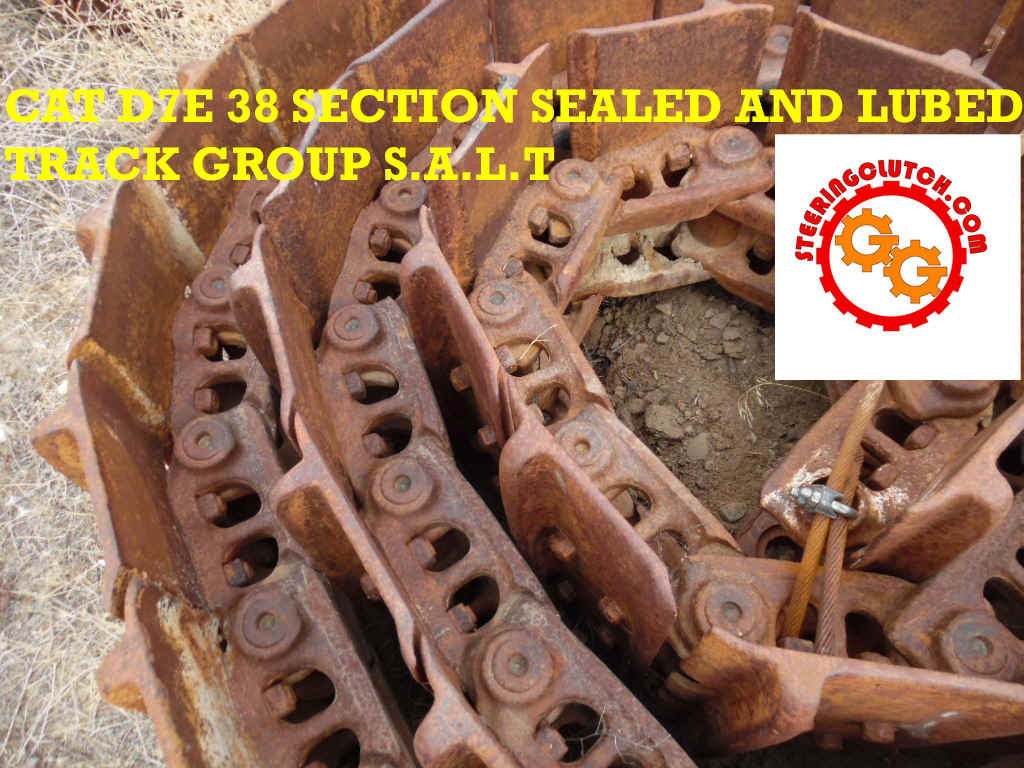

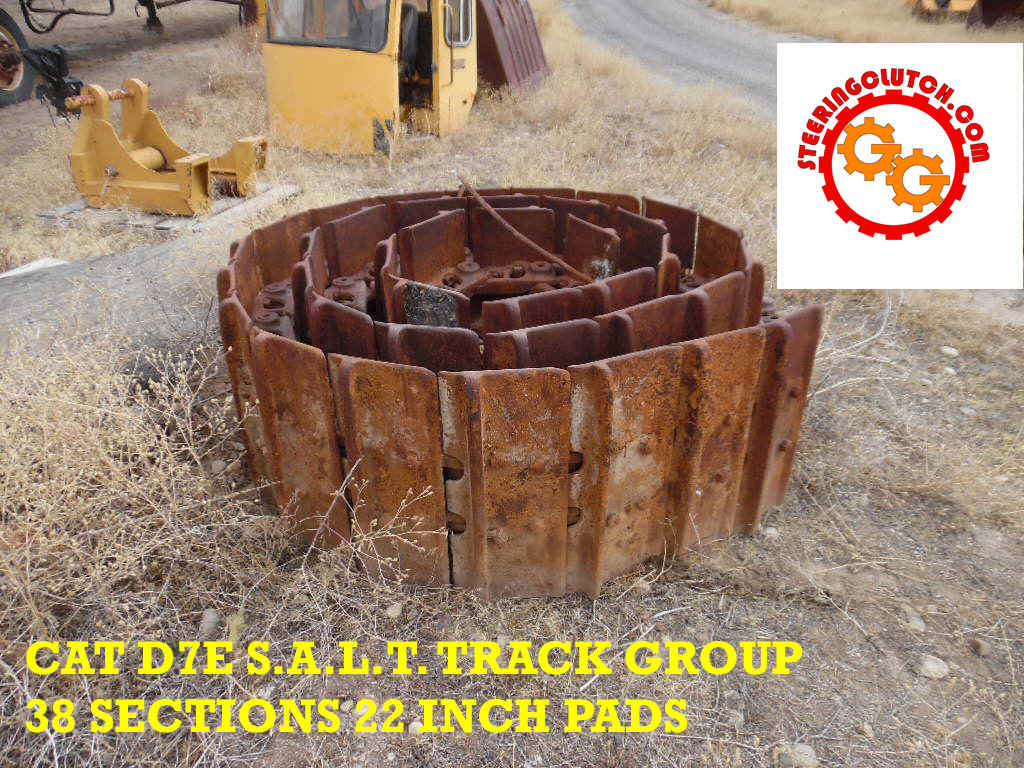

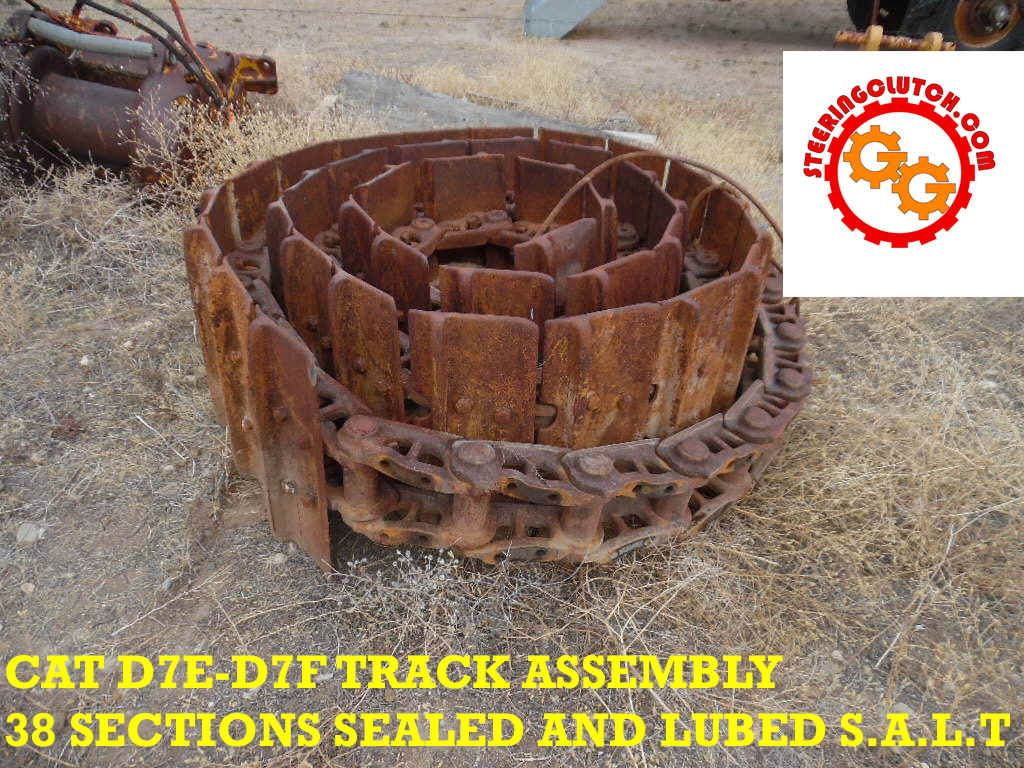

CAT_D7E_D7F_TRACK_ASSY_22_INCH_PADS_38__SECTNS.jpg (371963 bytes)   CAT_D7E_D7F_TRACK_ASSY_22_INCH_PADS_38_SECTNS__2.jpg (350870 bytes)  CAT_D7E_D7F_TRACK_ASSY_22_INCH_PADS_38_SECTNS__3.jpg (378049 bytes)  TRACK GROUP, D7E-D7F, ONE AVAILABLE, 38 SECTIONS SALT TRACK 22 INCH PADS
These were originally on a BE Excavator which is why 8 extra sections were added. Pads removed from the 8 extra sections.  $1900.00

The steering clutches for the early D7E's, D7F'S, AND D7G'S were very similar. VARIATIONS ARE SHOWN BELOW

If the plates are damaged, by scoring, warping, or just plain old wear they should be replaced but you can often reuse the steel plates. Sharp teeth on the friction discs or separator plates will also disqualify them for re-use.



ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, Discover, American Express, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



CAT D7E

47A1 THRU 47A3677 TAKES (10) 5M1199 BIMETALLIC FRICTION DISCS $25.00 EA.
48A1 THRU 48A6882 TAKES (10) 5M1199 BIMETALLIC FRICTION DISCS  $25.00 EA.
75E1 THRU 75E459 (MIL VERSION) TAKES (10) 5M1199 BIMETALLIC FRICTION DISCS  $25.00 EA.

STEEL SEPARATOR PLATES 1S1361   1S1361_CAT_CLUTCH_DISC.JPG (11595 bytes)        $14.00 EA. (9) ARE USED PER CLUTCH
A COMPLETE CLUTCH PACK OF 10 FRICTION DISCS AND 9 STEELS IS $376.00

CAT_D6C_D6D_D7E_D7F_BRAKE_BAND.jpg (221228 bytes)  D7E OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH NEW LINING   $224.00  OUTRIGHT NO CORE CHARGE
5M2986-->9M8086-->5S1503-->7E7641 PART NUMBERS

CAT_D7E_D6C_977H__BRAKE_LINING_KIT_9M7441_5S1513_8Y6313_8E7647.jpg (283063 bytes)  D7E OIL TYPE BRAKE BAND LINING KIT, WITH RIVETS  9M7441->5S1513->8S2515->8Y6313-->8E7647       $56.00 EA

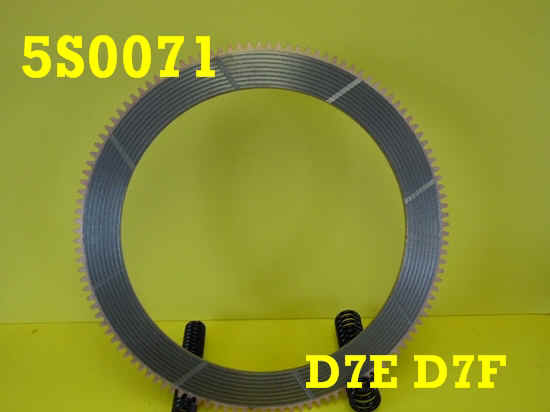

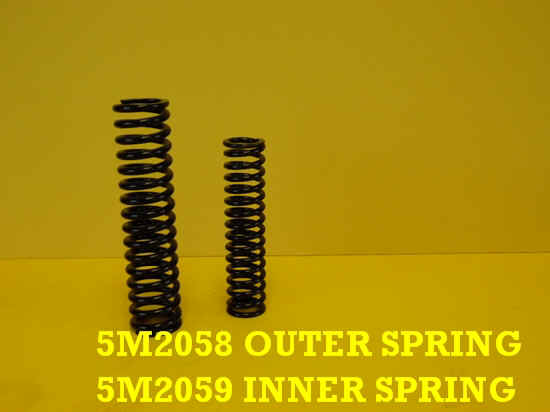

5S0071_CAT_D7E_D7F_STEERING_CLUTCH_DISC.JPG (17070 bytes)  CAT-1A3987DISC.jpg (15185 bytes)  CAT_5M2058_OUTER_SPRING_5M2059_INNER_SPRING.JPG (148610 bytes)

47A368 TO END TAKES (10) 5S0071 BIMETALLIC FRICTION DISCS   $25.00 EA.
48A6883 TO END TAKES (10) 5S0071 BIMETALLIC FRICTION DISCS   $25.00 EA.
75E460 TO END TAKES (10) 5S0071 BIMETALLIC FRICTION DISCS   $25.00 EA.

THESE SAME MODELS REQUIRE  QTY(9) STEEL SEPARATOR PLATES 1A3987 @ $16.00 EA
A COMPLETE CLUTCH PACK OF 10 FRICTON DISCS AND 9 STEELS = $394.00

ALL USE QTY (8) 5M2059 INNER AND (8) 2M2058 OUTER SPRINGS.  NEW SET OF SPRINGS FOR ONE CLUTCH IS $84.00


CAT_D6C_D6D_D7E_D7F_BRAKE_BAND.jpg (221228 bytes)  D7E OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH NEW LINING   $224.00  OUTRIGHT NO CORE CHARGE
    5M2986-->9M8086-->5S1503-->7E7641 PART NUMBERS


CAT_D7E_D6C_977H__BRAKE_LINING_KIT_9M7441_5S1513_8Y6313_8E7647.jpg (283063 bytes)  D7E OIL TYPE BRAKE BAND LINING KIT, WITH RIVETS  9M7441->5S1513->8S2515->8Y6313-->8E7647        $56.00 EA



CAT D7F

5S0071_CAT_D7E_D7F_STEERING_CLUTCH_DISC.JPG (17070 bytes)   CAT-1A3987DISC.jpg (15185 bytes)  CAT_5M2058_OUTER_SPRING_5M2059_INNER_SPRING.JPG (148610 bytes) CAT_D7E_D6C_977H__BRAKE_LINING_KIT_9M7441_5S1513_8Y6313_8E7647.jpg (283063 bytes)  D7F OIL TYPE BRAKE BAND LINING KIT, WITH RIVETS  9M7441->8Y6313-->8E7647

93N1 THRU 93N879 USES QTY(10) 5S0071 BIMETALLIC FRICTION DISCS @ $25.00 EA. AND (9) OF THE 1A3987 STEEL DISCS@ $16.00 EA   CLUTCH PACK $394.00
94N1 THRU 94N2630 USES QTY(10) 5S0071 BIMETALLIC FRICTION DISCS @ $25.00 EA. AND (9) OF THE 1A3987 STEEL DISCS@ $16.00 EA   CLUTCH PACK $394.00

93N880 TO 93N END USES QTY(12) 5S0071 BIMETALLIC FRICTION DISCS @ $25.00 EA.  AND (11) OF THE 1A3987 STEEL DISCS@ $16.00 EA    CLUTCH PACK $476.00
94N2631 TO 94N END USES QTY(12) 5S0071 BIMETALLIC FRICTION DISCS @ $25.00 EA. AND (11) OF THE 1A3987 STEEL DISCS@ $16.00 EA   CLUTCH PACK $476.00

ALL USE QTY (8) 5M2059 INNER AND (8) 2M2058 OUTER SPRINGS.  NEW SET OF SPRINGS FOR ONE CLUTCH IS $84.00

CAT_D6C_D6D_D7E_D7F_BRAKE_BAND.jpg (221228 bytes)  D7F OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH NEW LINING   $224.00  OUTRIGHT NO CORE CHARGE
    5M2986-->9M8086-->5S1503-->7E7641 PART NUMBERS

CAT_D7E_D6C_977H__BRAKE_LINING_KIT_9M7441_5S1513_8Y6313_8E7647.jpg (283063 bytes)  D7F OIL TYPE BRAKE BAND LINING KIT, WITH RIVETS  9M7441->5S1513->8S2515->8Y6313-->8E7647        $56.00 EA




CAT D7G



5S0071_CAT_D7E_D7F_STEERING_CLUTCH_DISC.JPG (17070 bytes)   CAT-1A3987DISC.jpg (15185 bytes)  CAT_5M2058_OUTER_SPRING_5M2059_INNER_SPRING.JPG (148610 bytes)

91V AND 92V MODELS WERE THE MOST COMMON D7G'S

THEY USED (PER CLUTCH) QTY(12) 5S0071 BIMETALLIC FRICTION DISCS @ $25.00 EA. AND (11) OF THE 1A3987 STEEL DISCS@ $16.00 EA   CLUTCH PACK $476.00

THEY USED QTY (8) 5M2059 INNER AND (8) 2M2058 OUTER SPRINGS.  NEW SET OF SPRINGS FOR ONE CLUTCH IS $84.00



CATERPILLAR STEERING CLUTCH SPEC SHEET
