| The D6C (e.g.74A, 76A, 10K, 17R, 99J, 69U) and
D6D (3X, 4X, 5X AND others) all had similar steering clutches with small changes.
You should check your complete serial number closely and your parts manual to make
sure you order the correct bimetallic friction discs and steel separator plates and the
proper quantities. ORDERING INFO:
 We can
usually ship on the same day any items we have in stock that do not have to be pulled from
a machine. We are set up to offer the payment choices of either Visa, Master Card,
or the PayPal option (to the account of webmaster@tractorparts.com)
All items below are in stock and if you would like to get any of them on the way just let
us know! If you are in the US you may call 1-800-531-9021 or if you are
outside the US, 1 208 342 8911. You may also email steeringclutch@gmail.com for
orders/questions.
Our hours are Monday through Friday from 10 am
Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time). We are located
20 miles east of Boise, Idaho.
D6C 74A 76A
EARLY
74A1 THRU 74A1921
76A1 THRU 76A3373
COMPLETE CLUTCH PACK OF 7 FRICTION DISCS AND 6 STEELS = $311.00
 (7)

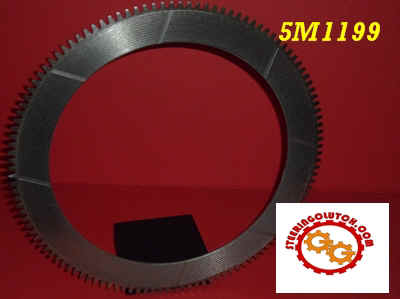

D6 5M1199 Bimetallic friction discs per clutch @ $29.00 ea
 (6)

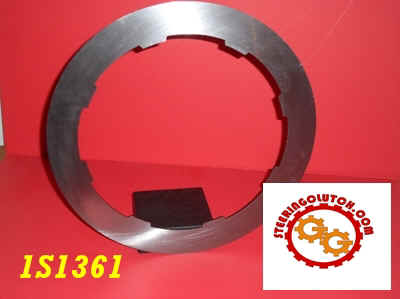

D6 1S1361 Steel separator plates per clutch@ $18.00 ea

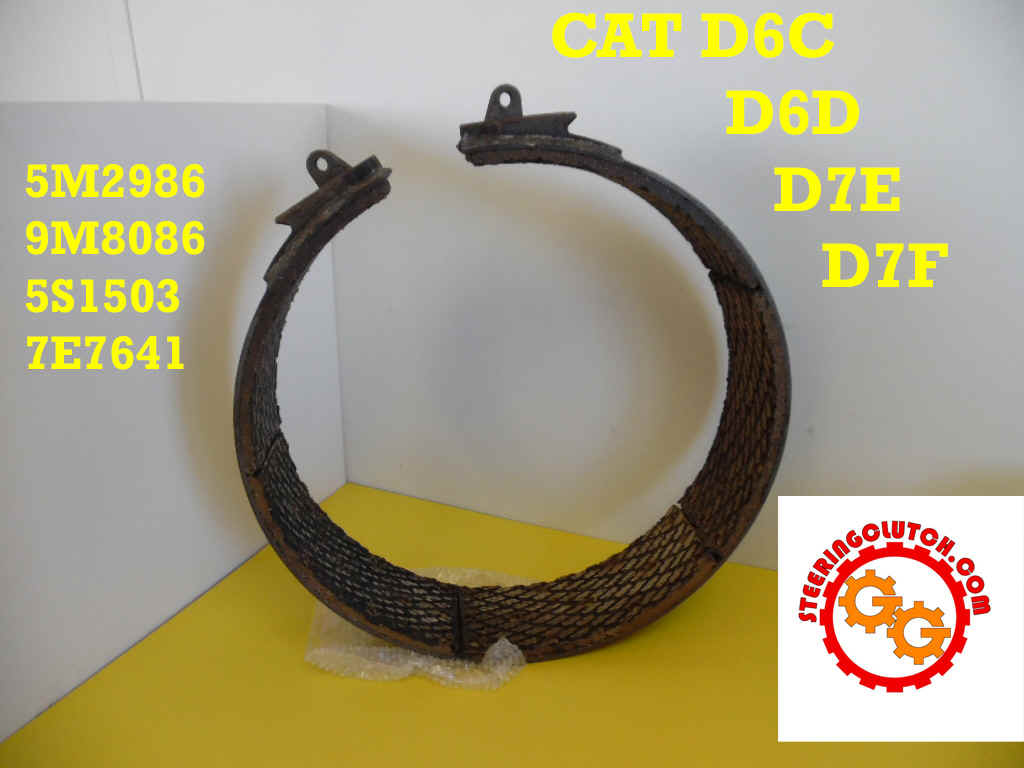

 D6C OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH NEW LINING
$224.00 OUTRIGHT NO CORE CHARGE
5M2986-->9M8086-->5S1503-->8E7641 PART NUMBERS

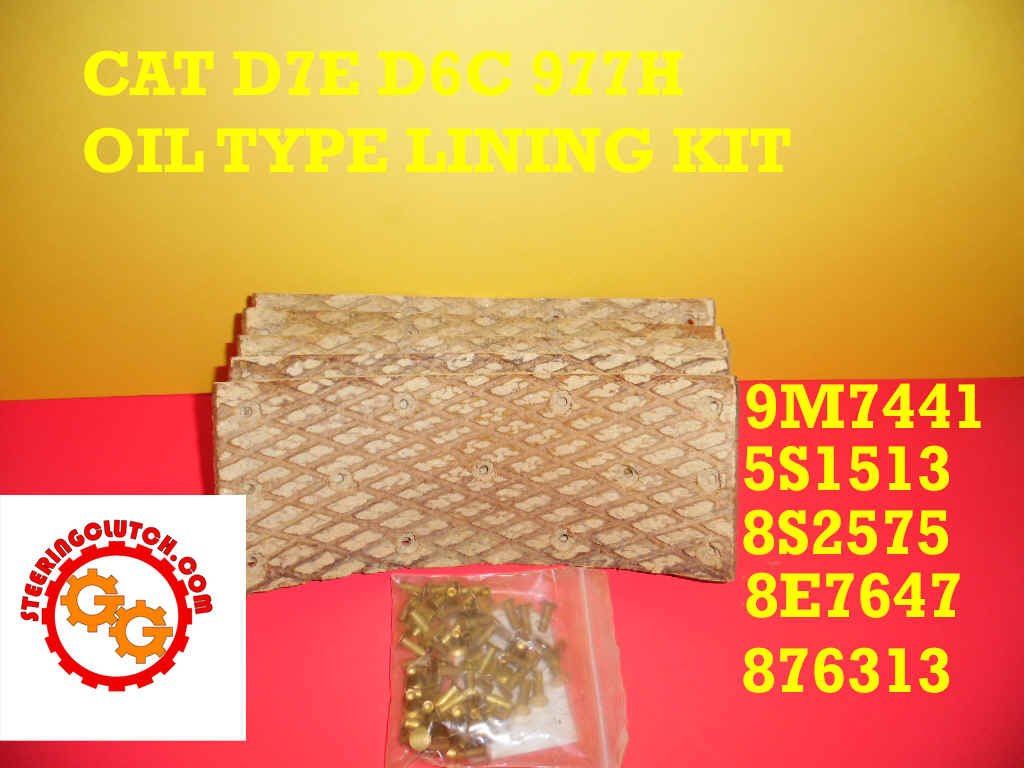

 D6C OIL TYPE BRAKE BAND LINING KIT, WITH
RIVETS 9M7441->5S1513->8S2515->8Y6313-->8E7647
$56.00 EA
D6C 74A 76A
late
74A1922 AND UP
76A3374 AND UP
COMPLETE CLUTCH PACK OF 8 FRICTION AND 7 STEEL PLATES = $358.00
10K 99J 69U AND EARLY 17R
(8) D6 5M1199 Bimetallic friction discs per clutch @ $29.00 ea

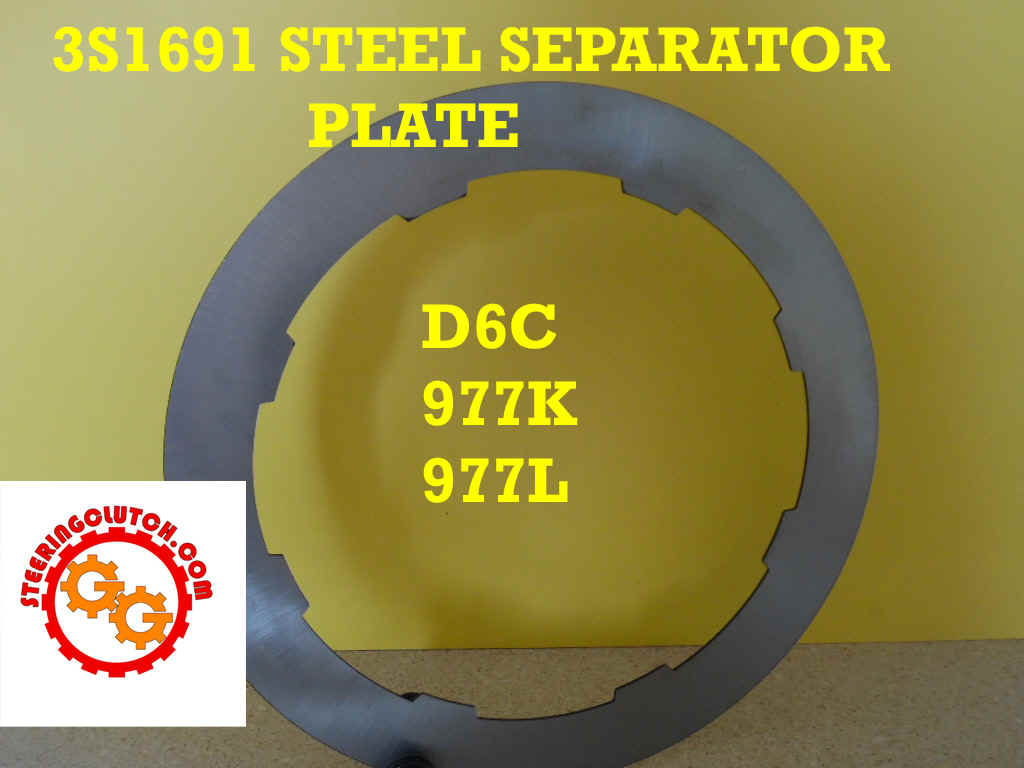

(7) 3S1691 Steel separator plates per clutch @ $18.00 ea
17R1460 AND UP
COMPLETE CLUTCH PACK OF 8 FRICTION
AND 7 STEEL PLATES = $344.00
(8)
D6 5M1199 Bimetallic friction discs per clutch @ $29.00 ea

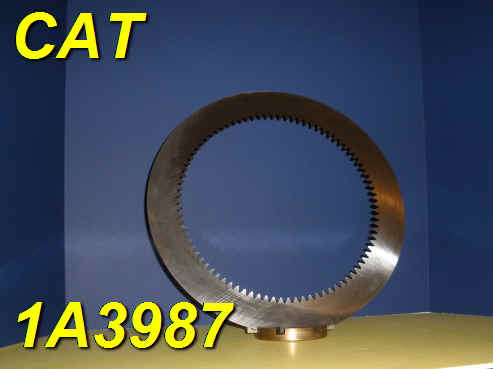

 (7) 1A3987 STEEL SEPARATOR PLATES @ 16.00 EA

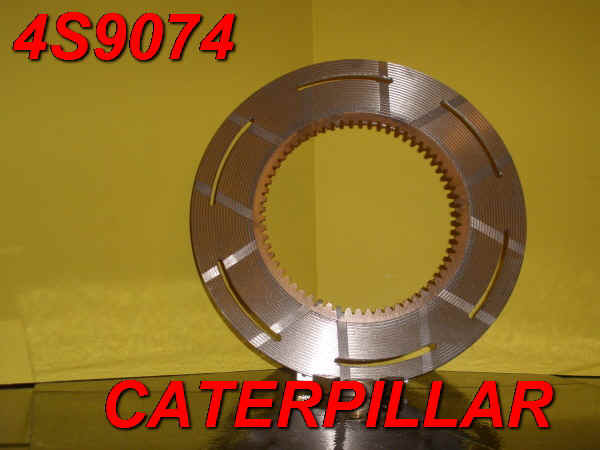

 FOR THE D6C OIL TYPE FLYWHEEL CLUTCHES, WE
HAVE THE NEW FRICTION DISCS 64.00 EA (2 REQUIRED)
2H6121--->4H2923--->1S8183--->4S9074 CLUTCH DISC WENT THROUGH SOME PART NUMBER
CHANGES TO GET TO 4S9074
D6C OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH
NEW LINING $224.00 OUTRIGHT NO CORE CHARGE
5M2986-->9M8086-->5S1503-->8E7641 PART NUMBERS
D6C OIL TYPE BRAKE BAND LINING KIT, WITH
RIVETS 9M7441->5S1513->8S2515->8Y6313-->8E7647
$56.00 EA
D6D
3X, 4X, 5X
COMPLETE CLUTCH PACK OF 8 FRICTION
AND 7 STEEL PLATES = $344.00
(8)
D6 5M1199 Bimetallic friction discs per clutch @ $29.00 ea
(7) 1A3987 STEEL SEPARATOR PLATES @ $16.00
EA
D6D OIL TYPE BRAKE BAND COMPLETE, NEW BAND WITH
NEW LINING $224.00 OUTRIGHT NO CORE CHARGE
5M2986-->9M8086-->5S1503-->8E7641 PART NUMBERS
D6D OIL TYPE BRAKE BAND LINING KIT, WITH
RIVETS 9M7441->5S1513->8S2515->8Y6313-->8E7647
$56.00 EA
CATERPILLAR STEERING CLUTCH SPEC
SHEET
Click HERE to view all of our new steering
clutch discs.
|
for orders or
questions.

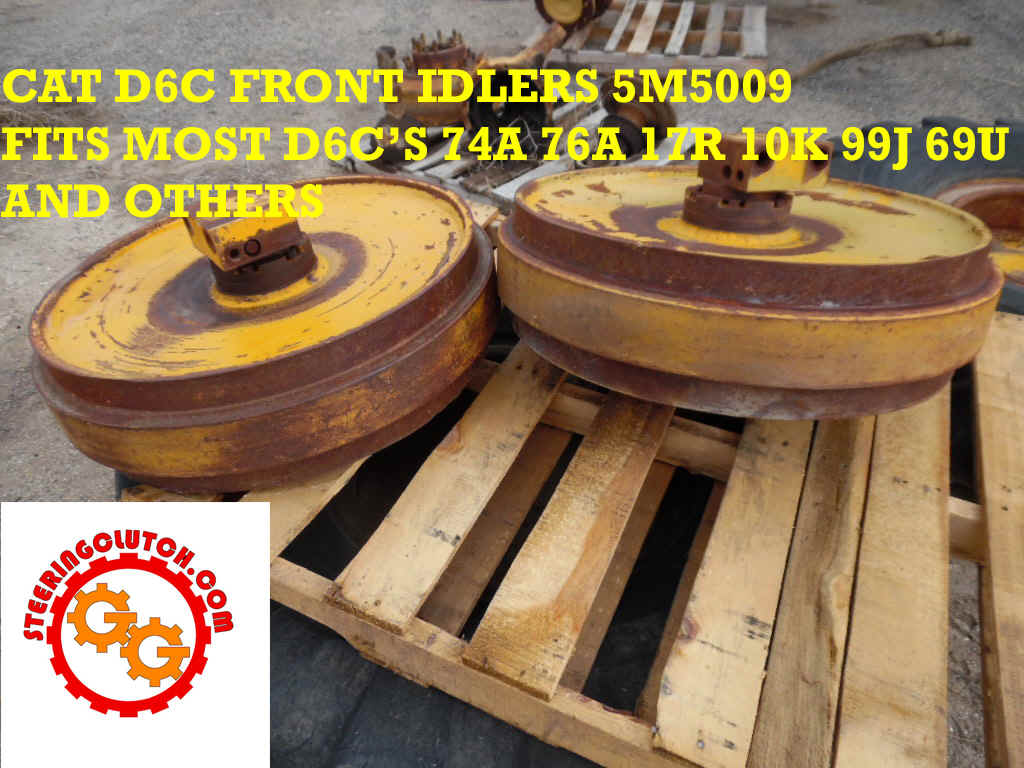

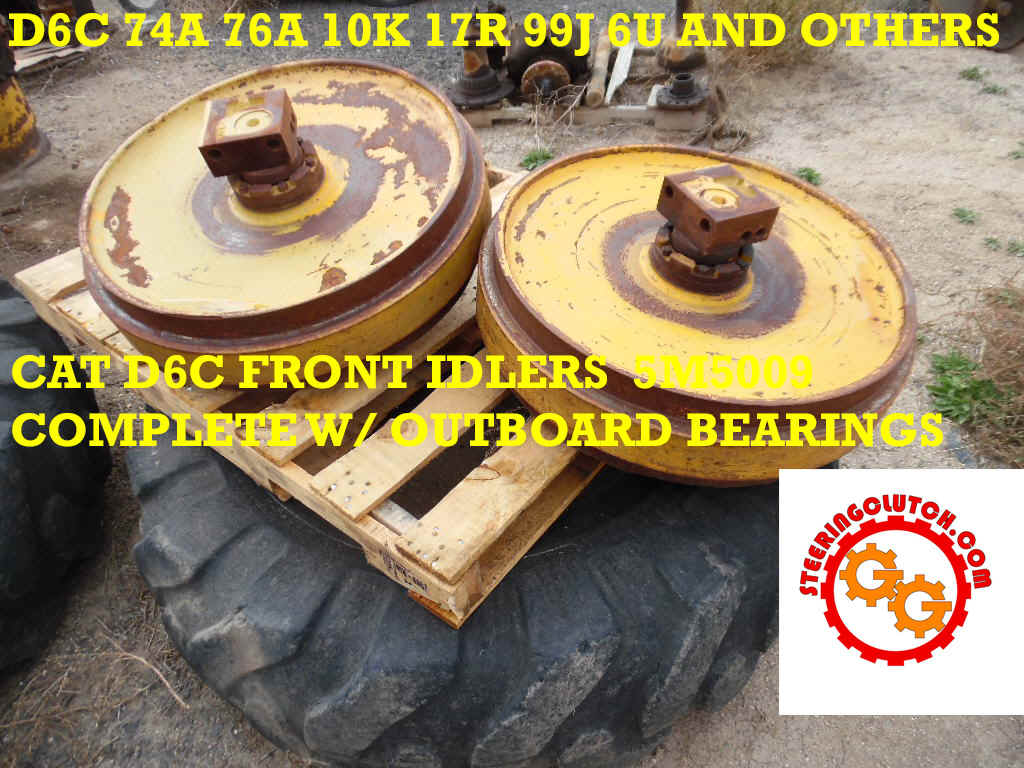

D6C FRONT IDLERS 750.00 EA
