Dresser International 165 loader Steering clutch discs

The IH (International-Dresser) 165 crawler loader had a pretty small machine population.  Because of the cost of product research and development I never looked into handling the Dresser 165 steering clutches.  It was only when we were contacted by an owner with a steering clutch problem that we got involved in researching how we could help and how we could keep him from having to spend several thousand dollars on his steering clutch repair.  As it turned out, we could supply many of his needs by parts already on hand.

The International-Dresser 165 originally used 11 bimetallic discs with 10 steel separator plates (for each clutch.)  These were the same steel plates (P/N 43728D) as used in the TD6 crawler made during the 1940's, 50's and 60's.  Knowing that the Dresser 165 used the same steel discs, we checked on other similarities.  The TD6 Bimetallic disc would fit the brake drum for the 165 but they were thinner than the bimetallic discs used in the 165.  This meant that more TD6 discs would be needed to satisfy the steering clutch stack height requirements of the 165 loader.  By carefully measuring, we determined that we could replace the 11 Bimetallic and 10 steel separator plates used in the 165 loader with 14 Bimetallic discs and 13 steel plates from the earlier style TD6 clutches.  (The difference in stack height was a mere .002")

We also discovered that we had new steering clutch pressure plates for the 165 loader.  They were the same pressure plates that we have manufactured for the TD6!
                      Free shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.

ORDERING INFO:
  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment choices of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

Al items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com  for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

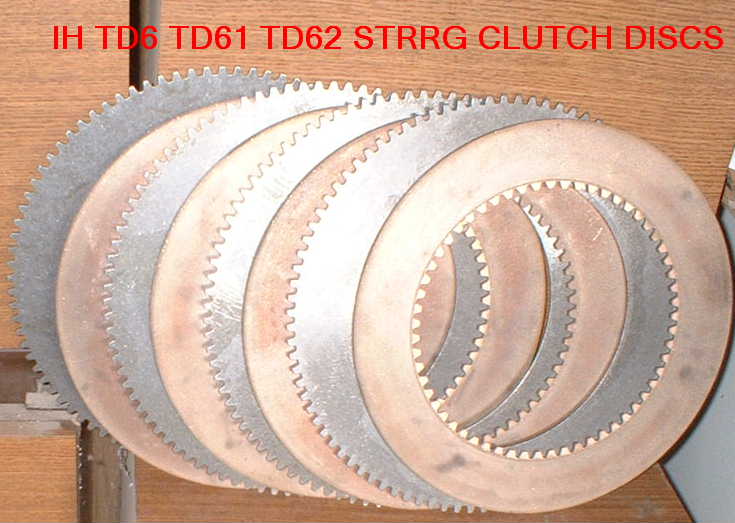

Bimetallic discs, 14 required at 29.00 each (new aftermarket)
Steel plates, 13 required at 24.00 ea (new aftermarket)

One complete clutch pack of 14 bimetallic frictions and 13 steel plates = $718.00

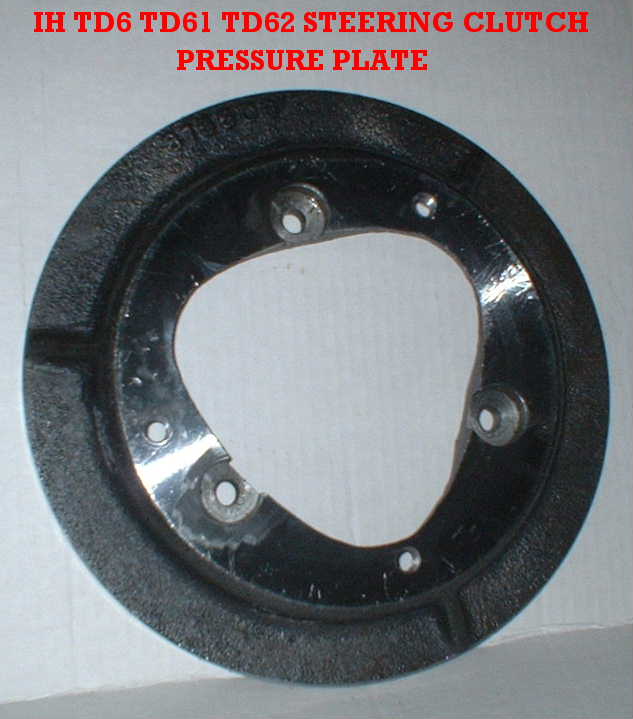

Steering Clutch Pressure Plate, new aftermarket 220.00

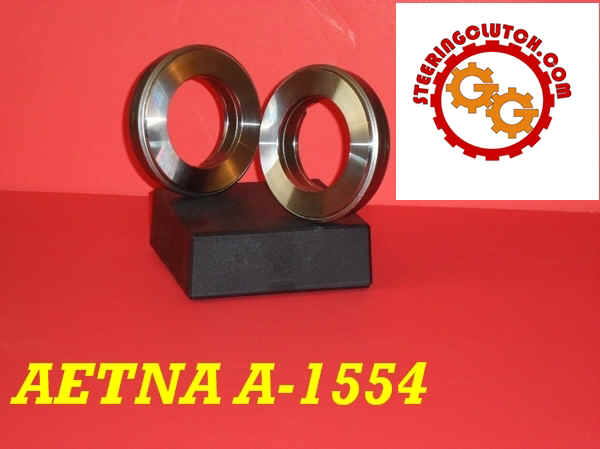

   AETNA A-1554 !!!    IH STEERING CLUTCH THROW-OUT BEARING....FITS TD6'S, BTD6'S AND BTD8'S.   AETNA BEARING A-1554    IH P/N'S  55670D  IH P/N 701995R93   IH P/N 70315R91     $100.00 ea

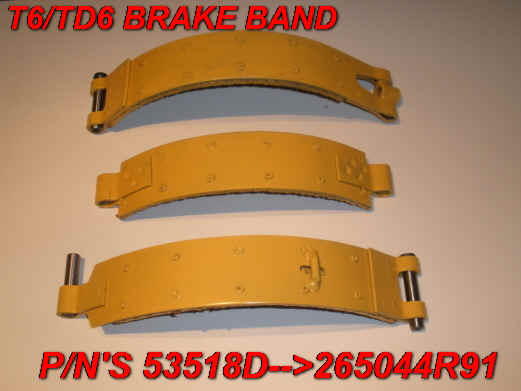

  NEW BRAKE BANDS  P/N 53518D-->265044R91   These also fit the 165 Model   275.00 (TOTAL FOR ALL 3 PIECES)

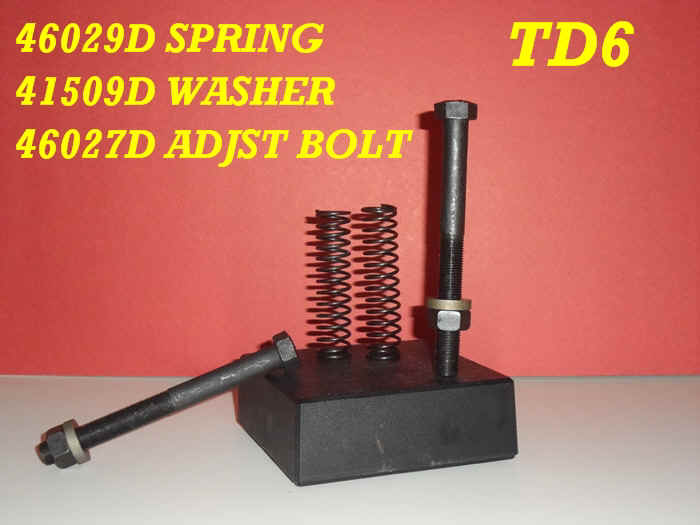

46029D  BRAKE BAND RELEASE SPRING
41509D  BRAKE BAND RELEASE SPRING WASHER
46027D  BAKE BAND ADJUSTING BOLT.....................

SET OF SPRING, WASHER, AND ADJUSTING BOLT    NEW $15.00/SET or 2 SETS FOR $25.00

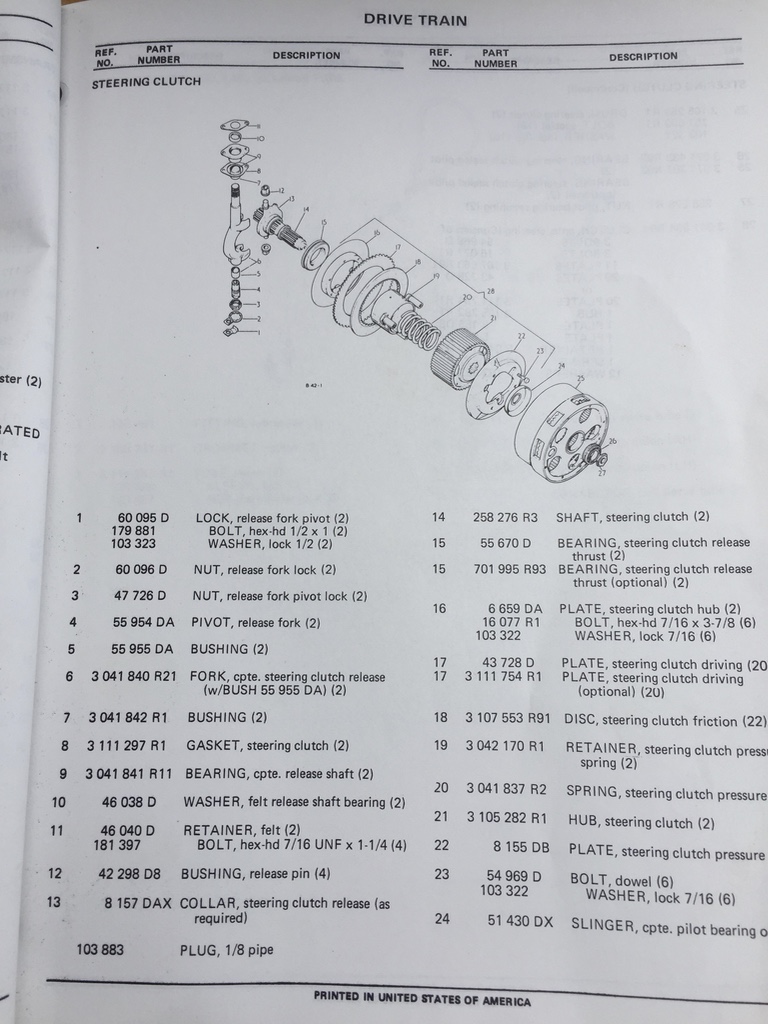

INTERNATIONAL L-165 STEERING CLUTCH PARTS
INTERNATIONAL L-165 TRACK LOADER BEVEL GEAR COMPARTMENT PARTS
INTERNATIONAL L-165 TRACK LOADER FINAL DRIVE PARTS
INTERNATIONAL   L-165 TRACK LOADER FINAL DRIVE PARTS PART 2

INTERNATIONAL L-165 TRACK LOADER SERVICE
INTERNATIONAL L-165 STEERING CLUTCH SERVICE


Click HERE to view all of our new steering clutch discs.


Email steeringclutch@gmail.com for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
All prices are in USD
All OEM part numbers are for references only
