MASSEY FERGUSON STEERING CLUTCHES, STEERING AXLES, AND SEALS MODELS 33, 440, 470,STEERING CLUTCHES, MASSEY TEREX LONG TRANSMISSION DISCS AND AXLES



                                                                              MASSEY FERGUSON

                                                                                                (TEREX)

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment options of either Visa, Master Card, Discover, American Express, or the PayPal option (to the account of webmaster@tractorparts.com)

Al items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com    for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.


8572                                       FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED
                                               FITS MASSEY FERGUSON TRACTOR MODELS:  TEA20, TE20, TO20, T030
                                               REPLACES 180250M1 WHICH HAD FERAMIC LINING


8602N                                    FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED
                                               FITS MASSEY FERGUSON TRACTOR MODELS:  TEA20, TE20, TO20, T030
                                               REPLACES 180250M1 WHICH HAD FERAMIC LINING


180241M1                           FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED
                                               FITS MASSEY FERGUSON TRACTOR MODELS:  TEA20, TE20, TO20, T030
                                               REPLACES 180250M1 WHICH HAD FERAMIC LINING


825495M91                          FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED
                                               FITS MASSEY FERGUSON TRACTOR MODELS:  TEA20, TE20, TO20, T030
                                               REPLACES 180250M1 WHICH HAD FERAMIC LINING

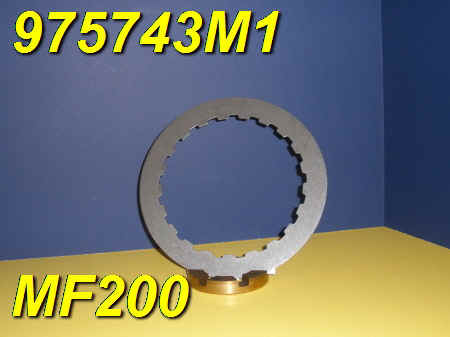

975743M1                           STEEL SEPARATOR PLATES      MASSEYFERGUSON-975743M1MF200STEEL DISC.jpg (57910 bytes)           $11.00
                                                      MASSEY 200, 200B,200C, 154, 244 and 2244 MODEL STEERING CLUTCHES
                                                      The Massey models 200-200B-200C-244-2244 use 8 steel and  frictions per clutch
                                                      The Massey model 154 uses 8 friction and 8 steel per clutch
                                                      The FIAT model 70-75 uses 10 friction and 10 steel discs per clutch
                                                      The FIAT Model 60-85 uses 10 friction and 10 steel discs per clutch
                                                      The LONG TRACTOR MODEL 610 also uses these discs TEREX P/N TX15688

                                                      This is a common disc used is several MASSEY - FIAT-NEW HOLLAND-TEREX branded models from Italy
                                                      so check your quantities for your specific machine.
                                                      MODELS: 355C 411C 451C 455C 465C 505C 55.65 55.75 555C 565C 60.65 60.75 605C 665C
                                                                           70.65   70.75  765C  80.65  80.75  FL4 FL4C
                                                     For Parts and Service info, see bottom LH side of this web page

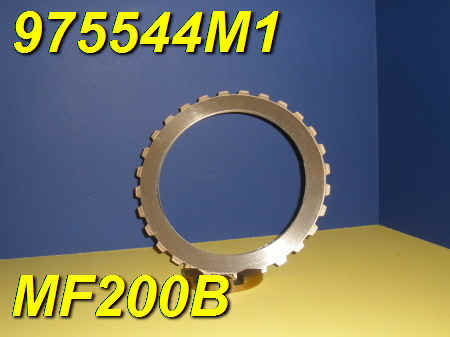

975744M1                           BRONZE FRICTION DISCS, (REPLACES FIBER DISCS)               MASSEYFERGUSON-975744M1MF200BDISC.jpg (60965 bytes)      $29.00
                                                      MASSEY 200, 200B,200C, 154, 244 and 2244 MODEL STEERING CLUTCHES
                                                      These discs were made to replace the earlier style fiber discs.  They will hold up longer and
                                                        better resist bonding to the steel discs resulting in stuck steering clutches.
                                                       The Massey models 200-200B-200C-244-2244 use 8 steel and 8 frictions per clutch
                                                       The Massey model 154 uses 8 friction and 8 steel per clutch
                                                       The FIAT model 70-75 uses 10 friction and 10 steel discs per clutch
                                                       The FIAT Model 60-85 uses 10 friction and 10 steel discs per clutch
                                                       The LONG TRACTOR MODEL 610 also uses these discs TEREX P/N TX15687


                                                        This is a common disc used is several Massey - FIAT-TEREX branded models from Italy
                                                         so check your quantities for your specific machine.
                                                        For Parts and Service info, see bottom LH side of this web page

975745M1                           STEERING CLUTCH SPRINGS       8 REQUIRED PER CLUTCH             SET OF 8 @ $55.00   MASSEY-975745M1SPRING.jpg (81075 bytes)

980130M1                           BRONZE 95 EXT TEETH         MASSEY-980130M1DISC.jpg (78274 bytes)        $21.00  EA.


980131M1                           STEEL 63 INT TEETH      MASSEY-980131M1DISC.jpg (62273 bytes)        $12.50 EA.

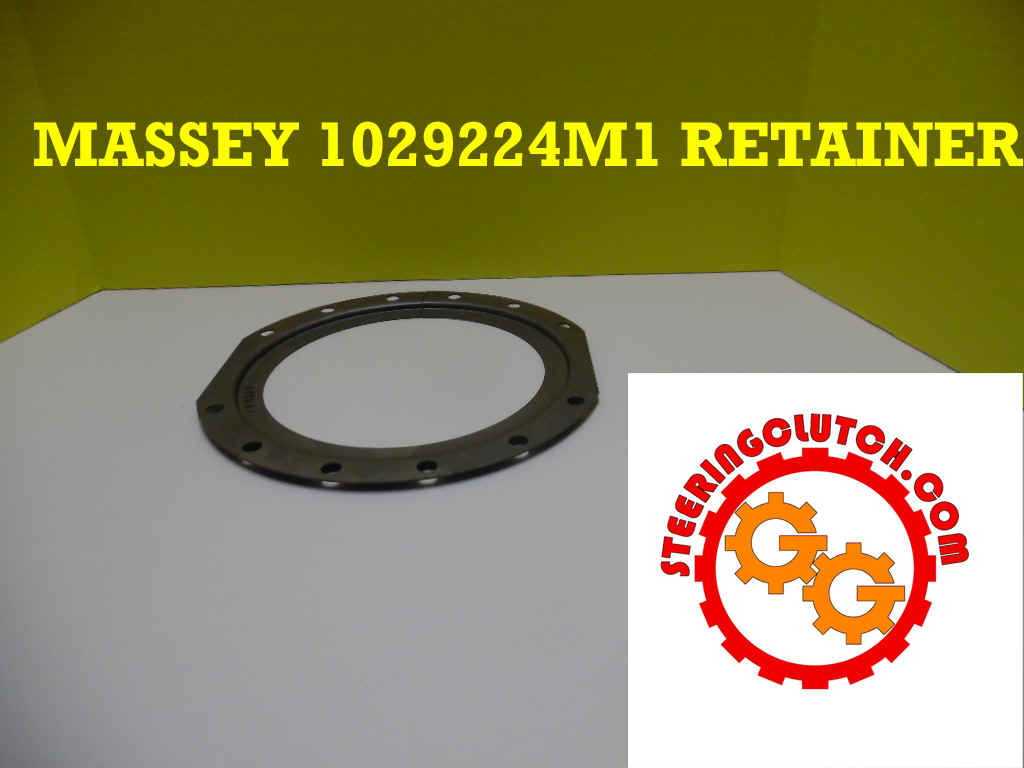

  1029224M1              RETAINER  MASSEY_1029224M1_RETAINER.jpg (202966 bytes)      Clark 109660         RETAINER, STEERING AXLE SEAL RETAINER          48.70

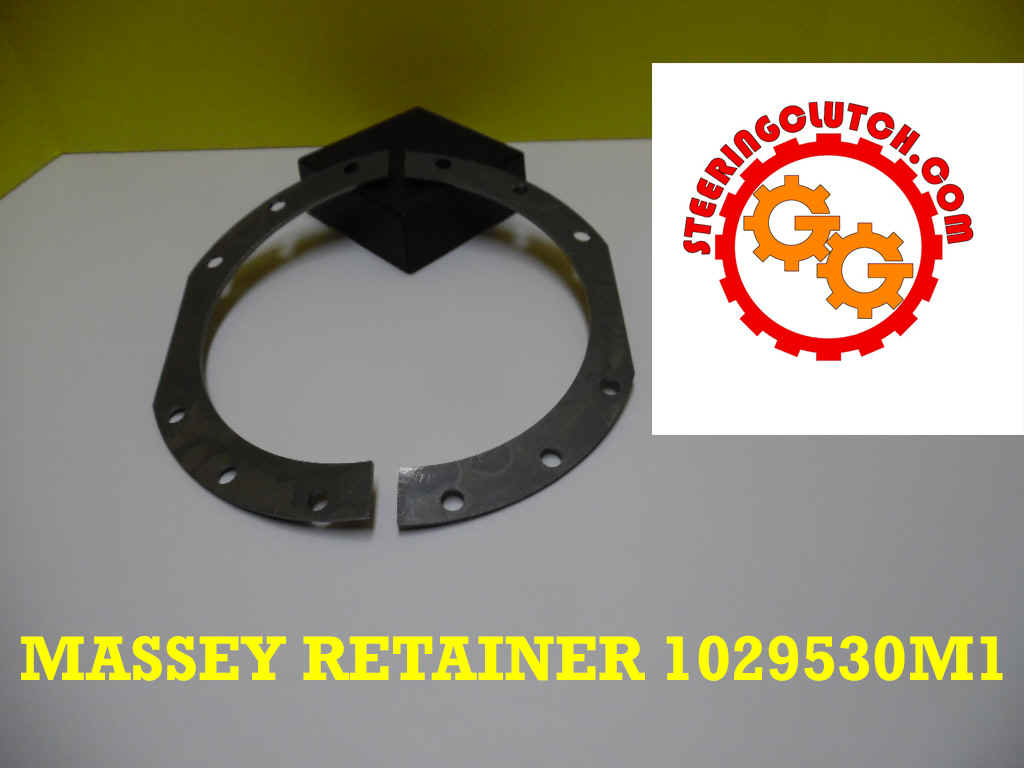

   1028530M1           RING    MASSEY_1029530M1_RETAINER_RING.jpg (196041 bytes)    Clark 109666         RETAINING RING, OUTER END SEAL RETAINING RING   (2 PC)  37.00

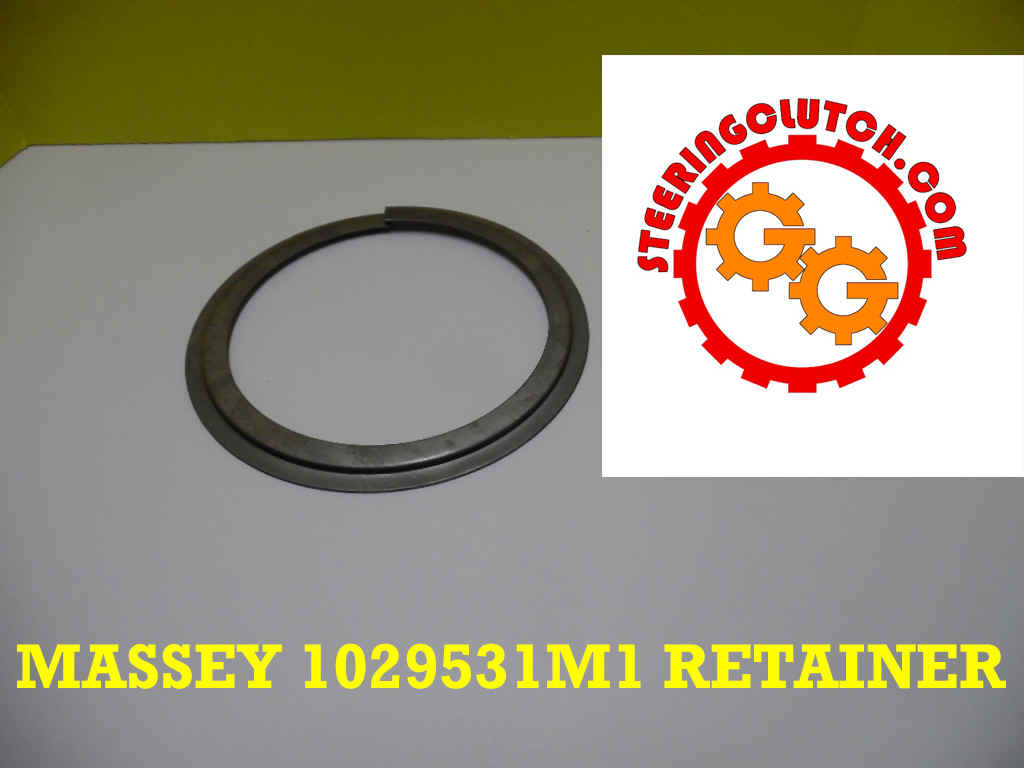

   1029531M1          RETAINER     MASSEY_1029531M1_RETAINER.jpg (198640 bytes)    Clark 109665         RETAINER, FINAL DRIVE STEERING AXLE SEAL RETAINER  44.00

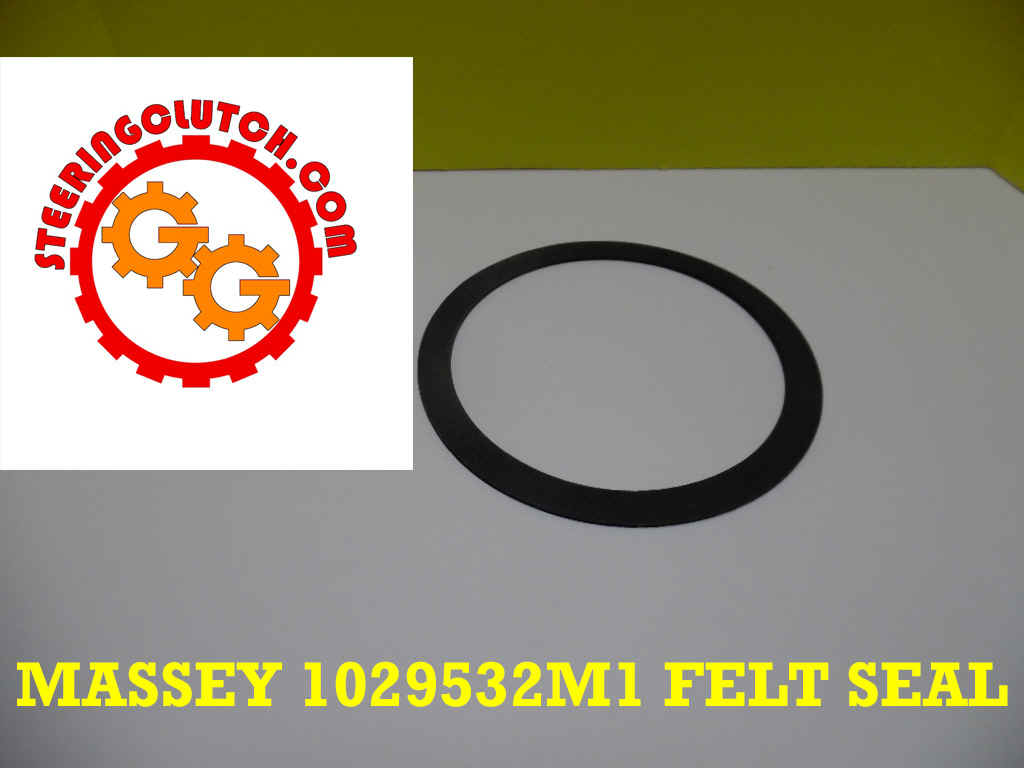

  1029532M1              FELT SEAL      MASSEY_1029532M1_FELT_SEAL.jpg (198267 bytes)      Clark 109662         SEAL, FINAL DRIVE STEERING AXLE SEAL, FELT     24.50

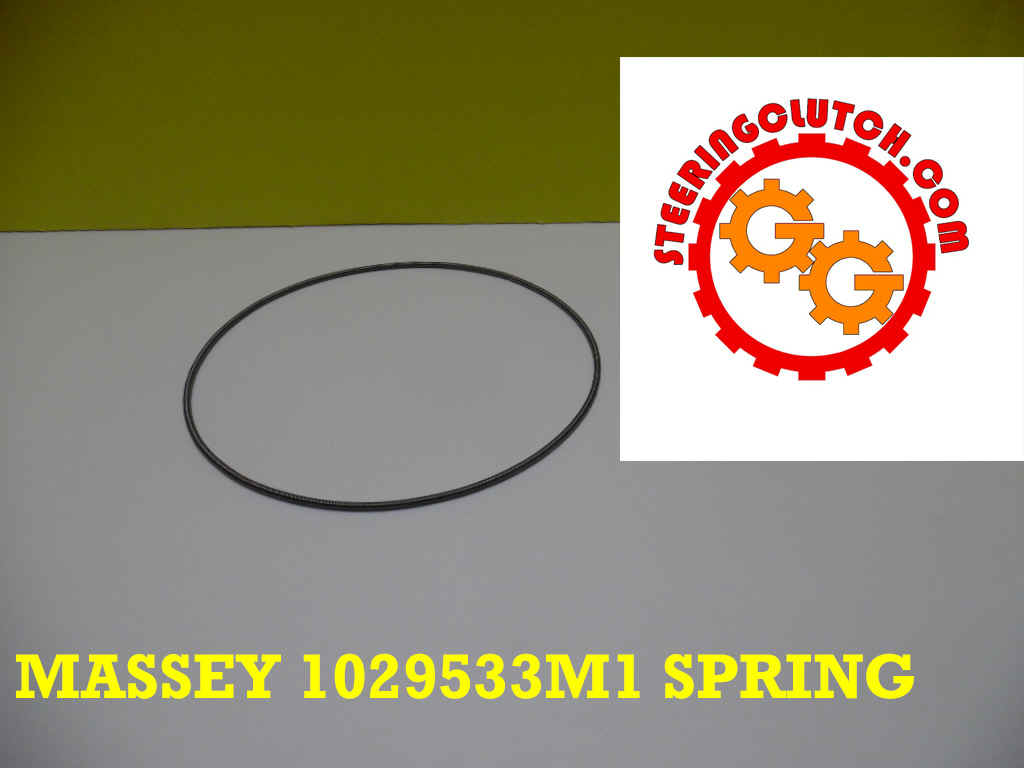

   1029533M1          SPRING     MASSEY_1029533M1_SPRING.jpg (196716 bytes)     Clark 109664         SPRING, FINAL DRIVE STEERING AXLE SEAL SPRING    21.00

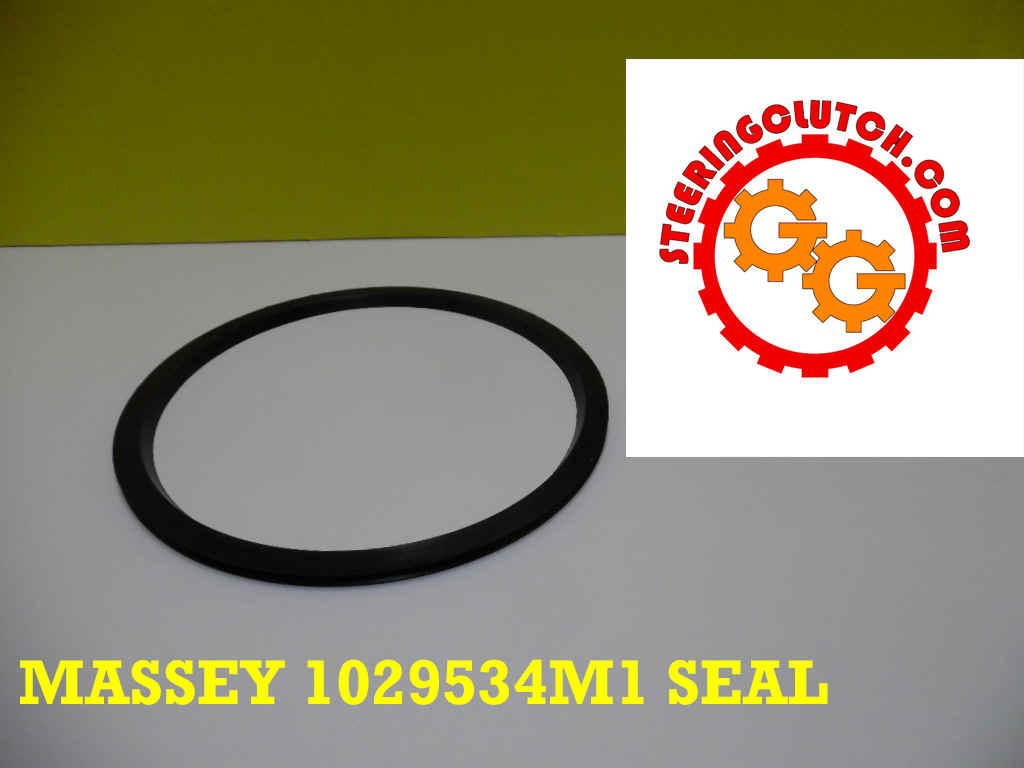

   1029534M1            SEAL     MASSEY_1029534M1_SEAL.jpg (191706 bytes)     Clark 109663         SEAL, FINAL DRIVE STEERING AXLE SEAL, RUBBER    34.00

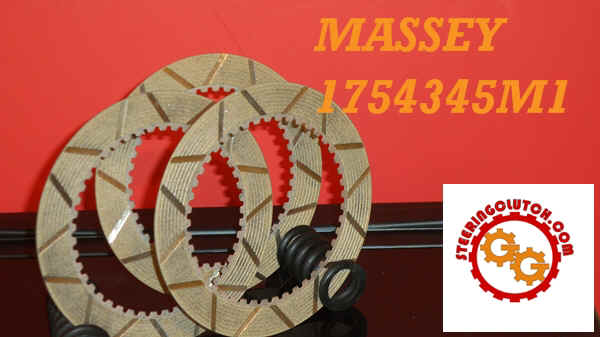

1754345M1                         BRONZE     45 INT TEETH    MASSEY_1754345M1_DISC.JPG (181676 bytes)            $10.50



1804831M1                        BRONZE   45 INT TEETH      MASSEY_1804831M1_DISC.JPG (181837 bytes)              $10.50


1816240M1                        BRONZE 95 EXT TEETH  MASSEY 3366 AND 300     MASSEY-1816240M1DISC.jpg (92785 bytes)   $16.50 EA.



2527328M1                         BRONZE    45 INT TEETH       MASSEY_2527328M1_DISC.JPG (182289 bytes)          $10.50

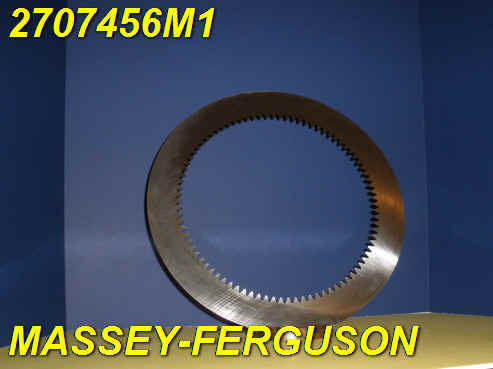

2707456M1                        STEEL 88 INT TEETH         MASSEY-2707456M1.jpg (63167 bytes)      $12.50 EA.

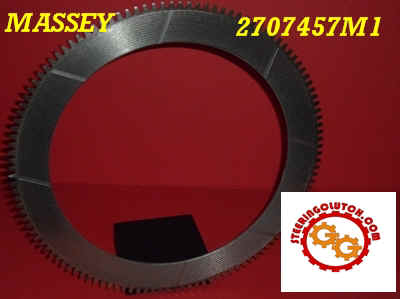

2707457M1                         BIMETALLLIC 120 EXT TEETH

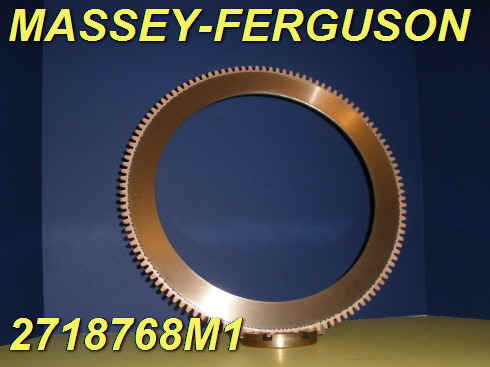

2718768M1                        BRONZE 120 EXT TEETH        MASSEY-2718768M1DISC.jpg (70273 bytes)            $20.00 EA.



2757328M1                         BRONZE   45 INT TEETH          MASSEY_2757328M1_DISC.JPG (181753 bytes)                 $10.50

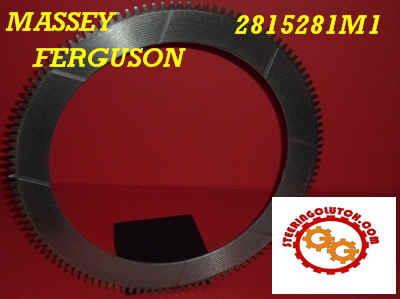

2815281M1                         BIMETALLLIC 120 EXT TEETH

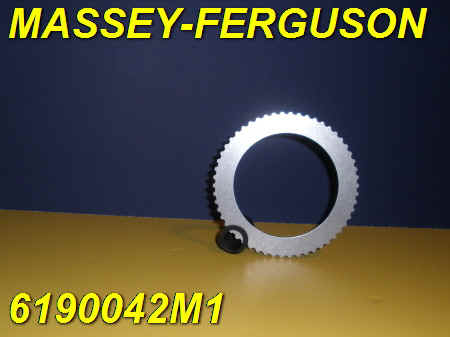

6190042M1                        STEEL 54 EXT TEETH LIST         MASSEY-6190042M1DISC.jpg (58285 bytes)        $3.00 EA.

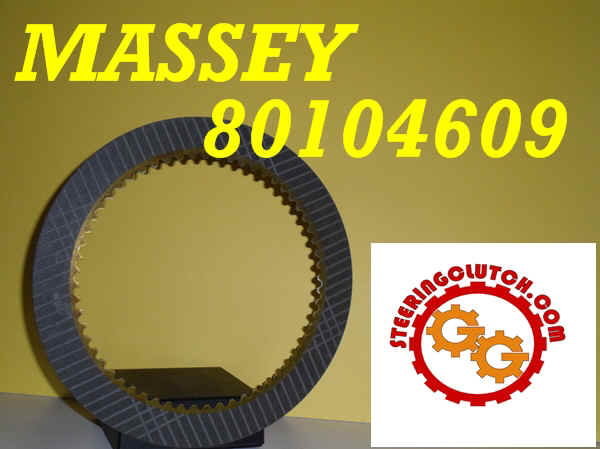

80104609                             GRAPHITE TRANS DISC, 60 INT TEETH   MASSEY_80104609_TRANS_DISC.JPG (200708 bytes)   $25.00  EA.



MASSEY FERGUSON STEERING AXLES

These are the later style axles and CV joints which replace the early style steering axles designed with the two
knuckles separated by the 5 ball bearings.



MASSEY/CLARK SEAL COMPONENTS FOR THE STEERING AXLES

1029224M1              RETAINER  MASSEY_1029224M1_RETAINER.jpg (202966 bytes)      Clark 109660         RETAINER, STEERING AXLE SEAL RETAINER          48.70



   1028530M1           RING    MASSEY_1029530M1_RETAINER_RING.jpg (196041 bytes)    Clark 109666         RETAINING RING, OUTER END SEAL RETAINING RING   (2 PC)  37.00


   1029531M1          RETAINER     MASSEY_1029531M1_RETAINER.jpg (198640 bytes)    Clark 109665         RETAINER, FINAL DRIVE STEERING AXLE SEAL RETAINER  44.00

  1029532M1              FELT SEAL      MASSEY_1029532M1_FELT_SEAL.jpg (198267 bytes)      Clark 109662         SEAL, FINAL DRIVE STEERING AXLE SEAL, FELT     24.50


   1029533M1          SPRING     MASSEY_1029533M1_SPRING.jpg (196716 bytes)     Clark 109664         SPRING, FINAL DRIVE STEERING AXLE SEAL SPRING    21.00

   1029534M1            SEAL     MASSEY_1029534M1_SEAL.jpg (191706 bytes)     Clark 109663         SEAL, FINAL DRIVE STEERING AXLE SEAL, RUBBER    34.00

Massey Ferguson 33 Steering Axle Set.jpg (626365 bytes)   MASSEY FERGUSON 33 STEERING AXLE  P/N 1086967M91 $840.00 USD (Shipping in the US via FedEx/UPS approx $40.00)
                           Shipping outside the US via Priority Mail varies (Canada approx $100.00, Europe approx. $150.00, Au & NZ approx $200.00)

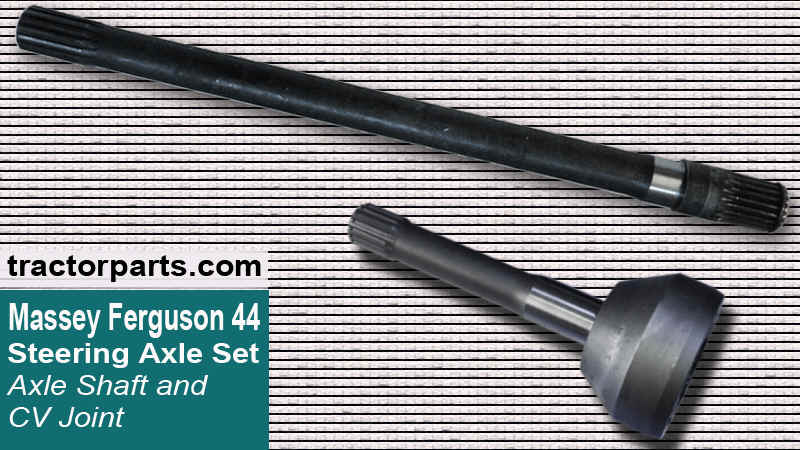

Massey Ferguson 44 Steering Axle Set.jpg (429333 bytes)    MASSEY FERGUSON 44 STEERING AXLE P/N 1086967M91 $840.00 USD (Shipping in the US via FedEx/UPS approx $40.00)
                           Shipping outside the US via Priority Mail varies (Canada approx $100.00, Europe approx. $150.00, Au & NZ approx $200.00)

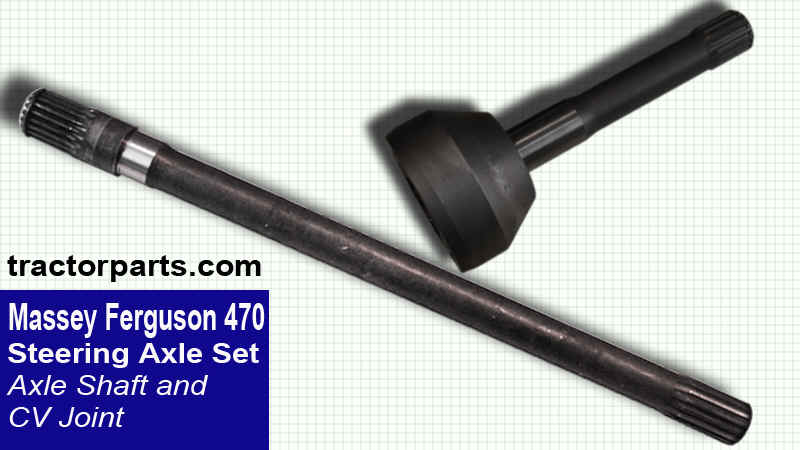

Massey Ferguson 470 Steering Axle Set.jpg (247865 bytes)    MASSEY FERGUSON 470 STEERING AXLE P/N 1086967M91  $840.00 USD (Shipping in the US via FedEx/UPS approx $40.00)
                           Shipping outside the US via Priority Mail varies (Canada approx $100.00, Europe approx. $150.00, Au & NZ approx $200.00)

CLARK_SUN_GEAR_120190_121094.jpg (103639 bytes)   Sun gears for final drive planetary.    NEW  $85.00 ea  Massey p/n 1092945M1
15 tooth 16 spline (1 5/8 ID on splines) (fit over end of steering axle CV Joint)

Service and Operations Downloads
          You can thank others for these downloads.  They were, and are, donated in the spirit of one person helping another.  I hope that you continue the spirit and consider helping others by contributing anything you can to your local Food Banks and Church Pantry.    Any copies of other Massey Ferguson manuals (and any others!) sent to me will be added to lists of downloads for all to share.   Thank You!

Massey Ferguson Steering Axle Service

Massey Ferguson MF200 Steering Clutch Parts

Massey Ferguson MF200B Steering Clutch Parts

Massey Ferguson MF200B Steering Clutch Service

Massey Ferguson MF200C Steering Cutch Parts

Massey Ferguson MF2244 Steering Clutch Parts

Massey Ferguson MF300 Steering Clutch Parts

Massey Ferguson MF3366 Steering Clutch Parts

Massey Ferguson MF400 Steering Clutch Parts

Massey Ferguson MF400C Steering Clutch Parts

Massey Ferguson D600C Steering Clutch Parts

Massey Ferguson D700C Steering Clutch Parts



Click HERE to view all of our new steering clutch discs.
