                                                                                        CASE (DAVID-BROWN)

At the bottom of this page you will find a digital library of OPERATIONS MANUALS , PARTS MANUALS, and more, that you can freely save to your computer and print as needed.  There is a lot of info pertaining the older Case machines.
I am adding them as I have time, starting with the Operations Manuals.  Parts Manuals will be next.

ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment options of either Visa, Master Card, Discover, American Express,  or the PayPal option (to the account of webmaster@tractorparts.com)

Al items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.


SPECIAL              CASE TRACTOR BRAKE KITS  $168.00 per side (One Drum and Band)

                                      FREE SHIPPING  IN THE US VIA PRIORITY MAIL 2-3 DAY DELIVERY FOR COMPLETE DRUM KIT AND BAND

                                                    FITS W3 W5 430 Series 440 Series 470 480 480B/C/D  530 Series 580 580B/C/D 630s 640s Series

                                                 BRAKE DRUM KIT  Includes lined brake disc, lined brake actuating drum, balls and disc return springs
                                                With brake band below your earlier assembly numbers could have been:
                                                  A51814 A5474 A155474 A154350 A156383 135578A 249022A1/2/3

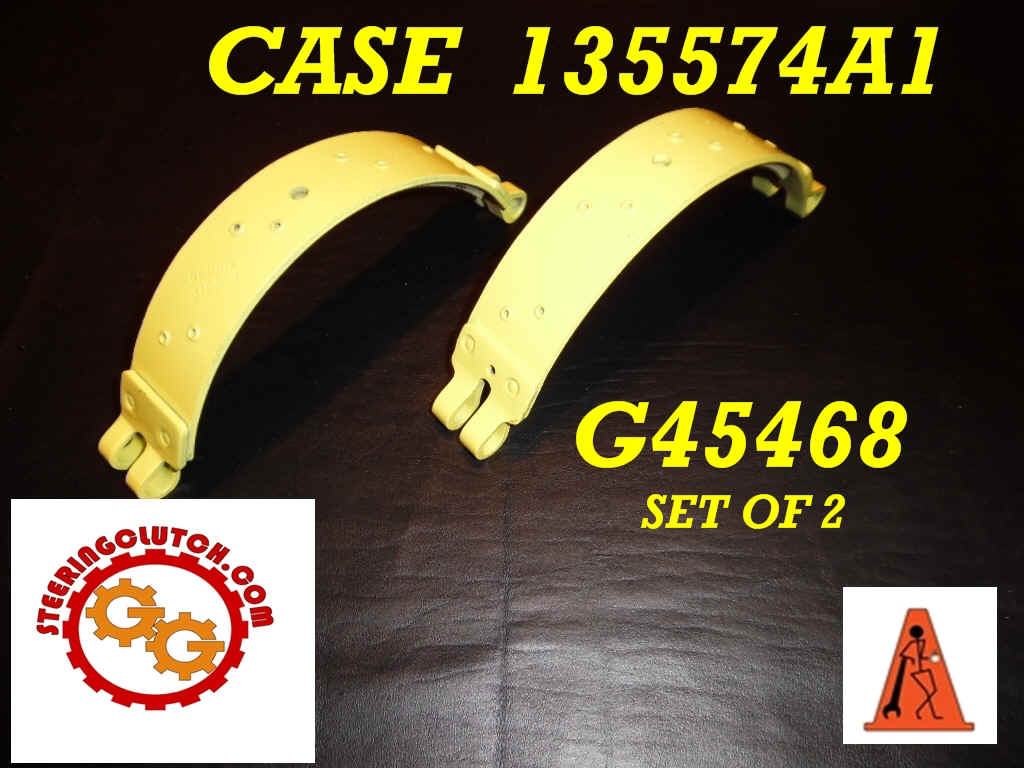

BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468




04010005
FLYWHEEL CLUTCH PRESSURE PLATE  CASE-IH INDUSTRIAL 2404 LOADER                                                  $128.00
                            ALSO FITS AG TRACTORS IH MODEL A,   MODEL B,  MODEL C, SUPER A, SUPER C,
                            MODEL 100 ABOVE SER# 2955-UP  MODEL 130,  140,  200 SER#2289-UP
                            MODEL 230, and MODEL 240 TRACTORS

                             9 INCH PRESSURE PLATE, 3 LEVER, 6 SPRING, NARROW TYPE .25" WITH 1.888" FLYWHEEL STEP
                            FLYWHEEL CLUTCH KIT IS ALSO AVAILABLE WHICH INCLUDES PRESSURE PLATE, DRIVEN MEMBER DISC
                             56631DB AND THROW-OUT BEARING FOR $185.80

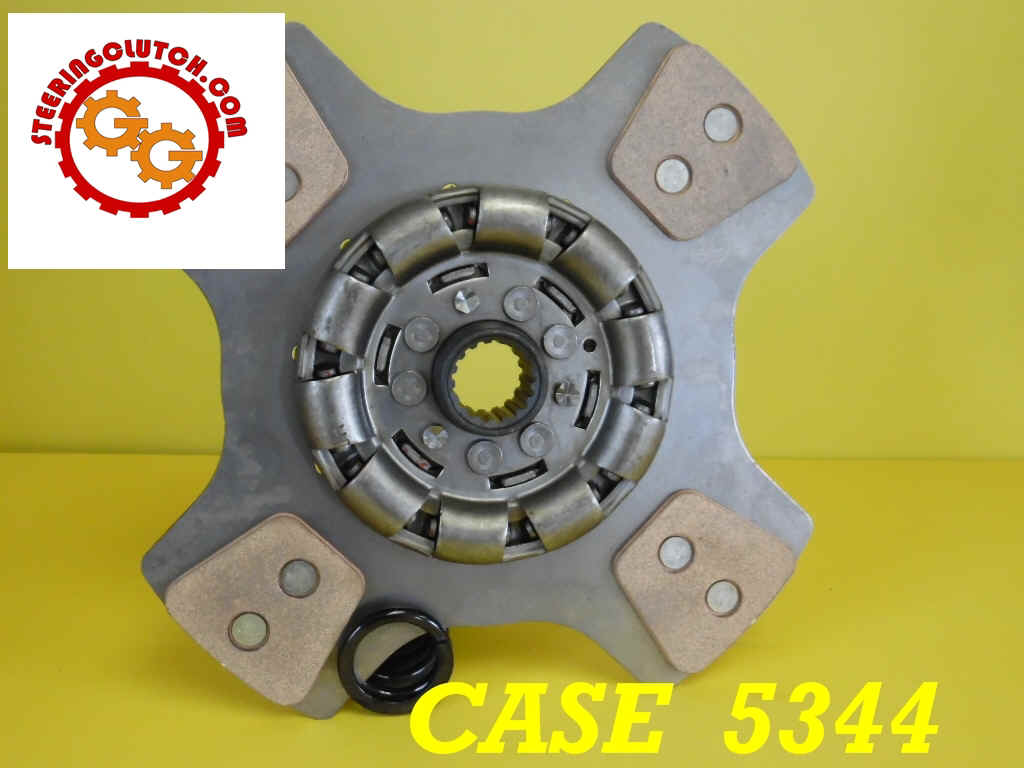

5344
CLUTCH DISC (DRIVEN MEMBER)
CASE_FLYWHEEL_CLUTCH_DISC_5344.JPG (368031 bytes)    17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634



56631DB           FLYWHEEL CLUTCH DISC (DRIVEN MEMBER) CASE-IH INDUSTRIAL 2404 LOADER                       $85.00
                            ALSO FITS AG TRACTORS IH MODEL A,   MODEL B,  MODEL C, SUPER A, SUPER C,
                            MODEL 100 ABOVE SER# 2955-UP  MODEL 130,  140,  200 SER#2289-UP
                            MODEL 230, and MODEL 240 TRACTORS

                             9 INCH CLUTCH DISC, ORGANIC LINING, SPRING LOADED
                            FLYWHEEL CLUTCH KIT IS ALSO AVAILABLE WHICH INCLUDES PRESSURE PLATE, 375493R91 DRIVEN MEMBER DISC
                             56631DB AND THROW-OUT BEARING FOR $185.80


85025C2           PRESSURE PLATE, FLYWHEEL CLUTCH                                      193.00
                            12 INCH, WITH HUB, WITH 1.406 FLYWHEEL STEP.
                            FITS CASE 380B LOADER(SER#18107->UP)
                            ALSO FITS CASE-IH TRACTORS 3210, 3220, 3230, 4210, 4220, 4230, 4240, 485L (SER#8251->UP)
                            485XL (SER#704->UP), 495, 584, 585, 595, 684 (SER#10339->UP), 685, 685XL (SER#3235->UP), 695
                            784 (SER#9491->UP), 785L (SER#16713->UP), 785XL (SER#1841->UP), 795, 884 (SER#9397->UP), 885 (SER#3084->UP)
                            885L (SER#2691->UP), 885XL (SER#2991->UP), 895, 985, 995
                            VAPORMATIC (John Deere) P/N CPG1222



85026C2           FLYWHEEL CLUTCH  DISC, DRIVEN MEMBER                                  103.50
                            12 INCH, 6 BUTTON, SPRING LOADED, 10 SPLINE 1.125 INCH SPLINES
                            FITS CASE 380B LOADER(SER#18107->UP)
                            ALSO FITS CASE-IH TRACTORS 3210, 3220, 3230, 4210, 4220, 4230, 4240, 485L (SER#8251->UP)
                            485XL (SER#704->UP), 495, 584, 585, 595, 684 (SER#10339->UP), 685, 685XL (SER#3235->UP), 695
                            784 (SER#9491->UP), 785L (SER#16713->UP), 785XL (SER#1841->UP), 795, 884 (SER#9397->UP), 885 (SER#3084->UP)
                            885L (SER#2691->UP), 885XL (SER#2991->UP), 895, 985, 995
                            VAPORMATIC (John Deere) P/N CPG2307

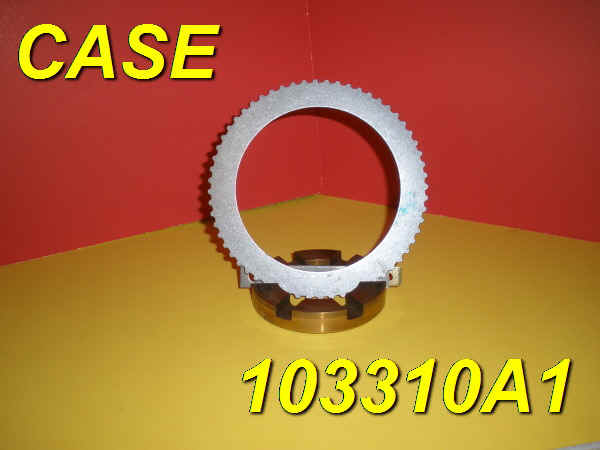

103310A1        STEEL 60 EXT TEETH          CASE-103310A1.jpg (76992 bytes)        $4.00 EA.



1712-7042       FLYWHEEL CLUTCH DISC (DRIVEN MEMBER) CASE-IH INDUSTRIAL 2404 LOADER                       $85.00
                            ALSO FITS AG TRACTORS IH MODEL A,   MODEL B,  MODEL C, SUPER A, SUPER C,
                            MODEL 100 ABOVE SER# 2955-UP  MODEL 130,  140,  200 SER#2289-UP
                            MODEL 230, and MODEL 240 TRACTORS
  (1712-7042 REPLACED BY 56631DB)
                             9 INCH CLUTCH DISC, ORGANIC LINING, SPRING LOADED
                            FLYWHEEL CLUTCH KIT IS ALSO AVAILABLE WHICH INCLUDES PRESSURE PLATE, 375493R91 DRIVEN MEMBER DISC
                             56631DB AND THROW-OUT BEARING FOR $185.80

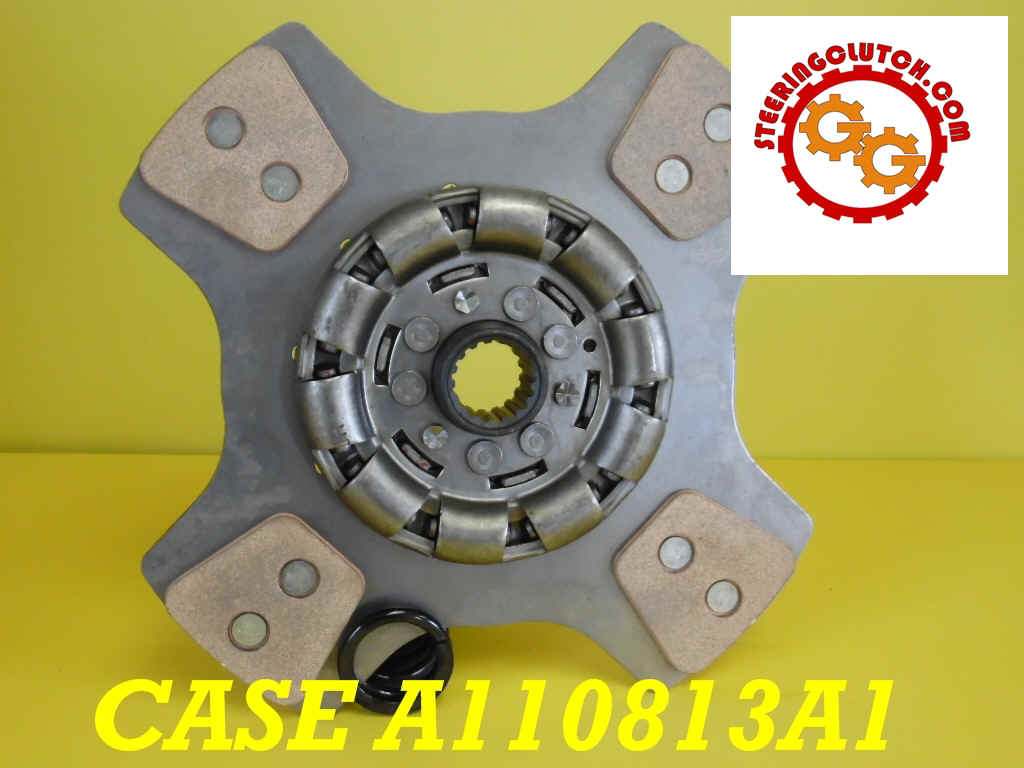

110813A1       CLUTCH DISC (DRIVEN MEMBER)  CASE_FLYWHEEL_CLUTCH_DISC_A110813A1.JPG (381188 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634



249022A1         CASE BRAKE ASSY (Fits several models)
CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND



375493R91        FLYWHEEL CLUTCH PRESSURE PLATE  CASE-IH INDUSTRIAL 2404 LOADER                                                  $128.00
                            ALSO FITS AG TRACTORS IH MODEL A,   MODEL B,  MODEL C, SUPER A, SUPER C,
                            MODEL 100 ABOVE SER# 2955-UP  MODEL 130,  140,  200 SER#2289-UP
                            MODEL 230, and MODEL 240 TRACTORS

9 INCH PRESSURE PLATE, 3 LEVER, 6 SPRING, NARROW TYPE .25" WITH 1.888" FLYWHEEL STEP
                             FLYWHEEL CLUTCH KIT IS ALSO AVAILABLE WHICH INCLUDES PRESSURE PLATE, DRIVEN MEMBER DISC
                             56631DB AND THROW-OUT BEARING FOR $185.80


A5014                  FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED


A5015                  FLYWHEEL CLUTCH DISCS, DRIVEN MEMBER                         29.70
                                               9 INCH OD, 10 SPLINE, 1.375 INCH SPLINE, ORGANIC, SPRING LOADED

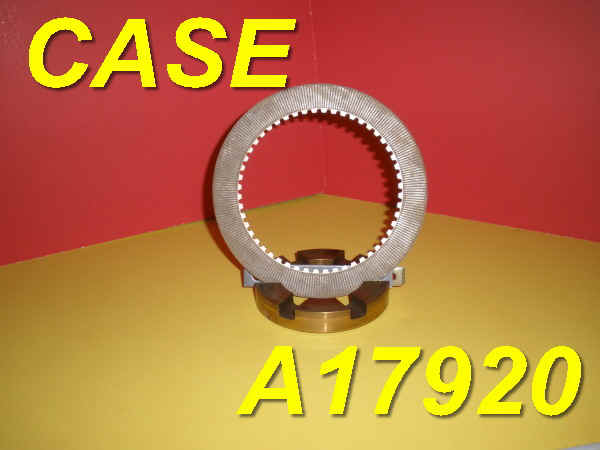

A17920            BRONZE 52 INT TEETH          CASE-A17920DISC.jpg (77387 bytes)                $10.00 EA.


A17921            STEEL 60 EXT TEETH        CASE-A17920DISC.jpg (77387 bytes)       $4.00 EA.

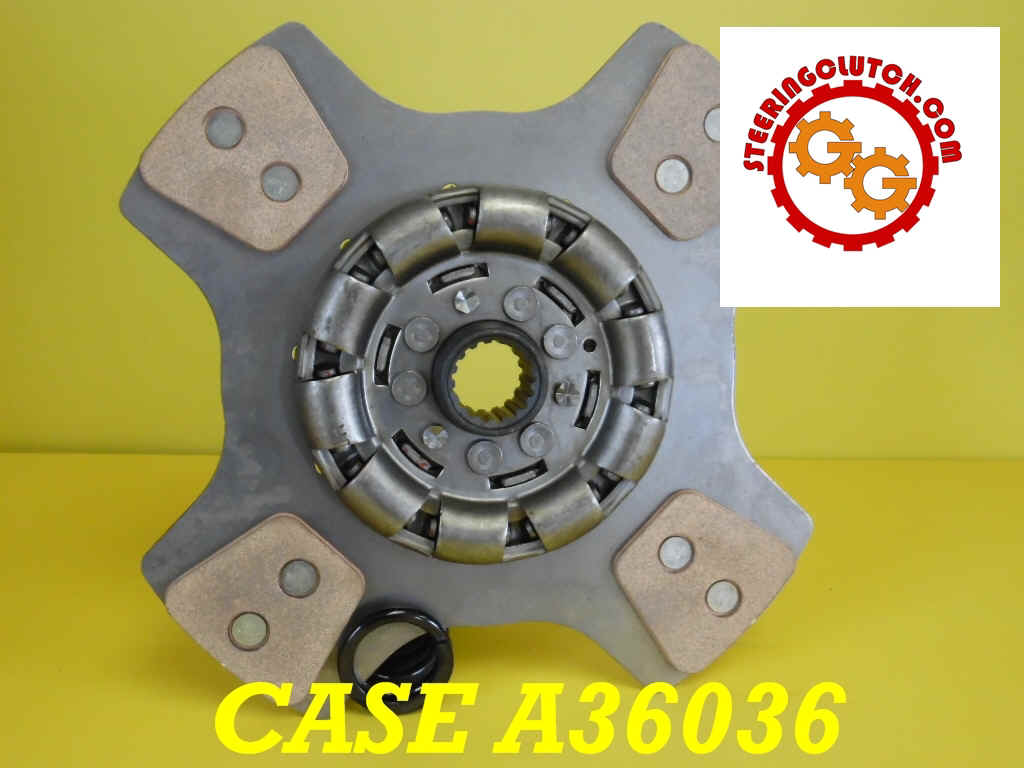

A36036            CLUTCH DISC (DRIVEN MEMBER)
CASE_FLYWHEEL_CLUTCH_DISC_A36036.jpg (379389 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634

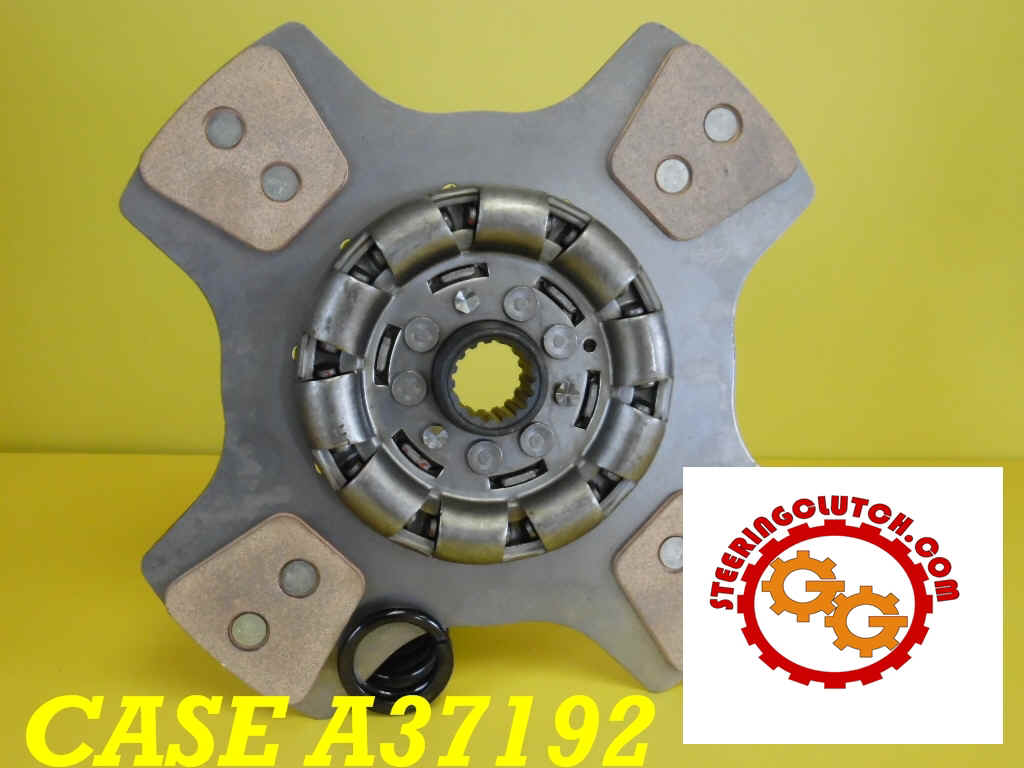

A37192             CLUTCH DISC (DRIVEN MEMBER) CASE_FLYWHEEL_CLUTCH_DISC_A37192.jpg (376265 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634


A41005            STEEL 8 EXT LUGS                                       $3.75 EA.



A41355             BIMETALLIC 45 INT TEETH           CASE_A41355_DISC.JPG (180026 bytes)     $10.50 ea

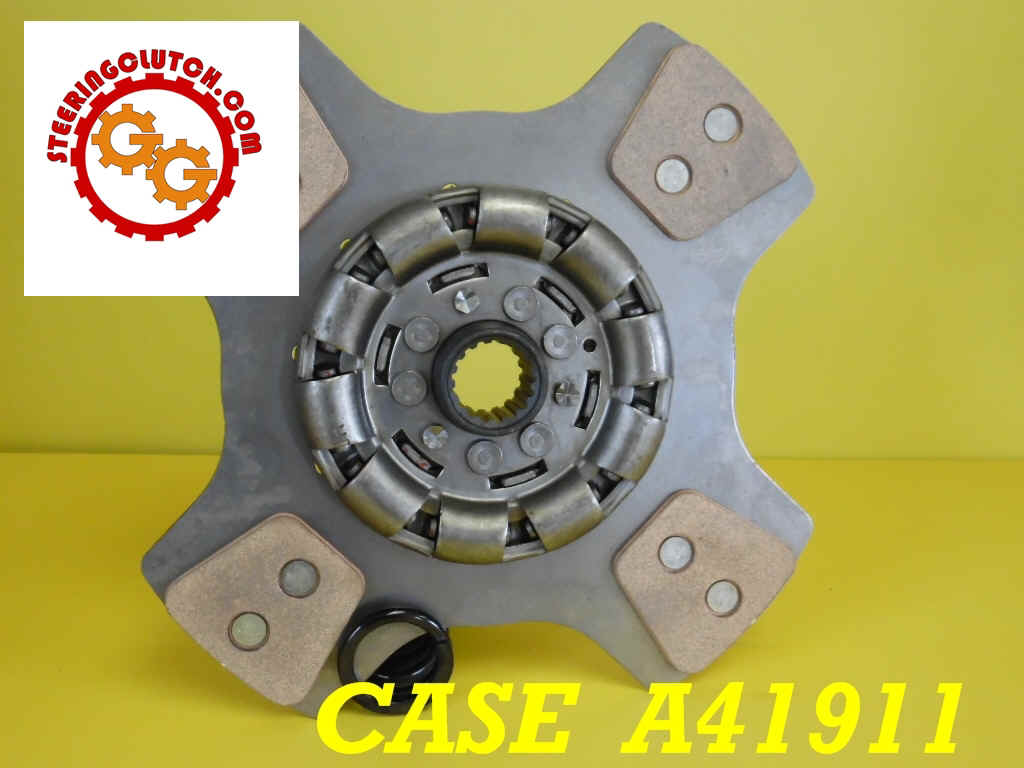

A41911              CLUTCH DISC (DRIVEN MEMBER)   CASE_FLYWHEEL_CLUTCH_DISC_A41911.JPG (368836 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634




A44716
CASE BRAKE ASSY (Fits several models)
CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND

A44756              CASE BRAKE ASSY (Fits several models)   CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND


A50028          STEEL 46 EXT TEETH              CASE-G101711_DISC.JPG (154251 bytes)     $12.00 ea
                                FITS CASE 450 850 1000D 1150 1450B 1450C 1450D



A50029         BIMETALLIC  29 INT TEETH         CASE_G102354_DISC.JPG (165277 bytes)     $19.00 ea
                                FITS CASE 450 850 1000D 1150 1450B 1450C 1450D

A148372           CASE BRAKE ASSY (Fits several models)   CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND


A155474           CASE BRAKE ASSY (Fits several models)
CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND

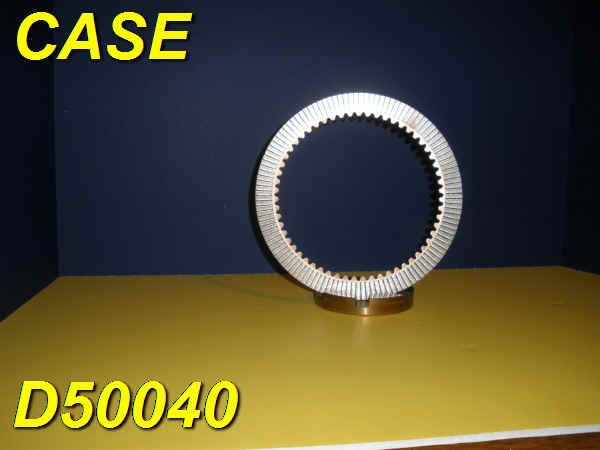

D50040           BRONZE 59 INT TEETH      CASE-D50040DISC.jpg (71176 bytes)    $5.00 EA.



D50041            STEEL 3 EXT DOGS             CASE_D50041-DISC.JPG (130462 bytes)    $7.00 ea



D50083            STEEL  54 EXT TEETH         CASE_D50083_DISC.JPG (151831 bytes)            $5.50 ea

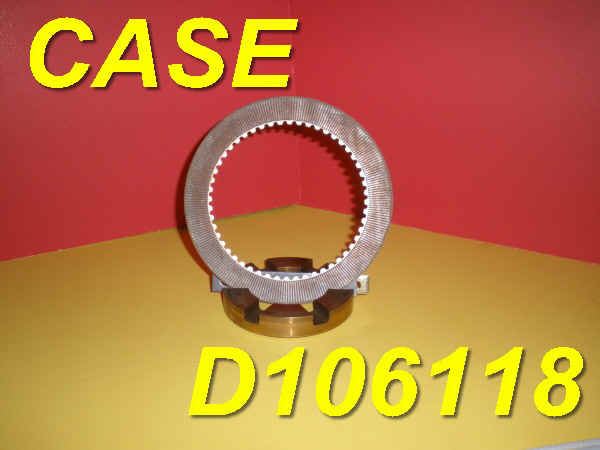

D106118         BRONZE 52 INT TEETH            CASE-D106118DISC.jpg (22898 bytes)              $6.00 EA.


G45468           CASE BRAKE ASSY (Fits several models)   CASE_BRAKE_DRUM_249022A1.jpg (392902 bytes)       BRAKE_BANDS_CASE_135574A1.JPG (448482 bytes)   135574A1 ->310449->249018A3 SET OF 2 is P/N G45468  $168.00 DRUM KIT   ONE DRUM AND 2 PCE BRAKE BAND

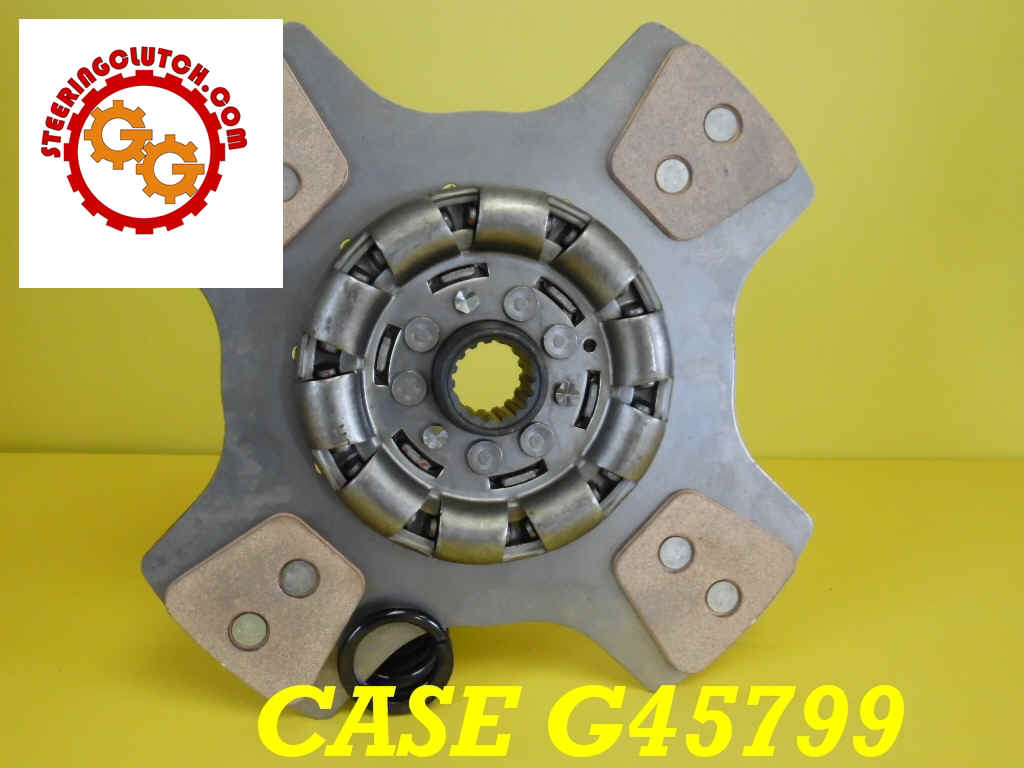

G45799            CLUTCH DISC (DRIVEN MEMBER)   CASE_FLYWHEEL_CLUTCH_DISC_G45799.jpg (371908 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634

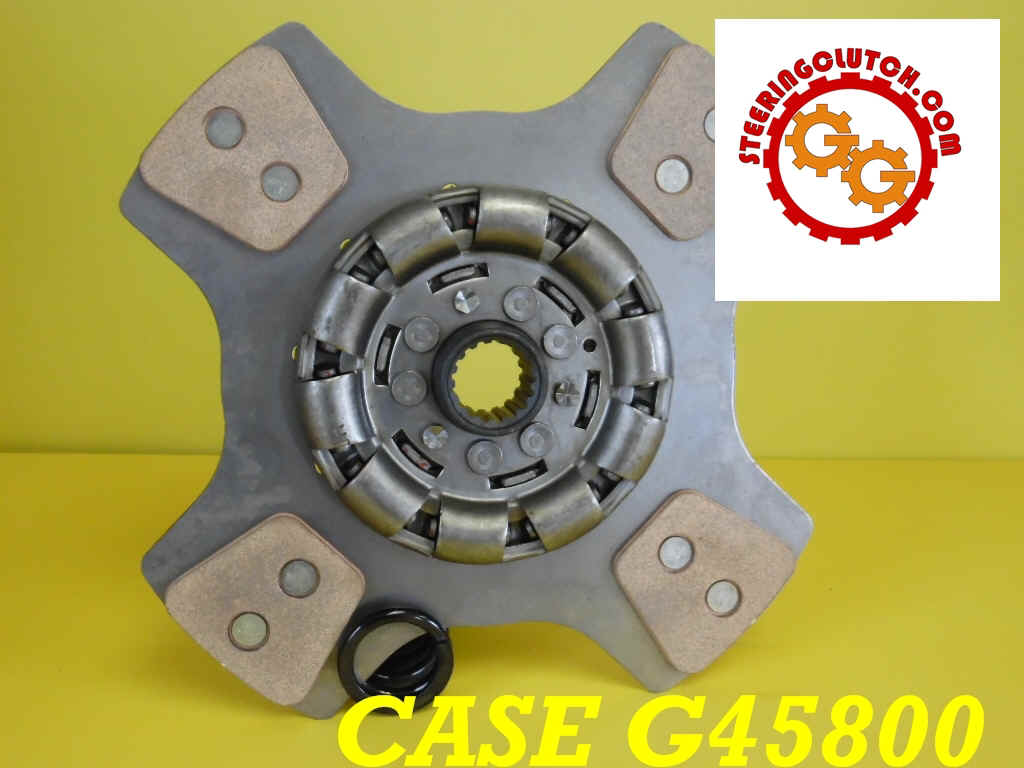

G45800          CLUTCH DISC (DRIVEN MEMBER)
CASE_FLYWHEEL_CLUTCH_DISC_G45800.jpg (380854 bytes)  17 SPLINE  1.186" ID    10.88"OD                      $169.00 EA
                             FITS 430CK,530CK, 430, 431, 440, 530, 531, 540, 630, 634



G101711          STEEL 46 EXT TEETH              CASE-G101711_DISC.JPG (154251 bytes)     $12.00 ea
                                FITS CASE 450 850 1000D 1150 1450B 1450C 1450D



G102354         BIMETALLIC  29 INT TEETH         CASE_G102354_DISC.JPG (165277 bytes)     $19.00 ea
                                FITS CASE 450 850 1000D 1150 1450B 1450C 1450D

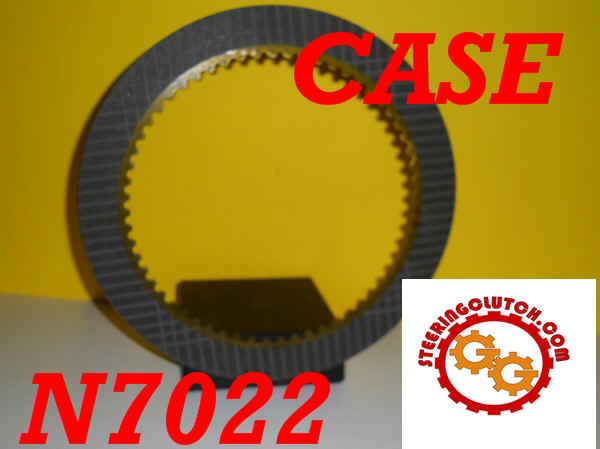

N7022              GRAPHITE 60 INTERNAL TEETH, TRANS DISC   CASE_N7022.JPG (175291 bytes) $25.00   EA.



N7217              BIMETALLLIC   45 INT TEETH        CASE_N7217_DISC.JPG (186052 bytes)   $10.50 ea

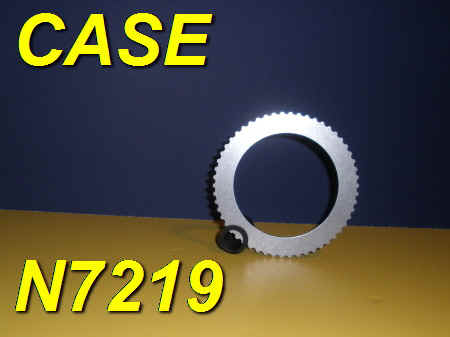

N7219              STEEL 54 EXT TEETH          CASE-N7219DISC.jpg (54478 bytes)
$3.00 EA.

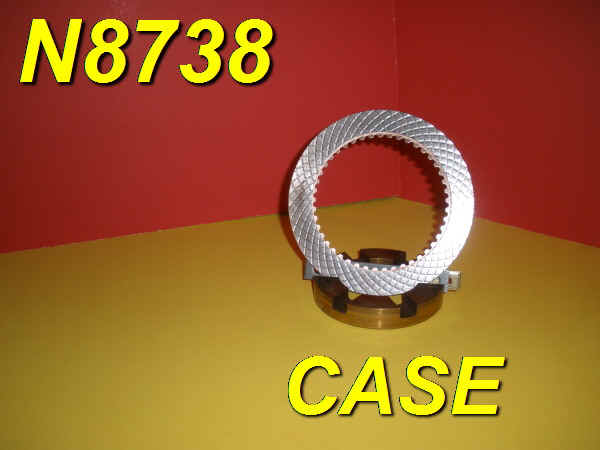

N8738              BRONZE 45 INT TEETH               CASE-N8738DISC.jpg (75382 bytes)
$10.00 EA.

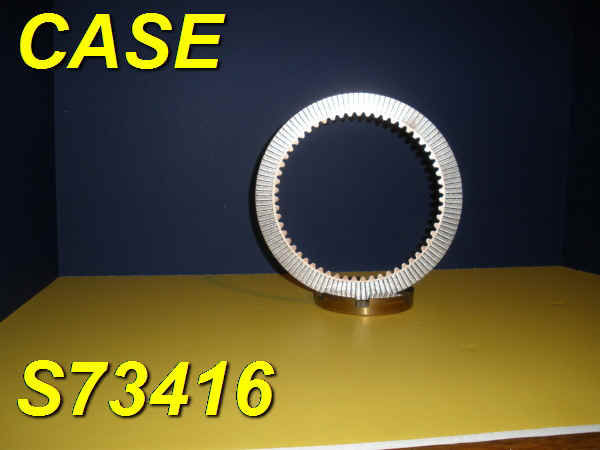

S73416             BRONZE  59 INT TEETH    CASE-S73416DISC.jpg (73899 bytes)  $5.00 EA.

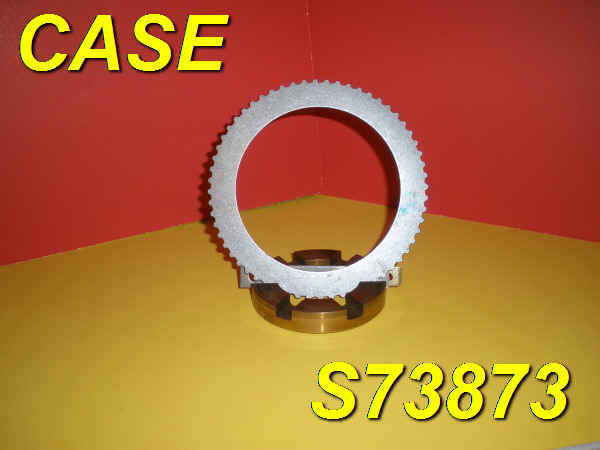

S73873             STEEL 60 EXT TEETH         CASE-S73873DISC.jpg (75320 bytes)        $4.00 EA.

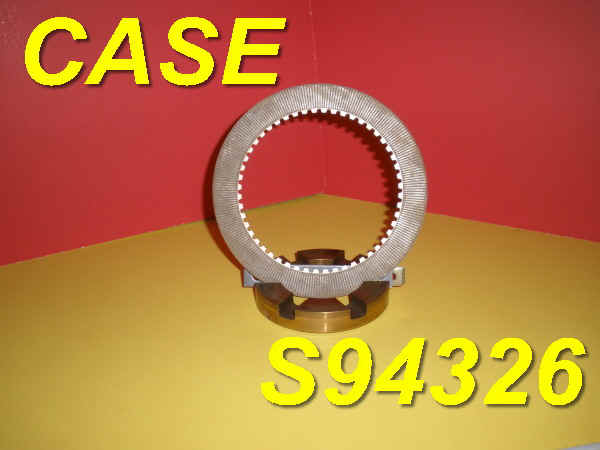

S94326             BRONZE 52 INT TEETH                 CASE-S94326DISC.jpg (78235 bytes)                 $10.00 EA.




CASE OPERATIONS MANUALS AND SPECIFICATIONS

CASE_MACHINE_SPECS_MANUAL.pdf

CASE_BACKHOE_OPERATIONS_MANUAL_193.pdf

CASE 350 DOZER INFO.pdf

CASE 350B DOZER INFO.pdf

CASE 350 LOADER INFO.pdf

CASE 380 LOADER INFO.pdf

CASE 380 TRACTOR INFO.pdf

CASE_TRACTOR_430_530_630_OPERATIONS_SUPPL_191.pdf

CASE 450 DOZER INFO.pdf

CASE 450 DOZER rev INFO.pdf

CASE 450 LOADER INFO.pdf

CASE 450B DOZER INFO.pdf

CASE 450B LOADER INFO.pdf

CASE 480B LOADER INFO.pdf

CASE 480C LOADER INFO.pdf

CASE 480D LOADER INFO.pdf

CASE_TRACTOR_540_541_540C_541C_OPERATIONS_SUPPL_190.pdf

CASE_480C_CK_OPERATIONS.pdf

CASE 580B LOADER INFO.pdf

CASE 580C LOADER INFO.pdf

CASE 580D LOADER INFO.pdf

CASE_580B_CK_Operators Manual.pdf

CASE_580D_SPECS_.pdf

CASE_580K_OPERATORS_MANUAL_(COMPRESSED).pdf

CASE 580 SUPER D LOADER INFO.pdf

CASE 680E LOADER INFO.pdf

CASE 780 LOADER INFO.pdf

CASE 850B DOZER INFO.pdf

CASE 850B LOADER INFO.pdf

CASE 850 DOZER INFO.pdf

CASE 880 EXCAVATOR INFO.pdf

CASE 980B EXCAVATOR INFO.pdf

CASE 1150C LOADER INFO.pdf

CASE 1450 LOADER INFO.pdf

CASE 1450 LOADER rev INFO.pdf

CASE 1450B LOADER INFO.pdf

CASE 1450 DOZER INFO.pdf

CASE 1450 DOZER MANUAL TILT INFO.pdf

CASE_TRACTOR_630_DIESEL_OPERATIONS_SUPPL_192.pdf

CASE_LOADER_W5-A_INDUSTRIAL_GAS_OPERATIONS_181.pdf

CASE_LOADER_W8-B_INDUSTRIAL_DIESEL_OPERATIONS_182.pdf

CASE_LOADER_W9-B_INDUSTRIAL_GASOLINE_OPERATIONS_183.pdf

CASE_LOADER_W10_INDUSTRIAL_DIESEL_OPERATIONS_184.pdf

CASE_LOADER_W10B_INDUSDTRIAL_DIESEL_OPERATIONS_185.pdf

CASE W11 LOADER INFO.pdf

CASE_LOADER_W12_INDUSTRIAL_DIESEL_OPERATIONS_186.pdf

CASE W14 LOADER INFO.pdf

CASE W14H LOADER INFO.pdf

CASE_LOADER_W14_ARTICULATED_9119672-UP_OPERATIONS_187.pdf

CASE W18 LOADER INFO.pdf

CASE W20B LOADER INFO.pdf

CASE_LOADER_W24_ARTICULATED_OPERATIONS.pdf

CASE W24C LOADER INFO.pdf

CASE_LOADER_W24C_ARTICULATED_OPERATIONS.pdf

CASE W26B LOADER INFO.pdf

CASE W36 LOADER INFO.pdf

CASE_SKIDSTEER_1816_UNILOADER OPERATIONS.pdf

CASE_TRENCHER_30+4_40+4OPS.pdf

CASE DROTT EQUIPMENT INFO.pdf

CASE DROTT 35EC EXCAVATOR INFO.pdf

CASE DROTT 40LC EXCAVATOR INFO.pdf

CASE DROTT 50EC EXCAVATOR INFO.pdf




CASE PARTS MANUALS

CASE Model 33 backhoe.pdf

CASE Model 35 Backhoe.pdf

CASE_336BD-336BDT_DIESEL_ENGINE_PARTS.pdf

CASE_420B_BACKHOE_LOADER_PARTS.pdf

CASE_450_CRAWLER_WITH_207_DIESEL_SN_3060306_AND_AFTER.pdf

CASE_530_PARTS.pdf

CASE_570_LXT_580L_Constr_King_Loader_Backhoe.pdf

CASE_580 CK_PARTS.pdf

CASE_580B_CK_WITH_SHUTTLE_TRANSMISSION_PARTS_CATALOG.pdf

CASE_580C_CK_TRACTOR_PARTS.pdf

CASE_580D_PARTS.pdf

CASE_580K_PARTS.pdf

CASE_580L_SERIES_2_PARTS_MANUAL (Compressed).pdf

CASE_680E_Loader_Backhoe_PARTS.pdf

CASE_680G_PARTS.pdf

CASE_680G_PARTS_SUPPLEMENT.pdf

CASE_9007B_PARTS.pdf
                       CASE_9007B_PARTS_FINAL_DRIVE.pdf
