MITSUBISHI BD2C BD2D BD2E BD2F BD2G BD2H BD2J Crawler BS3C BS3D BS3E BS3F BS3G BS3H BS3J TRACK LOADER Steering clutch discs,BRAKE DRUMS, BRAKE BANDS STEERING CLUTCH TRACKS ROLLERS IDLERS UNDERCARRIAGE


MITSUBISHI BD2C BD2D BD2E BD2F BD2G BD2H BD2J
BS3D BS3E BS3F BS3G BS3H BS3J SERIES ARE LOADER VERSIONS





We have been producing and selling steering clutch fiber discs and steel separator plates for the BD2 series of crawlers since 2005.  We are also providing many new components for your Mitsubishi crawlerdozers and loaders.  The earlier BD2C, BD2D, BD2E, and BD2F (ALSO BS3 SERIES) had steering clutch friction discs with riveted on linings, then bonded linings and were then replaced by the fiber discs which we now produce.  The same fiber and steel discs fit all the above series including the Mitsubishi crawler loader versions which were designated by the "BS3" model number prefix.
The BD2G's were made from 1987-1994 and followed by the BD2H and BD2J series.  At the bottom of this page you will find some early serial number guides for the dozer and loader series.

Six (6) discs each of the fiber 58831-24600 or 55331-03200 (Early fiber disc p/n was 58131-12500) are used per clutch and Six (6) of the steel separator plates  58131-12600 or 58131-12602 are also used when replacing all discs.  To read about the new bimetallic friction discs CLICK HERE

Depending on the condition of your clutches, you can often get by with only replacing the friction discs.  Use your best judgment for evaluating your steel plates.  You do not want to install plates that are rough and would accelerate the wear on your new fiber discs.  Clean them with wire brushes, sandblasting, or whatever it takes to get them as smooth as possible and then make your decision.  These steering clutches are not that much fun to have to remove and reinstall in order to save a hundred dollar bill.

THANK YOU!!!!     After many years of  providing these discs, with higher and higher volumes, we have been able to cut our costs and have now been able to actually reduce the costs to our customers by 30%.  In this day if creeping inflation and devaluation of the dollar, that is a pretty good trick!  We thank you for your continued business and support.  It is you, our customers, that has allowed us to make this price reduction.  (The old prices were 31.00 for the fibers, and 24.00 for the steels)   WE HAVE ALSO JUST INTRODUCED NEW BIMETALLLIC FRICTION DISCS TO REPLACE THE FIBERS IF YOU CHOOSE.  To read about them, CLICK HERE

Scroll all the way to bottom to see the Bottom Rollers, Tracks, Carrier Rollers, Front Idlers, and Track Pads available for your track frames.

       uspsfreeshippingicon.jpg (27000 bytes)   Free shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.
ORDERING INFO:
GRIMY_Man_SM.jpg (14636 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment options of all major cardds Discover, AmEx, Visa, MC, or the PayPal option (to the account of webmaster@tractorparts.com)

All items below  ON HAND AND IN STOCK and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email steeringclutch@gmail.com for orders/questions.  We have shipped these items all over the world and try to use Priority Mail when possible.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.

FIBER DISCS  p/n 58831-24600  or 55331-03200 (early p/n 58131-12500)  (77 external teeth) (6) required per clutch at $22.00 each
STEEL PLATES p/n 58131-12600 or 58131-12602  (48 Internal teeth) (6) required per clutch at $17.00 ea

MITSUBISHI_STEERING_CLUTCH_BIMETALLIC_FRICTION__DISC.jpg (300143 bytes)   NEW BIMETALLIC FRICTION DISCS            34.00 ea
                        To learn about these new friction discs, CLICK HERE

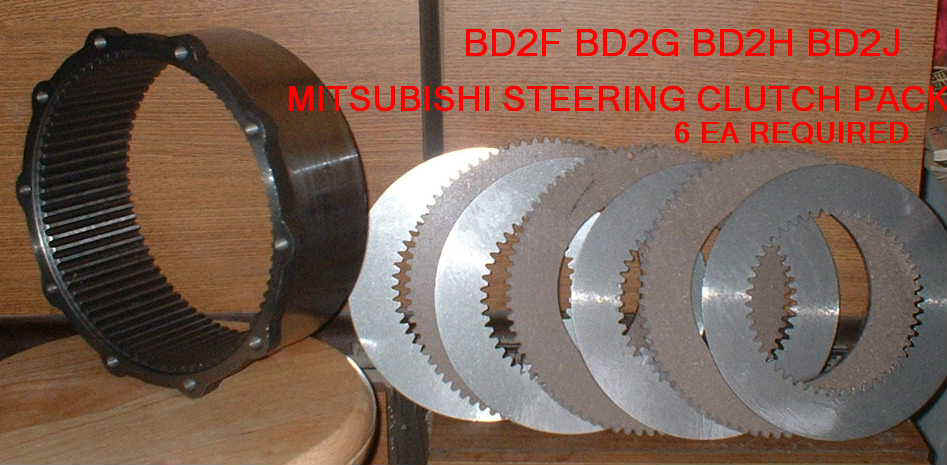

MITSUBISHI BD2 SERIES CLUTCH PACK.JPG (56482 bytes)    BD2 CLUTCH DISCS
One Clutch Pack of 6 Fiber Friction Discs and 6 Steel Plates has a cost of $234.00
    FITS MODELS BD2C BD2D BD2E BD2F BD2G BD2H BD2J AND THE LOADER VERSIONS BS3's

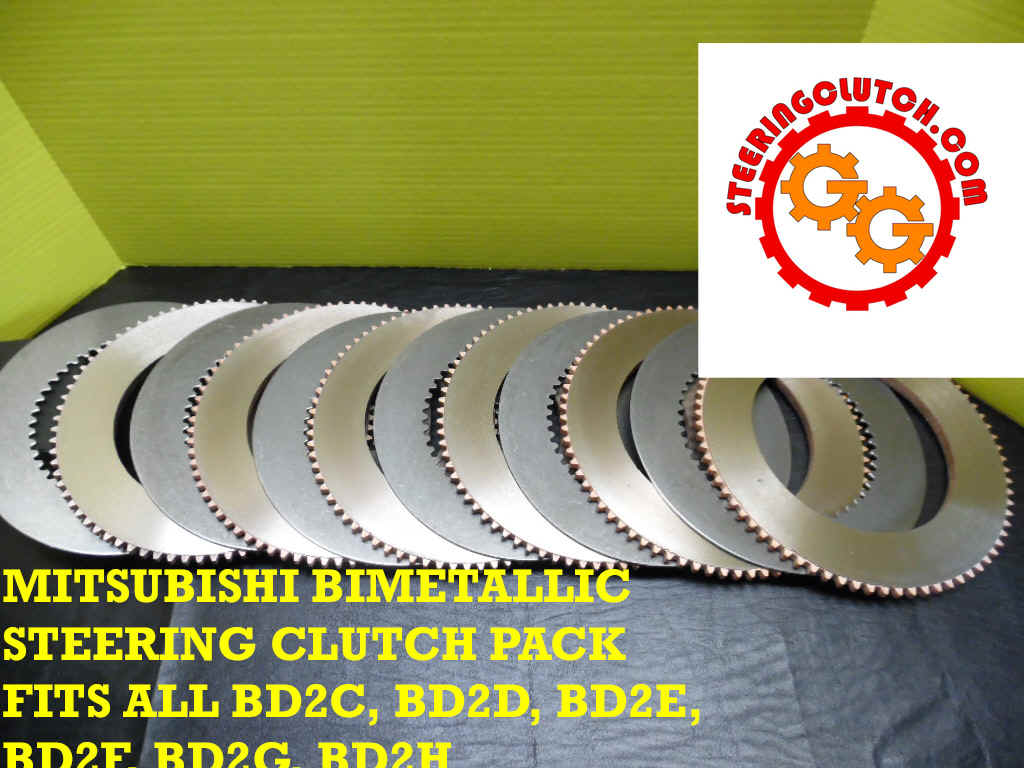

MITSUBISHI_BD2_BIMETALLIC_STEERING_CLUTCH_PACK.jpg (322594 bytes)   ONE BIMETALLIC CLUTCH PACK of 6 BIMETALLIC Friction Discs and 6 Steel Plates cost $306.00
                    FITS MODELS BD2C BD2D BD2E BD2F BD2G BD2H BD2J AND THE LOADER VERSIONS BS3's

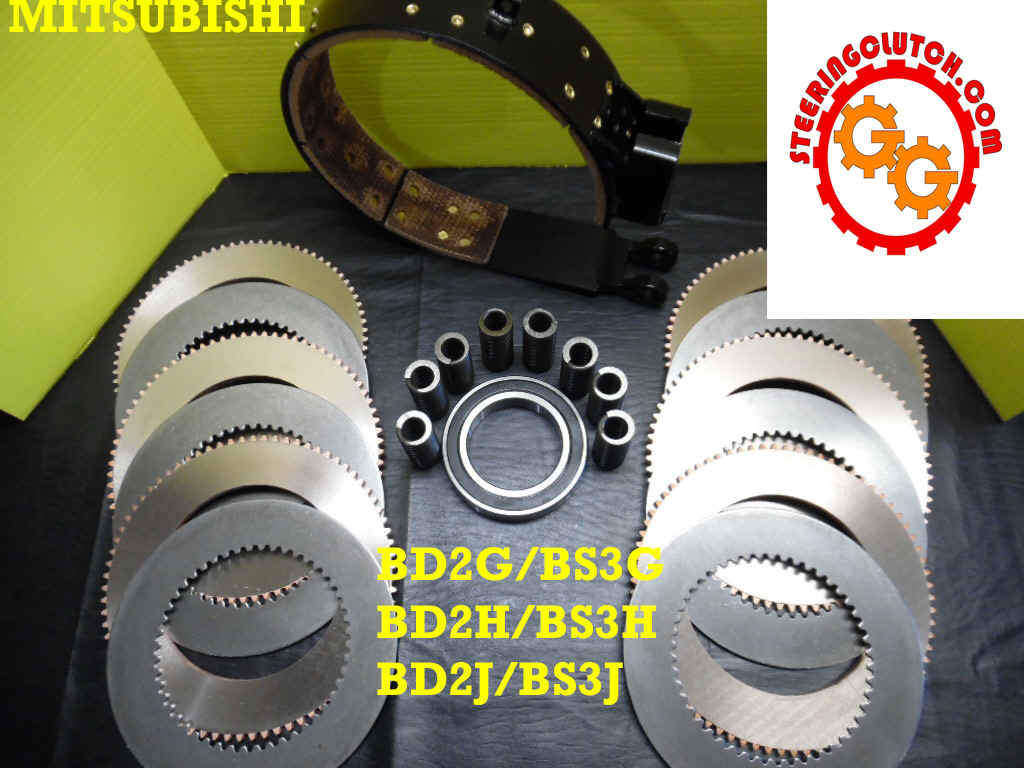

MITSUBISHI_BD2_CLUTCH__KIT.jpg (270585 bytes)   ONE BIMETALLIC CLUTCH KIT FOR BD2G, BD2H, BD2J HAS A COST OF 534.00 WILL DO ONE STEERING CLUTCH    Includes Clutch Pack,Brake Band, Throw-out Bearing, and set of springs.  This will not fit the BD2F because the springs and bearing are different.

BD2 SERIES BRAKE DRUM      For more info on the brake drum.....CLICK HERE
BRAKE DRUM p/n 58131-02400   $185.00 ea

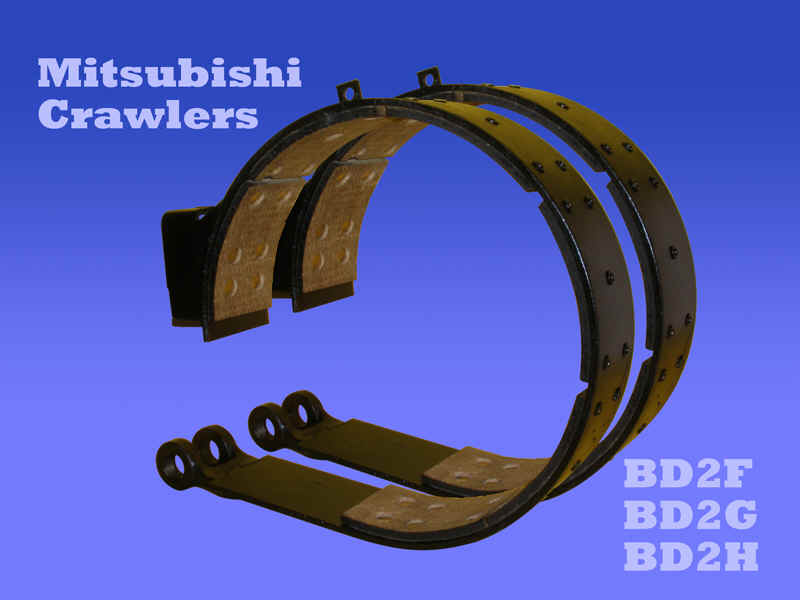

NEW..........COMPLETE BRAKE BAND ASSEMBLIES 58856-10040 (REPLACES EARLIER BANDS 58856-10010, 58856-10011, 58856-10012, 58856-10020, 58856-10039, 58856-10040 FOR BD2F)  175.00 EA   (NEW BANDS WITH NEW LININGS)   Model C D and E brake bands are different.  You will need to reline and repair those.  These bands fit models BD2F, BD2G, BD2H, BD2J dozers and their loader equivalent BS3F, BS3G, BS3H AND BS3J crawler loaders.

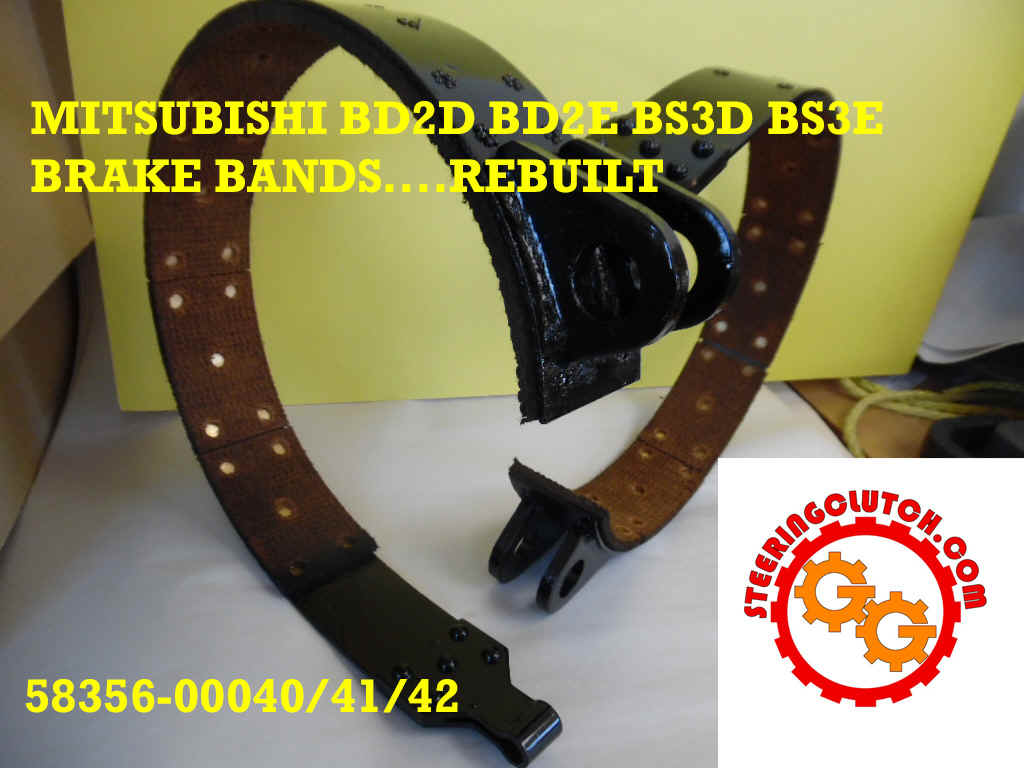

  MITSUBISHI_BRAKE_BAND_BS3D_BD2D_BD2E_BS3E_REBUILT.jpg (263442 bytes)     58356-00040 or 58356-00041 or 58356-00042 REBUILT BRAKE BANDS FOR BD2D BD2E BS3D BS3E CRAWLERS.  REBUILT WITH THE HEAVY DUTY LININGS DESCRIBED BELOW.    300.00 EA OUTRIGHT    2 AVAILABLE   SOLD

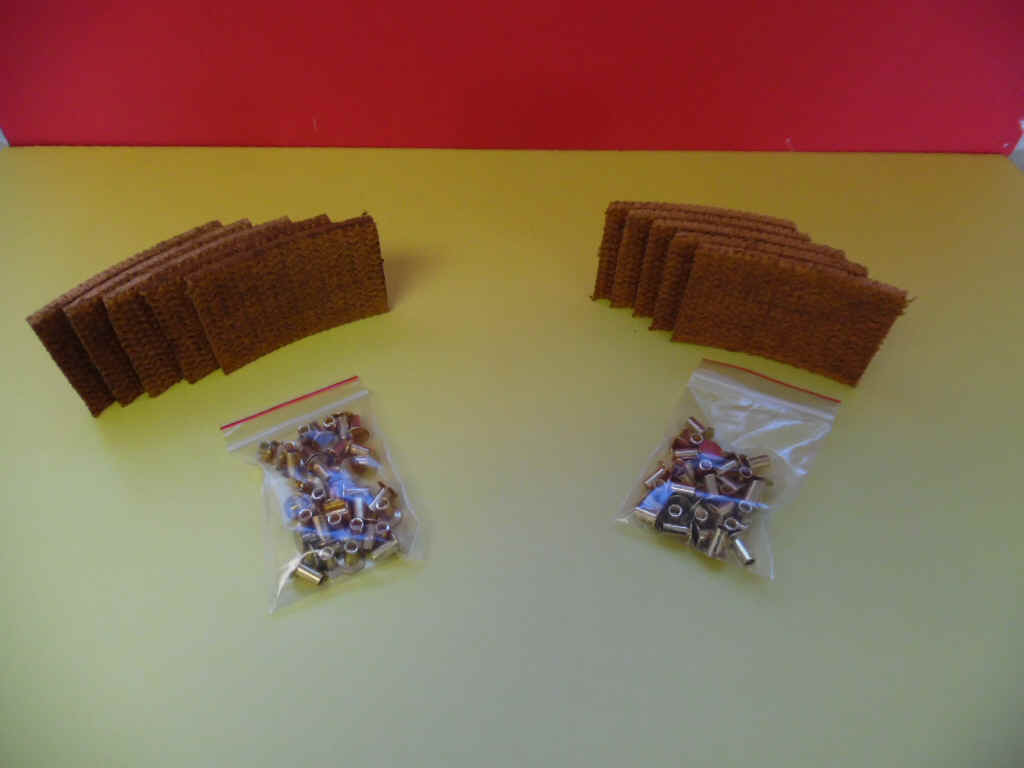

MITSUBISHI_LINING_KIT.JPG (341478 bytes)   COMPLETE BRAKE BAND LINING KIT ASSEMBLIES..FIT BD2D,BD2E,BD2F,BD2G,BS2H,BD2J DOZERS AND BS3D,BS3E, BS3F,BS3G,BS3H,BS3J MODELS           PART NUMBER FOR ONE LINING KIT, 6 PIECES, IS 58856-21800    70.00 FOR THE SET OF 6 AND INCLUDES RIVETS

HEAVY DUTY WOVEN LINING WOVEN WITH BRASS STRANDS, DESIGNED FOR REPEATED USE IN SEVERE CONDITIONS, ABLE TO WITHSTAND HIGH TEMPERATURE USE (400 DEGREE)WITH MINIMAL LOSS OF COEFFICIENT OF FRICTION OR FADE.

1 SET @ 70.00 EA        2 SETS @ 125.00

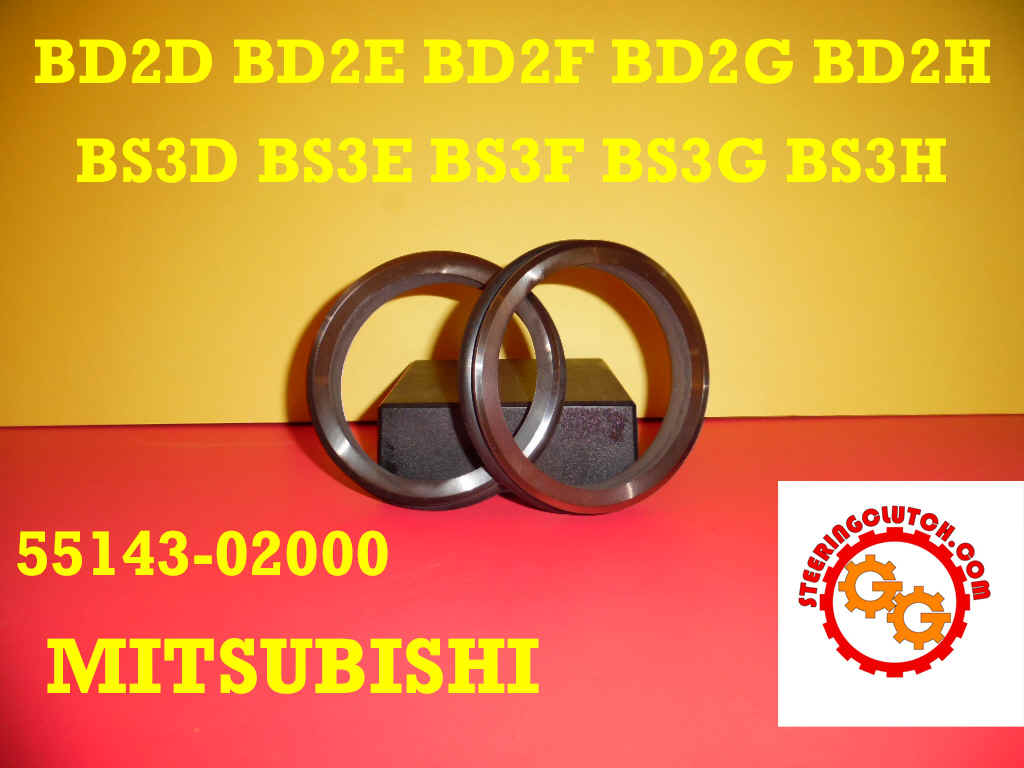

MITSUBISHI_BD2_BS3_FINAL_DRIVE_SEAL_55143-02000.jpg (254845 bytes)  COMPLETE FINAL DRIVE SEAL, TWO O-RINGS WITH METAL SEALING RINGS  55143-0200  $64.00

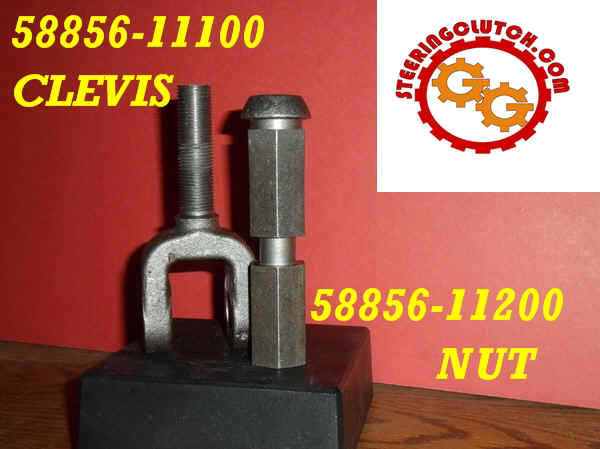

MITSUBISHI_5885611100_5885611200_CLEVIS_YOKE.JPG (213640 bytes) STEERING CLUTCH BRAKE ADJUSTING CLEVIS 58856-11100  AND NUT  58856-11200
FITS BD2F BS3F BD2G BS3G BD2H BS3H BD2J BS3J  BD2H BS3H ..................$45.00 EA or $70.00 for Pair (One Each)

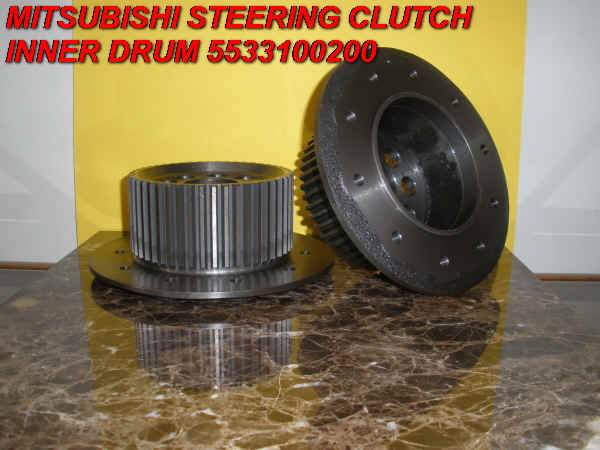

Mitsubishi 5533100200 DRUM.JPG (183262 bytes)
NEW ...........STEERING CLUTCH INNER DRIVING DRUMS   55331-00200   $187.00

MITSUBISHI_5533100700_PRESSURE_PLATE.jpg (64686 bytes)    STEERING CLUTCH PRESSURE PLATE 55331-00700 NEW   $120.00 ea

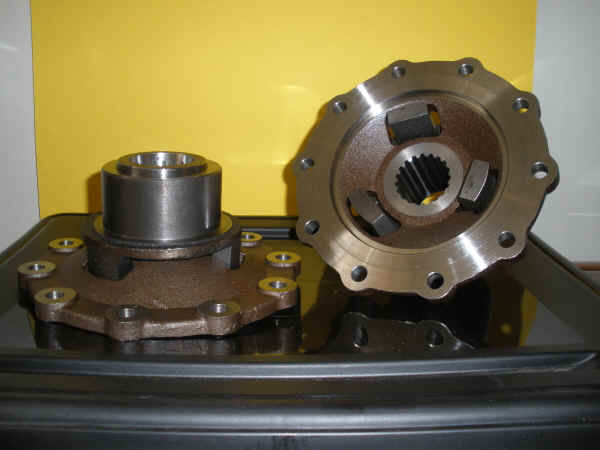

Mitsubishi Flange and Shifter.JPG (133321 bytes) STEERING CLUTCH ENGAGING SHIFTERS AND FLANGES.....If you have broken a shifting release collar or need to replace the splined steering clutch flange, we can fix you up.

Mitsubishi Flange 5533100300.JPG (173379 bytes)

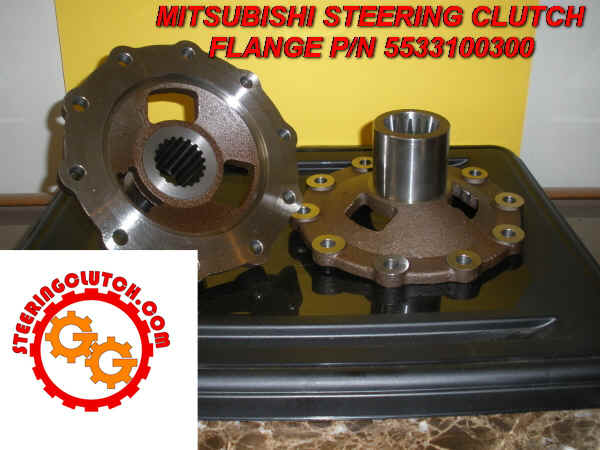

NEW .......   STEERING CLUTCH FLANGE   55331-00300   $182.00

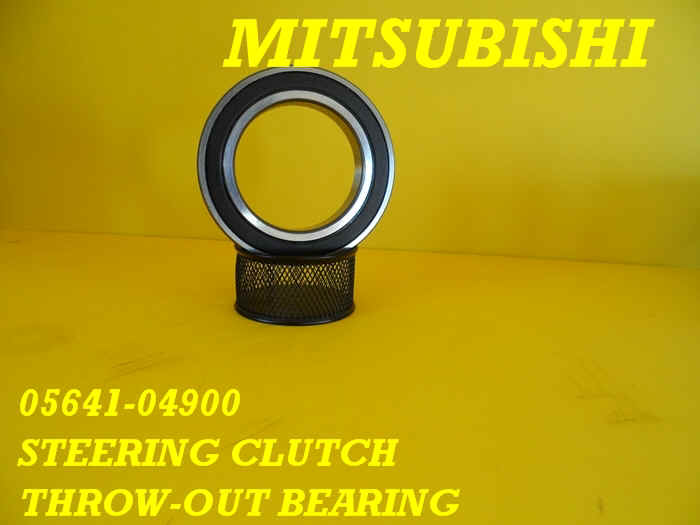

MITSUBISHI_05641-04900_THROW-OUT_BEARING_.JPG (232163 bytes)  STEERING CLUTCH THROW-OUT BEARING......P/N 05641-04900........NEW       $38.00
                            FITS BD2G/H/J AND BS3G/H/J SERIES.  This bearing will not fit the BD2D/BD2E/BD2F series

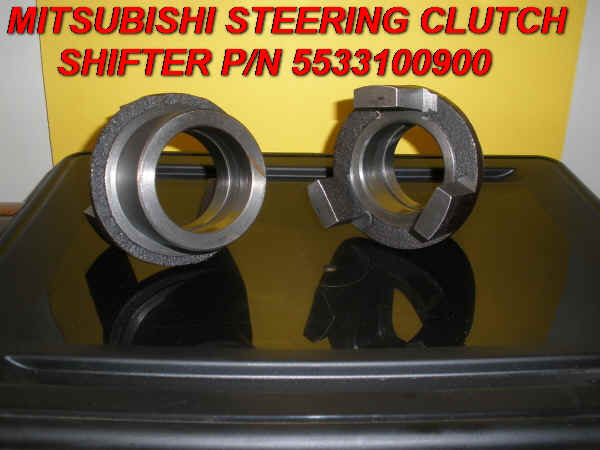

Mitsubishi Shifter 5533100900.JPG (163798 bytes)
NEW.......   STEERING CLUTCH RELEASE SHIFTER   55331-00900      $194.00

Mitsubishi Steering Clutch Spring 5533101800.JPG (138851 bytes)

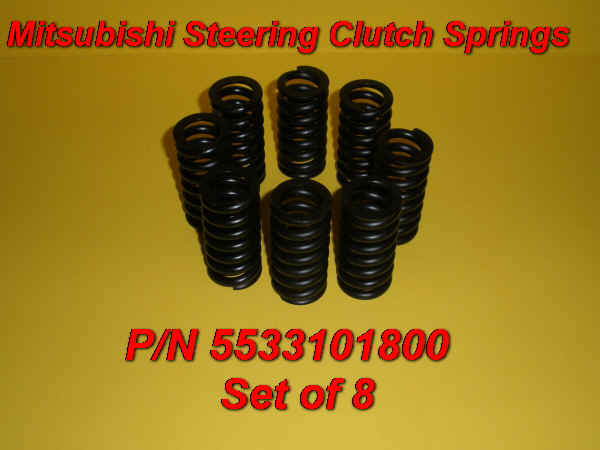

NEW....... STEERING CLUTCH PRESSURE SPRINGS FOR BD2G-H-J BS3G-H-J SERIES 55331-01800    SET OF 8 for $35.00
BACK IN STOCK

NEW....... STEERING CLUTCH PRESSURE SPRINGS FOR BD2D BD2E  BS3D BS3E SERIES 55331-21100 OR 55331-31100    SET OF 6 for $54.00

MITSUBISHI_TRACK_LINKS_38_sections.jpg (19837 bytes)     OUT OF STOCK  MITSUBISHI TRACK LINKS...38 SECTIONS PER SIDE... (WEIGHS 293 LBS PER SIDE)
                                (2) SIDES $1610.00  (1) SIDE $900.00    (4 mounting bolts/nuts @ $5.00 per section)
                                SHIPPING FOR 2 SIDES OF LINKS WILL NOT EXCEED $250.00 USD IF YOU ARE IN THE LOWER 48 STATES.
                                (Must ship to a business and not to a residence, farm, or ranch)
                                 Some extreme remote areas might have a carrier surcharge or requesting lift gate service is also extra.

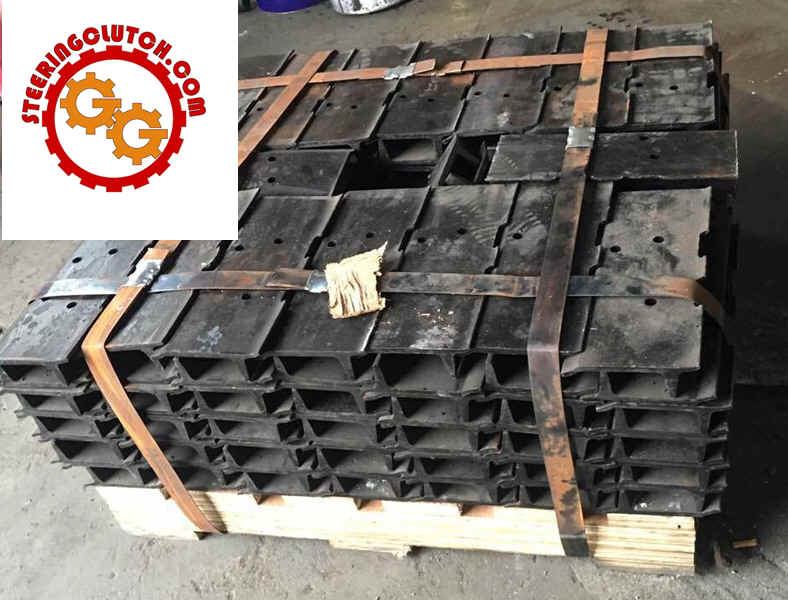

MITSUBISHI_TRACK_PADS_STANDARD.jpg (325906 bytes)     ON HAND AND IN STOCK  MITSUBISHI TRACK PADS...STANDARD PADS 300mm/11.8 inch
                               $28.00 ea   (4 mounting bolts/nuts @ $5.00 per pad)  WEIGHT 6.6 LBS PER PAD

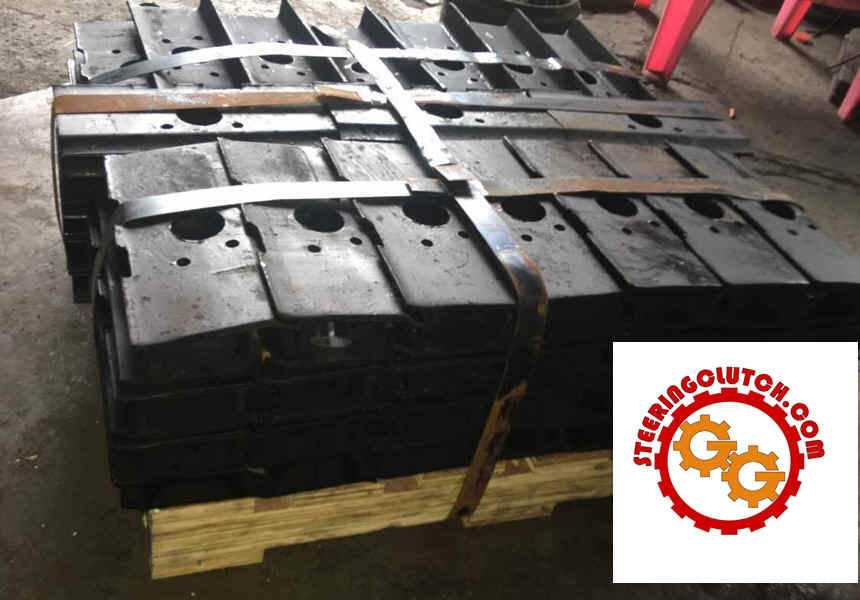

MITSUBISHI_TRACK_PADS_MUD-SNOW.jpg (275504 bytes)       ON HAND AND IN STOCK  MITSUBISHI TRACK PADS...MUD/SNOW PADS 300mm/11.8 inch
                               $28.00 ea   (4 mounting bolts/nuts @ $5.00 per pad)  WEIGHT 6.6 LBS PER PAD

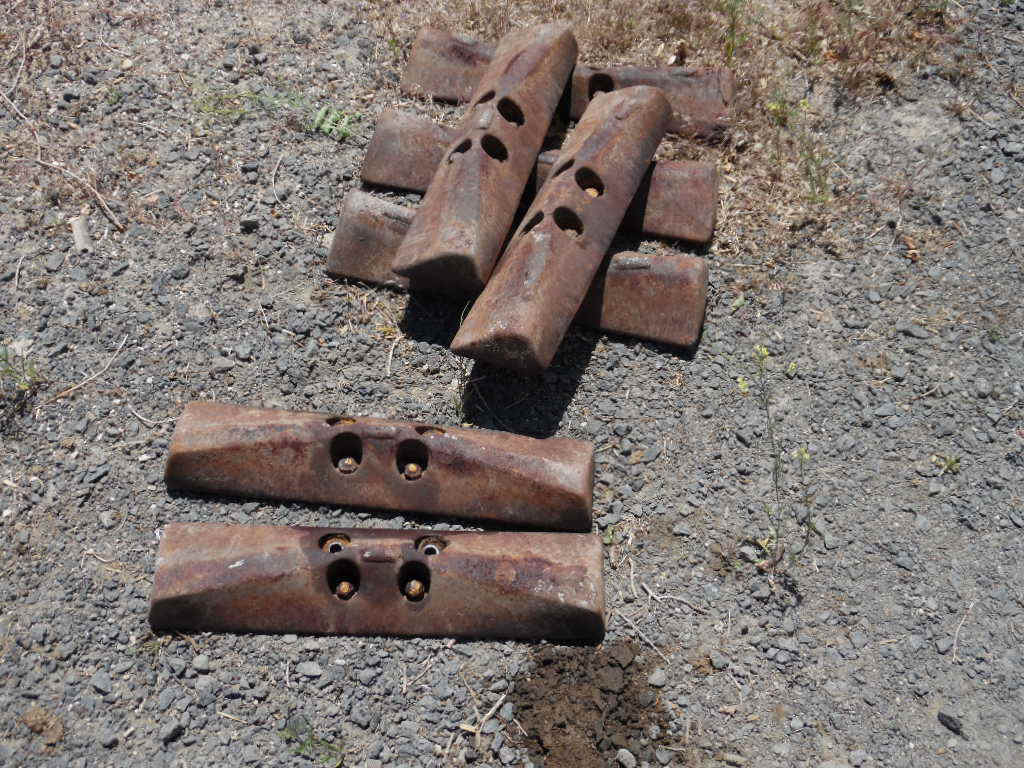

MITSUBISHI_BD2_PYRAMID_PADS.JPG (338109 bytes)       OUT OF STOCK  WE HAVE 35 GOOD USED PYRAMID/SWAMP PADS FOR THE BD2'S  @ $30.00 EA

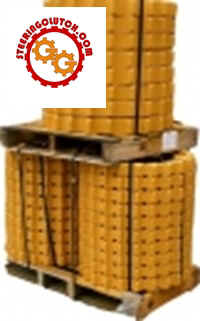

MITSBISHI_SPROCKETS_BD2 25_tooth_and_27 tooth.jpg (44536 bytes)       ON HAND AND IN STOCK    MITSUBISHI TRACK WELD-ON SPROCKET RIMS  25 TOOTH AND 27 TOOTH OPTIONS
                                $115.00 EA      33 LBS EACH

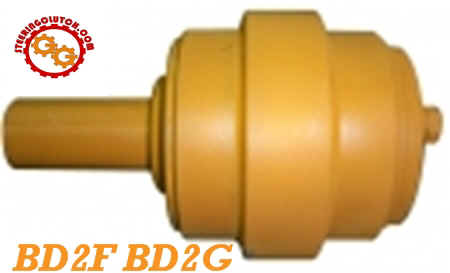

BD2G_BD2F_ carrier_roller_jpg.JPG (54745 bytes)      COMING BACK INTO STOCK......   MITSUBISHI CARRIER ROLLERS, 28.6 LBS EA
                                 COMPLETE AS SHOWN FOR BD2F AND BD2G                                   $105.00 ea

MITSUBISHI_BD2G_BD2F_BD2H_BD2J_FRONT_IDLER.JPG (314016 bytes)         FRONT IDLERS FOR THE BD2F-BD2G-BD2H-BD2J........COMPLETE WITH GUIDES   $350.00 EA
                                                           OUT OF STOCK......  172 LBS EA
SHIPPING FOR 1 FRONT IDLER WILL NOT EXCEED $150.00 USD IF YOU ARE IN THE LOWER 48 STATES.
SHIPPING FOR 2 FRONT IDLERS WILL NOT EXCEED $250.00 USD IF YOU ARE IN THE LOWER 48 STATES.
                                (Must ship to a business and not to a residence, farm, or ranch)
                                 Some extreme remote areas might have a carrier surcharge or requesting lift gate service is also extra.

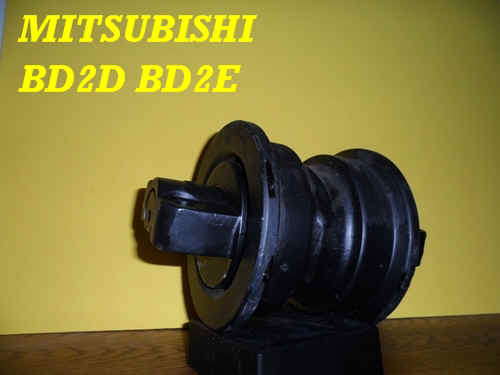

Mitsubishi_roller_BD2D_BD2E.JPG (132028 bytes)    BD2D AND BD2E  BOTTOM ROLLERS......DELIVERED IN THE US VIA UPS  137.50 EA PLUS  $19.50 EA Shipping
ON HAND AND IN STOCK


Mitsubishi_Roller_BD2F_BD2G_BD2H_BD2J.JPG (138316 bytes)  BD2F BD2G BD2H BD2J   BOTTOM ROLLERS......DELIVERED IN THE US VIA UPS  137.50 EA PLUS  $19.50 EA Shipping
ON HAND AND IN STOCK





SERVICE AND PARTS INFO


                BD2D AND BD2E PARTS MANUAL
                             BD2D BS3D BD2E BS3E BRAKE PARTS
                              BD2D BS3D BD2E BS3E STEERING CLUTCH CONTROLS PARTS
                              BD2D BS3D BD2E BS3E STEERING CLUTCH AND FINAL DRIVE PARTS

                BD2D AND BD2E SERVICE MANUAL
                              BD2D BS3D BD2E BS3E SPECIFICATIONS FOR STEERING CUTCH, BRAKES, FINAL DRIVES
                             BD2D BS3D BD2E BS3E STEERING CLUTCH SERVICE


                 BD2F BS3F PARTS MANUAL
                             BD2F BS3F STEERING CLUTCH PARTS

                 BD2F BS3F SERVICE MANUAL
                              BD2F BS3F STEERING CLUTCH OPERATIONS
                              BD2F BS3F STEERING CLUTCH TROUBLESHOOTING
                              BD2F BS3F STEERING CLUTCH SERVICE

                  BD2G BS3G PARTS MANUAL
                             BD2G BRAKE PARTS
                             BD2G BEVEL GEAR CROSS SHAFT PARTS
                             BD2G FINAL DRIVE PARTS PAGES
                             BD2G STEERING CLUTCH PARTS PAGES


                  BD2G BS3G SERVICE MANUAL
                             BD2G BS3G FLYWHEEL CLUTCH SERVICE
                             BD2G BS3G STEERING CLUTCH BASICS
                             BD2G BS3G STEERING CLUTCH REMOVAL
                             BD2G BS3G STEERING CLUTCH ADJUSTMENTS


                  BD2G BS3G BD2F BS3F ENGINE SERVICE FOR S4E ENGINE


                  BD2H BS3H PARTS MANUAL
                             BD2H BS3H STEERING CLUTCH AND FINAL DRIVE PARTS


  SERIAL NUMBERS FOR BD2D/BD2E/BD2F SERIES DOZERS AND BS3D/BS3E/BS3F LOADERS

     DOZERS        MITSUBISHI_CRAWLER_DOZER_SERIAL_NUMBERS_Page_1_marked.JPG (851167 bytes)     LOADERS  MITSUBISHI_TRACK_LOADER_SERIAL_NUMBERS_marked.JPG (685963 bytes)
