AC "M" STEERING CLUTCHES


AC_M_TRACK_AND_SPROCKET___RH.jpg (331337 bytes)    AC_M_TRACK_AND_SPROCKET____LH.jpg (346538 bytes)   AC MODEL M TRACK
31 SECTIOS OER SIDE, 20" PADS, 3 INCH LINK HT.
$1500 TIOTAL FOR BOTH SIDES  ADD $300 EA PER SPROCKET

                                                                                             Haga clic aqui para Espanol



The Steering clutch design for the AC M, and its controls, are very similar to the old Caterpillar D2's. You must remove the final drive sprocket, case, and bull gear to get to the steering clutches. The AC Model M uses 8 fiber discs and 8 steel discs. We have manufactured these discs to take care of your steering clutch needs.



                                         uspsfreeshippingicon.jpg (27000 bytes) In US only, via Priority Mail, 2-3 day delivery, on orders $500 or higher.



ORDERING INFO:
GRIMY_Man_SM.jpg (55040 bytes)  We can usually ship on the same day any items we have in stock that do not have to be pulled from a machine.
We are set up to offer the payment options of either Visa, Master Card, or the PayPal option (to the account of webmaster@tractorparts.com)

Al items below are in stock and if you would like to get any of them on the way just let us know!  If you are in the US you may call  1-800-531-9021 or if you are outside the US, 1 208 342 8911.  You may also email  steeringclutch@gmail.com       for orders/questions.

Our hours are Monday through Friday from 10 am Eastern Time to 6 pm Eastern Time (8 am Mtn Time to 4 pm Mtn Time).  We are located 20 miles east of Boise, Idaho.



FIBER DISCS P/N 036676--->033686--->041978--->035085 --->047631 (70047631) 23.00 ea

STEEL P/N 036672---> 035084 21.00 ea

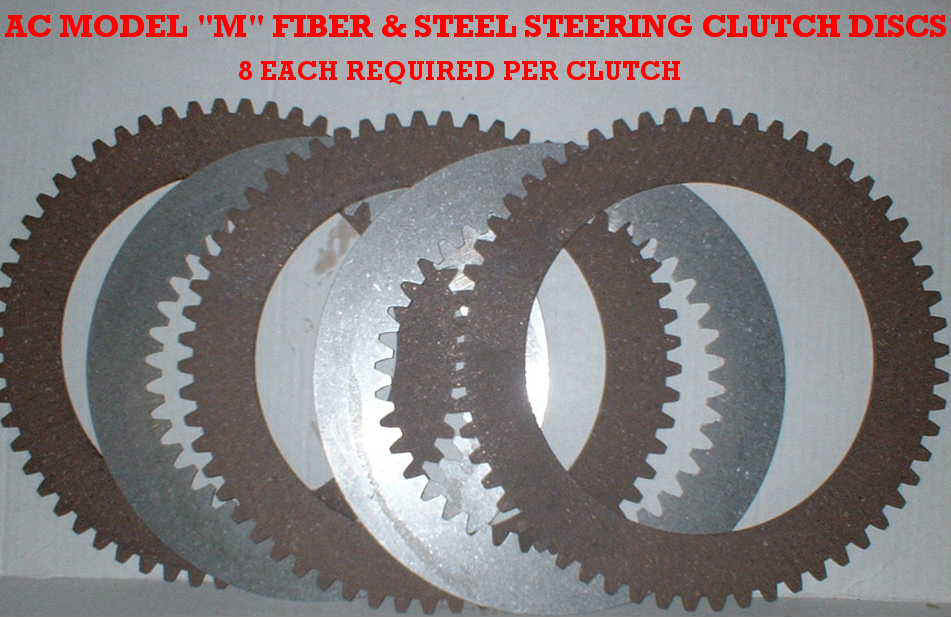

AC MODEL M STEERING CLUTCH DISCS.JPG (65219 bytes)



GOOD_TO_KNOW.jpg (7921 bytes)  SEARCHING FOR PARTS!?          When searching for parts, the part numbers are, of course, very important.  It is GOOD TO KNOW that the part numbers in your parts manuals are probably NOT the part numbers that you want to search for!!! If you have a manual showing 6 digit part numbers, and the early machines and their parts manuals mostly show 6 digit numbers, and you want to replace a bearing or seal for example, your local bearing and seal house will not be able to help you if you give them that 6 digit number!   For most of the early construction equipment and loaders you will want to add a  "70" in front of the 6 digit number to make an 8 digit number.  Depending on product line, you may have to add a "73" in front of the 6 digit number.  If you give your local bearing and seal house the 8 digit part number they will be able to help you!   (or if you are doing a Google search)  As with most rules, there are always exceptions but your odds of finding the part that you need greatly increase if you do follow this rule.       "Use an 8 digit part number by adding a "70" or "73" to your 6 digit number."

AC MODEL M STEERING CLUTCH PARTS

AC MODEL M FINAL DRIVE PARTS

Click HERE to view all of our new steering clutch discs.


CLICK HERE FOR DETAILS!!



Email  steeringclutch@gmail.com      for orders or questions.


CONTACT OUR OFFICE at 1-208-342-8911

General Gear and Machine, 733 Desert Wind Rd.,
Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only
