AC HD7 Steering clutch discs for sale, replacement friction discs, fiber, bimetallic, steel





The early model Allis Chalmers HD7's (made from 1940 thru 1950) used dry type steering clutches. They used quantity 11 fiber discs, and quantity 11 steel discs for each clutch. We have manufactured new replacement discs to take care of your clutch needs.
                       uspsfreeshippingicon.jpg (27000 bytes)   Free shipping in US only, Priority Mail or UPS Ground, on orders $500 or higher.

FIBER DISCS P/N 036676--->033686--->041978--->035085 --->047631 (70047631) 23.00 ea

STEEL P/N 036672---> 035084 21.00 ea


One complete clutch pack of 11 fiber frictions and 11 steel plates = $484.00

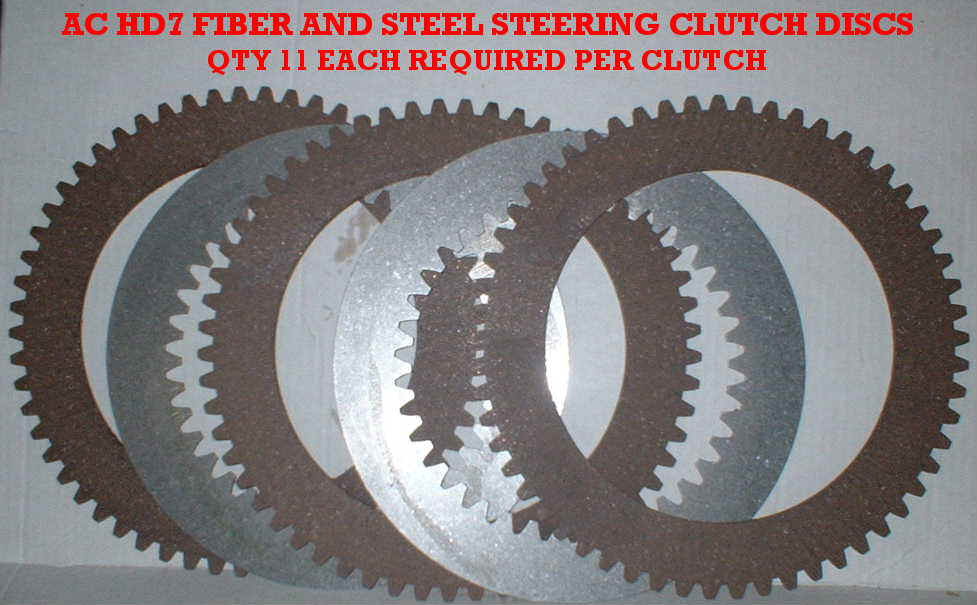

AC HD7 STEERING CLUTCH DISCS.JPG (67238 bytes)

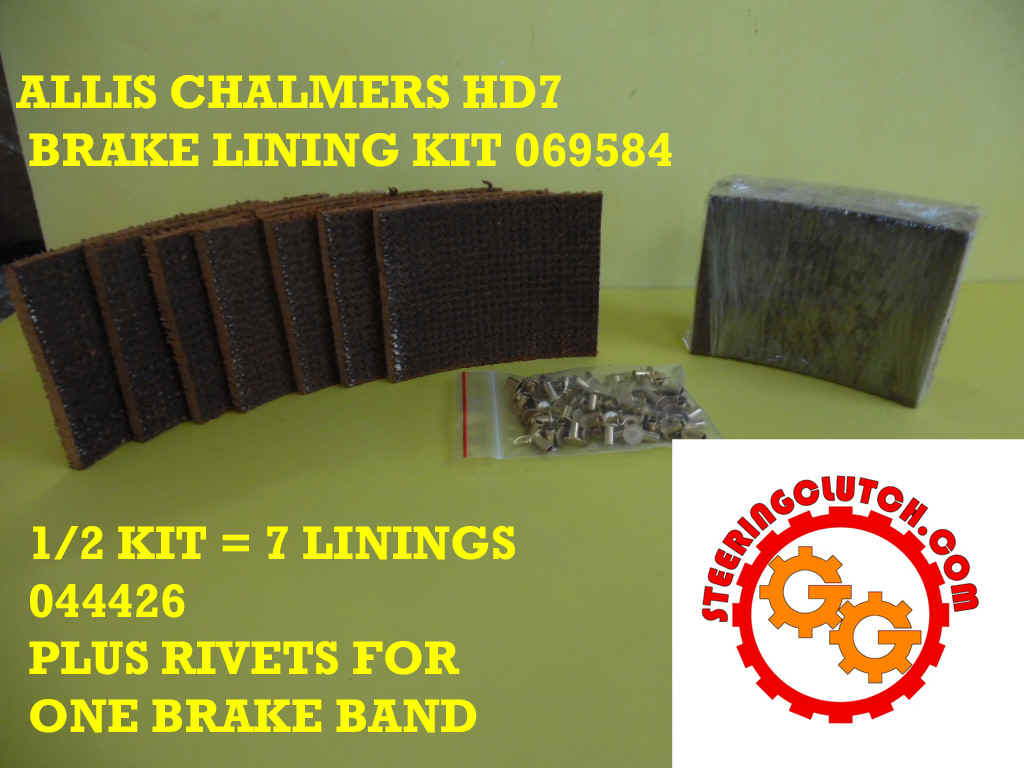

069584_HD7_BRAKE_BAND_LINING__KIT.jpg (279061 bytes)    BRAKE BAND LINING KIT.....069584 IS THE P/N FOR QTY 2 LINING KITS OF 7 LININGS (044426) PLUS RIVETS.  THE LINING KIT FOR ONE COMPLETE BRAKE BAND W/ RIVETS IS 72.00    THE COST OF BOTH LINING KITS, P/N 069584 IS 144.00

FLYWHEEL CLUTCH PARTS.......You can have either the Auburn or the Rockford clutch in your early HD7.  Please download the clutch file to determine which clutch you have before ordering any parts.  CLICK HERE

   CAUTION_2.jpg (9703 bytes)         LOOK CLOSER.jpg (11500 bytes)  Closely watch the serial number breaks on the AUBURN parts pages!!


AUBURN CLUTCH PARTS

ACHD5CLUTCH.JPG (30029 bytes)  THE STANDARD 042122 IS REPLACED BY THE HEAVY DUTY 082909 CLUTCH DISC
DISCS NEW FLYWHEEL CLUTCH DISCS FOR AUBURN CLUTCHES
082909>088816
70082909>70088816 $225.00

Auburn clutch levers, new aftermarket p/n 70088815 (088815)  or earlier p/n 70055758 (055758)  @ 35.00 ea
Auburn clutch links, new aftermarket p/n 70055759  (055759) @ 18.00 ea
If you have the very early levers p/n 048172 in your clutch you will need to replace both the levers and links to the 088815 (055758) lever and the 055759 links

WE ALSO PROVIDE NEW FLYWHEEL CLUTCH THROW-OUT BEARINGS P/N 042994--->621440 FOR THE HD7 @ $48.00 EA

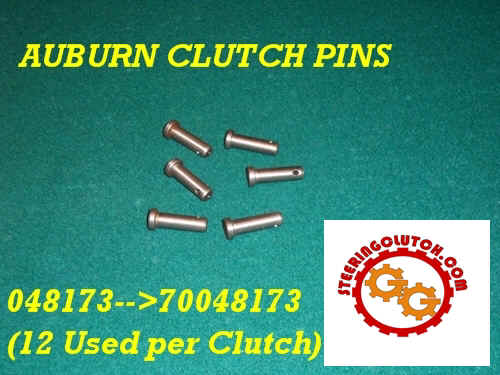

HD5_AUBURN_CLUTCH_PINS_70048173.JPG (27840 bytes)  NEW AUBURN CLUTCH PINS.  p/n's 048173-->70048173  (12 used per clutch) $3.00 ea

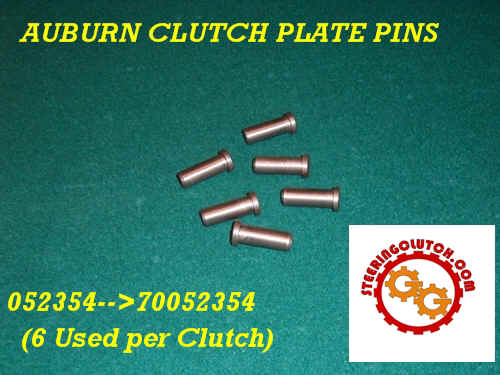

052354-->70052354 pins (6 used per clutch) $3.00 ea

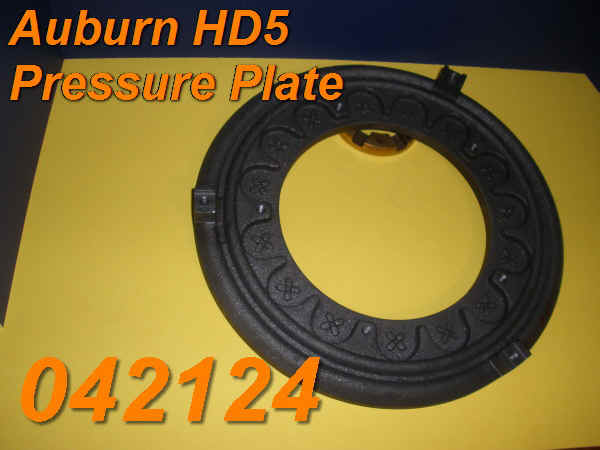

AC-042124HD5PRESSUREPLATE.jpg (26366 bytes)  NEW HD7 AUBURN FLYWHEEL CLUTCH PRESSURE PLATE   P/N 042124---> 70042124 (70088814)   $185.00


AC_078278_AUBURN_CLUTCH_PRESSURE_SPRINGS.JPG (30302 bytes)  PRESSURE PLATE COMPRESSION SPRINGS...p/n#078278  (70078278) ..Set of Qty 15 @ $24.00

AC_Flywheel_Clutch_Retainers_and_Springs_042129_042130.JPG (28584 bytes)  NEW AUBURN FLYWHEEL CLUTCH RETRACTING SPRINGS AND RETAINERS.  This is another problem you may find when the Auburn clutch needs repair.   3 of each are used per clutch. For a set of (3) p/n 042130 Springs 15.00/set or for a set of (3) retainers p/n 042129, $15.00/set

GOOD_TO_KNOW.jpg (7921 bytes)  SEARCHING FOR PARTS!?          When searching for parts, the part numbers are, of course, very important.  It is GOOD TO KNOW that the part numbers in your parts manuals are probably NOT the part numbers that you want to search for!!! If you have a manual showing 6 digit part numbers, and the early machines and their parts manuals mostly show 6 digit numbers, and you want to replace a bearing or seal for example, your local bearing and seal house will not be able to help you if you give them that 6 digit number!   For most of the early construction equipment and loaders you will want to add a  "70" in front of the 6 digit number to make an 8 digit number.  Depending on product line, you may have to add a "73" in front of the 6 digit number.  If you give your local bearing and seal house the 8 digit part number they will be able to help you!   (or if you are doing a Google search)  As with most rules, there are always exceptions but your odds of finding the part that you need greatly increase if you do follow this rule.       "Use an 8 digit part number by adding a "70" or "73" to your 6 digit number."

LOOK CLOSER.jpg (11500 bytes)You do not know what may have been done to your machine in previous repairs over the decades.  Even the manuals are not always accurate so verify with casting numbers and compare them to part numbers that you find.

HD7 GENERAL SPECIFICATIONS

HD7 CRAWLER PARTS MANUAL
HD7 CRAWLER OPERATIONS MANUAL
HD7 CRAWLER SERVICE MANUAL (INCLUDES HD10 AND HD14)

HD7 STEERING CLUTCH PARTS PAGES
HD7 STEERING CLUTCH SERVICE
HD7 FLYWHEEL CLUTCH PARTS---AUBURN AND ROCKFORD OPTIONS
HD7 FINAL DRIVE PARTS
HD7 BRAKE BAND PARTS

DETROIT DIESEL TUNE-UP TROUBLESHOOTING AND MAINTENANCE MANUAL 1963

DETROIT DIESEL SERIES 3-71 4-71 6-71 SERVICE MANUAL FOR AC HD7 HD10 HD14
DETROIT DIESEL SERIES 71 3 CYL 4 CYL 6 CYL OPERATIONS MANUAL
DETROIT DIESEL SERIES 71 3 CYL 4 CYL 6 CYL PARTS MANUAL



Click HERE to view all of our new steering clutch discs.
