TD15B 175B AND TD15C 175C


The TD15B, 175B, TD15C, and 175C crawlers used steering brake packs (called Pivot Brakes ) and disc brakes for braking and steering.  The Pivot Brake discs were not all the same.  Different serial numbers required different bimetallic discs and different steel separator plates for the Pivot brakes.  If you do not have a serial number to your machine, be especially careful in picking out and ordering the correct discs!  Parts information and even service information can be found toward the bottom of this web page.


The early TD15B used the 627306C1 bimetallic friction discs.  (Check the parts pages below for serial numbers!!)  Ten of the bimetallic discs were used for each pivot brake.  (20 total per machine)  These can ship via Priority Mail both in the US and Internationally.

The early TD15B used the 324122R1 steel intermediate discs. (Steel separator plates) Qty 8 are used per side, 16 total for the machine.
These can ship via Priority Mail both in the US and Internationally.



     The later TD15B's used different discs.  Each machine used QTY 14 of the friction discs  619200C1  DISC.jpg (86414 bytes)
      (ABOVE   SERIAL#25676)                                                                                  (Bimetallic) 324456R1-->619200C1->705105C1 $27.00 ea



     The late TD15B's used Qty 16 of the steel separator plates.  P/N 324452R1->924109C1    $17.00 ea      324452R1 DISC.jpg (78333 bytes)
            (ABOVE  SERIAL#25676)

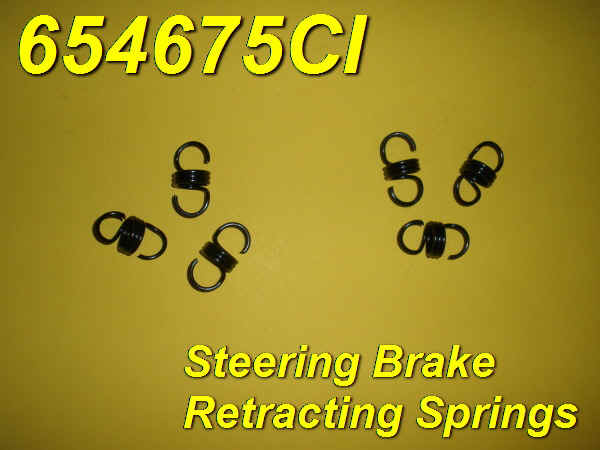

    We have also produced the steering clutch retracting springs, 654675C1     set of (3)   35.00     IH-674675C1SPRING.jpg (90008 bytes)
654675C1 fit the TD15B ser#25676 and up and the TD15C's



The International (Dresser) TD15C's also used different friction discs and separator plates, depending on serial numbers.  (Don't forget to check the parts pages below!!)

  The Pivot Brakes of the  TD15C's used 14 friction discs P/N 324456R1-->619200C1-->705105C1   $27.00 ea  619200C1  DISC.jpg (86414 bytes)



  Both the early and the late TD15C's used qty 16 of the steel separator plates P/N 324452R1-->924109C1  $17.00 ea  324452R1 DISC.jpg (78333 bytes)


   We have also produced the steering clutch retracting springs, 654675C1     set of (3)  35.00      IH-674675C1SPRING.jpg (90008 bytes)



          TRANSMISSION DISCS

The TD15B, 175B, TD15C, AND 175C'S used basically the same transmission discs in their powershift transmissions.   They were improved over the years and part numbers changed, but the design and function remained the same.  We provide the upgraded friction discs to go with the steel separator plates.   The quantities used per clutch changed, so be sure and check the parts pages below to determine how many of the friction and steel discs were required for your machine.

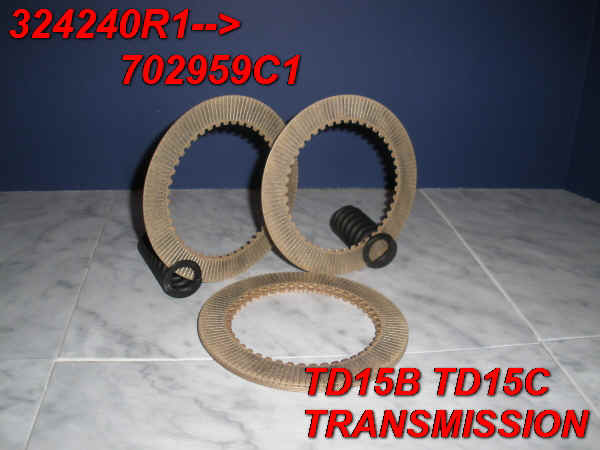

Bimetallic friction discs P/N 324240R1 replaced by the later 702959C1  324240R1-702959C1.JPG (27653 bytes)


Steel separator plates P/n 324241R1
IH-KOMATSU 324241R1.jpg (97529 bytes)



TD15B AND 175B STEERING SYSTEM INTRODUCTION
TD15B PIVOT BRAKE PARTS
TD15B AND 175B PIVOT BRAKE SERVICE
TD15B TRANSMISSION PARTS
TD15B TRANSMISSION SERVICE


TD15C AND 175C STEERING SYSTEM INTRODUCTION
TD15C PIVOT BRAKE PARTS
TD15C PIVOT BRAKE SERVICE
TD15C POWERSHIFT TRANSMISSION PARTS
TD15C POWER SHIFT TRANSMISSION SERVICE





Click HERE to view all of our new steering clutch & friction discs.


CLICK HERE FOR DETAILS!!
