FRICTION DISCS

Steering Clutch Discs  |  Flywheel Clutch Discs  |  Brake Drums


Back home to Tractorparts.com
for all your used, new, spare & rebuilt parts needs.
WE SALVAGE MANY OF THESE MACHINES

UPDATED CONTINUALLY
Part Number Interchange/Cross References
FOR HEAVY DUTY TRACTORPARTS

Email:  webmaster@tractorparts.com
for questions & orders

STEERING CLUTCH DISCS
Installation/Disassembly Instructions
SERVICE INFO FOR CRAWLERS

Besides supplying steering clutch discs and related parts, you can see more examples of the machines we part out at our original home page of
www.tractorparts.com

D2 5J 6293 SP
D2'S

D4 7U 1710 CRAWLER DOZER
D4'S

CAT D6 9U 1305 CRAWLER DOZER
D6'S

cat42
D7'S

D82U 8000 Series
D8'S


IH 500 CRAWLER DOZER
IH 500

IH TD5_2
IH TD5

ih24
IH TD6


IH TD9

TD14A 36184 DOZER, GOOD ENGINE
IH TD14

AC HD5 CRAWLER DOZER
HD5

Allis Chalmers HD6G3700 crawler loader
HD6

Allis Chalmers HD7G
HD7

ac09
HD10

HD11B 5750!
HD11
T6 TD6 SERIES
INTERNATIONAL FINAL DRIVE SEALS
TD6 (SMALLER) 53532D->313204R1
TD6 (LARGER) 53535D
Small Outer Seal
073763 (70073763)
Large Inner Seal
073762 (70076753)

HD5 & HD6 FINAL DRIVE SEALS

T9 TD9 SERIES
INTERNATIONAL FINAL DRIVE SEALS
TD9 (SMALLER) 53538DA->313206R1
TD9 (LARGER) 53537DA->313205R1










Tractor Make Model
(Click each model for more information)		 Part Number Material Cost* Call to Order
Allis Chalmers (AC)
Steering Clutch Discs		 AC MODEL K 036672--> 035084 Steel $21/ea 1-208 342 8911
  AC MODEL K 036676--> 033686--> 041978--> 035085 --> 047631 (70047631) Fiber $23/ea 1-208 342 8911
  AC MODEL M 036672--> 035084 Steel $21/ea 1-208 342 8911
  AC MODEL M 036676--> 033686--> 041978--> 035085 --> 047631 (70047631) Fiber $23/ea 1-208 342 8911
  MODEL HD7 036672--> 035084 Steel $21/ea 1-208 342 8911
  MODEL HD7 036676--> 033686--> 041978--> 035085 --> 047631 (70047631) Fiber $23/ea 1-208 342 8911

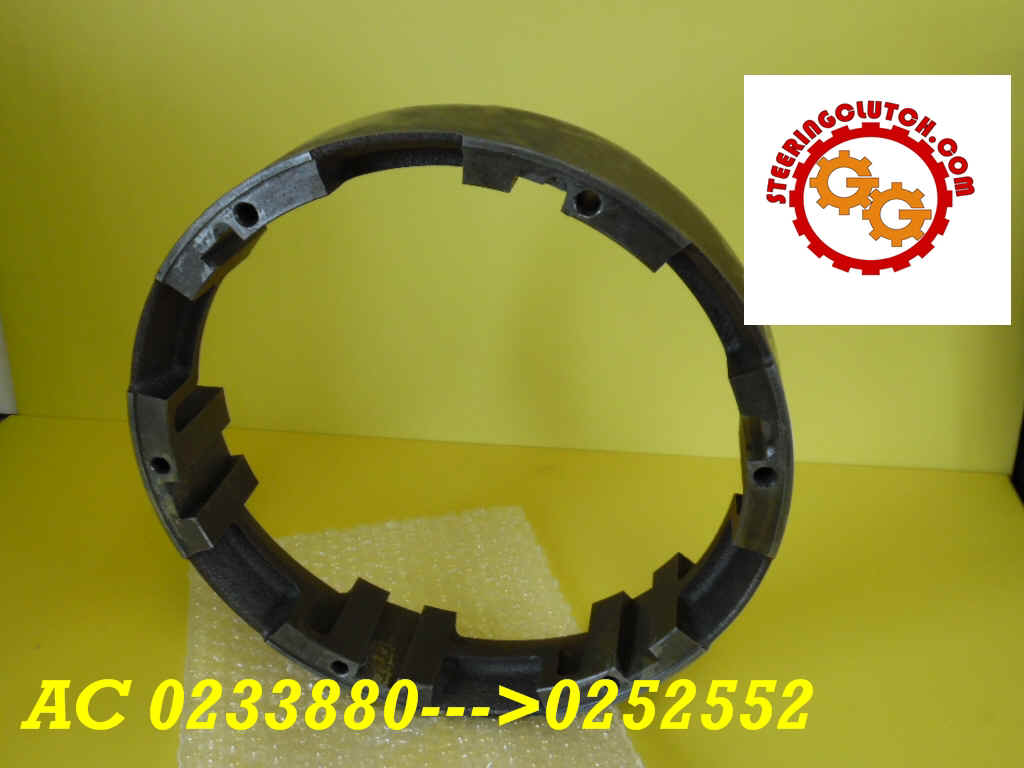

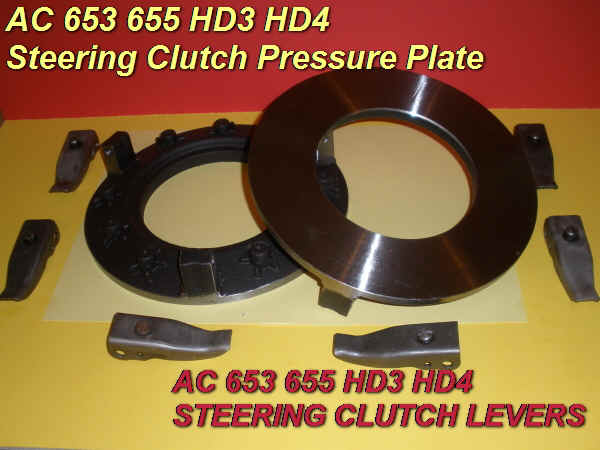

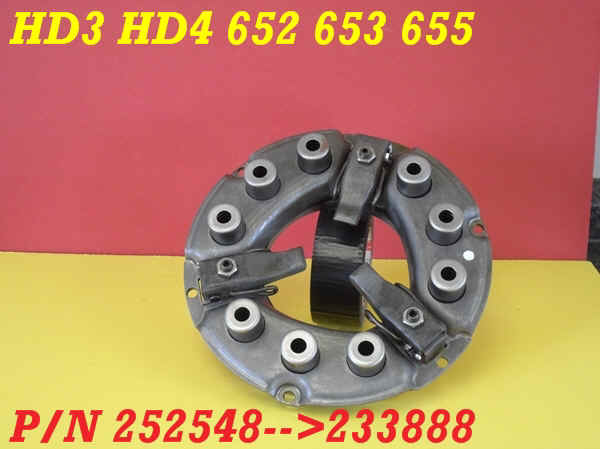

  HD 3/HD 4/653/655 0240876->025828->
1003749-->103881		 ACHD3HD4BRAKEBAND.JPG (150626 bytes) $145/ea 1-208 342 8911
  HD 3/HD 4/653/655 0233887-->71003719 Fiber $21/ea 1-208 342 8911
  HD 3/HD 4/653/655 70233886 (0233886) Steel $15/ea 1-208 342 8911

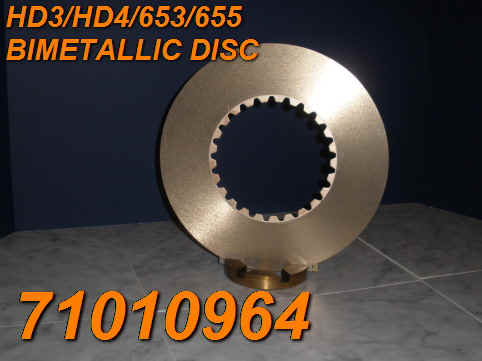

  HD 3/HD 4/653/655 71010964 Bimetallic discs $29/ea 1-208 342 8911

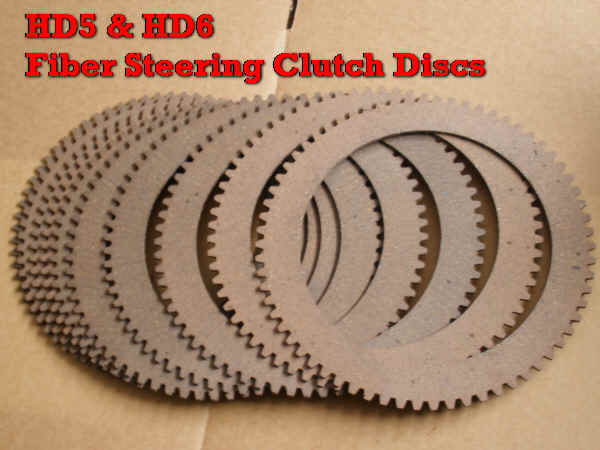

  HD 5/ HD 6/ HD 9/ HD 10/ HD 11 066360 --> 044478 (70044478) Fiber $18/ea 1-208 342 8911

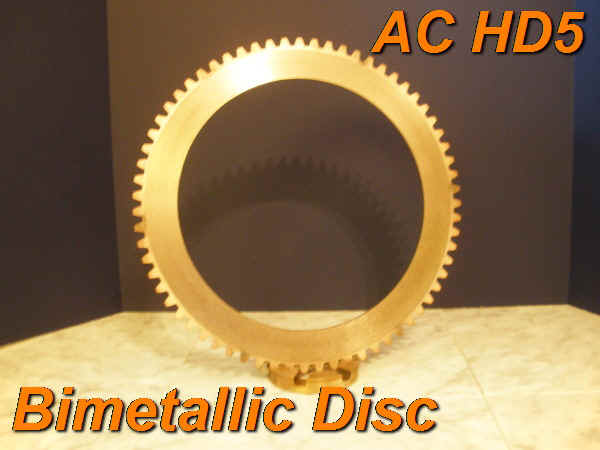

  HD 5/ HD 6/ HD 9/ HD 10/ HD 11 70609699--> 057375 (70057375) Bi-Metallic $32/ea 1-208 342 8911

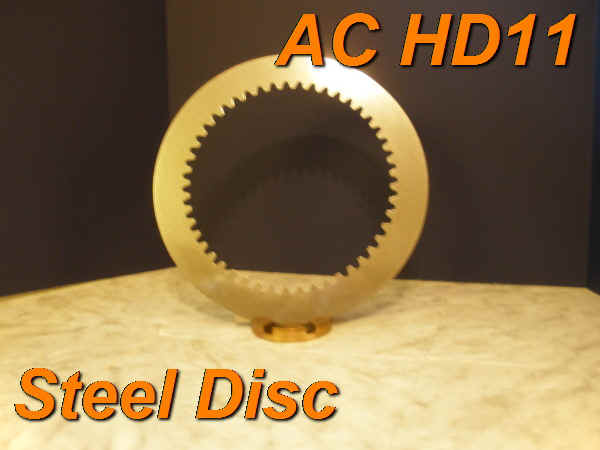

  HD 5/ HD 6/ HD 9/ HD 10/ HD 11 041781 ---> 70624562 Steel $17/ea 1-208 342 8911

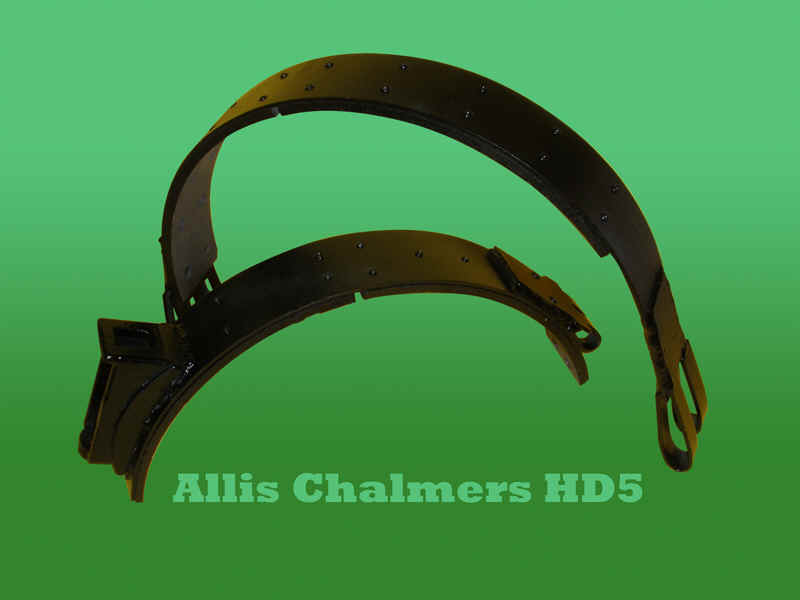

  HD 5/    BRAKE BANDS New Bands
Upper and Lower halves w/
New Linings
 AC HD5 BRAKE BAND.jpg (202881 bytes) $215.00 1-208 342 8911
  HD5 FLYWHEEL CLUTCH DISC NEW FLYWHEEL CLUTCH DISCS
FOR AUBURN AND ROCKFORD
CLUTCHES		 ACHD5CLUTCH.JPG (163416 bytes) $155.00 1-208 342 8911

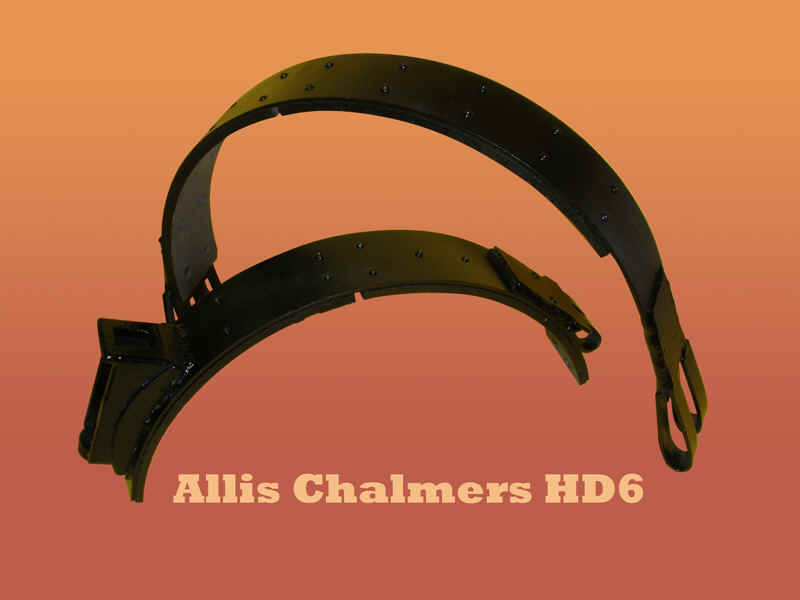

  HD 6   BRAKE BANDS New Bands
Upper and Lower halves w/
New Linings
 AC HD6 BRAKE BAND.jpg (211371 bytes) $215.00 1-208 342 8911

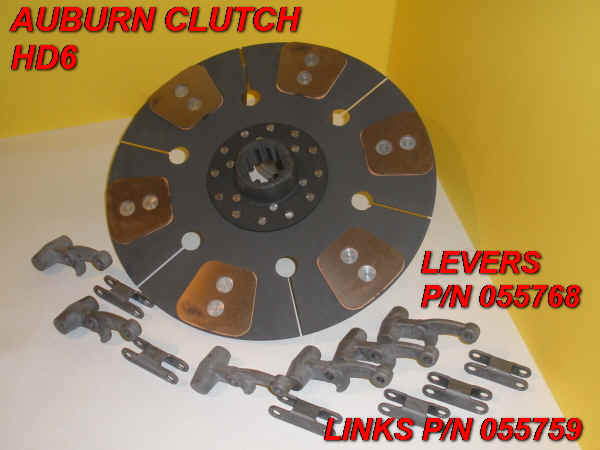

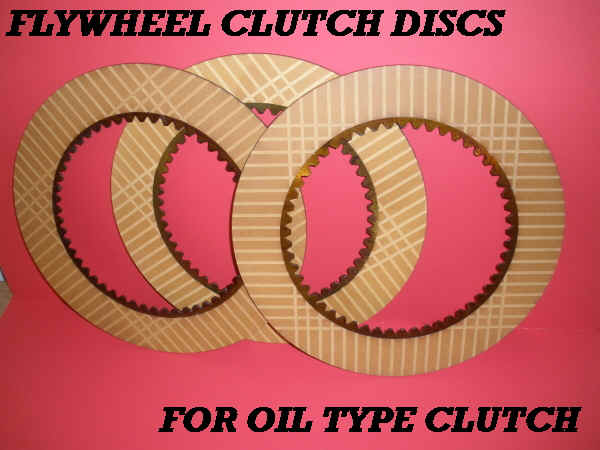

  HD6 FLYWHEEL CLUTCH DISC NEW FLYWHEEL CLUTCH DISCS
FOR AUBURN AND ROCKFORD
CLUTCHES		 ACHD6CLUTCH.JPG (154614 bytes) $155 1-208 342 8911
  HD5 & HD6 FLYWHEEL
CLUTCH DISCS FOR
AUBURN & ROCKFORD CLUTCHES		   AUBURNCLUTCHDISC.JPG (150456 bytes)   1-208 342 8911
  HD5 and HD6 FINAL DRIVE SEALS
FOR 6 SPLINED AXLES		 Small Outer Seal
073763 (70073763)

Large Inner Seal
073762  (70073762)


Large 124.00

 1-208 342 8911
Case

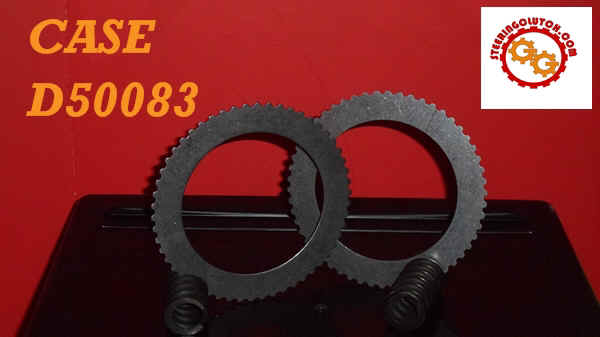

Steering Clutch Discs		 350/350B/580C/580K D50083 Steel $2.50/ea 1-208 342 8911

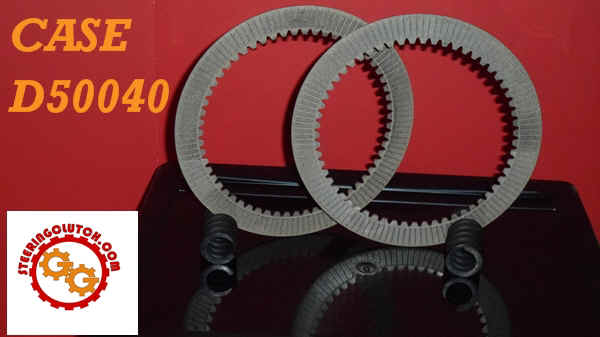

  350/350B/580C/580K D50040 Bimetallic $13.50/ea 1-208 342 8911

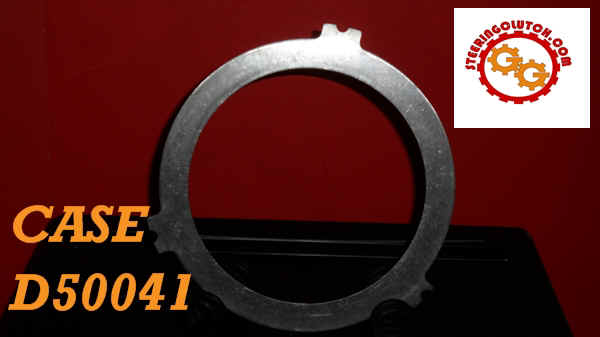

  350/350B/580C/580K D50041 Steel $7/ea 1-208 342 8911

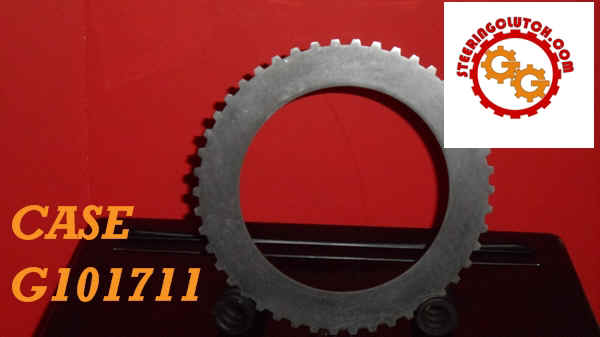

  450/850/1150/1450/ 1450B/1450C/1450D G101711 Steel $10/ea 1-208 342 8911
  450/850/1150/1450/ 1450B/1450C/1450D G102354 Bimetallic $15/ea 1-208 342 8911
  480/580B A41355 Metallic $6/ea 1-208 342 8911

Caterpillar (CAT)
Steering Clutch Discs		 D2  & 933 5H8530 Bi-Metallic $21/ea 1-208 342 8911

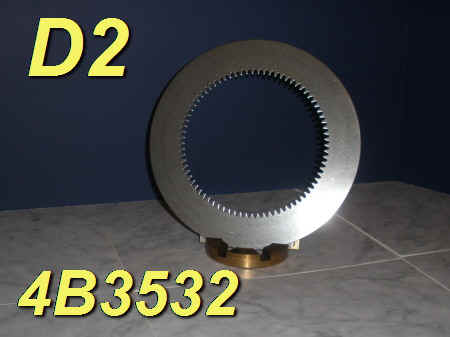

  D2 &  933 4B3532 Steel $12/ea 1-208 342 8911

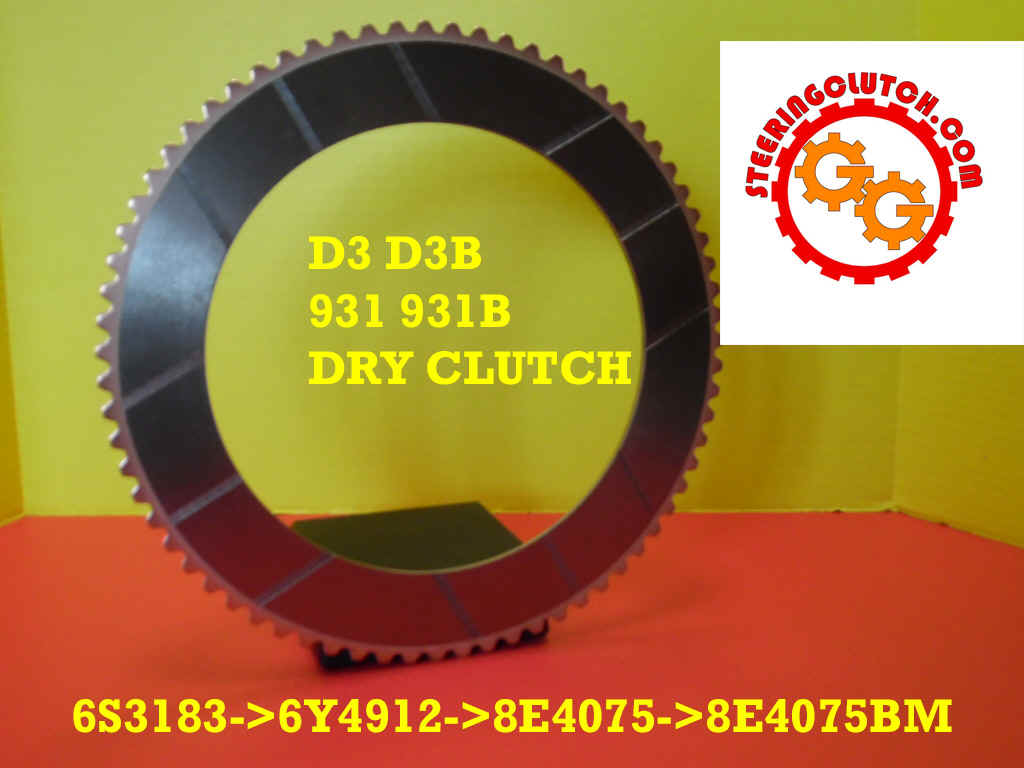

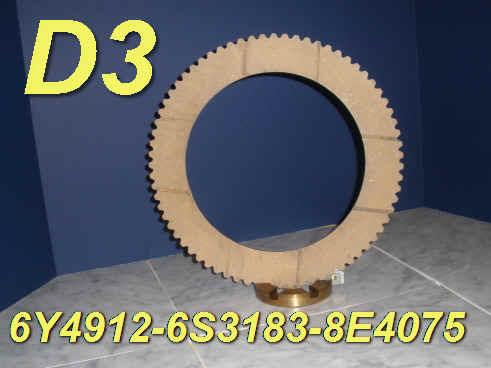

  D3 Dry Clutch 6Y4912->6S3183->8E4075 Fiber $17/ea 1-208 342 8911

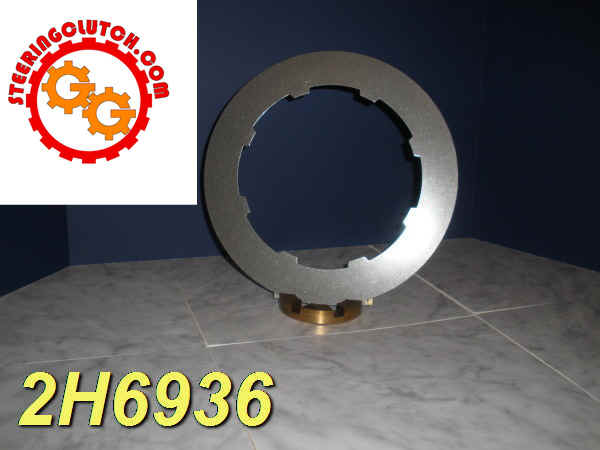

  D3 Dry Clutch 2H6936 Steel $12/ea 1-208 342 8911
  D3 WET CLUTCH 5K6817->3A2858->6Y7914 Friction Disc 16.51 1-208 342 8911
  D3 WET CLUTCH 5K8616 Steel 9.00 1-208 342 8911
  D3 WET CLUTCH 4K1333->9K5484->2Y5134->5V0593 Separator Plate 16.60 1-208 342 8911
  D4 3F5504 Bi-Metallic $18/ea 1-208 342 8911
  D4 2B8955 Steel $12.50/ea 1-208 342 8911
  D4C AND D4D 3F5504 Bi-Metallic $18/ea 1-208 342 8911
  D4C AND D4D 2H6936 Steel $12/ea 1-208 342 8911
  941 951 955 (Dry) 3F5504 Bi-Metallic $18/ea 1-208 342 8911
  941 951 955 (Dry) 2H6936 Steel $12/ea 1-208 342 8911

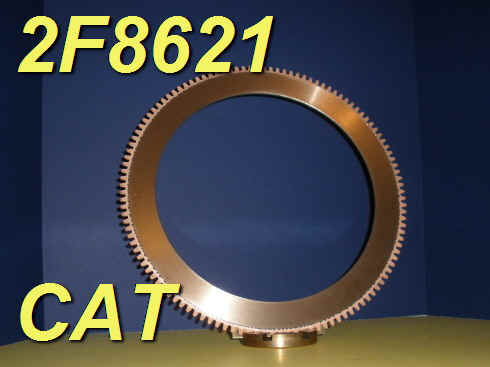

  D5/ D6/ D7 2F8621--> 6Y7160 Bimetallic $22/ea 1-208 342 8911
  D5/ D6/ D7 1A3987 Steel $12.50/ea 1-208 342 8911
  977 Track Loaders 2F8621--> 6Y7160 Bimetallic $22/ea 1-208 342 8911
  977 Track Loaders 1A3987 Steel $12.50/ea 1-208 342 8911
  D8 2U 3B7974 Bimetallic $23/ea for good used 1-208 342 8911
  D8 2U 1B9746 Steel  $15/ea for good used - $20/ea for new aftermarket 1-208 342 8911
  D8
36A/46A/66V
/76V/77V		 7H2118--> 1P6996--> 6I8916 Bimetallic $25/ea for good used 1-208 342 8911
  D8
36A/46A/66V
/76V/77V		 8F4453--> 7H2060--> 6T8886 Steel $17/ea for good used 1-208 342 8911
  D9G 2M8911 Bimetallic $25/ea for good used 1-208 342 8911
  D9G 2M8912 Steel $17/ea for good used 1-208 342 8911
CAT Cable Control Units Models 23/ 25/ 27/ 29 Rear CCUs 2F8621--> 6Y7160 Bimetallic $22/ea 1-208 342 8911
  Models 23/ 25/ 27/ 29 Rear CCUs 1A3987 Steel $12.50/ea 1-208 342 8911
  Model 24 Front CCU 3F5504 Bi-Metallic $18/ea 1-208 342 8911
  Model 24 Front CCU 2B8955 Steel $12.50/ea 1-208 342 8911
  Model 30 Front CCU 2F8621--> 6Y7160 Bimetallic $22/ea 1-208 342 8911
  Model 30 Front CCU 1A3987 Steel $12.50/ea 1-208 342 8911

International-Harvester (IH)

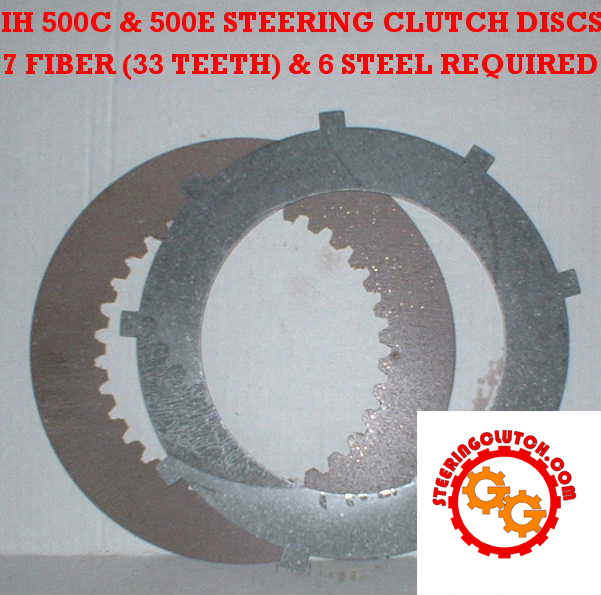

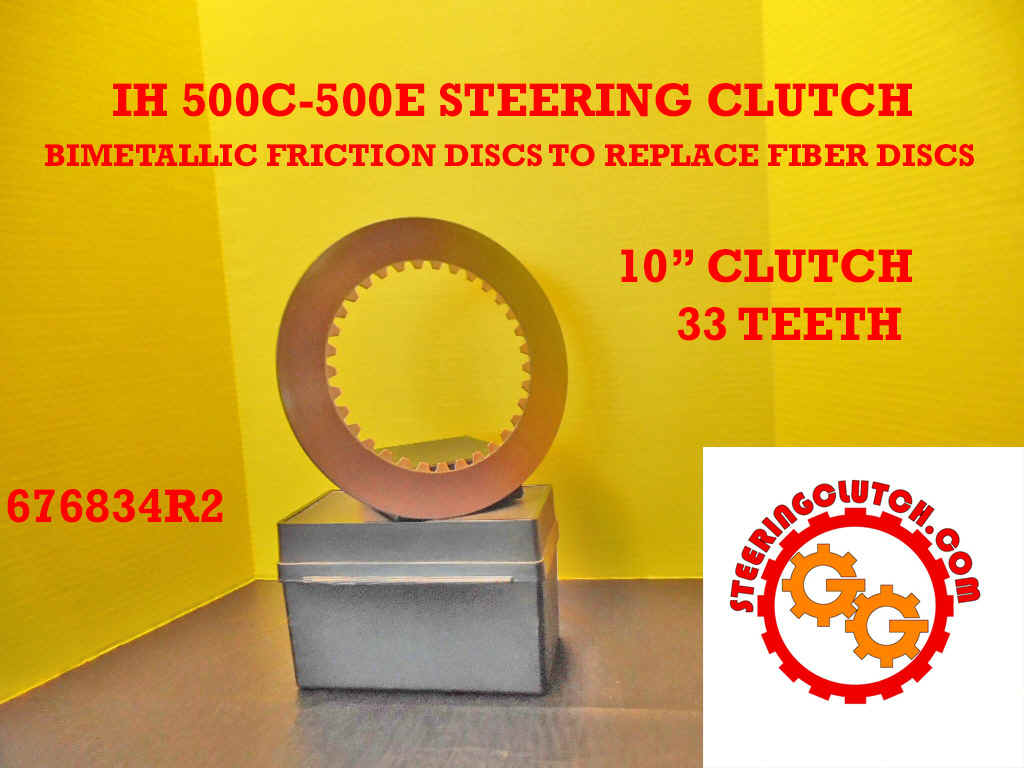

Steering Clutch Discs		 IH 500C/500E 676834R2 [676834]

10" OD

 Fiber $18/ea
  IH 500C/500E 676833R2 [676833] Steel $21/ea 1-208 342 8911

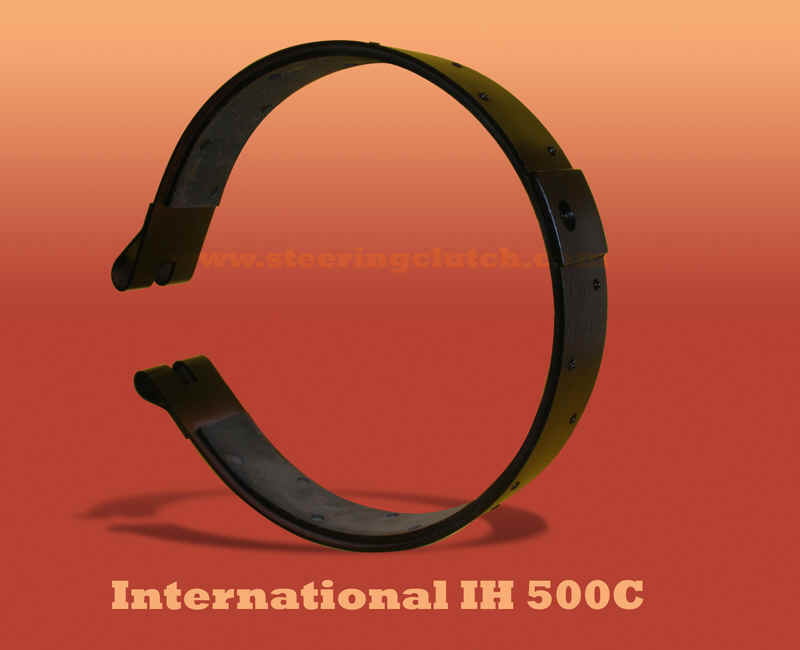

  IH 500C BRAKE BAND   IH 500C BRAKE BAND.jpg (195856 bytes) 195.00 1-208 342 8911

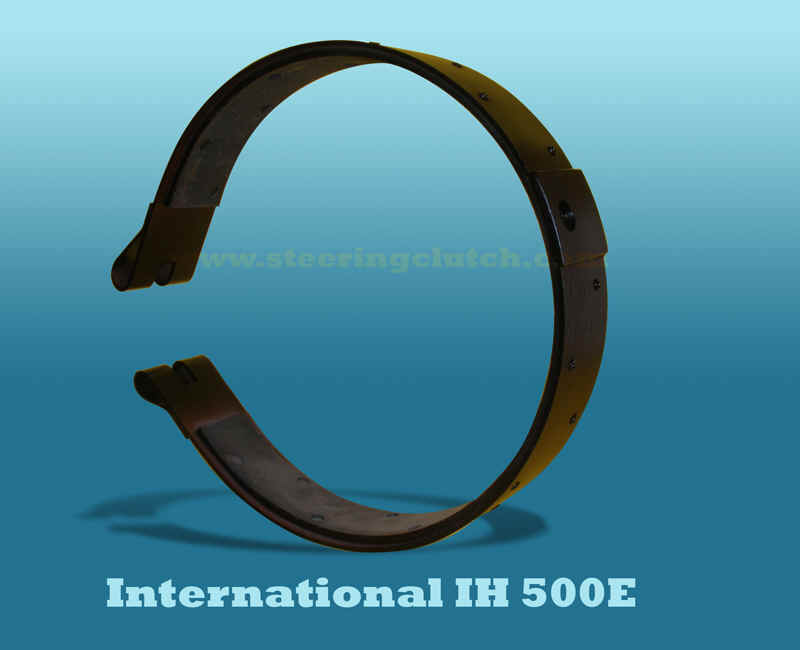

  IH 500E BRAKE BAND   IH 500E BRAKE BAND.jpg (200053 bytes) 195.00 1-208 342 8911

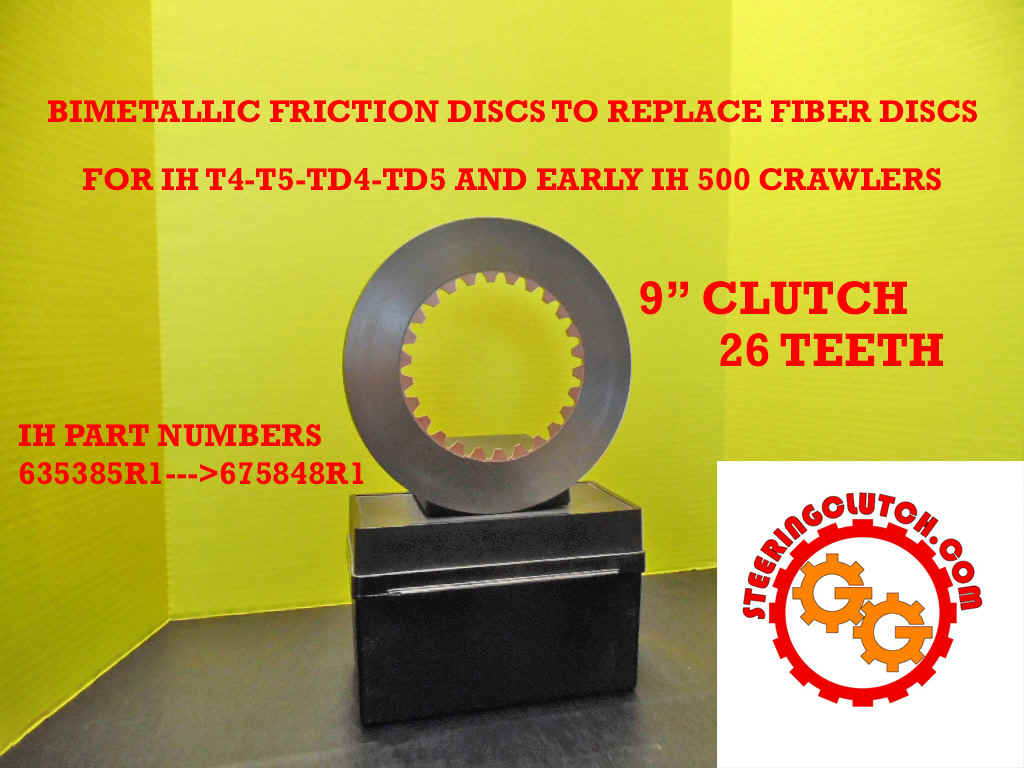

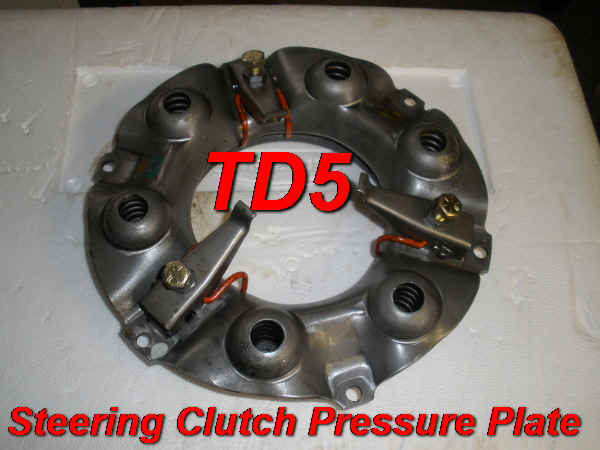

  TD4/TD5/IH500 675848R2 [675848]--> 635385R1 [635385]

9" OD

 Fiber $21/ea 1-208 342 8911
  TD4/TD5/IH500 635384R1 [635384] Steel $20/ea 1-208 342 8911
  T4-TD4 BRAKE BAND   IH_TD4_BRAKE_BAND.jpg (25229 bytes) 175.00 1-208 342 8911
  T5-TD5 BRAKE BAND   IH_TD5_BRAKE_BAND.jpg (27391 bytes) 175.00 1-208 342 8911
  IH 500 BRAKE BAND   IH 500 BRAKE BAND.jpg (203784 bytes) 175.00 1-208 342 8911
  DRESSER 165 3107553R91->320394R Bi-metallic $23/ea 1-208 342 8911
  DRESSER 165 43728D->3111754R1 Steel $24/ea 1-208 342 8911
  TD 6 43729D [43729] Fiber $17/ea 1-208 342 8911
  TD 6 320394R [320394] Bi-Metallic $23/ea 1-208 342 8911
  TD 6 43728D [43728] Steel $24/ea 1-208 342 8911
  TD 6 53518D--> 265044R91
3 PIECE BRAKE BAND		 T6TD6BRAKEBAND.JPG (109502 bytes) $200.00 1-208 342 8911
  TD 6 SERIAL# 38912->UP

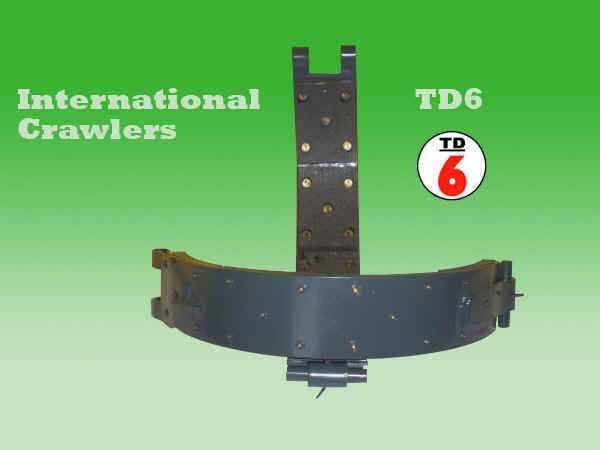

2 PIECE BRAKE BAND		 IH TD6 BRAKE BAND.jpg (126888 bytes) $200.00 1-208 342 8911
  TD61 2 PIECE BRAKE BAND IH TD61 BRAKE BAND.jpg (133170 bytes) $200.00 1-208 342 8911

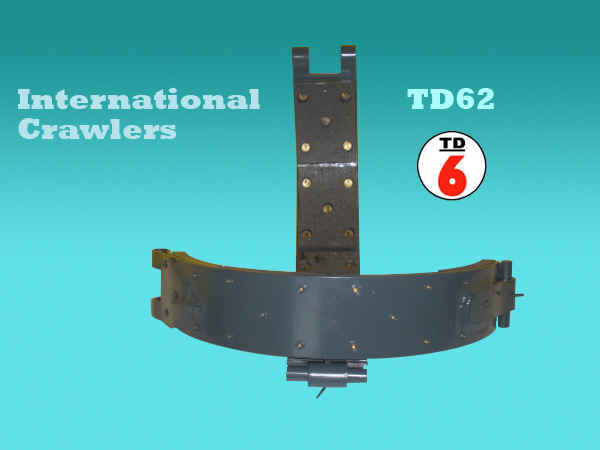

  TD62 2 PIECE BRAKE BAND IH TD62 BRAKE BAND.jpg (131542 bytes) $200.00 1-208 342 8911
  TD 9 320395R [320395] Bi-Metallic $27/ea 1-208 342 8911
  TD 9 46826D [46826] Steel $24/ea 1-208 342 8911
  TD 9 46825D [46825] Fiber $20/ea 1-208 342 8911

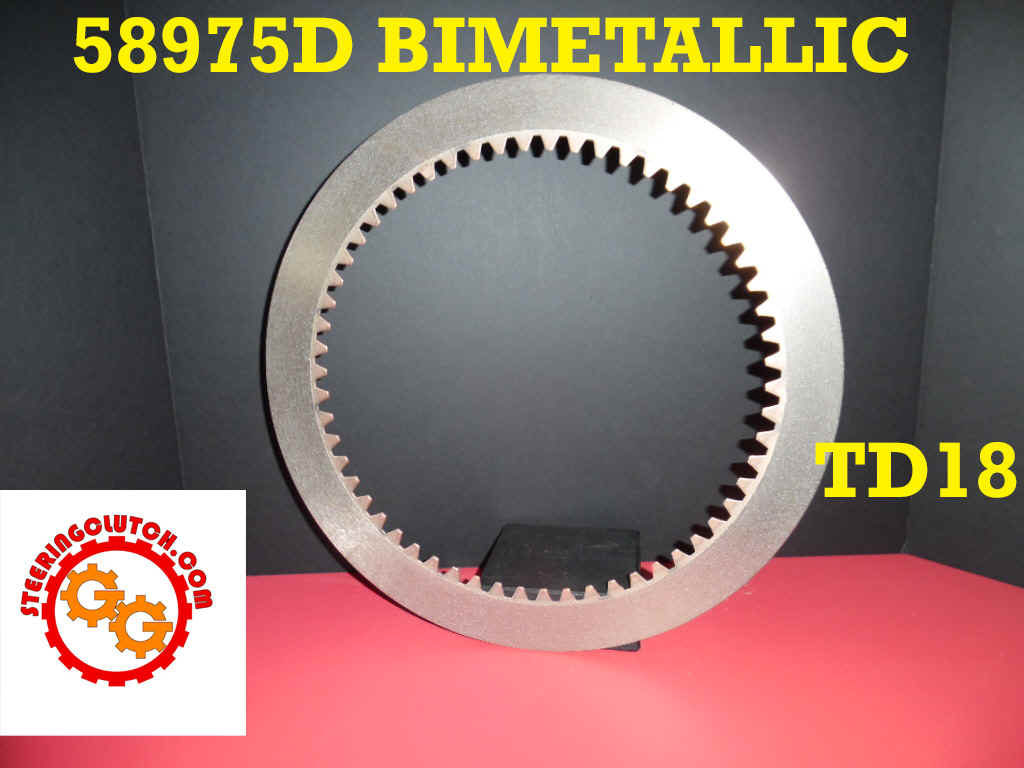

TD 14/ TD 15/ TD18/TD20

 58975D [58975] Bimetallic $29/ea 1-208 342 8911

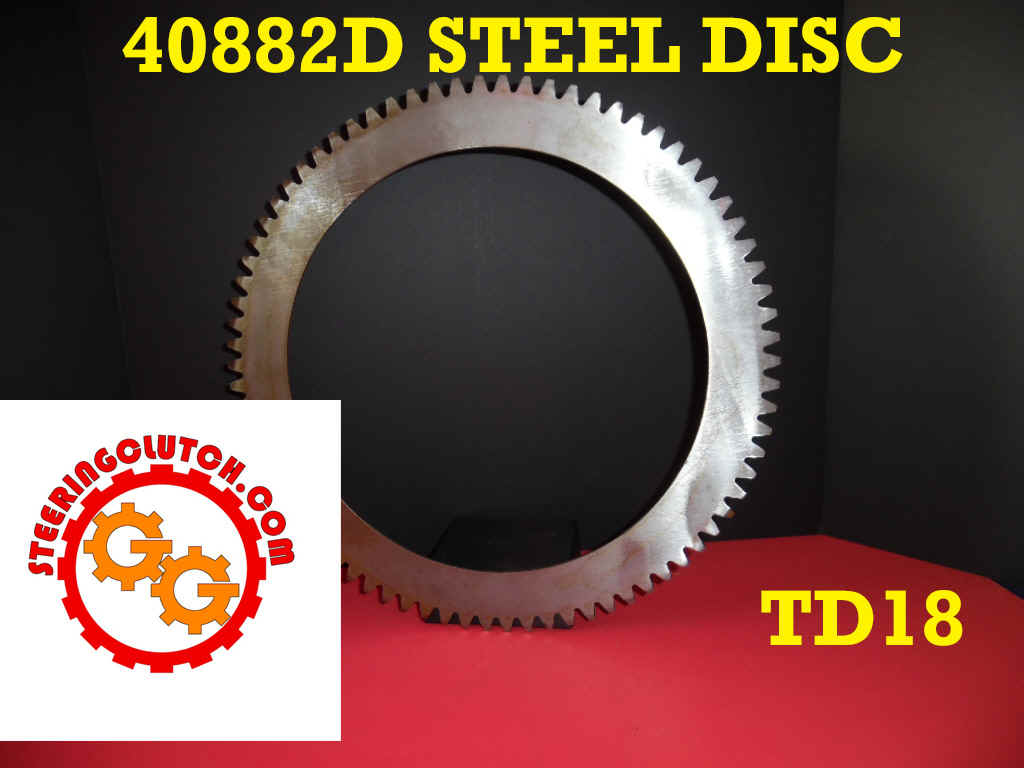

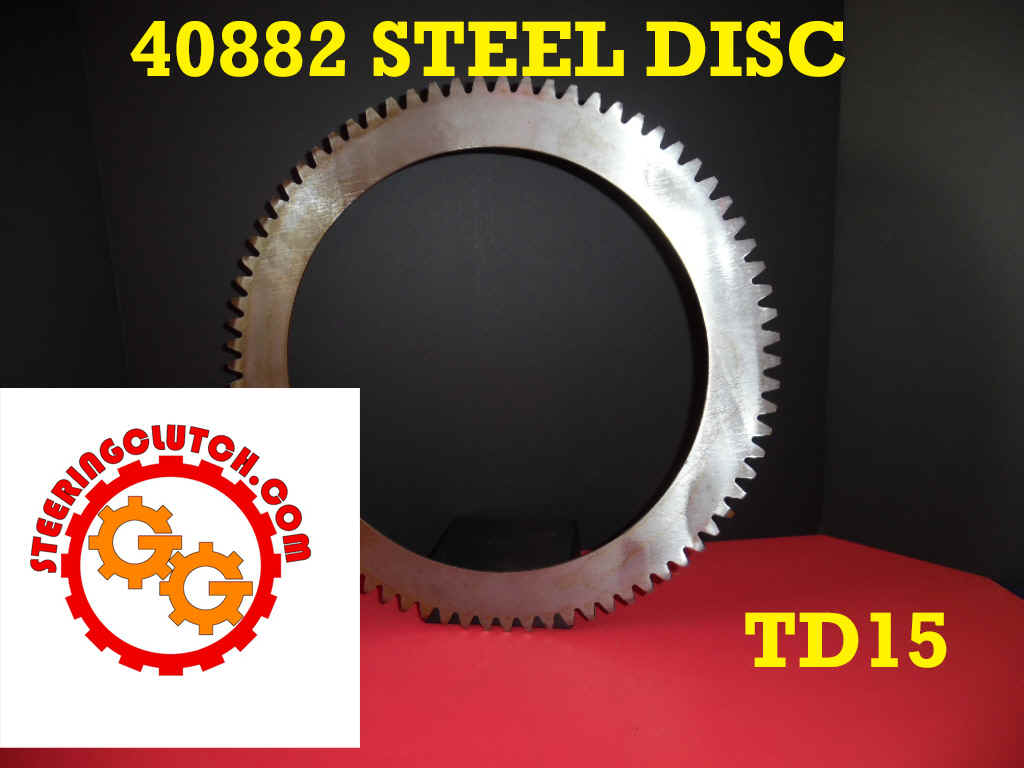

  TD 14/ TD 15/ TD18/TD20 40882D [40882] Steel $20/ea 1-208 342 8911
  TD 14/ TD 15/ TD18/TD20 40883D [40883] Fiber $20/ea 1-208 342 8911

John Deere

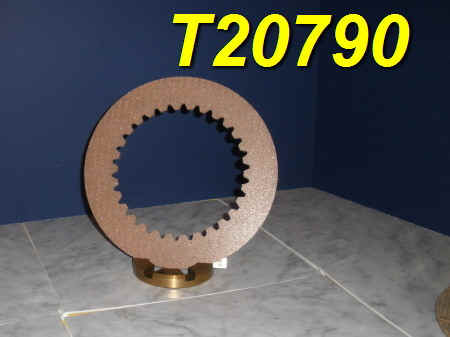

Steering Clutch Discs		 350/ 350B T20790 --> T211852 Fiber $15/ea 1-208 342 8911
  350/ 350B T21315 Steel $18/ea 1-208 342 8911
  JD350 BRAKE BAND   JD350 BRAKE BAND.jpg (881147 bytes) 185.00 1-208 342 8911
  JD350B BRAKE BAND   JD350B BRAKE BAND.jpg (836177 bytes) 185.00 1-208 342 8911

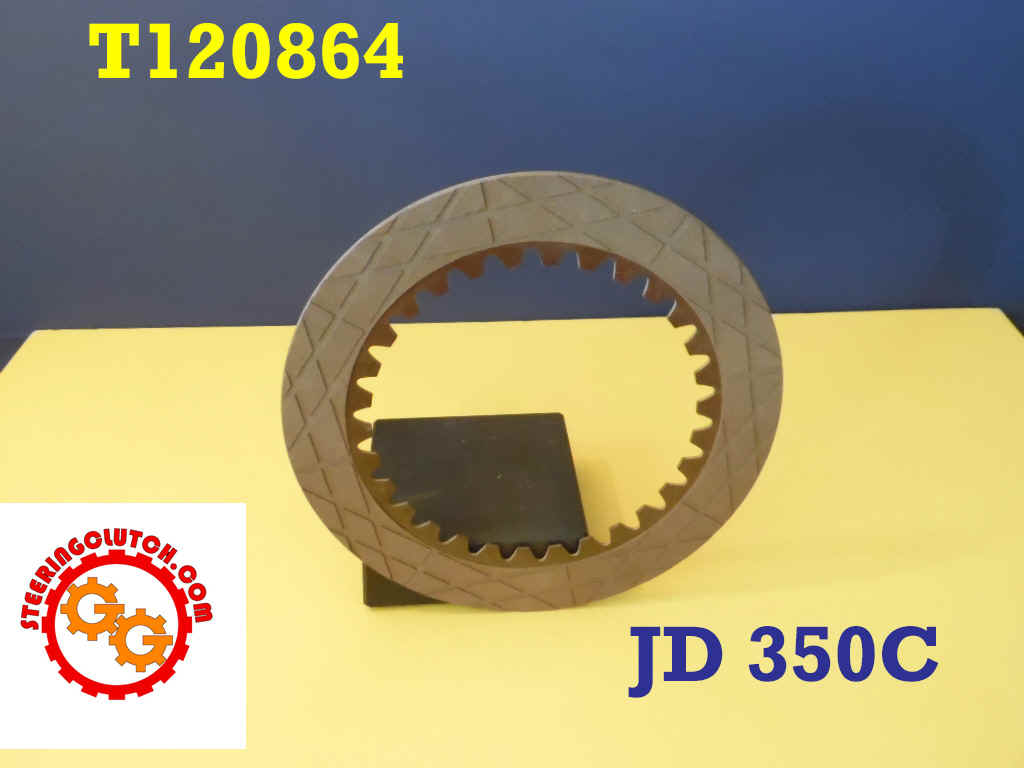

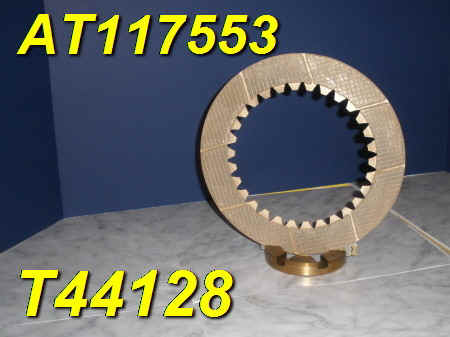

  350C/350D/350E/400G AT117553 --> T44128 Bimetallic $22/ea 1-208 342 8911
  420/430/440/1010 M3293T Fiber $15/ea 1-208 342 8911

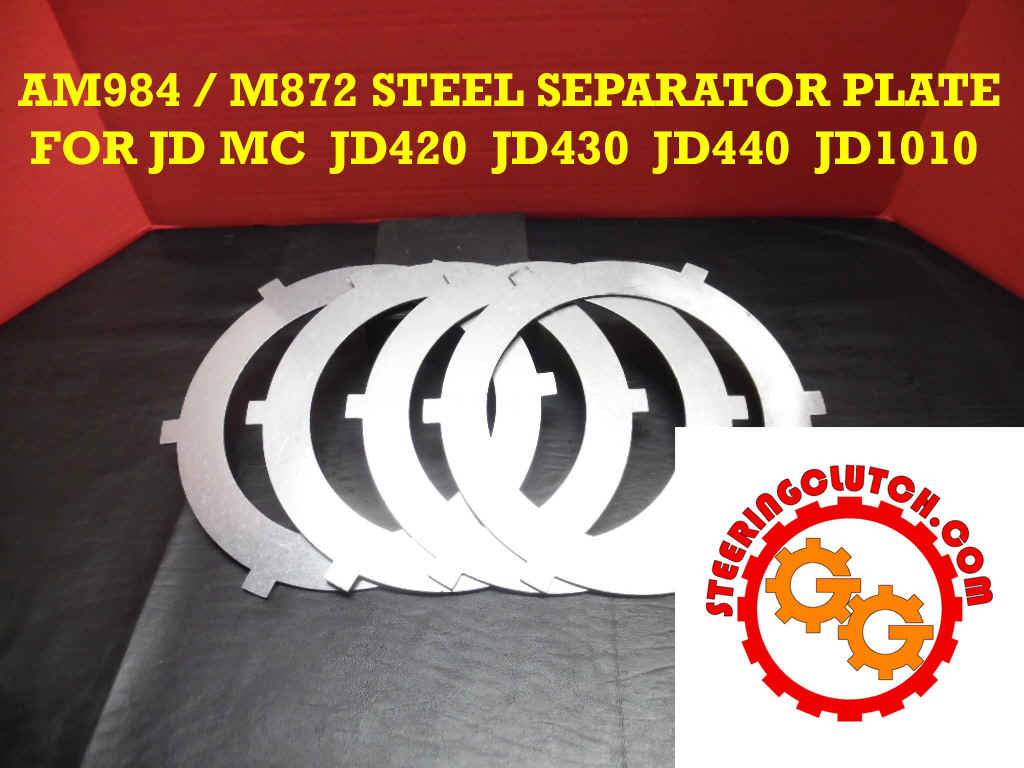

  420/430/440/1010 M872T Steel $14/ea 1-208 342 8911

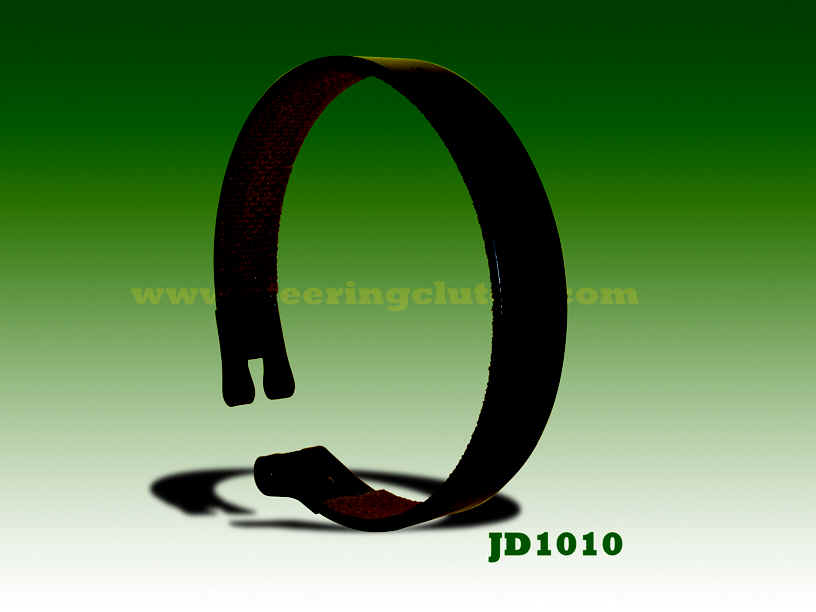

  JD1010 BRAKE BAND   JD1010 BRAKE BAND.jpg (893867 bytes) 185.00 1-208 342 8911

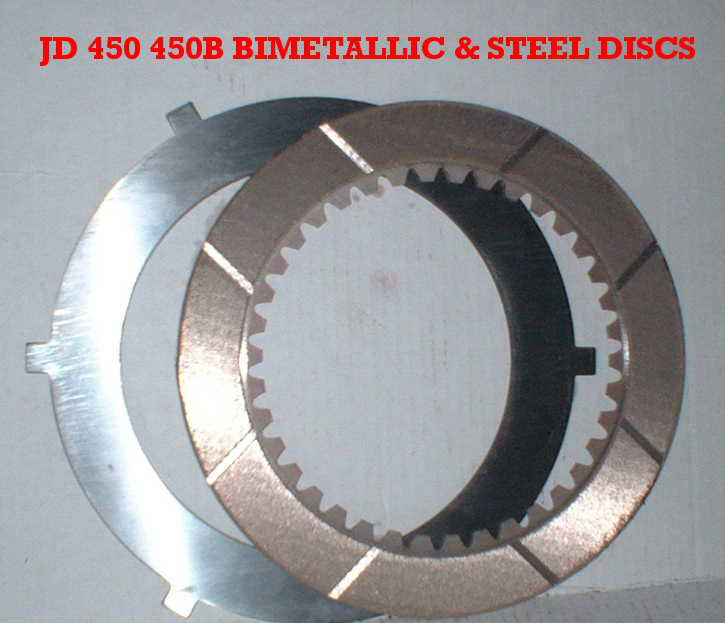

  450/ 450B/450C/450D/ 450E/455E/550/555B T31732 Steel $17/ea 1-208 342 8911
  450/ 450B T20716 Fiber $15/ea 1-208 342 8911

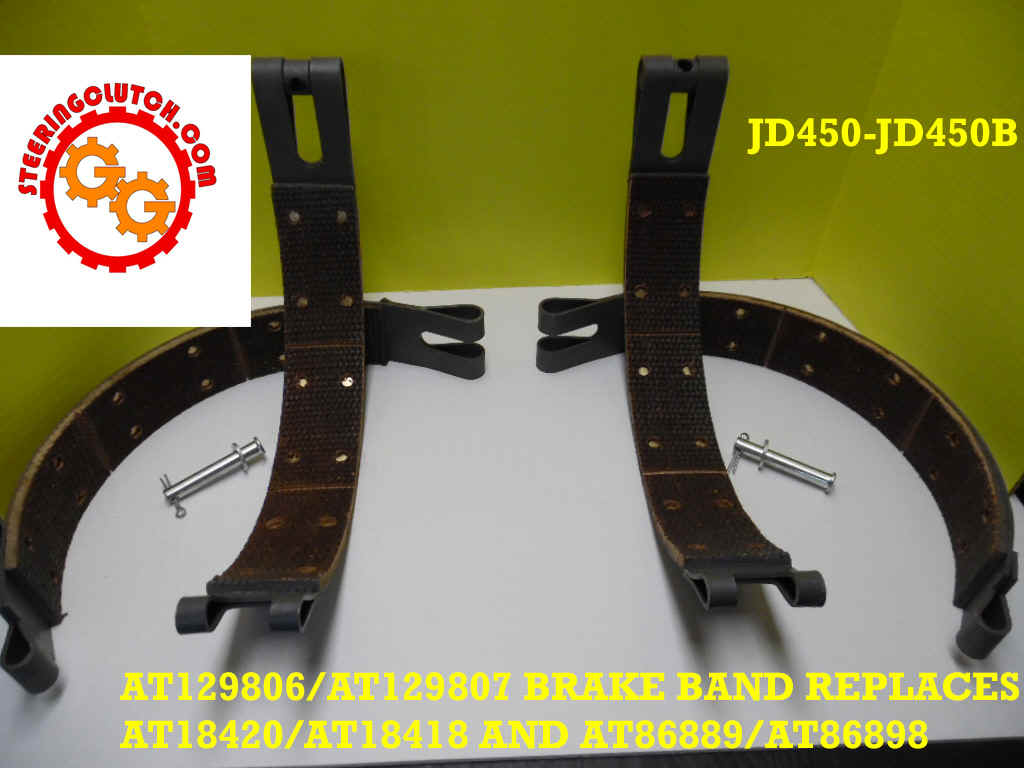

  JD450 BRAKE BAND   JD450 BRAKE BAND-1.jpg (144143 bytes) 195.00 1-208 342 8911
  JD450B BRAKE BAND   JD450B BRAKE BAND-1.jpg (158469 bytes) 195.00 1-208 342 8911
  450C/450D/450E/ 455E/550/555B T44129 Bimetallic $33/ea 1-208 342 8911

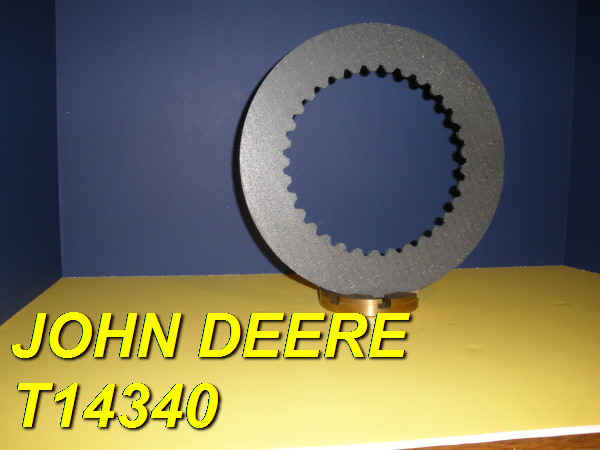

  2010 T14340 Fiber $16/ea 1-208 342 8911

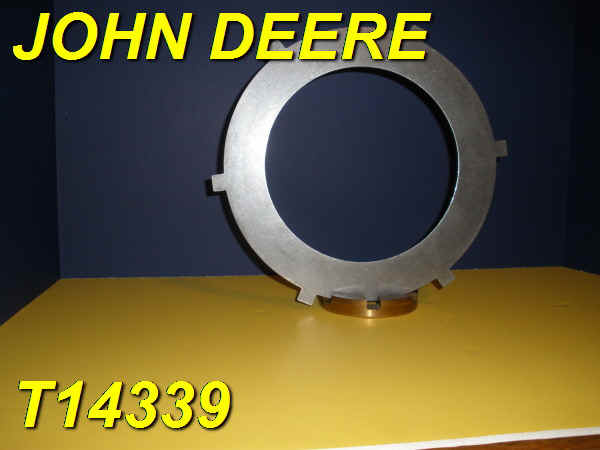

  2010 T14339 Steel $16/ea 1-208 342 8911

KOMATSU

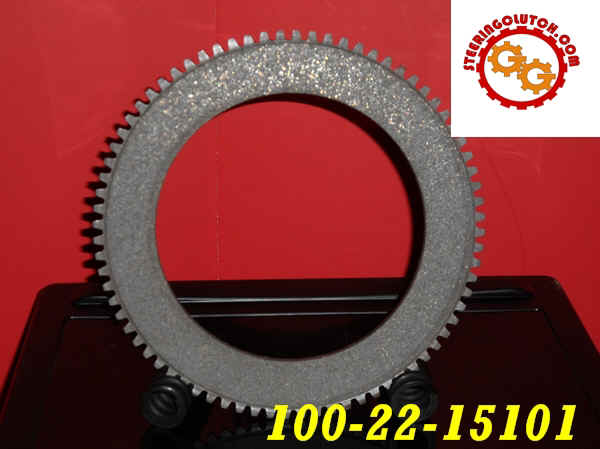

Steering Clutch Discs		 D20 D21
EARLY		 100-22-15101 Friction
24.00		 1-208 342 8911

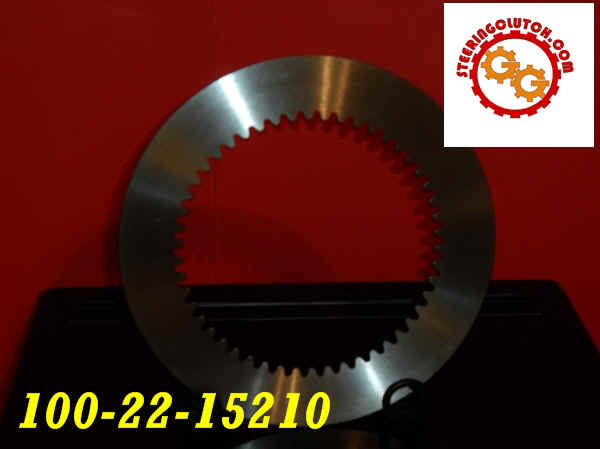

  D20 D21
EARLY		 100-22-15210 Steel
8.40		 1-208 342 8911
  D20 D21
LATE		 104-22-3331 Friction
24.00		 1-208 342 8911
  D20 D21

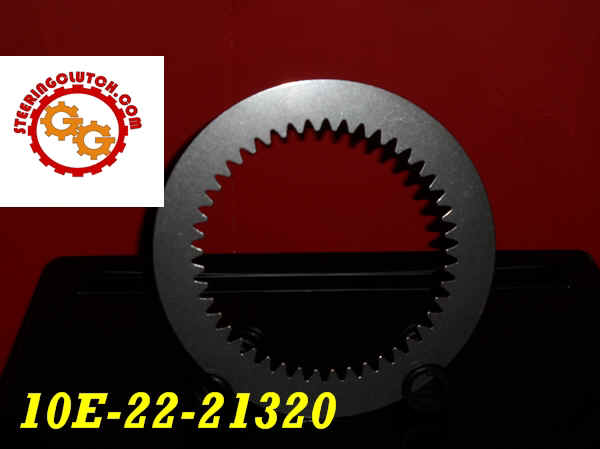

LATE		 10E-22-21320 Steel
8.40		 1-208 342 8911
  D20 D21

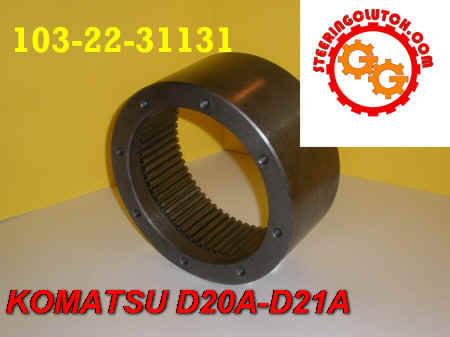

LATE		 BRAKE DRUM KOMATSU_D20A_D21A_BRAKE_DRUM.JPG (11904 bytes) 275.00 1-208 342 8911
  D30 D31 110-22-11332 Friction
29.00		 1-208 342 8911
  D30 D31 110-22-11320 Steel
18.00		 1-208 342 8911

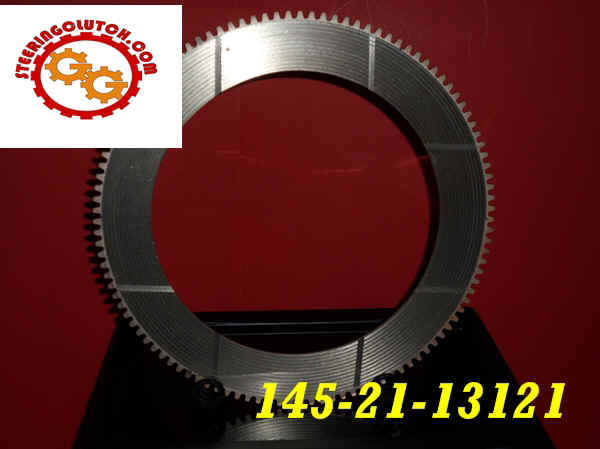

  D60A D65A D65P 145-21-13121 Friction
29.70		 1-208 342 8911

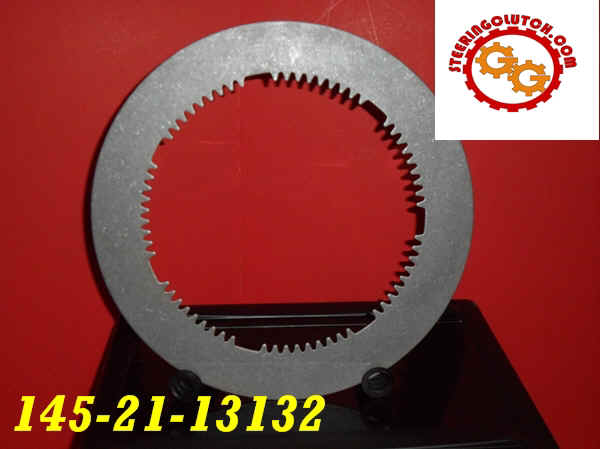

  D60A D65A D65P 145-21-13132 Steel
19.20		 1-208 342 8911

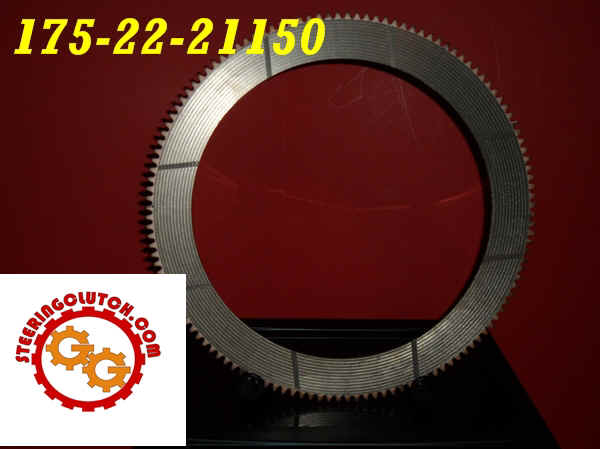

  D150A D155A 175-22-21150 Friction
34.60
 		 1-208 342 8911

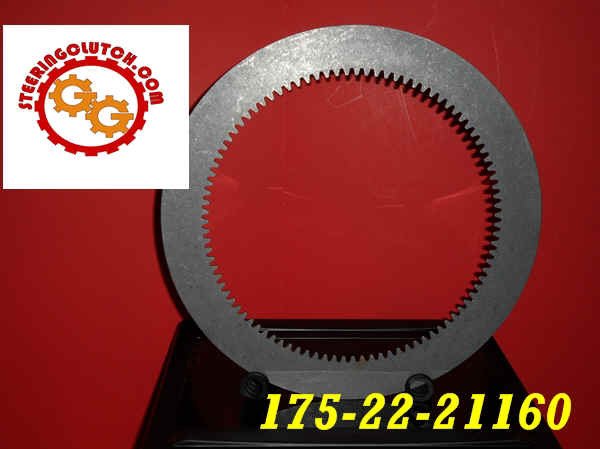

  D150A D155A 175-22-21160 Steel
22.10		 1-208 342 8911

Mitsubishi
Steering Clutch Discs		 BD2F/BD2G/BD2G-II/BD2H/BD2J 5883124600 --> 5533103200 Fiber $31/ea 1-208 342 8911
  BD2F/BD2G/BD2G-II/BD2H/BD2J 5813112600 --> 5813112602 Steel $24/ea 1-208 342 8911

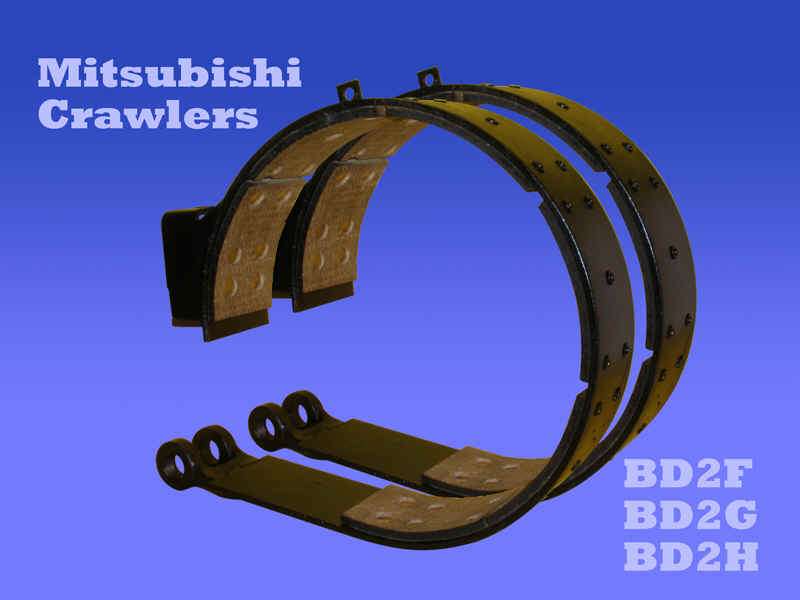

  MITSUBISHI BRAKE BAND   MITSUBISHI BD2 BRAKE BAND.jpg (281849 bytes) $245.00 1-208 342 8911


Steering Clutch Instructions
Email  webmaster@tractorparts.com for orders & questions about our equipment

FLYWHEEL CLUTCH DISCS

Tractor Make Model
(Click link for more information)		 Part Number Material Cost* Call to Order

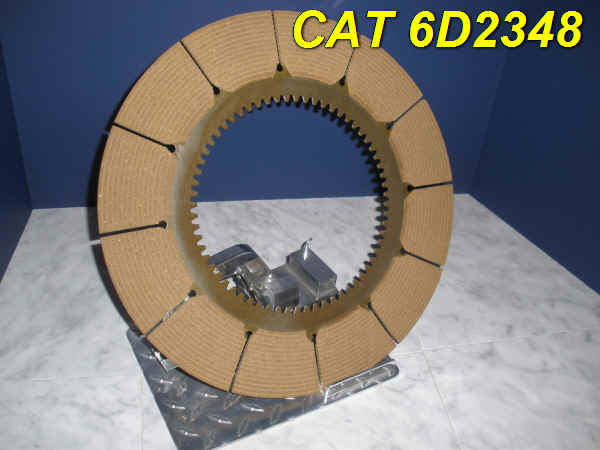

Caterpillar (CAT) #12 / #12E Wet Flywheel Clutch Lined Disc 6D2348 --> 5H0048 - New $58/ea 1-208 342 8911

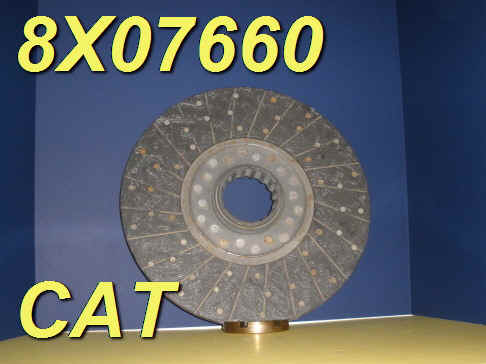

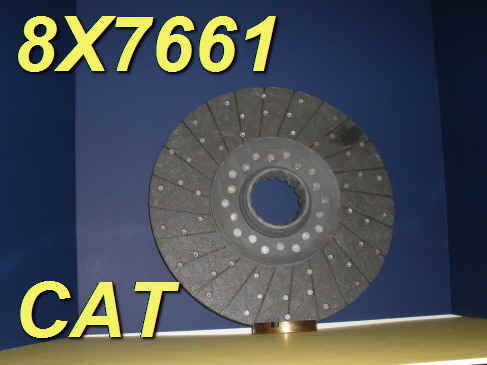

  #12 / #112 Dry Clutch Lined Disc 3F9618 --> 1H9899 --> 2D0377 --> 8X7660 Metallic New $185/ea 1-208 342 8911
  #12 / #112 Dry Clutch Lined Disc 3F8844 --> 1H9898 --> 2D0378 --> 8X7661 Metallic (with slinger) New $185/ea 1-208 342 8911
  D2 Flywheel Center Clutch Disc 5F7434 --> 8B9392 --> 6Y7162 Fiber New $145/ea 1-208 342 8911

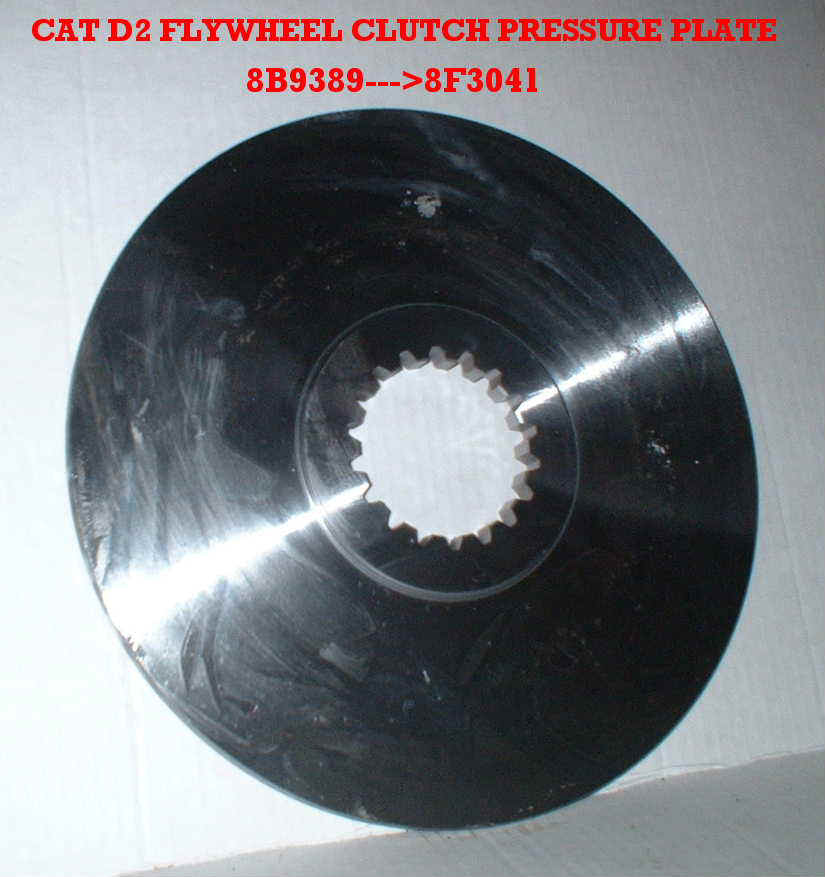

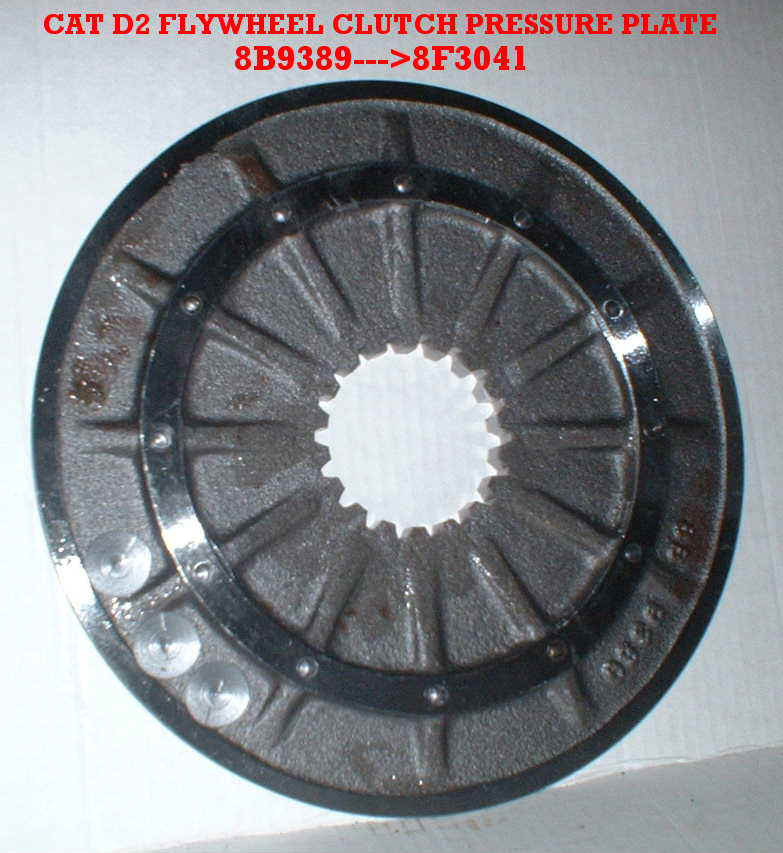

  D2 Flywheel Clutch Pressure plate 8B9389-->8F3041 Cast New $230.00 1-208 342 8911

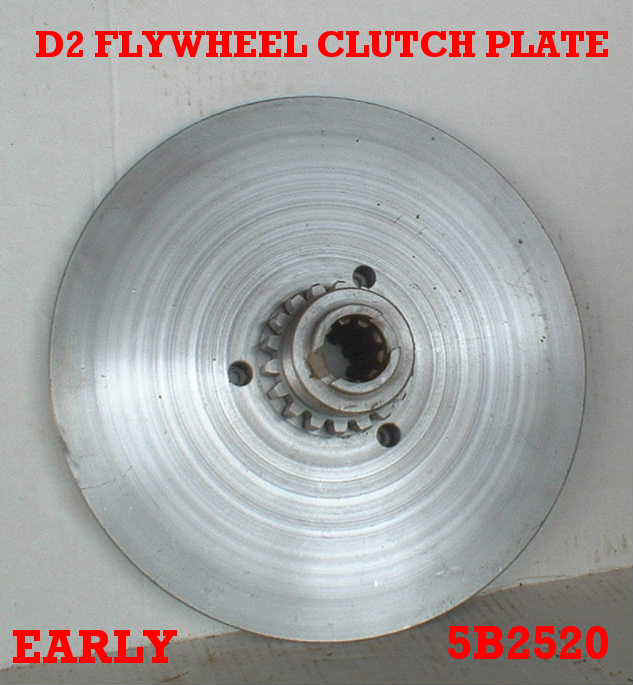

  D2 Geared Clutch Plate 5B2520 Cast New $255.00 1-208 342 8911

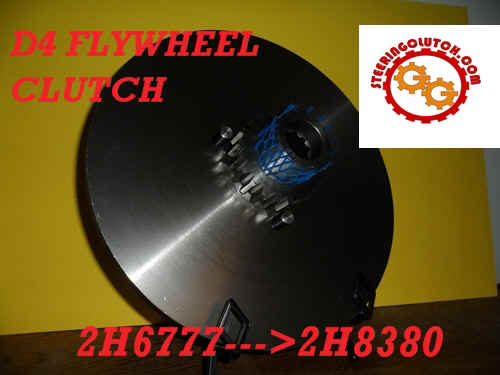

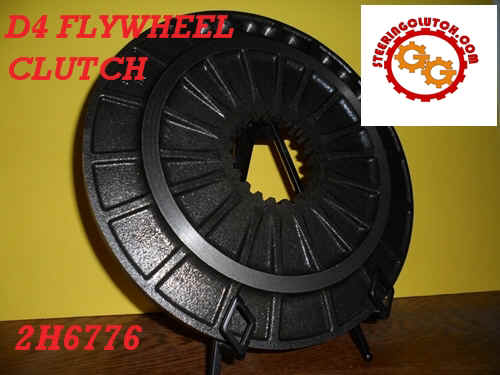

  D4 Flywheel Center Clutch Disc 8B9188 --> 5F7048 --> 6Y7161 -->1177197 Fiber New $135/ea 1-208 342 8911
  D6 / D6B Wet Flywheel Clutch Disc 1S8183 --> 2H6121 --> 4H2923 --> 4S9074 - New $64/ea 1-208 342 8911

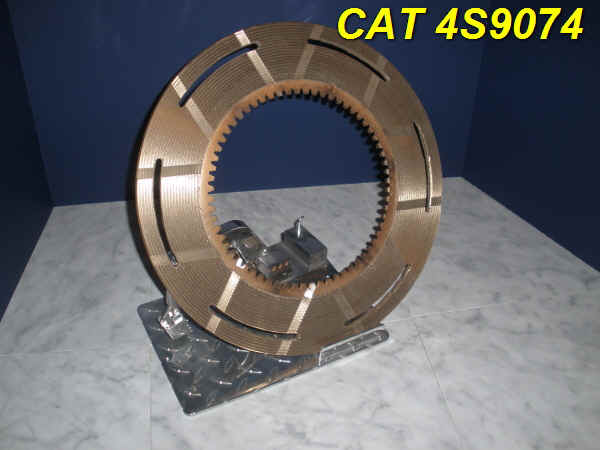

  D7 / D7E / D8 / D8H Wet Flywheel Clutch Disc 4S9073 --> 4H2922 - New $134/ea 1-208 342 8911
  D8 2U Dry Flywheel Clutch Lining 7F3602 - New $221/ea 1-208 342 8911
  D8 2U Dry Flywheel Clutch Lining 7F2952 - New $187/ea 1-208 342 8911
International-Harvester (IH) TD 6 Flywheel Clutch Disc 303764R91 [303764]--> 277415R91 [277415]--> 273259R91 [273259] IH_TD6_TD61_TD62_FLYWHEEL_CLUTCH_DISC.JPG (68650 bytes) New $147/ea 1-208 342 8911
  TD 9 Flywheel Clutch Disc 303766R91 [303766]--> 273258R91 [273258]--> 277421R91 [277421]--> 277675R91 [277675] IH TD9 FLYWHEEL CLUTCH DISC.JPG (46090 bytes) New $174/ea 1-208 342 8911
  TD 14 Flywheel Clutch Disc 258560R93 [258560]--> 67846DC [67846] IH TD14 TD14A FLYWHEEL CLUTCH DISC.JPG (49929 bytes) New $189/ea 1-208 342 8911

Email  webmaster@tractorparts.com for orders & questions about our equipment

BRAKE DRUMS

Tractor Make Model
(Click link for more information)		 Part Number Material Cost* CALL to Order
Caterpillar (CAT) D2 3J 5J 4U 5U Brake Drum 4B3688 5B3281 4B7356 CAST New $285 1-208 342 8911
  D2 3J 5J 4U 5U Inner Driving Drum 5B3270 5B3179 8H6843 8H6540 CAST New $255 1-208 342 8911
  D4D Outer Brake Drum 7K8237 CAST New $160/ea 1-208 342 8911
  D5/ D6/ D7 Outer Brake Drum 7B5088 --> 6B4189--> 2234813 CAST New $185/ea 1-208 342 8911

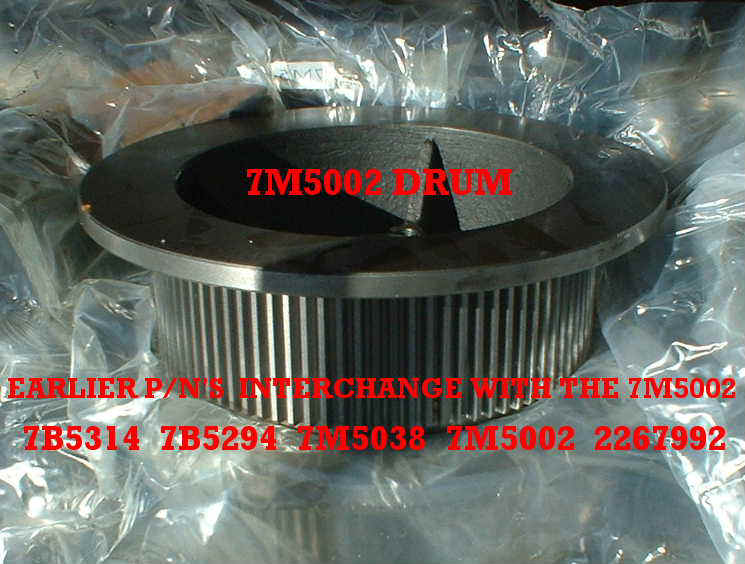

  D5/ D6/ Inner Driving Drum 7B5314 --> 7M5038 --> 7M5002 --> 7B5294-->2267922 CAST New $190/ea 1-208 342 8911
  D6C Outer Brake Drum 2S7603 --> 3T1898 CAST New $175/ea 1-208 342 8911
  D6C Inner Driving Drum 3T1899 CAST New $185/ea 1-208 342 8911
  D7E Outer Brake Drum 5M1998 CAST New $225/ea 1-208 342 8911
  D8H Outer Brake Drum 8H2434 --> 7H2518 CAST New $225/ea 1-208 342 8911

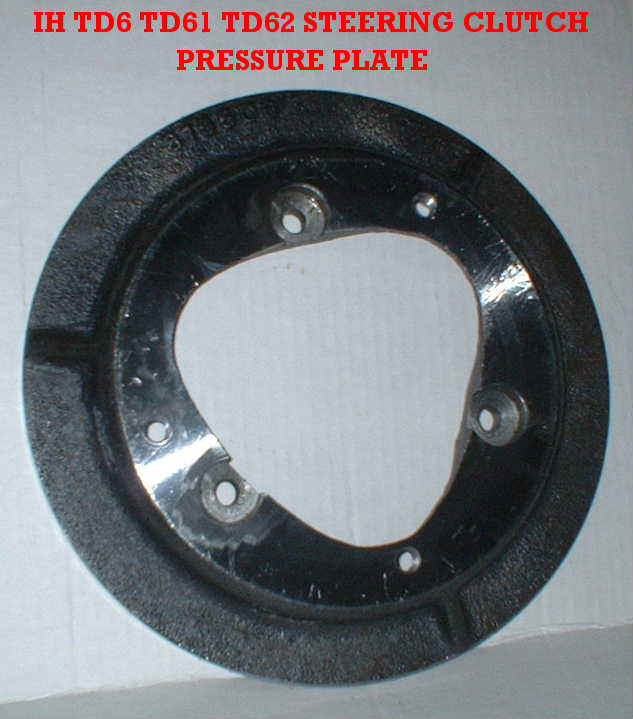

INTERNATIONAL TD6, TD61, TD62   Steering Clutch Pressure Plate 8155D 8155DB IH TD6 STEERING CLUTCH PRESSURE PLATE.JPG (44187 bytes) New 220.00 1-208 342 8911
  IH DRESSER 165
Steering Clutch Pressure Plate		 8155D 8155DB IH TD6 STEERING CLUTCH PRESSURE PLATE.JPG (44187 bytes) New 220.00 1-208 342 8911

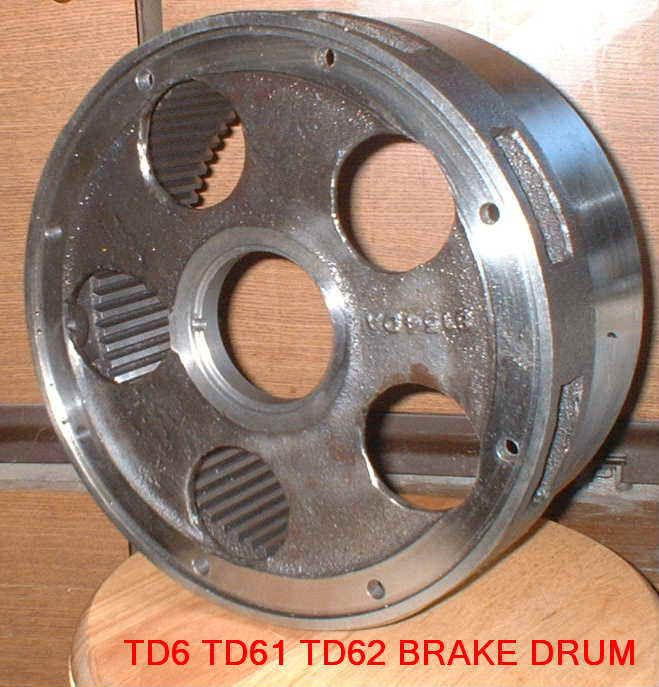

  TD6, TD61, TD62 Steering Clutch Brake Drum 8154D 8154DA TD6 TD61 TD62 BRAKE DRUM.JPG (61982 bytes) New 230.00 1-208 342 8911
KOMATSU
D20 D21
LATE		 BRAKE DRUM KOMATSU_D20A_D21A_BRAKE_DRUM.JPG (11904 bytes) 275.00 1-208 342 8911
Mitsubishi BD2F/BD2G/BD2G-II/BD2H/BD2J
BRAKE DRUM		 58131-02400 MITSUBISHI_BD2_SERIES_BRAKE_DRUM_small.JPG (2424 bytes) New $275.00 1-208 342 8911
  BD2F/BD2G/BD2G-II/BD2H/BD2J
BRAKE BANDS		   MITSUBISHIBRAKEBAND_small.jpg (1893 bytes) NEW $245.00 1-208 342 8911

Email  webmaster@tractorparts.com for orders & questions about our equipment


Contact John Parks at 1-208-342-8911
General Gear and Machine, 733 Desert Wind Rd., Boise, Idaho, 83716  US
*All prices are in USD & do not include shipping
All prices are for new aftermarket unless stated otherwise
All OEM part numbers are for references only

Home  |  Clutch Discs  |  Crawler ID Tags  |  Inventory Index  |  Inventory Search
